2017 MAZDA MODEL CX-5 display

▼Playback
Select the icon on the home screen with a CD inserted and display the Ent
ertainment
screen. When
is selected, the following icons are indicated in the lower pa rt of the centre
display.
Icon Function
Displays the Entertainment menu. Use to switch to a different audio source.
(Music CD)
Displays the track list of the CD.
Select the track you want to play.
(MP3/WMA/AAC CD)
Displays the top level folder/file list.
Select the folder you want to select.
The files in the selected folder are displayed.
Select the file you want to play.
(MP3/WMA/AAC CDs only)
Displays the file list of the folder currently being played.
Select the song you want to listen to.
(Music CD)
Replays the song currently being played repeatedly.
Select it again to cancel.
(MP3/WMA/AAC CD)
Replays the song currently being played repeatedly.
When selected again, the songs in the folder are played repeate dly.
Select it again to cancel.
(Music CD)
Plays songs on the CD in random order.
Select it again to cancel.
(MP3/WMA/AAC CD)
Plays songs in the folder in random order.
When selected again, the songs o n the CD are played in random order.
Select it again to cancel.
(Music CD)
The beginning of each track on a CD is played to aid in searching for a desired track.
When selected again, the operati on is cancelled and the song currently being played con-
tinues.
(MP3/WMA/AAC CD)
The beginning of each track in a folder is played to aid in searching for a desired track.
When selected again, the operati on is cancelled and the song currently being played con-
tinues.

If the audio is operated during scan-play, the track being scan -played is played normally.
Then, the audio opera tion is performed.
Interior Features
Audio Set [Type B (touchscreen)]
5-84
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

IconFunction
If selected within a few seconds of a song which has started to play, the previous song is
selected.
If more than a few seconds have e lapsed after a song has begun to play, the song currently
being played is replayed from the beginning.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.
Plays a CD. When selected again, playback is temporarily stopped.
Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your hand from the icon or the
commander knob.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-76.
Example of use (When searching for a
song from the to p level of an
MP3/WMA/AAC CD)
1. Select the
icon to display the
folder/file list at the top level.
2. When the folder is selected, folders/file lists in the folder are displayed.
3. Select the desired song.
NOTE
•Select to move to a folder one level
higher.
•The appearance of the repeat and
shuffle icons changes depending on the
type of operation in which the function
is used.
Interior Features
Audio Set [Type B (touchscreen)]
5-85
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Operating the Digital Versatile Disc (DVD) Player*
DVD slot DVD eject button
TypePlayable data
DVD VIDEO/
DVD-VR player DVD VIDEO/DVD-VR
file
Inserting the DVD
Insert the DVD into the
slot, label-side up.
The DVD is inserted automatically and the
top menu screen of the DVD disc and
controller are displayed.
NOTE
There will be a short lapse before play
begins while the player reads the digital
signals on the DVD.
Ejecting the DVD
Press the DVD eject button () to eject the
DVD.
Interior Features
Audio Set [Type B (touchscreen)]
5-86*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Playback
Select the icon on the home screen with a DVD inserted and display the Entertainment
screen. When
is selected, the DVD top menu sc reen and the controller are displayed.
When starting the playback by operating the controller, the following icons are displayed at
the bottom of the screen.
Icon Function
Displays the Entertainment menu. Use to switch to a different a udio source.
Returns to the DVD menu screen.
Returns to the beginning of the previous chapter if the icon is selected within a few sec-
onds after the playback of the current chapter has started.
Returns to the beginning of the current chapter if the icon is selected a few seconds after
the playback of the current chapter has started.
Long-press during playb ack to fast reverse.
Long-press during pause to play in reverse in slow motion. It s tops when you remove your
hand from the icon or the commander knob.
Plays the DVD. Select again to pause the playback.
Advances to the beginnin g of the next chapter.
Long-press during playback to fast forward.
Long-press during pause to play i n slow motion. It stops when you remove your hand
from the icon or the commander knob.
Changes camera angle each time th e icon is selected (usable DVDs only).
Changes display/non-display of the sub titles (usable DVDs only ).
Changes the parental lock setting.
Parental lock level and PIN code setting changes are possible.
Pauses the playback and displ ays the DVD setting screen.
Select
to adjust the sound quality.
Refer to Volume/Display/Sound Controls on page 5-76.
Select
to change the aspect ratio (horizontal to vertical ratio of th e screen).
16:9 Widescreen, 4:3 Letterbox, and 4:3 Pan-scan are available.
Adjusts the screen.
Displays the video setting scr een at the bottom of the screen.
Interior Features
Audio Set [Type B (touchscreen)]
5-87
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
•For safety reasons, images are not
displayed while the vehicle is being
driven.
•Slide the of the controller to move
the controller.
•If the mode is switched to DVD mode
once the DVD playback has stopped, the
playback restarts without displaying the
DVD menu screen.
▼ Setting DVD functions
Sound quality and aspect ratio settings can
be performed.
Setting sound quality
1. Select the
icon.
2. Select
to adjust the sound
quality.
Refer to Volume/Display/Sound
Controls on page 5-76.
Setting aspect ratio
1. Select the
icon.
2. Select
.
3. Select a desired aspect ratio.
▼ Setting image quality
Brightness, contrast, tint, colour density
can be adjusted.
When the
icon is selected, the following
tabs are displayed at the bottom of the
screen.
Tab Function
Screen brightness can be ad-
justed using the slider.
Screen contrast can be ad-
justed using the slider.
Colour tone of the screen
can be adjusted using the
slider.
TabFunction
Screen colour can be adjust-
ed using the slider.
Screen settings can be reset
to initial values.
Select
.
Interior Features
Audio Set [Type B (touchscreen)]
5-88
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

How to use AUX mode
▼Playback
1. Select the icon on the home screen to display the Entertainment screen.
2. Select
to switch to the AUX mode. The following icons are displayed i n the lower
part of the centre display.
Icon Function
Displays the Entertainment menu. Use to switch to a different a udio source.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-76.
NOTE
•If a device is not connected to the auxiliary jack, the mode does not switch to the AUX
mode.
•Adjust the audio volume using the portable audio device, commander switch, or audio
control switch.
•Audio adjustments can also be made using the portable audio device's volume setting.
•If the connection plug is pulled out from the auxiliary jack while in AUX mode, noise may
occur.
Interior Features
Audio Set [Type B (touchscreen)]
5-89
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

How to use USB mode
TypePlayable data
USB mode MP3/WMA/AAC/OGG file
This unit does not support a USB 3.0 device. In addition, other devices may not be
supported depending on the model or OS version.
USB devices formatted to FAT32 are supported (USB devices forma tted to other formats
such as NTFS are not supported).
▼ Playback
1. Select the icon on the home screen to display the Entertainment screen.
2. Select
or to switch the USB mode. The following icons are displayed in t he
lower part of the centre display.
Icon Function
Displays the Entertainment menu. Use to switch to a different audio source.
Category list is displayed.
Current track list is displayed.
Select a desired track to play it.
Plays the current track repeatedly.
Select it again to play the tracks in the current track list repeatedly.
When selected again, the function is cancelled.
Tracks in the current track list are played randomly.
Select it again to cancel.
Starts playing a track similar to the current track using Grace note®'s More Like This™.
Select the desired song from th e category list to cancel More Like This™.
If selected within a few seconds f rom the beginning of a song which has started to play,
the previous song is selected.
If more than a few seconds have e lapsed, the song currently being played is replayed from
the beginning.
Long-press to fast reverse. It st ops when you remove your hand from the icon or the
commander knob.
Track is played. When selected again, playback is temporarily s topped.
Advances to the beginning of the next song.
Long-press to fast forward.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-76.
Interior Features
Audio Set [Type B (touchscreen)]
5-90
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

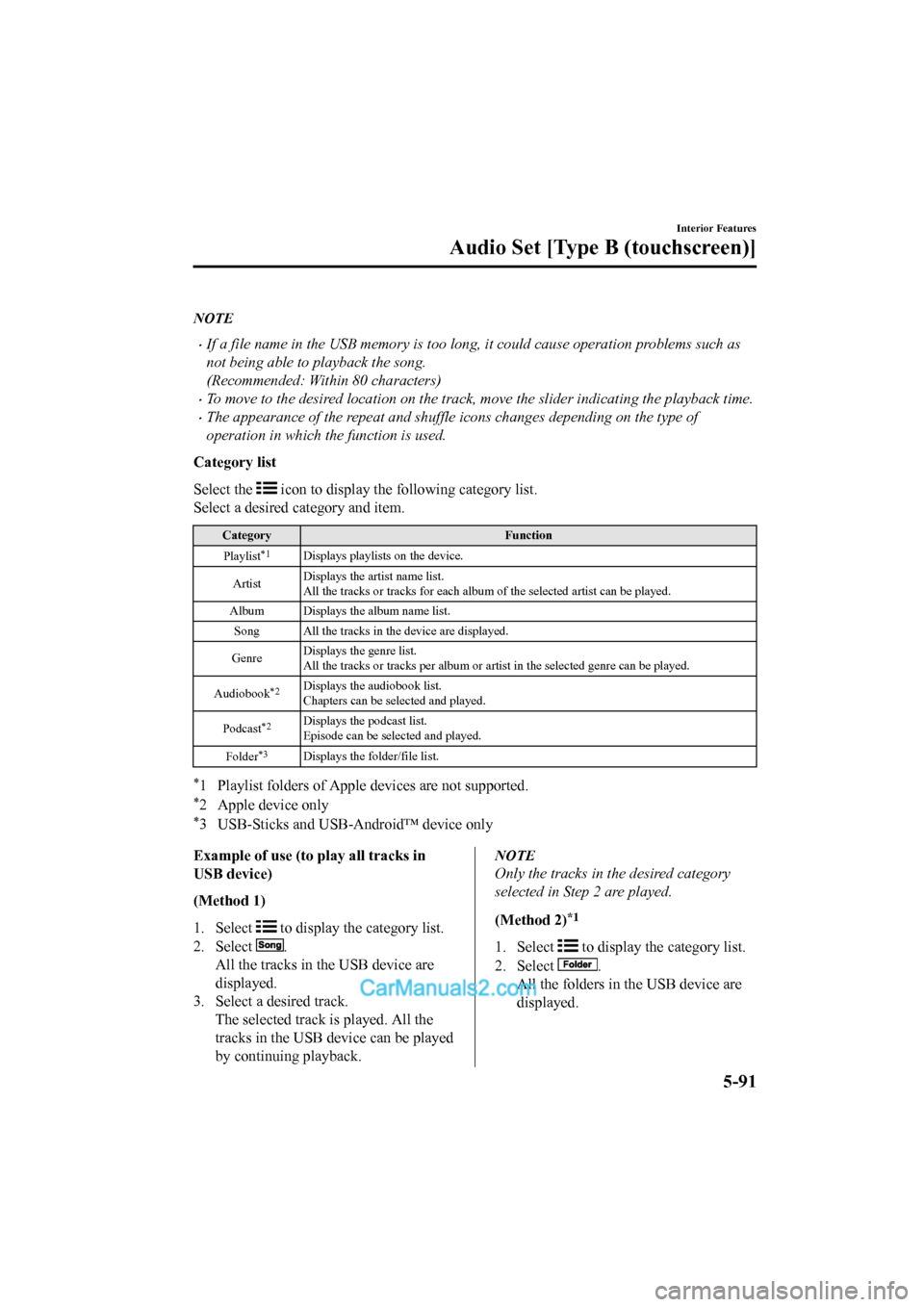

NOTE
•If a file name in the USB memory is too long, it could cause operation problems such as
not being able to playback the song.
(Recommended: Within 80 characters)
•To move to the desired location on the track, move the slider indicating the playback time.
•The appearance of the repeat and shuffle icons changes depending on the type of
operation in which the function is used.
Category list
Select the
icon to display the following category list.
Select a desired category and item.
Category Function
Playlist
*1Displays playlists on the device.
Artist Displays the artist name list.
All the tracks or tracks for each
album of the selected artist can be played.
Album Displays the album name list. Song All the tracks in the device are displayed.
Genre Displays the genre list.
All the tracks or tracks per al
bum or artist in the selected ge nre can be played.
Audiobook
*2Displays the audiobook list.
Chapters can be selected and played.
Podcast
*2Displays the podcast list.
Episode can be selected and played.
Folder
*3Displays the folder/file list.
*1 Playlist folders of Apple devices are not supported.
*2 Apple device only
*3 USB-Sticks and USB-Android™ device only
Example of use (to play all tracks in
USB device)
(Method 1)
1. Select
to display the category list.
2. Select
.
All the tracks in the USB device are
displayed.
3. Select a desired track.
The selected track is played. All the
tracks in the USB device can be played
by continuing playback.
NOTE
Only the tracks in the desired category
selected in Step 2 are played.
(Method 2)
*1
1. Select to display the category list.
2. Select
.
All the folders in the USB device are
displayed.
Interior Features
Audio Set [Type B (touchscreen)]
5-91
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
