6–44
Maintenance and Care
Owner Maintenance
Light Bulbs

With Halogen Headlights
With LED Headlights
(Without Adaptive LED Headlights (ALH))
(With Adaptive LED Headlights (ALH))

6–46
Maintenance and Care
Owner Maintenance
*Some models.
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurised gas. If one is broken, it will
explode and serious injuries could be
caused by the À ying glass.
If the glass portion is touched with bare
hands, body oil could cause the bulb to
overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
CAUTION
When removing the lens or lamp unit
using a À athead screwdriver, make
sure that the À athead screwdriver does
not contact the interior terminal. If
the À athead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
  To replace the bulb, contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
  If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
  Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Headlights (With halogen headlights)
High-beam bulbs (With running lights)/
Running lights
*
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet.
3. Turn the cover anticlockwise and
remove it.

6–47
Maintenance and Care
Owner Maintenance
4. Turn the socket and bulb assembly
anticlockwise and remove it.



5. Install the new bulb in the reverse order
of the removal procedure.

High-beam bulbs (Without running
lights)

1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.


4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Low-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.

6–48
Maintenance and Care
Owner Maintenance
4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Running lights/Position lights (With
LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Position lights (With halogen
headlights)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
anticlockwise and remove it.
3. Disconnect the bulb from the socket.



4. Install the new bulb in the reverse order
of the removal procedure.

Front direction indicator lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the screw anticlockwise and
remove it, and then partially peel back
the mudguard.



3. Turn the socket and bulb assembly
anticlockwise and remove it.

6–49
Maintenance and Care
Owner Maintenance
*Some models.
4. Disconnect the bulb from the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Side direction indicator lights, High-
mount brake light, Front fog lights * , Tail
lights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Rear direction indicator lights, Brake
lights/Tail lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the bolts anticlockwise and
remove them.



3. Pull the unit rearward to remove it.



4. Turn the socket and bulb assembly
anticlockwise and remove it.

6–50
Maintenance and Care
Owner Maintenance
5. Disconnect the bulb from the socket.
Rear direction indicator lights



Brake lights/Tail lights
(LED type)
The LED bulb cannot be replaced as a
single unit because it is an integrated
unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement
is necessary.
(Bulb type)



6. Install the new bulb in the reverse order
of the removal procedure.

Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.



3. Turn the socket and bulb assembly
anticlockwise and remove it.
4. Disconnect the bulb from the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

6–51
Maintenance and Care
Owner Maintenance
*Some models.

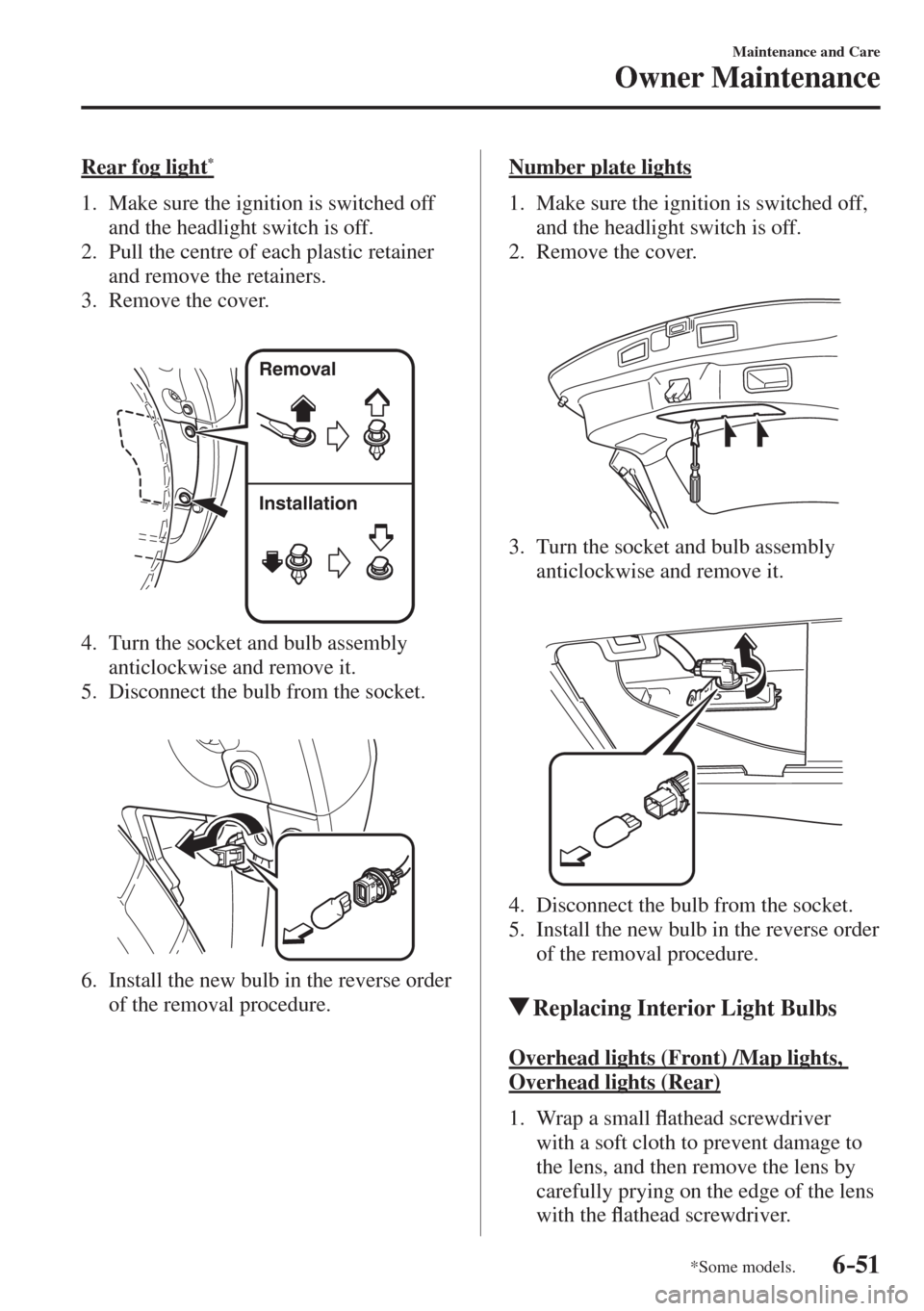

Rear fog light *
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Pull the centre of each plastic retainer
and remove the retainers.
3. Remove the cover.


Removal
Installation

4. Turn the socket and bulb assembly
anticlockwise and remove it.
5. Disconnect the bulb from the socket.



6. Install the new bulb in the reverse order
of the removal procedure.

Number plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.



3. Turn the socket and bulb assembly
anticlockwise and remove it.



4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of the removal procedure.

Replacing Interior Light Bulbs
Overhead lights (Front) /Map lights,
Overhead lights (Rear)
1. Wrap a small À athead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the À athead screwdriver.
