When Driving
Instrument Cluster and Display
Low Engine Coolant Temperature
Indicator Light (Blue)

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf¿ ciently warmed
up, the temperature sensor could have a
malfunction. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Glow Indicator Light
(SKYACTIV-D 1.5)

This light may illuminate when the
ignition is switched ON.
It turns off when the glow plugs are warm.
If the ignition is left switched ON for a
long period of time without the engine
running after the glow plugs are warmed
up, the glow plugs may warm up again
which will illuminate the glow indicator
light.

4–45
When Driving
Manual Transaxle Operation
NOTE
  If shifting to R is dif¿ cult, shift back
into neutral, release the clutch pedal,
and try again.
  (With i-stop function)  If the engine has stopped due to
stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.
 The engine cannot be restarted even
if the clutch pedal is depressed under
the following conditions:



 The driver's door is open.



 The driver's seat belt is unfastened.



 The clutch pedal is not released
completely after the engine stalled.



 The clutch pedal is depressed with
the engine not stopped completely.

 (With parking sensor system)  When the shift lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
 Refer to Parking Sensor System on
page 4-212 .
Gear Shift Indicator (GSI)
The Gear Shift Indicator (GSI) supports
you to obtain optimum fuel economy and
smooth driving. It displays the selected
gear position in the instrument cluster as
well as noti¿ es the driver to change to the
most suitable gear position corresponding
to the actual driving condition.


Selected gear position Suitable gear position
Indication Condition
Numeral The selected gear position is
displayed.

and numeral Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traf¿ c conditions
have to be judged correctly by the driver
before shifting.

4–49
When Driving
Automatic Transaxle
Transaxle Ranges













 The shift position indicator light in the
instrument cluster illuminates. Refer
to Warning/Indicator Lights on page
4-36 .



 The selector lever must be in P or N to
operate the starter.

P (Park)
P locks the transaxle and prevents the front
wheels from rotating.
WARNING
Always set the selector lever to P and
set the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could
move and cause an accident.
CAUTION
  Shifting into P, N or R while the
vehicle is moving can damage your
transaxle.
  Shifting into a driving gear or reverse
when the engine is running faster
than idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-52 ).
NOTE
(With parking sensor system)
When the selector lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on page
4-212 .
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than
idle, do not shift from N or P into a
driving gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.

Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which could
lead to an accident or serious injury.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.

4–62
When Driving
Switches and Controls
Auto-light control
When the headlight switch is in the
position and the ignition is switched ON, the light
sensor senses the surrounding lightness or darkness and automatically turns the headlights,
other exterior lights and instrument panel illumination on or off (see chart above).
CAUTION
  Do not shade the light sensor by adhering a sticker or a label on the windscreen.
Otherwise the light sensor will not operate correctly.

  The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windscreen when the wiper lever is in the
position and the
ignition is switched ON as ¿ ngers could be pinched or the wipers and wiper blades
damaged when the wipers activate automatically. If you are going to clean the
windscreen, be sure the wipers are turned off completely — this is particularly
important when clearing ice and snow — when it is particularly tempting to leave the
engine running.

4–63
When Driving
Switches and Controls
NOTE
  The headlights, other exterior lights and instrument panel illumination may not turn
off immediately even if the surrounding area becomes well-lit because the light sensor
determines that it is night time if the surrounding area is continuously dark for several
minutes such as inside long tunnels, traf¿ c jams inside tunnels, or in indoor parking
lots.
 In this case, the lights turn off if the light switch is turned to the position.
  When the headlight switch is in the position and the ignition is switched to ACC
or the ignition is switched off, the headlights, other exterior lights and instrument panel
illumination will turn off.
  The instrument panel illumination can be adjusted by rotating the knob in the
instrument cluster. Also, the antidazzle mode can be changed by rotating the knob until
a beep sound is heard. To adjust the brightness of the instrument panel illumination:
Refer to Instrument Panel Illumination on page 4-28 .

 The sensitivity of the AUTO lights may be changed by an Authorised Mazda Repairer.
Refer to Personalisation Features on page 9-13 .

4–72
When Driving
Switches and Controls
With auto-wiper control


Switch Position
Wiper operation
No. Type A Type B

Operation while pulling
up lever

Stop

Auto control

Low speed

High speed
Auto-wiper control
When the wiper lever is in the

position, the rain sensor senses the amount
of rainfall on the windscreen and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the centre position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).

Higher sensitivity
Less sensitivitySwitch
Centre
position

4–73
When Driving
Switches and Controls

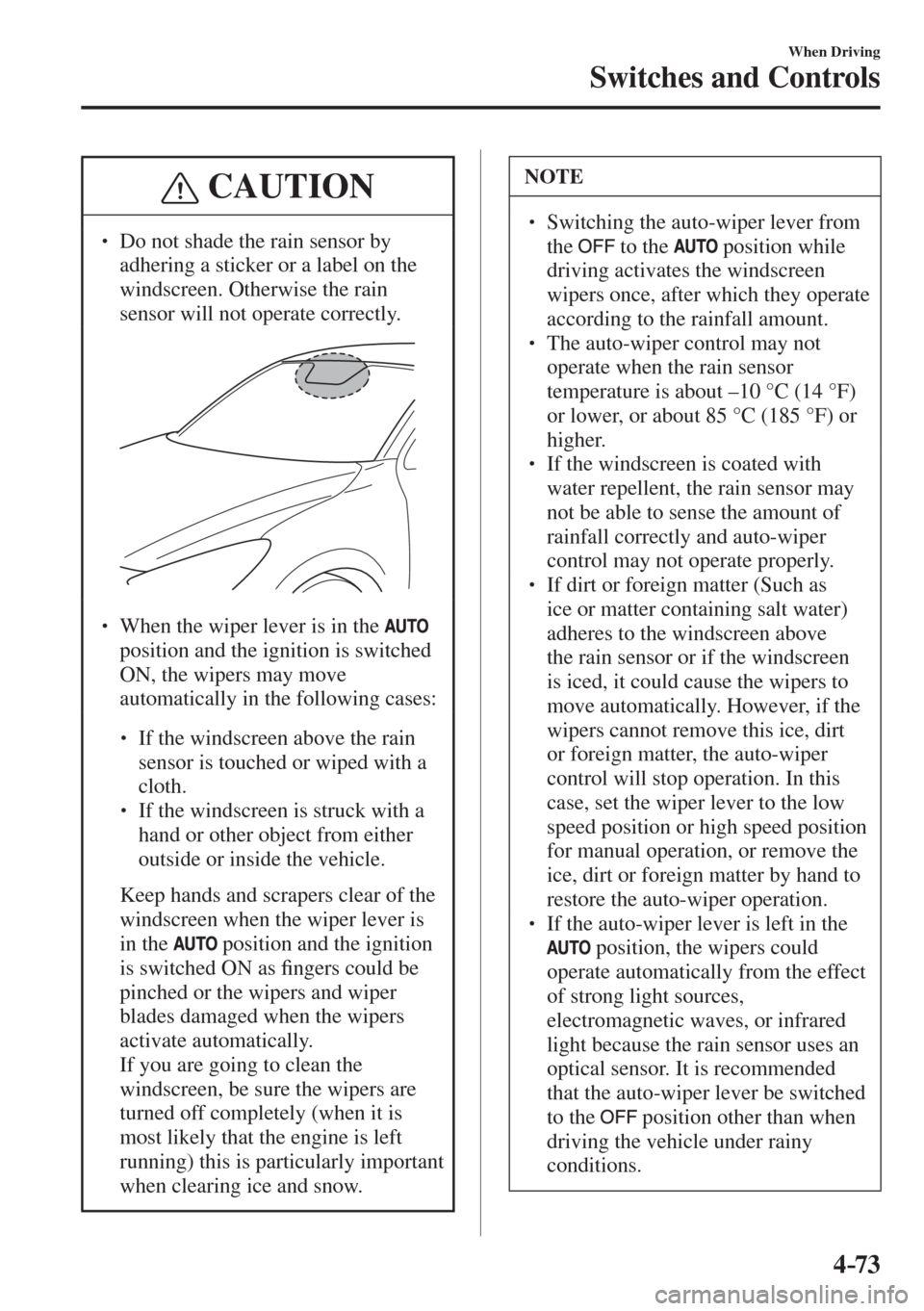

CAUTION
  Do not shade the rain sensor by
adhering a sticker or a label on the
windscreen. Otherwise the rain
sensor will not operate correctly.

 When the wiper lever is in the
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:



 If the windscreen above the rain
sensor is touched or wiped with a
cloth.



 If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
  Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the
position and the ignition
is switched ON as ¿ ngers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically.
 If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.
NOTE
  Switching the auto-wiper lever from
the
to the position while
driving activates the windscreen
wipers once, after which they operate
according to the rainfall amount.
  The auto-wiper control may not
operate when the rain sensor
temperature is about –10 °C (14 °F)
or lower, or about 85 °C (185 °F) or
higher.
  If the windscreen is coated with
water repellent, the rain sensor may
not be able to sense the amount of
rainfall correctly and auto-wiper
control may not operate properly.
  If dirt or foreign matter (Such as
ice or matter containing salt water)
adheres to the windscreen above
the rain sensor or if the windscreen
is iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt
or foreign matter, the auto-wiper
control will stop operation. In this
case, set the wiper lever to the low
speed position or high speed position
for manual operation, or remove the
ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
  If the auto-wiper lever is left in the

position, the wipers could
operate automatically from the effect
of strong light sources,
electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended
that the auto-wiper lever be switched
to the
position other than when
driving the vehicle under rainy
conditions.

4–101
When Driving

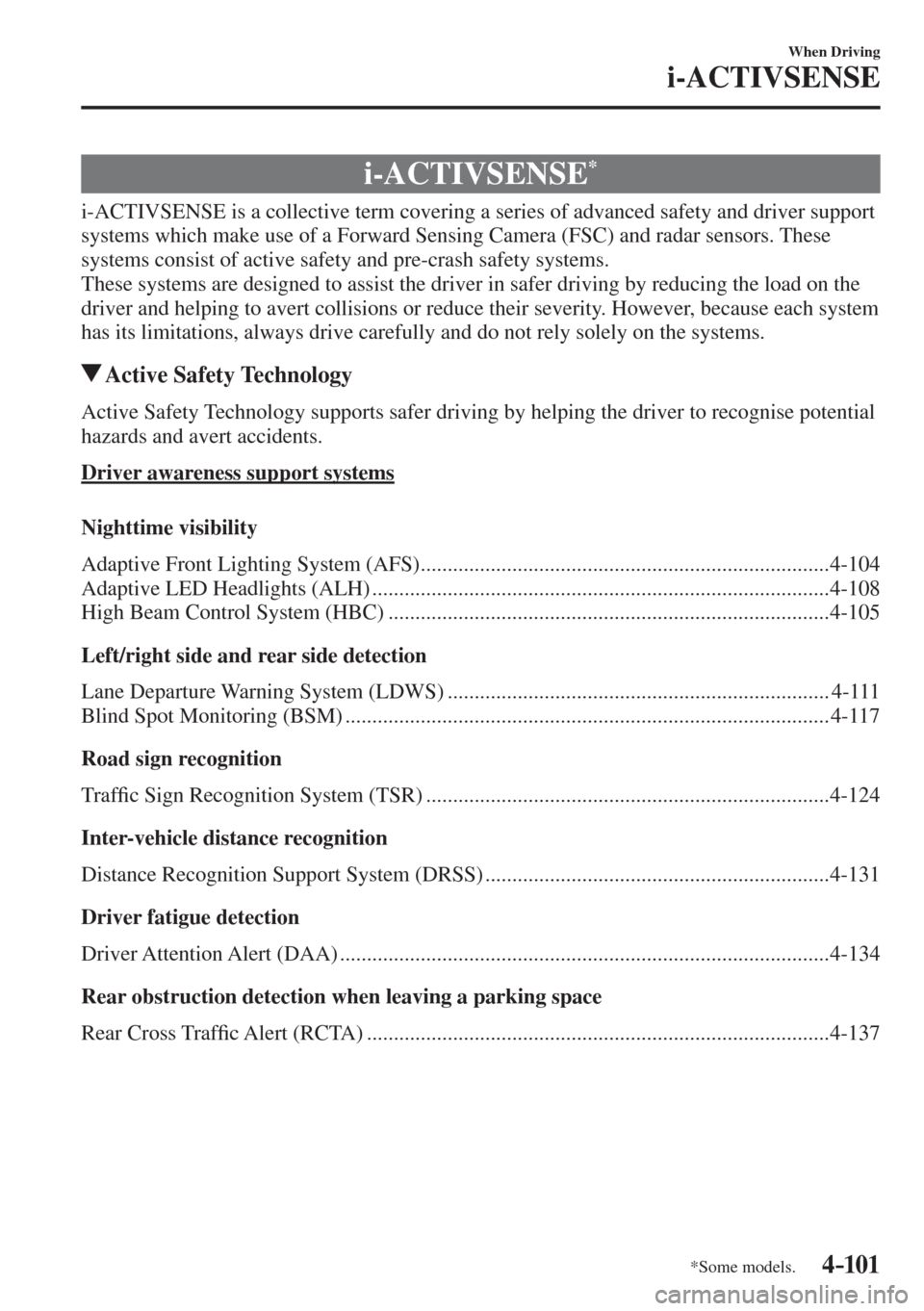

i-ACTIVSENSE
*Some models.
i-ACTIVSENSE *
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer driving by reducing the load on the
driver and helping to avert collisions or reduce their severity. However, because each system
has its limitations, always drive carefully and do not rely solely on the systems.
Active Safety Technology
Active Safety Technology supports safer driving by helping the driver to recognise potential
hazards and avert accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting System (AFS) ............................................................................ 4-104
Adaptive LED Headlights (ALH) ..................................................................................... 4-108
High Beam Control System (HBC) .................................................................................. 4-105
Left/right side and rear side detection
Lane Departure Warning System (LDWS) ....................................................................... 4-111
Blind Spot Monitoring (BSM) .......................................................................................... 4-117
Road sign recognition
Traf¿ c Sign Recognition System (TSR) ........................................................................... 4-124
Inter-vehicle distance recognition
Distance Recognition Support System (DRSS) ................................................................ 4-131
Driver fatigue detection
Driver Attention Alert (DAA) ........................................................................................... 4-134
Rear obstruction detection when leaving a parking space
Rear Cross Traf¿ c Alert (RCTA) ...................................................................................... 4-137
