When Driving
Start/Stop Engine
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON. Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
NOTE
 Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push button
start will not switch to ACC, even if it is
pressed from off.
 The key battery is dead. The key is out of operational range. The key is placed in areas where it is
difficult for the system to detect the
signal (page
3-8). A key from another manufacturer
similar to the key is in the
operational range.
 (Forced engine starting method)
If the KEY warning light (r ed)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may not
start using the usual starting method.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can
be force-started. Press and hold the
push button start until the engine starts.
Other procedures necessary for starting
the engine, such as having the key in the
cabin, and depressing the clutch pedal
(manual transaxle) or the brake pedal
(automatic transaxle) are required.
 When the engine is force-started,
the KEY warning light (red) remains
illuminated and the push button
start indicator light (amber) remains
flashing.
 (Automatic transaxle)
When the selector lever is in the neutral
(N) position, the KEY indicator light
(green) and the push button start
indicator light (green) do not illuminate.
Mazda3_8FL6-EA-16F_Edition2.indb 72016/08/10 17:35:42

4–8
When Driving
Start/Stop Engine
7. Press the push button start after both
the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
NOTE
 After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to the
ON position.
 After pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near
the fuel tank can be heard, however, this
does not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
 Whether the engine is cold or warm, it
should be started without the use of the
accelerator.
 If the engine does not start the first
time, refer to Starting a Flooded Engine
under Emergency Starting. If the engine
still does not start, have your vehicle
inspected by an Authorized Mazda
Dealer (page
7-19).
Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not
to allow the following, otherwise the
signal from the key will not be received
correctly and the engine may not start.
 Metal parts of other keys or metal
objects touch the key.

 Spare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key.

 Devices for electronic purchases,
or security passage touch or come
near the key.
Mazda3_8FL6-EA-16F_Edition2.indb 82016/08/10 17:35:43

4–9
When Driving
Start/Stop Engine
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal
firmly until the engine has completely
started.
2. (Manual transaxle)
Continue to depress the clutch pedal
firmly until the engine has completely
started.
3. Verify that the push button start
indication light (green) flashes.
4. Touch the push button start using the
backside of the key (as shown) while
the push button start indicator light
(green) flashes.

Push button start
TransmitterIndicator light
NOTE
When touching the push button start using
the backside of the key as shown in the
illustration, touch the push button start
with the lock switch side of the key facing
up.
5. Verify that the push button start
indicator light (green) turns on.
6. Press the push button start to start the
engine.
NOTE
 The engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).
 If there is a malfunction with the push
button start function, the push button
start indicator light (amber) flashes.
In this case, the engine may start,
however, have the vehicle checked at an
Authorized Mazda Dealer as soon as
possible.
 If the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If
it does not illuminate, have the vehicle
checked at an Authorized Mazda Dealer.
 To switch the ignition position without
starting the engine, perform the
following operations after the push
button start indicator light (green) turns
on.
1. Release the clutch pedal (manual
transaxle) or brake pedal (automatic
transaxle).
2. Press the push button start to switch
the ignition position. The ignition
switches in the order of ACC, ON,
and off each time the push button
start is pressed. To switch the
ignition position again, perform the
operation from the beginning.
Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:35:43

4–10
When Driving
Start/Stop Engine
Emergency Operation for Starting
the Engine
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that
the engine may not start using the usual
starting method. Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible. If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
Turning the Engine Off
WARNING
Do not stop the engine while the vehicle
is moving:
Stopping the engine while the vehicle
is moving for any reason other than in
an emergency is dangerous. Stopping
the engine while the vehicle is moving
will result in reduced braking ability
due to the loss of power braking, which
could cause an accident and serious
injury.
1. Stop the vehicle completely .
2. (Manual transaxle)
Shift into neutral and set the parking
brake.
(Automatic transaxle)
Shift the selector lever to the P position
and set the parking brake.
3. Press the push button start to turn of f
the engine. The ignition position is off.
CAUTION
When leaving the vehicle, make sure
the push button start is off.
Mazda3_8FL6-EA-16F_Edition2.indb 102016/08/10 17:35:43

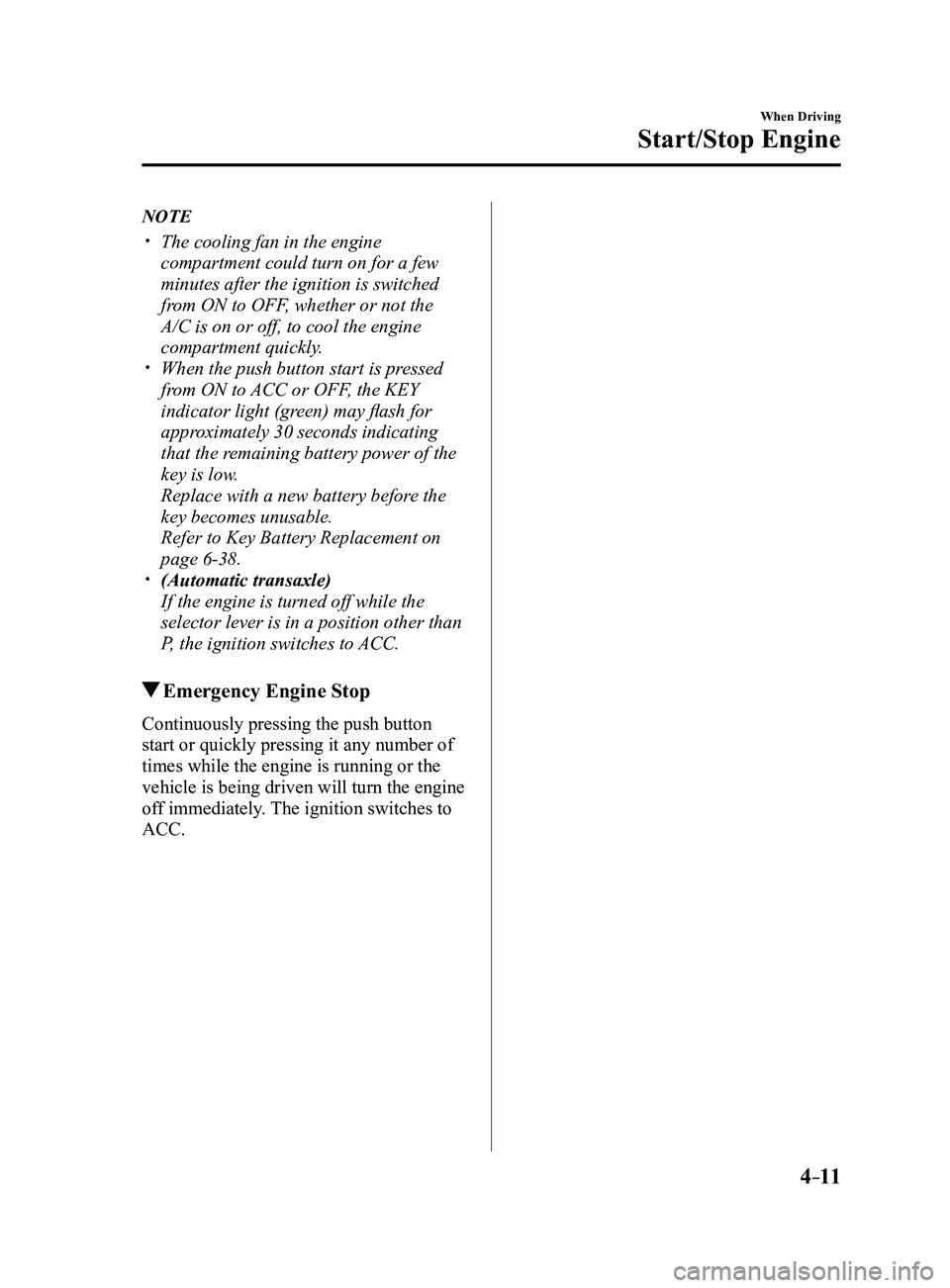

4–11
When Driving
Start/Stop Engine
NOTE
 The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the
A/C is on or off, to cool the engine
compartment quickly.
 When the push button start is pressed
from ON to ACC or OFF, the KEY
indicator light (green) may flash for
approximately 30 seconds indicating
that the remaining battery power of the
key is low.
Replace with a new battery befor e the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-38. (Automatic transaxle)
If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.
Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
Mazda3_8FL6-EA-16F_Edition2.indb 112016/08/10 17:35:43

4–12
When Driving

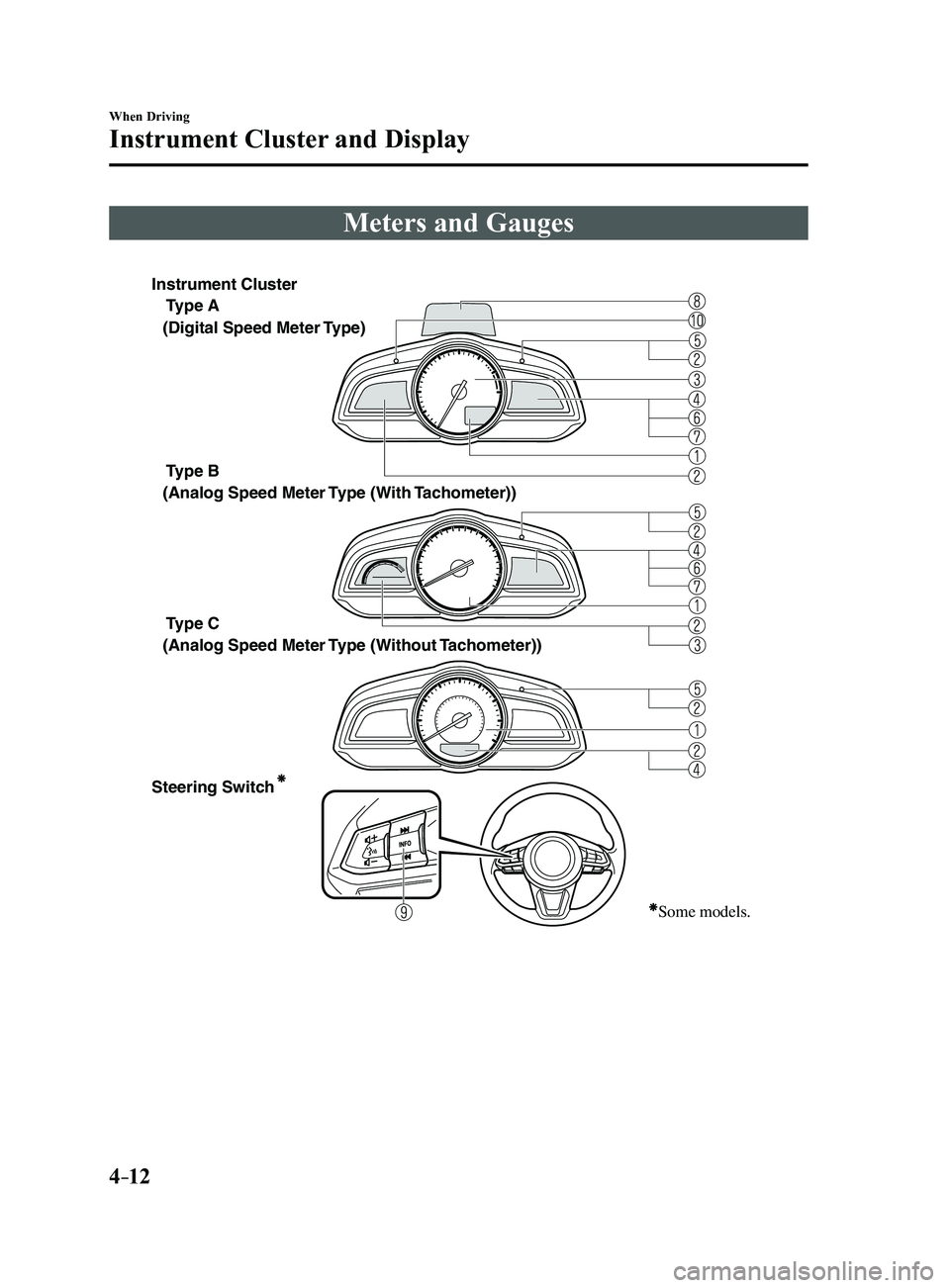

Instrument Cluster and Display
Meters and Gauges
Type A
Type B
Type C
Steering Switch
(Digital Speed Meter Type)
(Analog Speed Meter Type (With
Tachometer))
(Analog Speed Meter Type (Without Tachometer))
Some models.
Instrument Cluster
Mazda3_8FL6-EA-16F_Edition2.indb 122016/08/10 17:35:44

4–13
When Driving
Instrument Cluster and Display
Speedometer ........................................................................\
..................................page 4-14
Odometer, Trip Meter and Trip Meter Selector ....................................................page 4-14
Tachometer ........................................................................\
....................................page 4-16
Fuel Gauge ........................................................................\
....................................page 4-17
Dashboard Illumination........................................................................\
.................page 4-18
Outside Temperature Display ........................................................................\
........page 4-19
Cruise Control Set Vehicle Speed Display ............................................................page 4-19
Active Driving Display ........................................................................\
.................page 4-21
Trip Computer and INFO Switch ........................................................................\
..page 4-19
Speed Unit Selector ........................................................................\
.......................page 4-14
Mazda3_8FL6-EA-16F_Edition2.indb 132016/08/10 17:35:46

4–14
When Driving
Instrument Cluster and Display

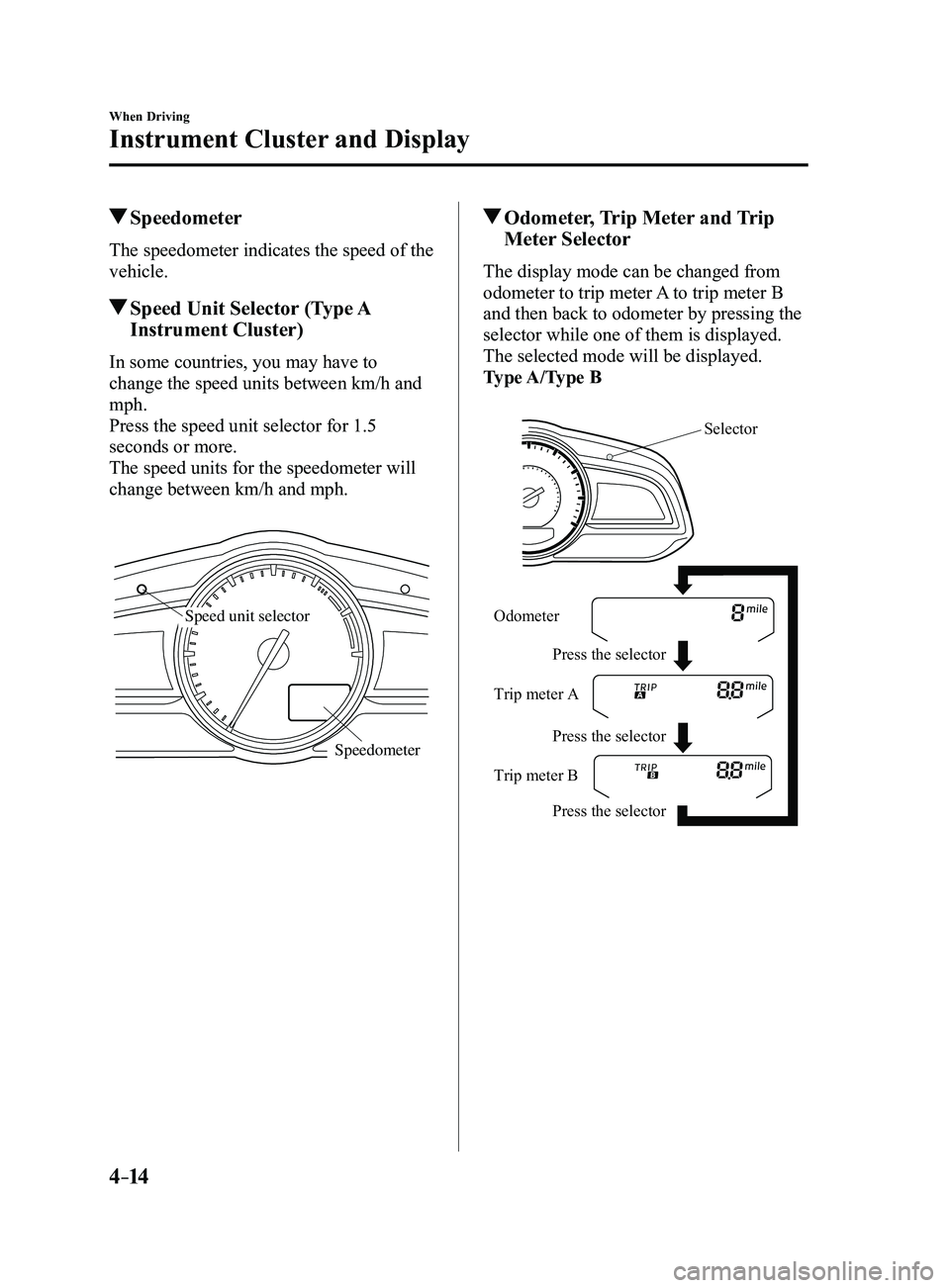

Speedometer
The speedometer indicates the speed of the
vehicle.
Speed Unit Selector (Type A
Instrument Cluster)
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 1.5
seconds or more.
The speed units for the speedometer will
change between km/h and mph.
Speedometer
Speed unit selector
Odometer, Trip Meter and Trip
Meter Selector
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.
Type A/Type B
Selector
Press the selector Press the selector
Press the selector
Odometer
Trip meter
A
Trip meter B
Mazda3_8FL6-EA-16F_Edition2.indb 142016/08/10 17:35:47
