2017 MAZDA MODEL 2 engine

2–7

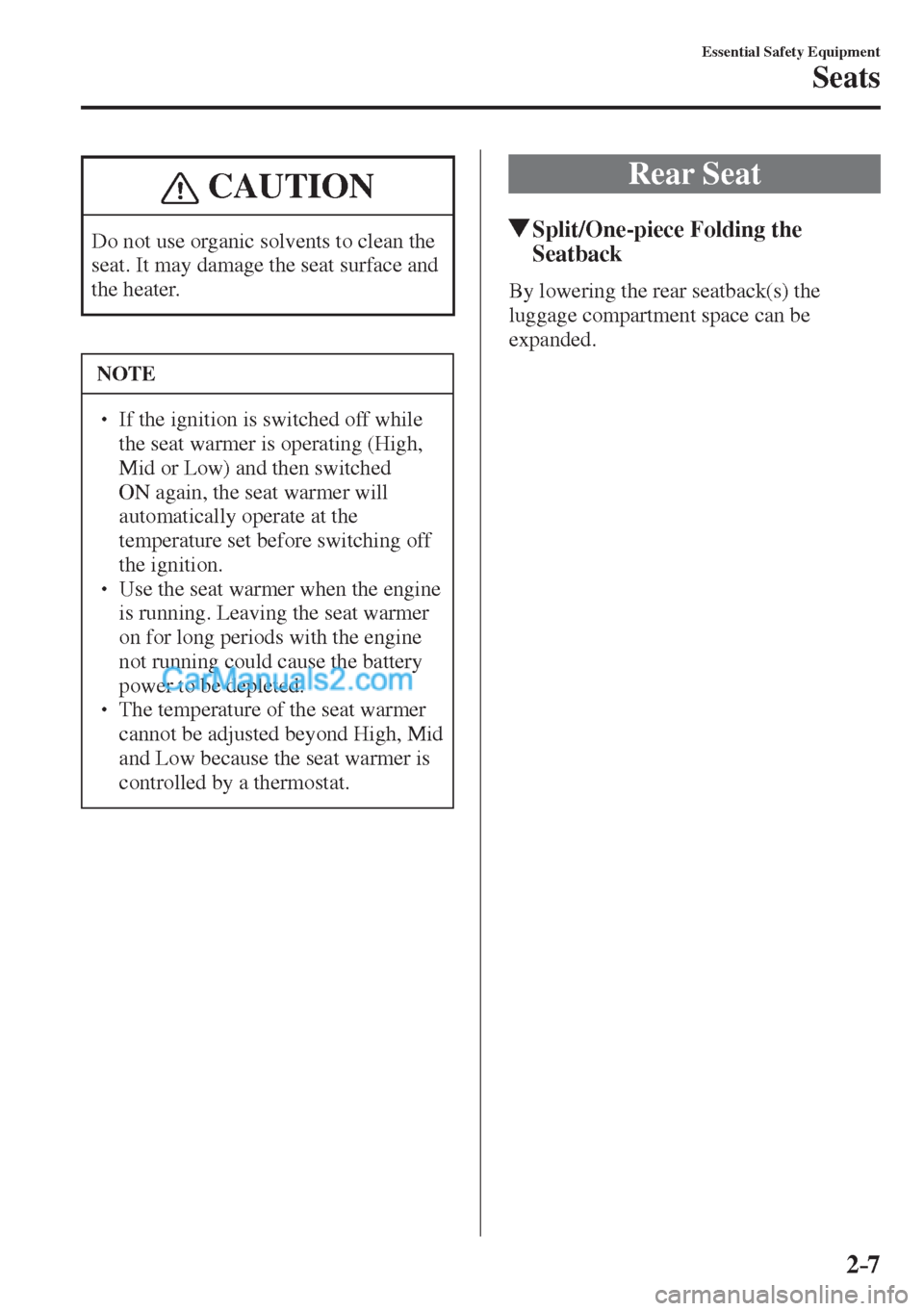

Essential Safety Equipment
Seats
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
  If the ignition is switched off while
the seat warmer is operating (High,
Mid or Low) and then switched
ON again, the seat warmer will
automatically operate at the
temperature set before switching off
the ignition.
  Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine
not running could cause the battery
power to be depleted.
  The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
Rear Seat
Split/One-piece Folding the
Seatback
By lowering the rear seatback(s) the
luggage compartment space can be
expanded.

3–1*Some models.3–1
3Before Driving
Use of various features, including keys, doors, mirrors and windows.

Keys ...................................................... 3-2
Keys ............................................... 3-2
Keyless Entry System .................... 3-3

Advanced Keyless Entry System ....... 3-9
Advanced Keyless Entry
System
* ........................................... 3-9
Operational Range ....................... 3-10

Doors and Locks ................................ 3-11
Door Locks ................................... 3-11
Liftgate/Boot Lid ......................... 3-21

Fuel and Emission ............................. 3-26
Fuel and Engine Exhaust
Precautions ................................... 3-26
Fuel-Filler Flap and Cap .............. 3-31

Steering Wheel................................... 3-33
Steering Wheel ............................. 3-33

Mirrors ............................................... 3-34
Mirrors ......................................... 3-34

Windows ............................................. 3-38
Power Windows ........................... 3-38
Manual Windows
* ........................ 3-41
Security System ................................. 3-42
Modi¿ cation and Add-On
Equipment .................................... 3-42
Immobilizer System ..................... 3-42
Theft-Deterrent System
* ............... 3-44

Driving Tips ....................................... 3-48
Running-In ................................... 3-48
Saving Fuel and Protection of the
Environment ................................. 3-48
Hazardous Driving ....................... 3-49
Floor Mat ..................................... 3-50
Rocking the Vehicle ..................... 3-51
Winter Driving ............................. 3-51
Driving In Flooded Area .............. 3-54
Turbocharger Information
(SKYACTIV-D 1.5) ..................... 3-55

Towing ................................................ 3-56
Towing Caravans and Trailers
(Europe/Turkey/South Africa) ..... 3-56

3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.

If your key (auxiliary key) is lost, consult
your Authorised Mazda Repairer and have
your code number ready.
NOTE
The driver must carry the key to ensure
the system functions properly.

Auxiliary key Transmitter
Key code number plate

To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.

Knob

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate/boot lid, and opens the boot lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.



 KEY Warning Light (Red)
 Refer to Warning/Indicator Lights on
page 4-38 .



 Ignition Not Switched Off (STOP)
Warning Beep
  Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-51 .



 Key Removed from Vehicle Warning
Beep
  Refer to Key Removed from Vehicle
Warning Beep on page 7-51 .

If you have a problem with the key,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.

If your key is lost or stolen, consult an
Authorised Mazda Repairer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Changes or modi¿ cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.

3–6
Before Driving
Keys
NOTE
  (European models)  The doors and the liftgate/boot lid
cannot be locked by pressing the lock
button while any other door is open.
The hazard warning lights will also
not À ash.
 (Except European models)  The doors and the liftgate/boot lid
cannot be locked by pressing the lock
button while any other door or the
liftgate is open. The hazard warning
lights will also not À ash.

 (With the i-stop function
(European models))
 Removing the key from the vehicle,
closing all the doors and pressing the
LOCK button on the key while the
i-stop function is operating (engine
is stopped) will switch the ignition
OFF and lock all the doors (Steering
wheel also locks).
 Refer to i-stop on page 4-13 .   Make sure all doors and the liftgate/
boot lid are locked after pressing the
button.
  (With double locking system)  Pressing the lock button twice within
3 seconds will activate the double
locking system.
 Refer to Double Locking System on
page 3-13 .
  (With theft-deterrent system)  When the doors are locked by
pressing the lock button on the key
while the theft-deterrent system is
armed, the hazard warning lights will
À ash once to indicate that the system
is armed.
Unlock button
To unlock the doors and the liftgate/boot
lid, press the unlock button and the hazard
warning lights will À ash twice.
(With the advanced keyless function
(Except European models))
A beep sound will be heard twice.


NOTE
  (Auto re-lock function)  After unlocking with the key, all
doors and the liftgate/boot lid
will automatically lock if any of
the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 A door or the liftgate/boot lid is
opened.



 The ignition is switched to any
position other than off.

 (With theft-deterrent system)  When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is
turned off, the hazard warning lights
will À ash twice to indicate that the
system is turned off.

3–7
Before Driving
Keys
*Some models.
Boot button (Saloon)
To open the boot lid, press and hold the
boot button until the boot lid opens.

Type A Type B

Intrusion sensor cancel button
*
To cancel the intrusion sensor (part of
the theft-deterrent system), press the
intrusion sensor cancel button within 20
seconds after pressing the lock button and
the hazard warning lights will À ash three
times.
Refer to Theft-Deterrent System on page
3-44 .


Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
  Starting the engine may be possible
even if the key is outside of the
vehicle and extremely close to a door
and window, however, always start
the engine from the driver's seat.
 If the vehicle is started and the key
is not in the vehicle, the vehicle will
not restart after it is shut off and the
ignition is switched to off.
  The luggage compartment/boot is
out of the assured operational range,
however, if the key (transmitter) is
operable the engine will start.
With the advanced keyless function


Interior aerial
Operational range

3–8
Before Driving
Keys
Without the advanced keyless function


Interior aerial
Operational range

NOTE
The engine may not start if the key is
placed in the following areas:

 Around the instrument panel
 In the storage compartments or the
centre console
  On the rear parcel shelf (saloon)
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.

3–9
Before Driving
Advanced Keyless Entry System
*Some models.
Advanced Keyless Entry
System
*
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.
The advanced keyless function allows you
to lock/unlock the door and the liftgate/
boot lid, or open the liftgate/boot lid while
carrying the key.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.



 Request switch Inoperable Warning
Beep
  Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-51 .



 Key Left-in-luggage Compartment/Boot
Warning Beep
  Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-52 .



 Key Left-in-vehicle Warning Beep
 Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-52 .

NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated,
you will be unable to start the engine
by carrying the key. Consult an expert
repairer, we recommend an Authorised
Mazda Repairer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-10 .

3–12
Before Driving
Doors and Locks
*Some models.
NOTE
  Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside
the cabin.
  If the key is left in the following
areas and you leave the vehicle, the
doors may be locked depending on
the radio wave conditions even if the
key is left in the vehicle.



 Around the instrument panel



 In the storage compartments such
as the glove compartment or the
centre console



 On the rear parcel shelf (saloon)



 Next to a communication device
such as a mobile phone

 The vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
 (European models)  All doors and the liftgate/boot lid
will automatically unlock if they are
locked using the power door locks
with any door open.
 If all the doors are closed even
though the liftgate/boot lid is open,
all the doors will lock.
 (Except European models)  All doors and the liftgate/boot lid
will automatically unlock if they are
locked using the power door locks
with any door or the liftgate open.
NOTE

 (Door unlock (control) system with
collision detection) *  This system automatically unlocks
the doors and the liftgate/boot lid in
the event the vehicle is involved in
an accident to allow passengers to
get out of the vehicle immediately
and prevent being trapped inside.
While the ignition is switched ON
and in the event the vehicle receives
an impact strong enough to inÀ ate
the air bags, all the doors and the
liftgate/boot lid are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
 The doors and the liftgate/boot lid
may not unlock depending on how
an impact is applied, the force of the
impact, and other conditions of the
accident.
 If door-related systems or the battery
is malfunctioning, the doors and the
liftgate/boot lid will not unlock.
