2017 MAZDA MODEL 2 ESP

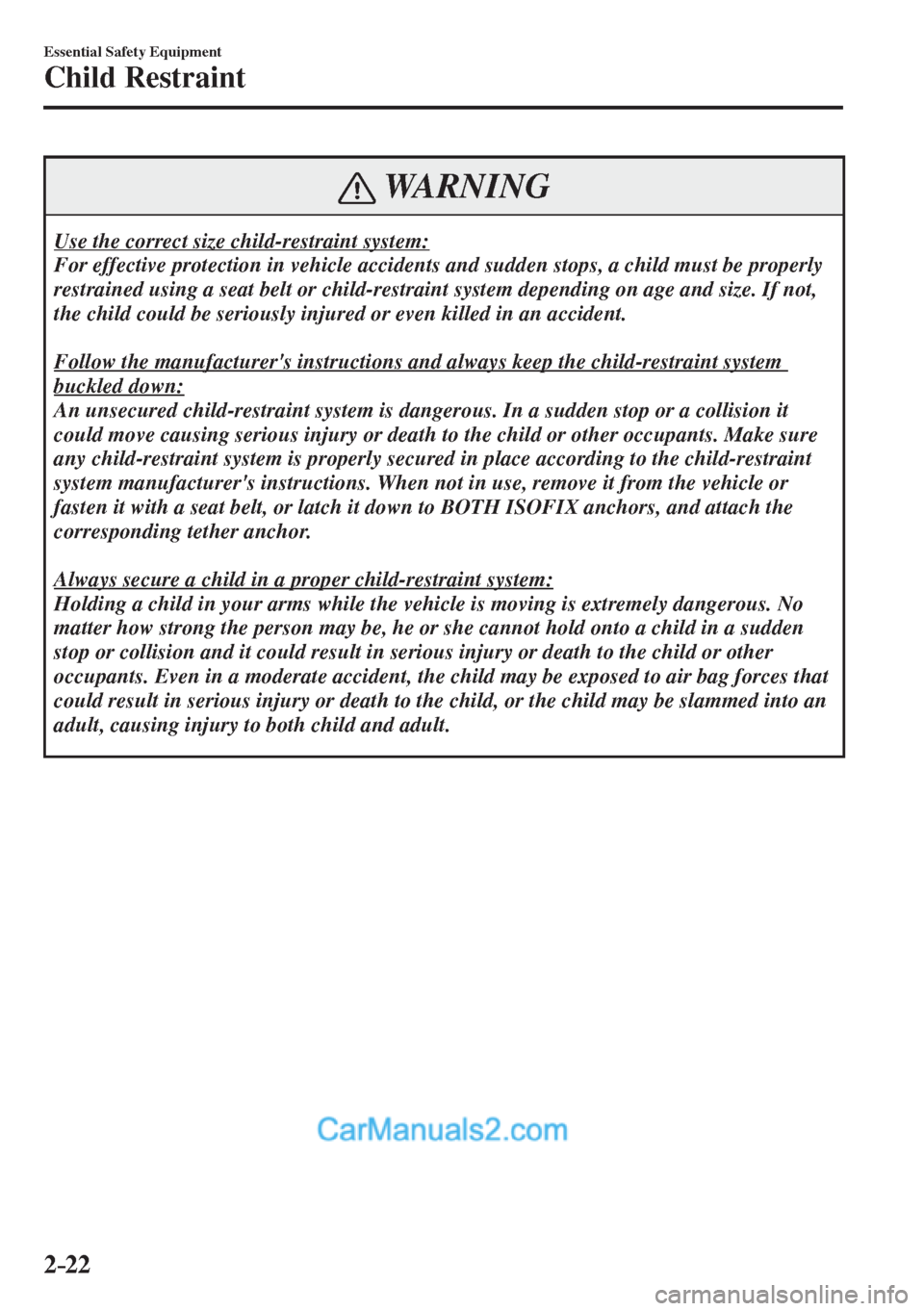

2–22
Essential Safety Equipment
Child Restraint
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not,
the child could be seriously injured or even killed in an accident.

Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
any child-restraint system is properly secured in place according to the child-restraint
system manufacturer's instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH ISOFIX anchors, and attach the
corresponding tether anchor.

Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces that
could result in serious injury or death to the child, or the child may be slammed into an
adult, causing injury to both child and adult.

3–3
Before Driving
Keys
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key (auxiliary key).
Also write down the code number and
keep it in a separate safe and convenient
place, but not in the vehicle.

If your key (auxiliary key) is lost, consult
your Authorised Mazda Repairer and have
your code number ready.
NOTE
The driver must carry the key to ensure
the system functions properly.

Auxiliary key Transmitter
Key code number plate

To use the auxiliary key, pull out the
auxiliary key from the transmitter while
pressing the knob.

Knob

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate/boot lid, and opens the boot lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.



 KEY Warning Light (Red)
 Refer to Warning/Indicator Lights on
page 4-38 .



 Ignition Not Switched Off (STOP)
Warning Beep
  Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-51 .



 Key Removed from Vehicle Warning
Beep
  Refer to Key Removed from Vehicle
Warning Beep on page 7-51 .

If you have a problem with the key,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.

If your key is lost or stolen, consult an
Authorised Mazda Repairer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Changes or modi¿ cations not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.

3–11
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.

Do not leave the key in your vehicle
with children and keep them in a place
where your children will not ¿ nd or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.

Always close all the windows, lock the
doors and the liftgate/boot lid and take
the key with you when leaving your
vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.

WARNING
After closing the doors and the liftgate/
boot lid, always verify that they are
securely closed:
Doors and the liftgate/boot lid not
securely closed are dangerous, if the
vehicle is driven with a door and the
liftgate/boot lid not securely closed,
the door and the liftgate/boot lid could
open unexpectedly resulting in an
accident.

Always con¿ rm the safety around the
vehicle before opening a door and the
liftgate/boot lid:
Suddenly opening a door and the
liftgate/boot lid is dangerous. A passing
vehicle or a pedestrian could be hit and
cause an accident.
CAUTION
Always con¿ rm the conditions around
the vehicle before opening/closing the
doors and the liftgate/boot lid and use
caution during strong winds or when
parked on an incline. Not being aware
of the conditions around the vehicle is
dangerous because ¿ ngers could get
caught in the door and the liftgate/boot
lid or a passing pedestrian could be hit,
resulting in an unexpected accident or
injury.

3–13
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Key
All doors and the liftgate/boot lid lock
automatically when the driver's door is
locked using the auxiliary key. They all
unlock when the driver's door is unlocked
using the auxiliary key.
Turn the auxiliary key toward the front to
lock, toward the back to unlock.

LockUnlock

Double Locking System *
The double locking system is designed
to prevent someone who has broken into
your vehicle from opening the door from
the inside.

If you have any problems with the double
locking system, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
WARNING
Never activate the double locking
system with passengers, especially
children, still inside the vehicle:
Activating the system with passengers,
especially children, still inside the
vehicle is dangerous. The passengers
cannot open the doors from inside.
They would be trapped and subjected to
extreme temperatures. This could result
in serious injuries or even death.
How to Activate the system
1. Close all the windows.
2. Switch the ignition off and take the key
with you.
3. Close all doors and the liftgate/boot lid.
4. Insert the auxiliary key in the driver's
door, turn the auxiliary key to the lock
position, and return it to the centre
position. Then turn it to the lock
position again within 3 seconds.


Centre
position
Lock
position

3–23
Before Driving
Doors and Locks
NOTE
(With the advanced keyless function)

 A locked liftgate/boot lid can also
be opened while the key is being
carried.
  When opening the liftgate/boot lid
with the doors and the liftgate/boot
lid locked, it may require a few
seconds for the liftgate/boot lid latch
to release after the electric liftgate/
boot lid opener is pressed.
  The liftgate/boot lid can be closed
when the doors are locked with the
key left in the vehicle. However,
to prevent locking the key in the
vehicle, the liftgate/boot lid can
be opened by pressing the electric
liftgate/boot lid opener. If the liftgate/
boot lid cannot be opened despite
doing this procedure, ¿ rst push the
liftgate/boot lid completely closed,
then press the electric liftgate/boot
lid opener to fully open the liftgate/
boot lid .

 (Hatchback)  When the latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
 To open  Press the electric liftgate opener
again.
 To close  To close the liftgate from its slightly
raised position, open it ¿ rst by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.
NOTE
  If the liftgate is not fully closed,
the driver is noti¿ ed by a warning
indicated in the instrument cluster.

 If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate/boot lid
cannot be unlocked, the liftgate/boot
lid can be opened by performing the
emergency procedure.
 Refer to When Liftgate/Boot Lid
Cannot be Opened on page 7-55 .
Closing the liftgate/boot lid
(Hatchback)
Lower the liftgate slowly using the liftgate
grip recess, then push the liftgate closed
using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.


Liftgate grip recess

(Saloon)
Use both hands to push the boot lid down
until the lock snaps shut. Do not slam it.
Pull up on the boot lid to make sure it is
secure.

3–38
Before Driving
Windows
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.

Never allow children to play with power
window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a
child's hands, head or neck becomes
caught by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
NOTE
A power window may no longer open/
close if you continue to press the switch
after fully opening/closing the power
window. If the power window does not
open/close, wait a moment and then
operate the switch again.
Operating the Driver's Side Power
Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.


Driver's window
Open Close Master control switches

3–42
Before Driving
Security System
M o d i¿ cation and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modi¿ ed or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognises.

If someone attempts to start the engine
with an unrecognised key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorised Mazda Repairer.
CAUTION
  Changes or modi¿ cations not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
  To avoid damage to the key, do not:



 Drop the key.



 Get the key wet.



 Expose the key to any kind of
magnetic ¿ eld.




 Expose the key to high
temperatures on places such as the
instrument panel or bonnet, under
direct sunlight.


 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or À ashing,
the system may have a malfunction.
Consult an Authorised Mazda
Repairer.

3–44
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft-deterrent system detects an
inappropriate entry into the vehicle or
the intrusion sensor detects movement
in the vehicle which could result in the
vehicle (with the intrusion sensor) or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and À ashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion sensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.

The intrusion sensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to
operate appropriately, be aware of the
following:

 Do not hang clothing or objects from
a head restraint or a coat hook.
  Return the extension sunvisors to
their original positions.
  Do not blind the intrusion sensor by
covering it or placing objects over it.
  Do not allow the intrusion sensor to
get soiled or wipe it with a liquid.
  Do not shock or cause an impact to
the intrusion sensor or the intrusion
sensor bezel.
  Do not install seats that are not
Mazda genuine products.
  To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are
higher than the head restraints.

Intrusion sensor and
intrusion sensor bezel
