2017 LINCOLN CONTINENTAL technical specifications

Changing the Engine Air Filter - 3.7L......330
Changing the Engine Air Filter - 2.7L
EcoBoost™/3.0L EcoBoost™...................330
Vehicle Care
General Information.....................................332
Cleaning Products........................................332
Cleaning the Exterior...................................333
Waxing
.............................................................335
Cleaning the Engine....................................335
Cleaning the Windows and Wiper Blades.........................................................336
Cleaning the Interior
....................................336
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................336
Cleaning Leather Seats...............................337
Repairing Minor Paint Damage.................338
Cleaning the Wheels
...................................338
Vehicle Storage............................................339
Wheels and Tires
Tire Care..........................................................341
Using Summer Tires....................................354
Using Snow Chains......................................355 Tire Pressure Monitoring System.............356
Changing a Road Wheel............................360
Technical Specifications
.............................366
Capacities and Specifications
Engine Specifications - 2.7L EcoBoost™..................................................368
Engine Specifications - 3.0L EcoBoost™..................................................369
Engine Specifications - 3.7L
........................371
Motorcraft Parts - 2.7L EcoBoost™............372
Motorcraft Parts - 3.0L EcoBoost™............373
Motorcraft Parts - 3.7L
.................................374
Vehicle Identification Number...................376
Vehicle Certification Label.........................376
Transmission Code Designation...............377
Capacities and Specifications - 2.7L EcoBoost™..................................................378
Capacities and Specifications - 3.0L EcoBoost™..................................................384
Capacities and Specifications - 3.7L........389
Audio System
General Information.....................................396 Audio Unit - Vehicles With: Premium AM/
FM/CD.........................................................397
USB Port
..........................................................401
Media Hub.......................................................401
SYNC™ 3
General Information
.....................................402
Home Screen.................................................418
Using Voice Recognition.............................419
Entertainment................................................430
Climate............................................................443
Phone..............................................................448
Navigation......................................................456
Apps
................................................................466
Settings...........................................................469
SYNC™ 3 Troubleshooting..........................486
Accessories
Accessories...................................................503
Lincoln Protect
Lincoln Protect
..............................................505
5
Continental (CPL) Canada/United States of America, enUSA, First Printing Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met. The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of the
following could cause a decrease in
operating range:
•
weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
Other short-distance radio transmitters, such
as amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems may operate on the same
frequency as your remote control. If other
transmitters are operating on those
frequencies, you may not be able to use your
remote control. Using your remote control
near some types of electronic equipment,
such as USB devices, computers or cell
phones can interfere with remote operation.
Operating your remote control near metal or
metallic-finished purses, bags or clothing can
interfere with remote operation. You can lock
and unlock the doors with the key. Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
• You touch the inside of any exterior door
handle within
3 ft (1 m) proximity of an
intelligent access key.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation.
See Remote Control (page 55).
54
Continental (CPL) Canada/United States of America, enUSA, First Printing Keys and Remote Controls

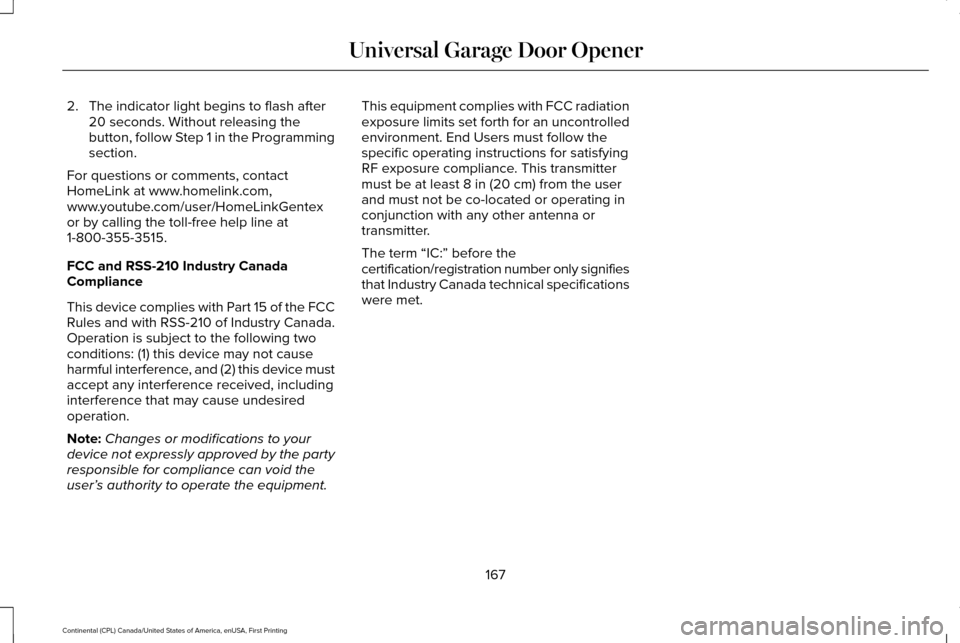

2. The indicator light begins to flash after
20 seconds. Without releasing the
button, follow Step 1 in the Programming
section.
For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.
FCC and RSS-210 Industry Canada
Compliance
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Note: Changes or modifications to your
device not expressly approved by the party
responsible for compliance can void the
user’ s authority to operate the equipment. This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. End Users must follow the
specific operating instructions for satisfying
RF exposure compliance. This transmitter
must be at least 8 in (20 cm) from the user
and must not be co-located or operating in
conjunction with any other antenna or
transmitter.
The term “IC:” before the
certification/registration number only signifies
that Industry Canada technical specifications
were met.
167
Continental (CPL) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener

High fluid level
If the fluid level is above the MAX range of
the dipstick, remove fluid to reach the
hashmark level.
Note:
Fluid level above the MAX level may
cause shift or engagement concerns or
possible damage. An overheating condition
can cause high fluid levels. If you operate
your vehicle for an extended period at high
speeds, in city traffic during hot weather or
pulling a trailer, you should switch your
vehicle off until your vehicle reaches normal
operating temperatures. Depending on
vehicle use, cooling times could take up to
30 minutes or longer. Adjusting Automatic Transmission Fluid
Levels
Before adding any fluid, make sure the
correct type is used. The type of fluid used
is normally indicated on the dipstick and in
the Technical Specifications section in this
chapter.Note:
An overfill condition of transmission
fluid may cause shift or engagement
concerns or possible damage.
Do not use supplemental transmission fluid
additives, treatments or cleaning agents. The
use of these materials may affect
transmission operation and result in damage
to internal transmission components.
Reinstall the air filter assembly. After you
check the fluid level and adjust as necessary,
do the following:
1. Switch the engine off.
2. Loosen the clamp holding the air filter assembly to the rubber hose.
3. Seat the air filter assembly back into the
grommets by pushing down on the air
filter assembly.
4. Tighten the clamp.
5. Install and tighten the two bolts that attach the air filter assembly to the front
of the vehicle.
6. Install the bolt cover.
7. Reinstall the harness retaining clip into the front of the air filter assembly.
322
Continental (CPL) Canada/United States of America, enUSA, First Printing MaintenanceE158844 E158845 E158846

14. Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page 366). 15. Fold up the wrench/jack handle and
re-attach to the jack. Re-position
jack/wrench assembly into the original
vehicle position and secure with the
plastic wing nut. Make sure the jack is
fastened securely before you drive.
16. Unblock the wheel.
Stowing the flat tire
You cannot store the full-sized road wheel
in the temporary spare tire well.
1. Find the flat tire retainer strap tucked inside the jack channel. Lower the
carpeted load floor.
2. Stow the flat tire in the cargo area on the
load floor with the wheel facing up.
Secure the flat tire with the retainer strap
by following the next steps. 3. Locate the rear left side and right side
cargo tie-down rings. Push the loop end
of the retainer strap through one cargo
tie-down ring. Thread the non-loop end
through the loop.
4. Weave the retainer strap through the wheel openings.
5. Locate the cargo tie-down in the opposite
rear corner of the cargo area. Thread the
retainer strap though the tie-down and
pull tight.
364
Continental (CPL) Canada/United States of America, enUSA, First Printing Wheels and Tires12
3
4
5
E75442 E142906

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When installing a wheel, always remove any corrosion, dirt or foreign ma\
terials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the
hub are secured so they do not interfere with the mounting surfaces of t\
he wheel. Installing wheels without correct metal-to-metal contact at
the wheel mounting surfaces can cause the wheel nuts to loosen and the w\
heel to come off while your vehicle is in motion, resulting in loss
of control. Ib-ft (Nm)
*
Bolt size
162 lb.ft (220 Nm)
M14 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust.\
Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kil\
ometers) after any wheel disturbance (such as tire rotation, changing \
a
flat tire, wheel removal).
366
Continental (CPL) Canada/United States of America, enUSA, First Printing Wheels and Tires

ERROR-FREE OR THAT THE FUNCTIONING
OF THE GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO
DISCONTINUE ITS ONLINE SERVICES AT
ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE,
TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS OR
LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any interference
received, including interference that may
cause undesired operation. WARNING
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment. The term "IC"
before the radio certification number only
signifies that Industry Canada technical
specifications were met. The antenna used for this transmitter must
not be co-located or operating in conjunction
with any other antenna or transmitter.SUNA TRAFFIC CHANNEL – TERMS AND
CONDITIONS
By activating, using and/or accessing the
SUNA Traffic Channel, SUNA Predictive or
other content or material provided by
Intelematics (together,
SUNA Products
and/or Services), you must accept certain
terms and conditions. The following is a brief
summary of the terms and conditions that
apply to you. To view the full terms and
conditions relevant to your use of the SUNA
Products and/or Services, please consult: Website
www.sunatraffic.com.au/termsandcondi- tions/
1. Acceptance
By using SUNA Products and/or Services,
you will be deemed to have accepted and
agreed to be bound by the terms and
conditions fully detailed at:
568
Continental (CPL) Canada/United States of America, enUSA, First Printing Appendices

Safety Precautions........................................176
Scheduled Maintenance Record...............521
Scheduled Maintenance............................508
Seatbelt Extension.........................................42
Seatbelt Height Adjustment.........................39
Seatbelt Reminder..........................................40 Belt-Minder™...........................................................40
Seatbelts...........................................................34 Principle of Operation..........................................34
Seatbelt Warning Lamp and Indicator Chime..............................................................39
Conditions of operation......................................39
Seats.................................................................148
Security..............................................................79
Settings...........................................................469 911 Assist...............................................................476
Ambient Lighting................................................484
Bluetooth..............................................................472
Clock......................................................................472
Display...................................................................485
General.................................................................482
Media Player........................................................470
Mobile Apps.........................................................480
Navigation............................................................478
Phone.....................................................................473
Radio......................................................................477
Sound....................................................................469
Valet Mode...........................................................486 Vehicle...................................................................484
Voice Control.......................................................485
Wi-Fi.......................................................................483
Side Airbags.....................................................49
Side Sensing System....................................214 Obstacle Distance Indicator.............................214
Sitting in the Correct Position
....................148
Snow Chains See: Using Snow Chains..................................355
Soft Closing Door............................................75
Special Notices
.................................................13
New Vehicle Limited Warranty...........................13
On Board Diagnostics Data Link Connector............................................................14
Special Instructions...............................................13
Special Operating Conditions Scheduled Maintenance................................................517
Exceptions ............................................................520
Speed Control See: Cruise Control...........................................229
Stability Control............................................209 Principle of Operation.......................................209
Starting a Gasoline Engine.........................172 Automatic Engine Shutdown............................173
Failure to Start......................................................172
Guarding Against Exhaust Fumes...................174
Important Ventilating Information....................174
Starting Your Vehicle..........................................172 Stopping the Engine When Your Vehicle is
Moving...............................................................174
Stopping the Engine When Your Vehicle is Stationary..........................................................174
Starting and Stopping the Engine..............171 General Information.............................................171
Steering...........................................................251 Adaptive Steering..............................................252
Electric Power Steering.....................................251
Steering Wheel
................................................82
Storage Compartments...............................170
Sunroof See: Moonroof.....................................................102
Sun Shades
......................................................101
Sun Visors........................................................101
Illuminated Vanity Mirror....................................101
Supplementary Restraints System
.............44
Principle of Operation..........................................44
Symbols Glossary
..............................................7
SYNC™ 3..........................................................402
General Information...........................................402
SYNC™ 3 Troubleshooting..........................486
T
Technical Specifications See: Capacities and Specifications...............368
579
Continental (CPL) Canada/United States of America, enUSA, First Printing Index
