2017 LEXUS RX200T stop start

2554-2. Driving procedures
4
Driving
RX350/RX200t_EE_OM48F32E
■Automatic deactivation of shift range selection in the D position (vehicles with paddle
shift switches)
Shift range selection in the D position will be deactivated in the following situations:
●The “+” paddle shift switch is held down for a period of time
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time
●When the shift lever is shifted to a position other than D
■To protect the automatic transmission
If the automatic transmission fluid temperat ure is high, “Transmission Fluid Temp High See Owner’s Manual” will be displayed on the multi-information display and the vehicle
will go into transmission protection mode automatically. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped profes-sional.
■Downshifting restri ction warning buzzer
To help ensure safety and driving performa nce, downshifting operation may sometimes be restricted. In some circumstances, down shifting may not be possible even when the
shift lever or paddle shift switch (if equipp ed) is operated. (A buzzer will sound twice.)
■When driving with cruise control or dynamic radar cruise control with full-speed range activated
Even when performing the following actions with the intent of enabling engine braking, engine braking will not activate because crui se control or dynamic radar cruise control with full-speed range will not be canceled.
●Vehicles with paddle shift switches (8-sp eed models): While driving in D position, downshifting to 7, 6, 5 or 4. ( P. 329, 341)
●Vehicles with paddle shift switches (6-speed models): While driving in D position,
downshifting to 5 or 4. ( P. 329, 341)
●When switching the driving mode to sport mode while driving in D position. (P. 417)
■Restraining sudden start (Drive-Start Control)
When the following unusual operation is performed, the engine output may be restrained.
●When the shift lever is shifted from R to D, D to R, N to R, P to D, or P to R (D includes
M) with the accelerator pedal depressed, a warning message appears on the multi- information display. If a warning message is shown on the multi-information display, read the message and follow the instructions.
●When the accelerator pedal is depressed too while the vehicle is in reverse.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift lever in start- ing.The shift lever can be shifte d from P only when the engine switch is in IGNITION ON
mode and the brake pedal is being depressed.

2634-2. Driving procedures
4
Driving
RX350/RX200t_EE_OM48F32E
Turns the brake hold system on
The brake hold standby indicator
(green) comes on. While the system is holding the brake, the brake hold oper-ated indicator (yellow) comes on.
■Brake hold system operating conditions
The brake hold system cannot be turn ed on in the following conditions:
●The driver’s door is not closed.
●The driver is not wearing the seat belt.
If any of the conditions above are detected when the brake hold system is enabled, the
system will turn off and the brake hold standby indicator light will go off. In addition, if any of the conditions are detected while the sy stem is holding the brake, a warning buzzer will sound and a message will be shown on th e multi-information display. The parking
brake will then be set automatically.
■Brake hold function
●If the brake pedal is left released for a pe riod of about 3 minutes after the system has
started holding the brake, th e parking brake will be set automatically. In this case, a warning buzzer sounds and a message is shown on the multi-information display.
●To turn the system off while the system is holding the brake, firmly depress the brake
pedal and press the button again.
●The brake hold function may not hold the vehicle when the vehicle is on a steep incline. In this situation, it may be necessary for the driver to apply the brakes. A warning
buzzer will sound and the multi-information disp lay will inform the driver of this situa- tion. If a warning message is shown on the multi-information display, read the message and follow the instructions.
Brake Hold
The brake hold system keeps the brake a pplied when the shift lever is in D, M
or N with the system on and the brake pedal has been depressed to stop the
vehicle. The system releases the brake when the accelerator pedal is
depressed with the shift lever in D or M to allow smooth start off.

3324-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 100 m (328 ft.) ahead, determines the current vehicle-to-vehicle
following distance, and operates to maintain a suitable following distance from
the vehicle ahead.
Note that vehicle-to-vehicle distance will close in when traveling on long downhill slopes.
Example of constant speed cruising
When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-vehicle dis- tance can also be set by operating the vehicle-to-vehicle distance button.
Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically deceler- ates your vehicle. When a greater reductio n in vehicle speed is necessary, the system applies the brakes (the stop lights will come on at this time). The system will respond to
changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by the driver. Approach wa rning warns you when the system cannot decelerate sufficiently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your ve hicle will also stop (vehicle is stopped by system control). After the vehicle ahead starts off, pushing the cruise control lever upor depressing the accelerator peda l will resume follow-up cruising.
Example of acceleration
When there are no longer any preceding vehicles driving slower than the set
speed
The system accelerates until the set speed is reached. The system then returns to con-
stant speed cruising.
Driving in vehicle-to-veh icle distance control mode
1
2
3

3354-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
Pressing the button changes the vehi-
cle-to-vehicle distance as follows:
Long
Medium
Short
The vehicle-to-vehicle distance is set automatically to long mode when theengine switch is turned to IGNITION
ON mode.
If a vehicle is running ahead of you, the preceding vehicle mark will also be displayed.
Select a distance from the table below. Note that the distances shown corre-
spond to a vehicle speed of 80 km/h (50 mph). Vehicle-to-vehicle distance
increases/decreases in accordance with vehicle speed. When the vehicle is
stopped by system control, the vehicle- to-vehicle distance will be about 3 m
(10 ft.) to 5 m (16 ft.) regardless of the vehicle-to-vehicle distance setting.
After the vehicle ahead of you starts off,
push the lever up.
Your vehicle will also resume follow-up
cruising if the accelerator pedal is
depressed after the vehicle ahead of
you starts off.
Changing the vehicle-to-vehicle di stance (vehicle-to-vehicle distance
control mode)
Preceding
vehicle mark
1
2
3
Vehicle-to-vehicle distance setting s (vehicle-to-vehicle distance con-
trol mode)
Distance optionsVehicle-to-vehicle distance
LongApproximately 50 m (160 ft.)
MediumApproximately 40 m (130 ft.)
ShortApproximately 30 m (100 ft.)
Resuming follow-up cruising when th e vehicle has been stopped by sys-
tem control (vehicle-to-vehicle distance control mode)

3454-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
◆When the brake hold system is disabled
■Stopping the engine
While driving with the shift lever in D
or M, depress the brake pedal, and
stop the vehicle.
The Stop & Start indicator will come on.
■Restarting the engine
Release the brake pedal.
The Stop & Start indicator will turn off.
Stop & Start system
: If equipped
The Stop & Start system stops and restarts the engine according to the brake
pedal operation and other operations when the vehicle is stopped.
Stop & Start system operation

3464-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
◆When the brake hold system is enabled
The Stop & Start system is operational when the brake hold system is operat-
ing. (P. 263)
■Stopping the engine
While driving with the shift lever in D
or M, depress the brake pedal, and
stop the vehicle.
The Stop & Start indicator will come
on.
While the brake hold system is oper- ating, the brake hold operated indi-
cator (yellow) will come on. If the brake pedal is released, the enginewill remain stopped by the Stop &
Start system.
■Restarting the engine
Depress the accelerator pedal. (Releasing the brake pedal will not restart the
engine.)
The Stop & Start indicator and brake hold op erated indicator (yellow) will turn off.
■Stop & Start system operation when the brake hold system is operating
●If the engine is restarted automatically by the Stop & Start system when the
brake hold system is operating, the brake hold system will continue to apply
the brakes.
●If the operation conditions of the brake hold system are no longer met ( P.
263) while the engine is stopped by the Stop & Start system, the brake hold
system will stop operating.
At this time, the parking brake will be a pplied automatically and the engine will be restarted automatically.

3474-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
◆When the dynamic radar cruise control with full-speed range is operating
(if equipped)
The Stop & Start system is operational during a controlled stop by the
dynamic radar cruise control with full-speed range. (P. 332)
■Stopping the engine
While driving with the dynamic
radar cruise control with full-speed
range in vehicle-to-vehicle distance
control mode, the engine will stop
automatically if the vehicle comes to
a complete stop through a con-
trolled stop. (The engine will stop
automatically even though the brake
pedal is not depressed.)
The Stop & Start indicator will come on.
■Restarting the engine
When the preceding vehicle starts off, the engine will restart automatically.
The Stop & Start indicator will turn off.
■Stop & Start system operation during a controlled stop by the dynamic
radar cruise control with full-speed range
If the engine is restarted automatically by the Stop & Start system during a
controlled stop by the dynamic radar cruise control with full-speed range, the
controlled stop will continue. (Resuming follow-up cruising after a controlled
stop: P. 335)

3484-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E

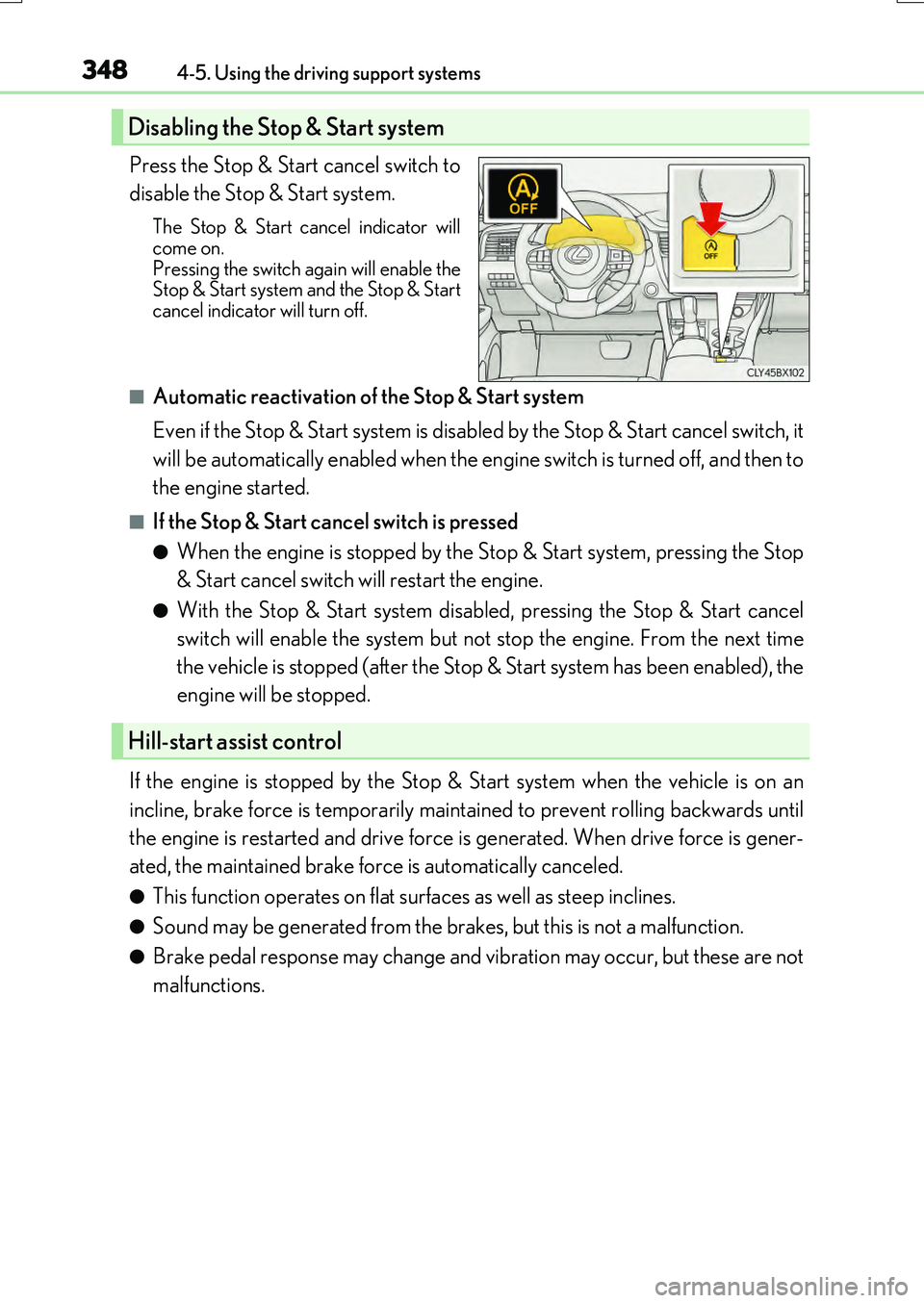

Press the Stop & Start cancel switch to
disable the Stop & Start system.
The Stop & Start cancel indicator will
come on. Pressing the switch again will enable theStop & Start system and the Stop & Start
cancel indicator will turn off.
■Automatic reactivation of the Stop & Start system
Even if the Stop & Start system is disabled by the Stop & Start cancel switch, it
will be automatically enabled when the engine switch is turned off, and then to
the engine started.
■If the Stop & Start cancel switch is pressed
●When the engine is stopped by the St op & Start system, pressing the Stop
& Start cancel switch will restart the engine.
●With the Stop & Start system disabl ed, pressing the Stop & Start cancel
switch will enable the system but no t stop the engine. From the next time
the vehicle is stopped (after the Stop & Start system has been enabled), the
engine will be stopped.
If the engine is stopped by the Stop & Start system when the vehicle is on an
incline, brake force is temporarily maintained to prevent rolling backwards until
the engine is restarted and drive force is generated. When drive force is gener-
ated, the maintained brake force is automatically canceled.
●This function operates on flat surfaces as well as steep inclines.
●Sound may be generated from the brak es, but this is not a malfunction.
●Brake pedal response may change and vibration may occur, but these are not
malfunctions.
Disabling the Stop & Start system
Hill-start assist control
