2017 LEXUS RX200T stop start

1883-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
■Folding down the rear seatbacks (power seat)
Press and hold the switch to fold down the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operatio n switch for the operating seat, regard- less of location, can be used to stop the operation. (A buzzer may sound depend-ing on the position that the rear seatback is stopped.)
■Folding down the rear center seatback
Pull the lock release lever behind the
rear seatback and fold the rear
seatback down.
To return the rear center seatback to
its original position, lift it up until it locks.
Rear seat operation switch
(rear seat)
Rear seat operation switch
(luggage compartment)
When using the rear seat operation switch (rear seat): If the rear seatback is
reclined, bring the rear seatback to the most upright position and press and
hold the switch again.

1903-3. Adjusting the seats
RX350/RX200t_EE_OM48F32E
■Returning the rear seatbacks (power seat) Press and hold the switch to return the rear seatback.
A buzzer will sound and then the operation will start. The buzzer will sound again
when the operation is completed.
To stop the operation partway, press either side of the rear seat operation switch of
the operating seat. Any rear seat operation switches for the operating seat,
regardless of location, can be used to stop the operation. (A buzzer may sound
depending on the position that the rear seatback is stopped.)
Check that the plate of the seat
belt is on the front side of the seat.
1
Rear seat operation switch
(rear seat)Rear seat operation switch
(luggage compartment)
2

2113-5. Opening, closing the windows and moon roof
3
Operation of each component
RX350/RX200t_EE_OM48F32E
■The power windows can be operated when
The engine switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes jammed between the window and the window frame while the win- dow is closing, window movement is stop ped and the window is opened slightly.
■Catch protection function
If an object becomes caught between the door and window while the window is opening, window movement is stopped.
■When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and the door window cannot be opened or closed , perform the following operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in IGNITION ON mode, within 4 seconds ofthe jam protection function or catch protecti on function activating, continuously oper- ate the power window switch in the one-to uch closing direction or one-touch opening
direction so that the door window can be opened and closed.
●If the door window cannot be opened and closed even when performing the above operations, perform the following pr ocedure for function initialization.
Turn the engine switch to IGNITION ON mode.
Pull and hold the power window switch in the one-touch closing direction and com- pletely close the door window.
Release the power window switch for a moment, resume pulling the switch in the one-touch closing direction, and hold it there for approximately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direction. After
the door window is completely opened, cont inue holding the switch for an additional 1 second or more.
Release the power window switch for a moment, resume pressing the switch in the
one-touch opening direction, and hold it there for approximately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction again.
After the door window is completely clos ed, continue holding the switch for a fur- ther 1 second or more.
If you release the switch while the window is moving, start again from the beginning. If the window reverses and cannot be fully closed or opened, have the vehicle inspectedby any authorized Lexus dealer or repairer , or another duly qualified and equipped pro-
fessional.
1
2
3
4
5
6

2203-5. Opening, closing the windows and moon roof
RX350/RX200t_EE_OM48F32E
■Closing both the panoramic moon roof and electronic sunshade
Slide the
switch forward.
The electronic sunshade will close to the half-open position and pause.The panoramic
moon roof will then fully close. Then the electronic sunshade will fully close.
■When the panoramic moon roof or electronic sunshade does not close normally
Perform the following procedure:
Stop the vehicle.
Turn the engine switch to IGNITION ON mode.
Slide and hold the swit ch or switch forward. Continue pressing the
switch for approximately 10 seconds afte r the panoramic moon roof or electronic
sunshade closes and reopens. The panora mic moon roof and electronic sunshade
will start to close.
*
Check that the panoramic moon roof and el ectronic sunshade are fully closed and
release the switch.
*: If the switch is released at the incorrec t time, the procedure will have to be per-
formed again from the beginning.
If the panoramic moon roof or electronic sunshade does not fully close even after per-
forming the above procedure correctly, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■Alarm (if equipped)
The alarm may be triggered if the alarm is set and the panoramic moon roof is closed
using the door lock linked panoramic moon roof operation function. ( P. 84)
■Panoramic moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru-
ment cluster when the engine switch is turned off and the driver’s door is opened with the
panoramic moon roof open.
■Customization
Some functions can be customized. ( P. 740)
1
2
3
4

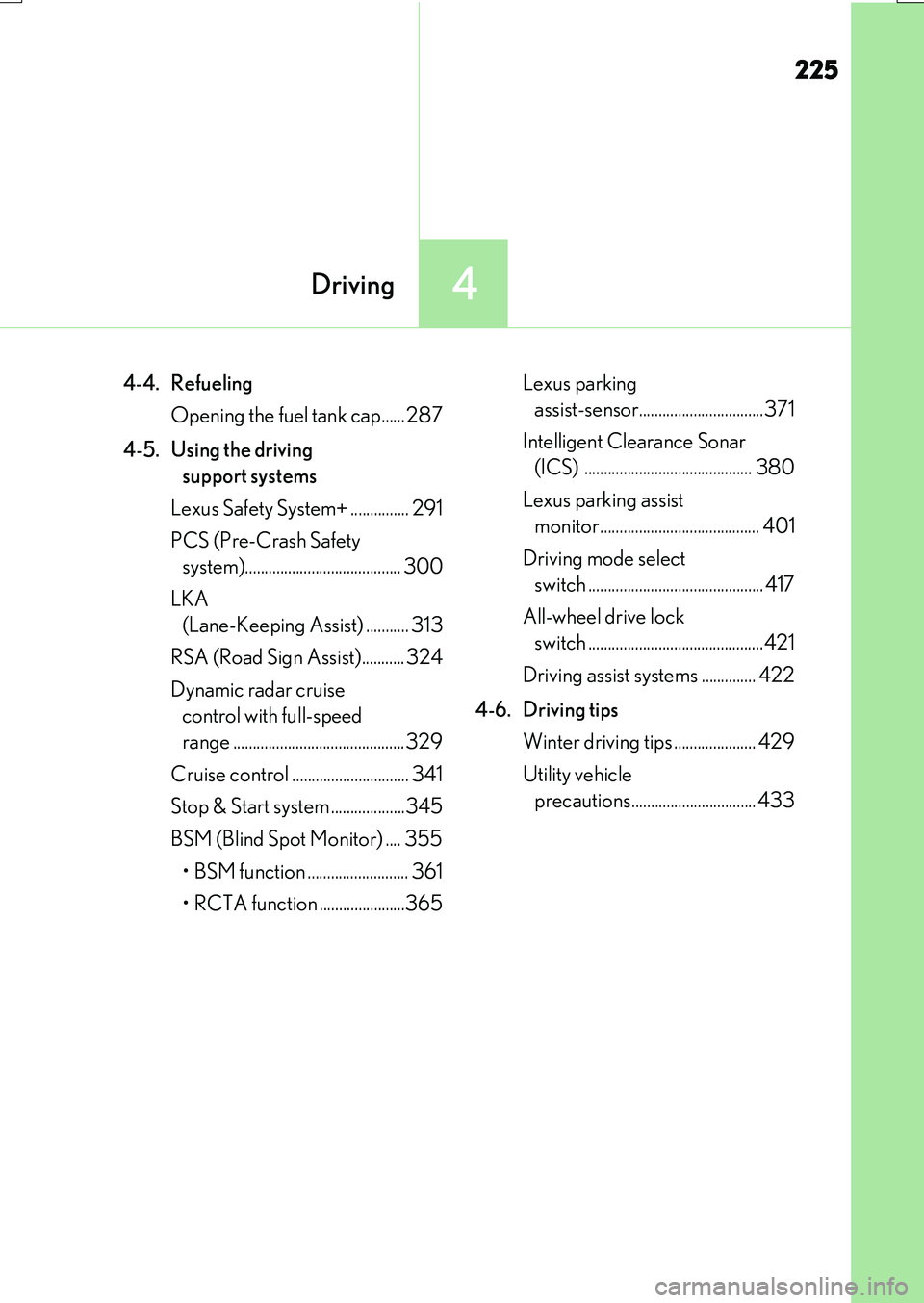

225
4Driving
RX350/RX200t_EE_OM48F32E
4-4. Refueling
Opening the fuel tank cap...... 287
4-5. Using the driving
support systems
Lexus Safety System+ ............... 291
PCS (Pre-Crash Safety
system)........................................ 300
LKA
(Lane-Keeping Assist) ........... 313
RSA (Road Sign Assist)........... 324
Dynamic radar cruise
control with full-speed
range ............................................329
Cruise control .............................. 341
Stop & Start system ...................345
BSM (Blind Spot Monitor) .... 355
• BSM function .......................... 361
• RCTA function ......................365
Lexus parking
assist-sensor................................371
Intelligent Clearance Sonar
(ICS) ........................................... 380
Lexus parking assist
monitor......................................... 401
Driving mode select
switch ............................................. 417
All-wheel drive lock
switch .............................................421
Driving assist systems .............. 422
4-6. Driving tips
Winter driving tips ..................... 429
Utility vehicle
precautions................................ 433

226
RX350/RX200t_EE_OM48F32E
4-1. Before driving
 P. 246
With the brake pedal depressed, shift the shift lever to D. (P. 251)
Release the parking brake. ( P. 260)
If the parking brake is in automatic mode, the parking brake is released automatically when shifting the shift lever to any position other than P. ( P. 259)
Gradually release the brake pedal and gently depress the accelerator pedal
to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
RX200t: If the Stop & Start system is en abled, depressing the brake pedal will stop the engine.
If necessary, set the parking brake. ( P. 260)
If the vehicle is to be stopped for an extended period of time, shift the shift lever to P or N. ( P. 251)
With the shift lever in D, depress the brake pedal.
Set the parking brake ( P. 260), and shift the shift lever to P (P. 251).
Press the engine switch to stop the engine.
Lock the door, making sure that you ha ve the electronic key on your person.
If parking on a hill, block the wheels as needed.
Driving the vehicle
The following procedures should be observed to ensure safe driving:
Starting the engine
Driving
Stopping
Parking the vehicle
1
2
3
1
2
1
2
3
4

2284-1. Before driving
RX350/RX200t_EE_OM48F32E
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recommended:
●For the first 300 km (200 miles):
Avoid sudden stops.
●For the first 800 km (500 miles): Do not tow a trailer.
●For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds. • Avoid sudden acceleration.
• Do not drive continuously in low gears. • Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the cor- rect fuel. ( P. 729)
■Idling time before engine stop (RX200t)
To prevent damage to the turbocharger, allow the engine to idle immediately after high- speed driving or hill climbing.
To allow the engine to idle when the vehicle is stopped, disable the Stop & Start system by
pressing the Stop & Start cancel switch. ( P. 348) (With the Stop & Start system enabled, the engine will be stopped by th e Stop & Start system when the vehicle is stopped.)
■Eco-friendly driving
 P. 120
Driving conditionIdling time
Normal city drivingNot necessary
High-speed driving (Constant speed of approx. 100 km/h [62 mph])Approximately 1 minute
Steep hill driving or continuous driving at 100 km/h (62 mph)
or more (race track driving etc.)
Approximately
2 minutes

2294-1. Before driving
4
Driving
RX350/RX200t_EE_OM48F32E
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator ped-als to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will
result in sudden acceleration that may lead to an accident. • When backing up, you may twist your body around, leading to difficulty in operat- ing the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelerator pedals properly.• Depress the brake pedal using your right foot. Depressing the brake pedal using
your left foot may delay response in an emergency, resulting in an accident.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may cause a fire if there is any flammable material nearby.
●During normal driving, do not turn off the engine. Turning the engine off while driving
will not cause loss of steering or braking control, but the power assist to these systems will be lost. This will make it more difficult to steer and brake, so you should pull over and stop the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible to stop the vehicle in the normal way: P. 657
●Use engine braking (downshift) to maintain a safe speed when driving down a steep
hill. Using the brakes continuously may caus e the brakes to overheat and lose effec- tiveness. ( P. 251)
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside rear
view mirrors while driving. Doing so may result in a loss of vehicle control.
●Always check that all passengers’ arms, heads or other parts of their body are not
outside the vehicle.
●AWD models: Do not drive the vehicle off-road. This is not an AWD vehicle designed for o ff-road driving. Proceed with all due cau-
tion if it becomes unavoidable to drive off-road.
●Do not drive across a river or through other bodies of water. This may cause electric/electronic components to short circuit, damage the engine or
cause other serious damage to the vehicle.
