2017 LEXUS RX200T display

448
RX350/RX200t_EE_OM48F32E
5-2. Setup
Go to “Setup”: “MENU” button “Setup”
Change the settings for operation
sounds, screen animation, etc.
( P. 449)
Adjust the settings for voice guid-
ance volume. ( P. 452)
Change the settings for registering,
removing, connecting and discon-
necting Bluetooth® devices.
( P. 483)
Change the settings for FM radio,
iPod, etc. ( P. 457)
Change the settings for vehicle
customization. ( P. 740)
Change the settings for phone
sound, phonebook, etc. ( P. 504)
Setup menu
The Lexus Display Audio system can be adjusted to the desired settings.
Display “Setup” screen
1
2
3
4
5
6

4495-2. Setup
5
Lexus Display Audio system
RX350/RX200t_EE_OM48F32E
Go to “General settings”: “MENU” button “Setup” “General”
General settings
Settings are available for adjusting the operation sounds, screen animation,
etc.
Screen for general settings
ButtonFunction
“Language”Change language. The selectable languages may differ depending on the model or region.
“Units of measurement”Change the distance unit.
“Beep”Set the beep sound on/off.
“Button colour”Change the button color.
“Customise images”Change the startup image and screen off image.( P. 450)
“Animation”Set the animation effect on/off.
“Delete personal data”Delete personal data (P. 451)
“Software update”
Update program versions. For details, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
“Gracenote® databaseupdate”
Update gracenote database versions. For details,contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
“Software information”Display the open source license.

4515-2. Setup
5
Lexus Display Audio system
RX350/RX200t_EE_OM48F32E
■USB memory
When saving the images to a USB memory device, name the folder that the images are saved to “Image”.
●Compatible device formats
The following device format can be used:
• The image’s file format must be JPEG • USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows) • Correspondence class: Mass storage class
●JPEG file compatibility
Compatible image size: Maximum 10 MB
Go to “Delete personal data”: “MENU” button  “Setup”  “General” 
“Delete personal data”
Select “Delete”.
Check carefully beforehand, as data cannot be retrieved once deleted.
The following personal data will be deleted or changed to its default settings.
• Phonebook data •Voice tag
• Call history data •Favorite data
• Bluetooth® devices data
• Phone sound settings
• Detailed Bluetooth® settings • Audio/video setting
• Customized image data •FM info setting• Software update history
• Software update detail information • Phone display setting• Contact/call history setting
• Messaging setting
NOTICE
■To prevent damage to the USB memory device or its terminals
 P. 480
Deleting personal data
1
2

4535-2. Setup
5
Lexus Display Audio system
RX350/RX200t_EE_OM48F32E
Go to “Display”: “MENU” button  “Display”
Turn off screen.
Adjust screen quality.
Adjust screen quality of the rear
view monitor camera.
Change to day mode.
This setting turns the screen off. To turn it on, press any button such as the
“AUDIO” button or “MENU” button.
If a screen off image has been se t, the set image will be displayed.
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day mode”.
The screen will stay in day mode when the headlights are turned on until “Day mode”
is selected again.
Display settings
Settings are available for adjusting the contrast and brightness of the screen.
The display can also be turned off.
Screen for display settings
1
2
3
4
Screen off
Day mode

4545-2. Setup
RX350/RX200t_EE_OM48F32E
Select “General” or “Camera” on the “Display” screen or select “Display” on
audio menu screen. ( P. 461)
Adjust the display as desired by turning the controller clockwise (+) or
counterclockwise (-).
To select “Contrast”, “Brightness”, “Colour” or “Tone”, move the controller to the left. (“Colour” and “Tone” are available when “D isplay” on the audio settings screen for each audio source is selected.)
■Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.
Adjusting the screen contrast/brightness/color/tone
1
2

455
5
Lexus Display Audio system
RX350/RX200t_EE_OM48F32E
5-3. Using the audio system
Press the “AUDIO” button to display the “Source” screen.
If the “Source” screen is not displayed, press the button again.
Select the desired audio source.
The audio source can be selected by pressing the “RADIO” or “MEDIA” button.
Press the “MODE” switch when the audio system is turned on. The audio source
changes each time the “MODE” switch is pressed.
■Rearranging the list
The listing order of the source list can be rearranged.
Move the controller to the left while on the “Source” screen.
Select “Audio source select”.
Select an item you wish to move and then select where to move the item to.
Selecting the audio source
Switching between audio sources, such as the radio and CD, is explained in
this section.
Changing audio source
Using the steering wheel switches to change audio sources
1
2
1
2
3

4575-3. Using the audio system
5
Lexus Display Audio system
RX350/RX200t_EE_OM48F32E
Go to “Audio settings”: “MENU” button  “Setup”  “Audio”
Change sound settings ( P. 456)
Change FM radio settings
( P. 458)
Change DAB settings (if equipped)
( P. 458)
Change iPod settings ( P. 459)
Change USB settings ( P. 459)
Change A/V settings ( P. 460)
Change the cover art settings
( P. 460)
Audio settings
Screen for audio settings
1
2
3
4
5
6
7

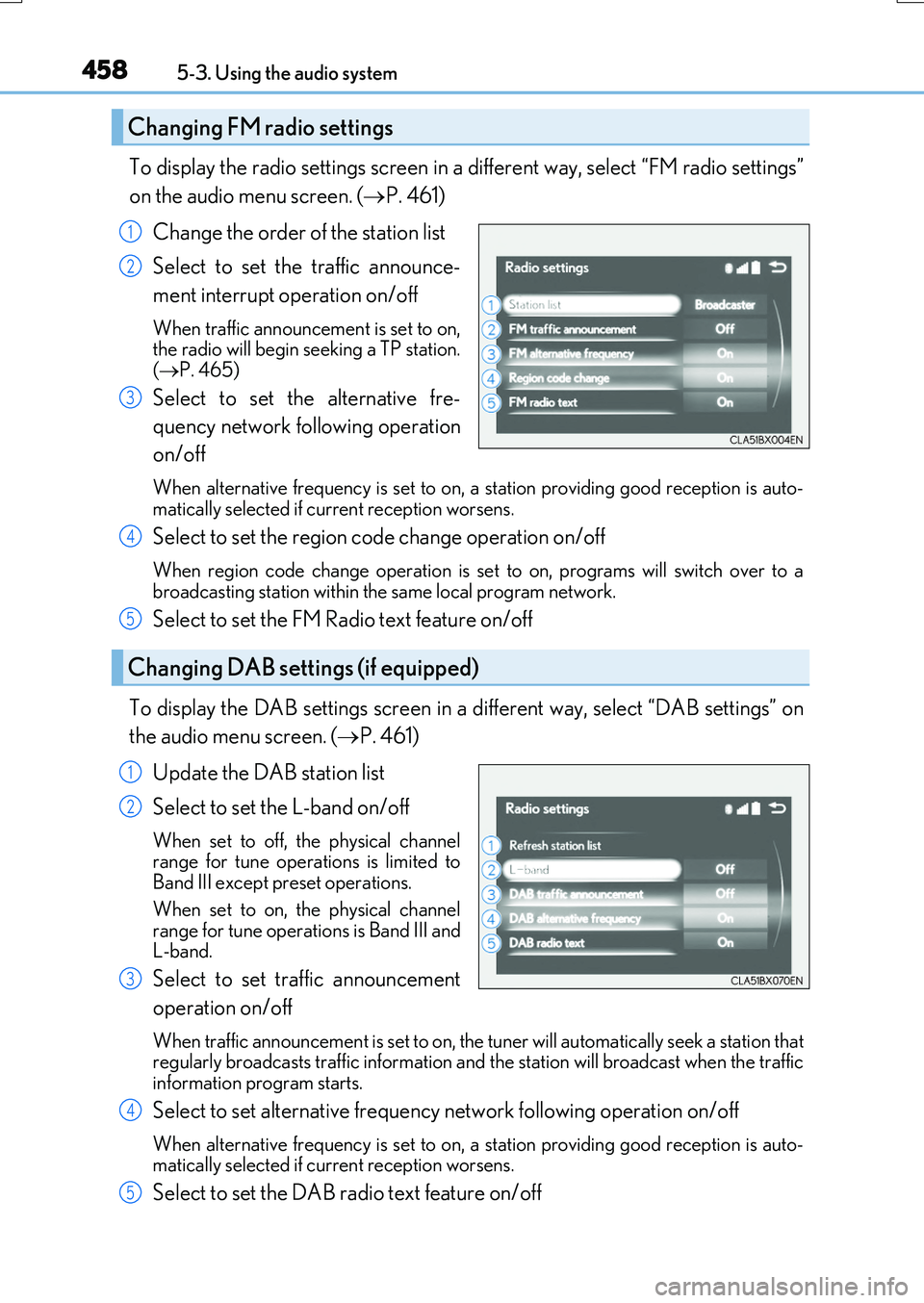

4585-3. Using the audio system
RX350/RX200t_EE_OM48F32E
To display the radio settings screen in a different way, select “FM radio settings”
on the audio menu screen. ( P. 461)
Change the order of the station list
Select to set the traffic announce-
ment interrupt operation on/off
When traffic announcement is set to on, the radio will begin seeking a TP station.( P. 465)
Select to set the alternative fre-
quency network following operation
on/off
When alternative frequency is set to on, a station providing good reception is auto- matically selected if current reception worsens.
Select to set the region code change operation on/off
When region code change operation is se t to on, programs will switch over to a
broadcasting station within th e same local program network.
Select to set the FM Radio text feature on/off
To display the DAB settings screen in a different way, select “DAB settings” on
the audio menu screen. ( P. 461)
Update the DAB station list
Select to set the L-band on/off
When set to off, the physical channel range for tune operations is limited toBand III except preset operations.
When set to on, the physical channel range for tune operations is Band III andL-band.
Select to set traffic announcement
operation on/off
When traffic announcement is set to on, the tuner will automatically seek a station that regularly broadcasts traffic information and the station will broadcast when the traffic information program starts.
Select to set alternative frequency network following operation on/off
When alternative frequency is set to on, a station providing good reception is auto-matically selected if current reception worsens.
Select to set the DAB radio text feature on/off
Changing FM radio settings
1
2
3
Changing DAB settings (if equipped)
4
5
1
2
3
4
5
