2017 LEXUS RC200T USB port

TABLE OF CONTENTS4
RC200t_RC F_EE(OM24728E)
5-1. Basic Operations
Lexus Display Audio
System ........................................ 390
Steering wheel audio
switches.......................................396
USB/AUX ports ........................ 397
5-2. Setup
Setup menu...................................399
General settings ........................ 400
Voice settings ............................. 403
Display settings ...........................404
5-3. Using the audio system
Selecting the audio
source ..........................................406
Optimal use of the audio
system ..........................................407
Audio settings............................. 408
Audio menu screen
operation ..................................... 412
5-4. Using the radio
Radio operation ........................... 415
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ..................417
5-6. Using an external device
Listening to an iPod ................... 423
Using USB memory
device........................................... 427
Using the AUX port ................. 432
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices.........................................433
Registering a Bluetooth®
device...........................................435
Selecting a Bluetooth®
device...........................................436
Connecting a Bluetooth®
audio player............................... 437
Connecting a Bluetooth®
phone .......................................... 438
Displaying a Bluetooth®
device details ............................439
Detailed Bluetooth®
settings.........................................440
5-8. Bluetooth® Audio
Listening to Bluetooth®
Audio............................................. 441
5Lexus Display Audio system

388
RC200t_RC F_EE(OM24728E)
5-1. Basic Operations
Lexus Display Audio
System .........................................390
Steering wheel audio
switches....................................... 396
USB/AUX ports ........................ 397
5-2. Setup
Setup menu .................................. 399
General settings.........................400
Voice settings..............................403
Display settings ...........................404
5-3. Using the audio system
Selecting the audio
source ..........................................406
Optimal use of the audio
system .......................................... 407
Audio settings .............................408
Audio menu screen
operation ......................................412
5-4. Using the radio
Radio operation........................... 415
5-5. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation ..................417
Some of the functions cannot be operated while driving.

389
5
Lexus Display
Audio system
RC200t_RC F_EE(OM24728E)
5-6. Using an external device
Listening to an iPod................... 423
Using USB memory
device........................................... 427
Using the AUX port ................. 432
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices.........................................433
Registering a Bluetooth®
device...........................................435
Selecting a Bluetooth®
device...........................................436
Connecting a Bluetooth®
audio player ............................... 437
Connecting a Bluetooth®
phone .......................................... 438
Displaying a Bluetooth®
device details ............................439
Detailed Bluetooth®
settings.........................................440
5-8. Bluetooth® Audio
Listening to Bluetooth®
Audio............................................. 441
5-9. Bluetooth® Phone
Using a Bluetooth®
Phone........................................... 443
Making a call................................ 445
Receiving a call ...........................448
Speaking on the phone ........... 449
Using a Bluetooth®
phone messages ...................... 451
Using the steering wheel
switches....................................... 454
Bluetooth® phone
settings ........................................ 455
5-10. Phonebook
Contact settings ......................... 457
Messaging setting .....................460
5-11. Bluetooth®
What to do if...
(Troubleshooting).....................461
Bluetooth®................................... 464
5-12. Other function
“Information” screen................. 469
MirrorLink ................................ 470
USB photo .................................... 473
Speech command system ...... 475
Some of the functions cannot be operated while driving.

3975-1. Basic Operations
5
Lexus Display Audio system
RC200t_RC F_EE(OM24728E)
■iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if it is not turned on.
■USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
USB/AUX ports
Connect an iPod, USB memory device or portable audio player to the USB/
AUX port as indicated below. Select “iPod”, “USB”, “AUX” or “A/V” on the
audio source selection screen and the device can be operated via the Lexus
Display Audio system.
Connecting using the USB/AUX port

3985-1. Basic Operations
RC200t_RC F_EE(OM24728E)
To view a video on an iPod video or VTR, it is necessary to use a 4-pole AUX
cable to connect the portable audio device.
When connecting a portable audio device to the AUX port, use a 4-pole AUX
cable with a plug that matches the exact layout shown in the illustration.
Connected device (portable audio
device, etc.)
Left audio
Right audio
Ground
Video
When using an iPod video, a cable
that has a 4-pole AUX plug and a
USB connector is necessary. Con-
nect the plug and connector to the
AUX and USB ports.
■When using a 4-pole AUX cable
If a 4-pole AUX cable with a different layout is used, audio and/or video may not be out- put properly.
Using a 4-pole AUX cable
1
2
3
4
5
WARNING
■While driving
Do not connect a device or operate the device controls.
Failure to do so may lead to an accident.

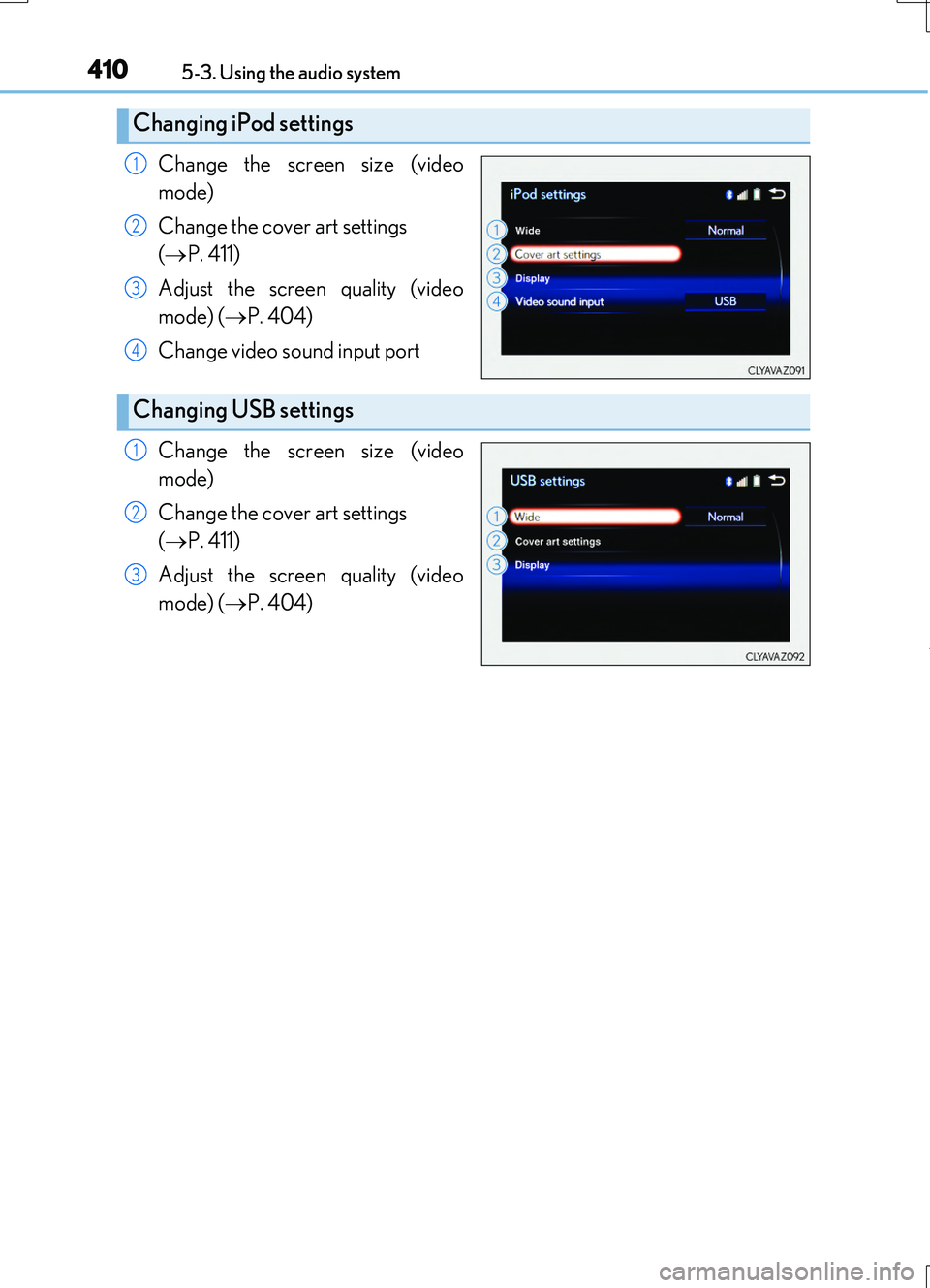

4105-3. Using the audio system
RC200t_RC F_EE(OM24728E)
Change the screen size (video
mode)
Change the cover art settings
( P. 411)
Adjust the screen quality (video
mode) ( P. 404)
Change video sound input port
Change the screen size (video
mode)
Change the cover art settings
( P. 411)
Adjust the screen quality (video
mode) ( P. 404)
Changing iPod settings
1
2
3
4
Changing USB settings
1
2
3

4315-6. Using an external device
5
Lexus Display Audio system
RC200t_RC F_EE(OM24728E)
NOTICE
■To prevent damage to the USB memory device or its terminals
●Do not leave the USB memory device in the vehicle. The temperature inside the vehi- cle may become high, resulting in damage to the USB memory device.
●Do not push down on or apply unnecessary pressure to the USB memory devicewhile it is connected.
●Do not insert foreign objects into the port.

4705-12. Other function
RC200t_RC F_EE(OM24728E)
P. 397
MirrorLink
The MirrorLink function enables to operate a smartphone contents via
Lexus Display Audio system.
Depending on differences between mode ls, target regions or software ver-
sions, etc., some models might be incompatible with this system.
Connect a smartphone to US B port using a USB cable.
For safety reasons, the safe driving screen is displayed while driving depend-
ing on the application.
Connecting a smartphone
