RC200t_RC F_EE(OM24728E)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument clusterHow to read the gauges and meters, the variety of warning
lights and indicators, etc.
3Operation of
each component
Opening and closing the doors and windows, adjustment
before driving, etc.
4DrivingOperations and advice which are necessary for driving
5Lexus Display
Audio systemOperating the Lexus Display Audio system
6Interior featuresUsage of the interior features, etc.
7Maintenance
and careCaring for your vehicle and maintenance procedures
8When trouble
arisesWhat to do in case of malfunction or emergency
9Vehicle
specificationsVehicle specifications, customizable features, etc.
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
RC200t_RC F_EE(OM24728E)
For your information ...................................8
Reading this manual .................................. 10
How to search ............................................... 11
Pictorial index .............................................. 12
1-1. For safe use
Before driving .................................40
For safety drive............................... 42
Seat belts .......................................... 44
SRS airbags ..................................... 49
Airbag manual on-off
system .............................................60
Pop Up Hood ................................. 62
Safety information
for children....................................65
Child restraint systems ............... 66
Exhaust gas precautions ............. 91
1-2. Theft deterrent system
Engine immobilizer system ....... 92
Double locking system ............. 102
Alarm ............................................... 103
2. Instrument cluster
Warning lights and
indicators ...................................... 110
Gauges and meters
(RC200t)..................................... 118
Gauges and meters
(RC F) ........................................... 124
Multi-information display
(RC200t)......................................131
Multi-information display
(RC F) ........................................... 139
Fuel consumption
information.................................. 152
3-1. Key information
Keys .................................................. 158
3-2. Opening, closing and
locking the doors and
trunk
Doors ............................................... 164
Trunk ................................................ 170
Smart entry & start system ...... 175
3-3. Adjusting the seats
Front seats.....................................209
Rear seats ....................................... 212
Driving position memory ......... 214
Head restraints..............................217
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................220
Inside rear view mirror............. 222
Outside rear view mirrors ...... 224
3-5. Opening, closing the
windows and moon roof
Power windows .......................... 227
Moon roof ...................................... 231
1For safety and security
2Instrument cluster
3Operation of
each component

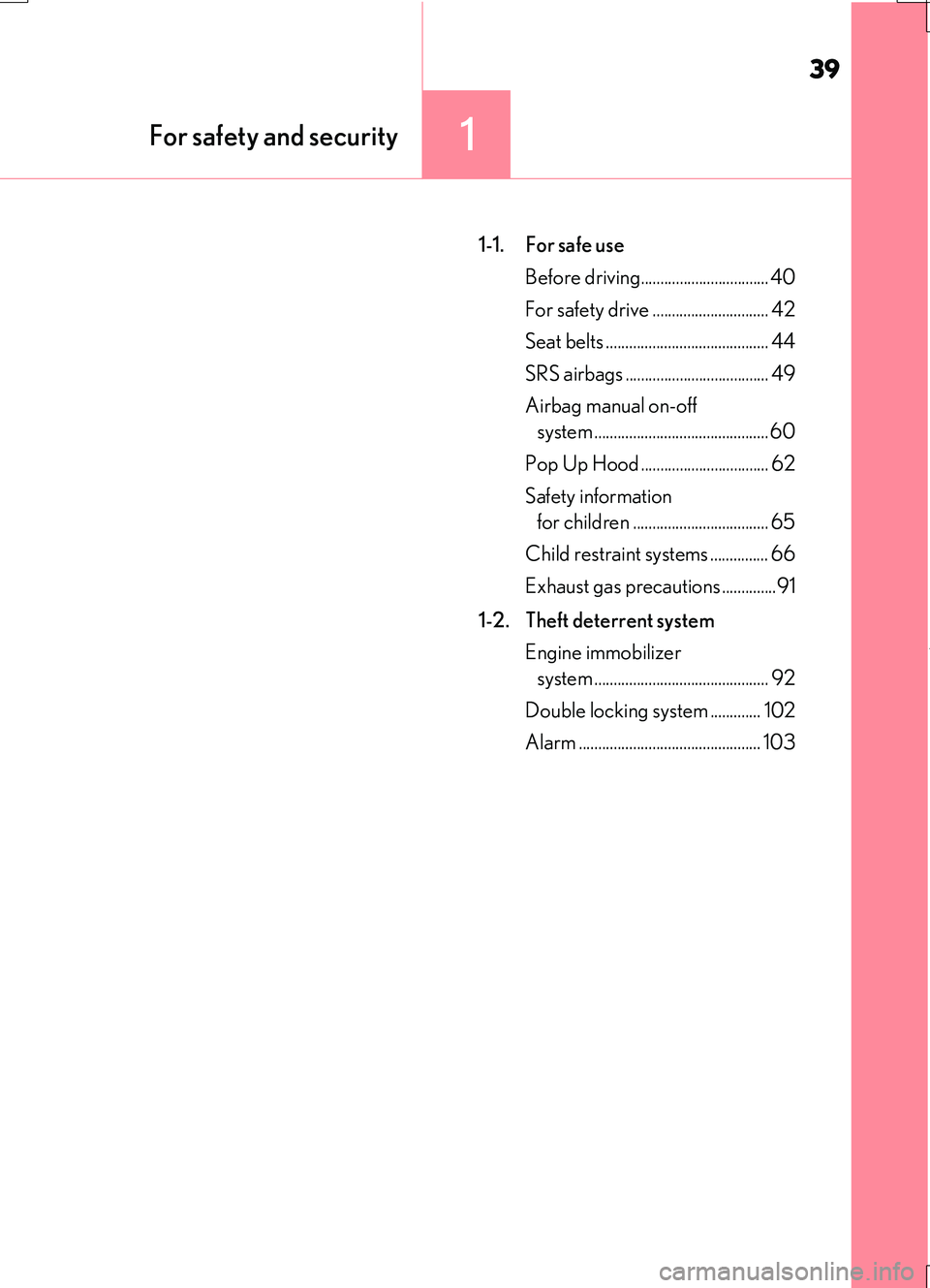

39
1For safety and security
RC200t_RC F_EE(OM24728E)
1-1. For safe use
Before driving................................. 40
For safety drive .............................. 42
Seat belts .......................................... 44
SRS airbags ..................................... 49
Airbag manual on-off
system ............................................. 60
Pop Up Hood ................................. 62
Safety information
for children ................................... 65
Child restraint systems ............... 66
Exhaust gas precautions ..............91
1-2. Theft deterrent system
Engine immobilizer
system ............................................. 92
Double locking system ............. 102
Alarm ............................................... 103

40
RC200t_RC F_EE(OM24728E)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
Before driving
Floor mat
1
*
2

411-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
WARNING
Observe the following precautions. Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-als while driving. An unexpect edly high speed may result or it may become difficult to
stop the vehicle. This could lead to an acci dent, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely us ing the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per- form this check after cleaning the floor.
●With the engine stopped and the shift lever in
P, fully depress each pedal to the floor to make sure it does not interfere with the floormat.

431-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( P. 222, 224)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving. Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.A cushion may prevent correct posture from being achieved, and reduce the effec-tiveness of the seat be lt and head restraint.
●Do not place anything under the front seats. Objects placed under the front seats may become jammed in the seat tracks and stopthe seat from locking in place. This may lead to an accident and the adjustment mech-
anism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while drivin g, do not force yourself to continue driving and take a break immediately.

451-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
When fastening a front seat belt, ensure that it is passed through the seat belt
guide. Passing the seat belt through the guide enables the seat belt to be easily
extended.
When you get into or out of the rear seats, release the seat belt from the seat belt
guide.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision.
The front seat belt pretensioners also activate when the vehicle is subjected to
certain types of severe side collision.
The pretensioners do not activate in the event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle rollover.
Seat belt guide
RC200tRC F
Seat belt pretensioners

471-1. For safe use
1
For safety and security
RC200t_RC F_EE(OM24728E)
WARNING
Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident.Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one pe rson only. Do not use a seat belt for more than one person at on ce, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
●To achieve a proper seating position, do no t recline the seat more than necessary. The seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. ( P. 44)
Women who are pregnant should position the lap belt as low as possible over the hips in the
same manner as other occupants, extending the shoulder belt completely over the shoulderand avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden braking or a collision.
