2017 LEXUS LS600H fuse box

4926-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
*: For right-hand drive vehicles:
They are located on the opposite side of the engine compartment.
■12-volt battery
 P. 502
Engine compartment
* *
*
Power control unit coolant res-
ervoir ( P. 499)
Engine oil level dipstick
( P. 495)
Engine oil filler cap ( P. 496)
Fuse boxes ( P. 535)
Washer fluid tank ( P. 501)
Power control unit coolant radi-
ator ( P. 500)
Electric cooling fans
Condenser ( P. 500)
Engine coolant radiator
( P. 500)
Engine coolant reservoir
( P. 498)
1
2
3
4
5
6
7
8
9
10

5356-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
Turn the power switch off.
Open the fuse box cover.
Engine compartment (type A fuse box)
Remove the engine compart-
ment cover ( P. 493) and push
the tab in and lift the lid off.
Engine compartment: type B fuse box (left-hand drive vehicles)
Remove the engine compart-
ment cover ( P. 493) and push
the tab in and lift the lid off.
Engine compartment: type B fuse box (right-hand drive vehicles)
Remove the engine compart-
ment cover ( P. 493) and push
the tab in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2

5366-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)

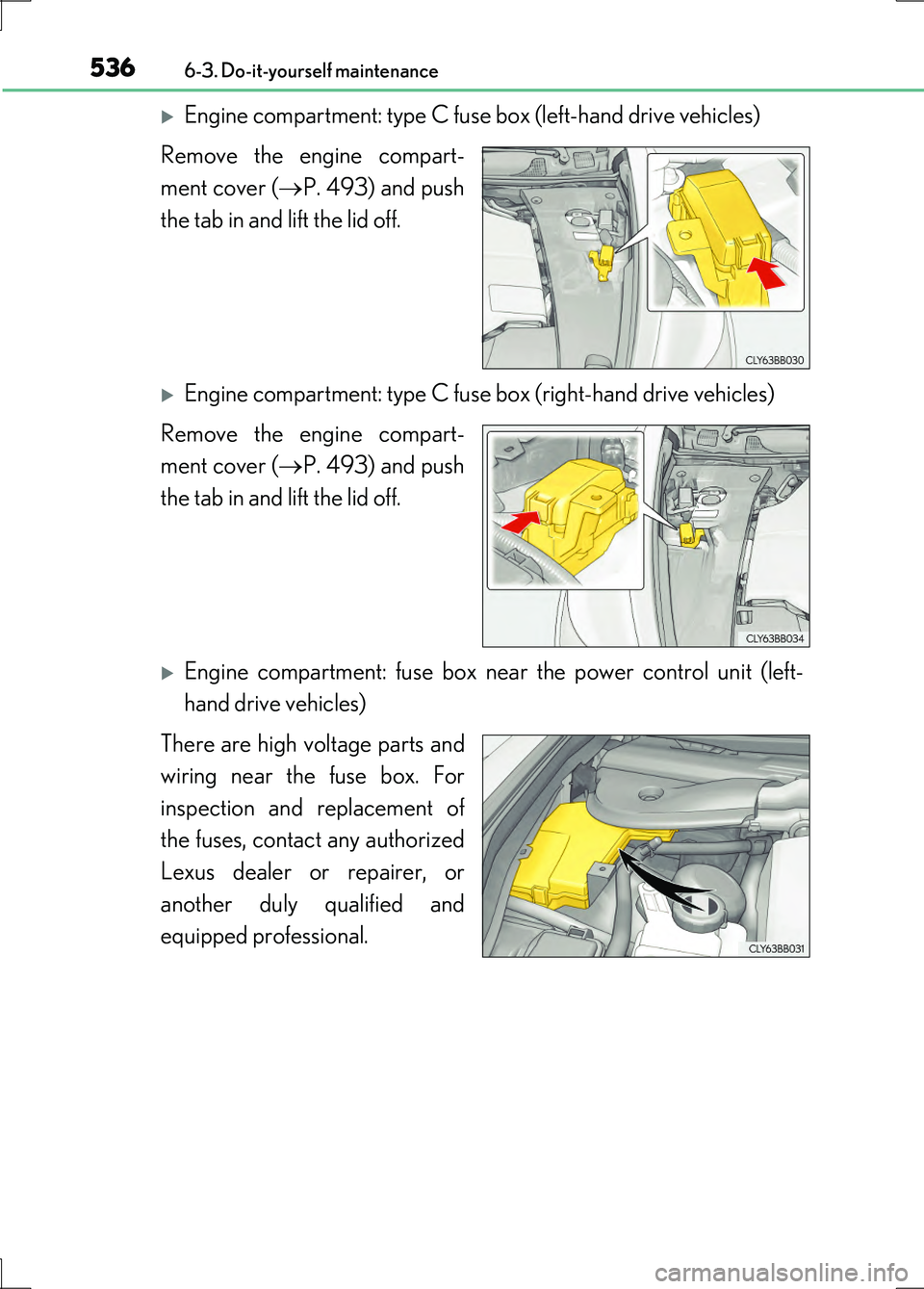

Engine compartment: type C fuse box (left-hand drive vehicles)
Remove the engine compart-
ment cover ( P. 493) and push
the tab in and lift the lid off.
Engine compartment: type C fuse box (right-hand drive vehicles)
Remove the engine compart-
ment cover ( P. 493) and push
the tab in and lift the lid off.
Engine compartment: fuse box near the power control unit (left-
hand drive vehicles)
There are high voltage parts and
wiring near the fuse box. For
inspection and replacement of
the fuses, contact any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.

5376-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
Engine compartment: fuse box near the power control unit (right-
hand drive vehicles)
There are high voltage parts and
wiring near the fuse box. For
inspection and replacement of
the fuses, contact any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.
Driver’s side instrument panel
Remove the lid.
Passenger’s side instrument panel
Remove the lid.

5386-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
Trunk (type A fuse box)
Remove the 12-volt battery cover
( P. 502) and then remove the
lid.
Trunk (type B fuse box)
Remove the cover.
Trunk (type C fuse box)
Remove the 12-volt battery cover
( P. 502) and then remove the
terminal cover.
Remove the fuse with the pullout
tool.
Only type A fuse can be removed
using the pullout tool.
3

5396-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
4
1
2
Type AType B
Type CType D

5406-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 541)
●If the replaced fuse blows again, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in a circuit
The fuses are designed to blow, protect ing the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
