1162. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 119)
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
( P. 119)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter and trip meter reset switches
Multi-information display
Presents the driver with a variety of driving-related data ( P. 121)
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Shift position and shift range
Displays the selected shift position or selected shift range ( P. 255)
Instrument panel light control switches
Tachometer
Displays the engine speed in revolutions per minute
1
2
3
4
5
6
7
8
9
10
11
12

1202. Instrument cluster
LS600h/LS600hL_EE(OM50G20E)
■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport
mode.
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehi-
cle operation and driving conditions are the same.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features P. 636)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 611)

3844-6. Driving tips
LS600h/LS600hL_EE(OM50G20E)
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine/power control unit coolant
•Washer fluid
●Have a service technician inspect the condition of the 12-volt battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the rear tires.
Ensure that all tires are the specified size and brand, and that chains match the
size of the tires.
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropriate
to the prevailing weather conditions.
Preparation for winter

4846-2. Maintenance
LS600h/LS600hL_EE(OM50G20E)
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recommends
that all repairs and service operations be carried out by authorized Lexus dealers or
repairers or other duly qualified and equipped professionals. For repairs and ser-
vices covered by your warranty, please visit an authorized Lexus dealer or repairer,
who will use genuine Lexus parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Lexus dealers or repairers for
non-warranty repairs and services, as members of the Lexus network will be able to
expertly assist you with any difficulties you may encounter.
Your Lexus dealer or repairer, or anothe r duly qualified and equipped professional
will perform all of the scheduled maintenance on your vehicle reliably and economi-
cally due to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indi-
cate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning
system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak.
Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the
floor, vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 116)
If you notice any of these clues, take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
Your vehicle may need adjustment or repair.

486
LS600h/LS600hL_EE(OM50G20E)

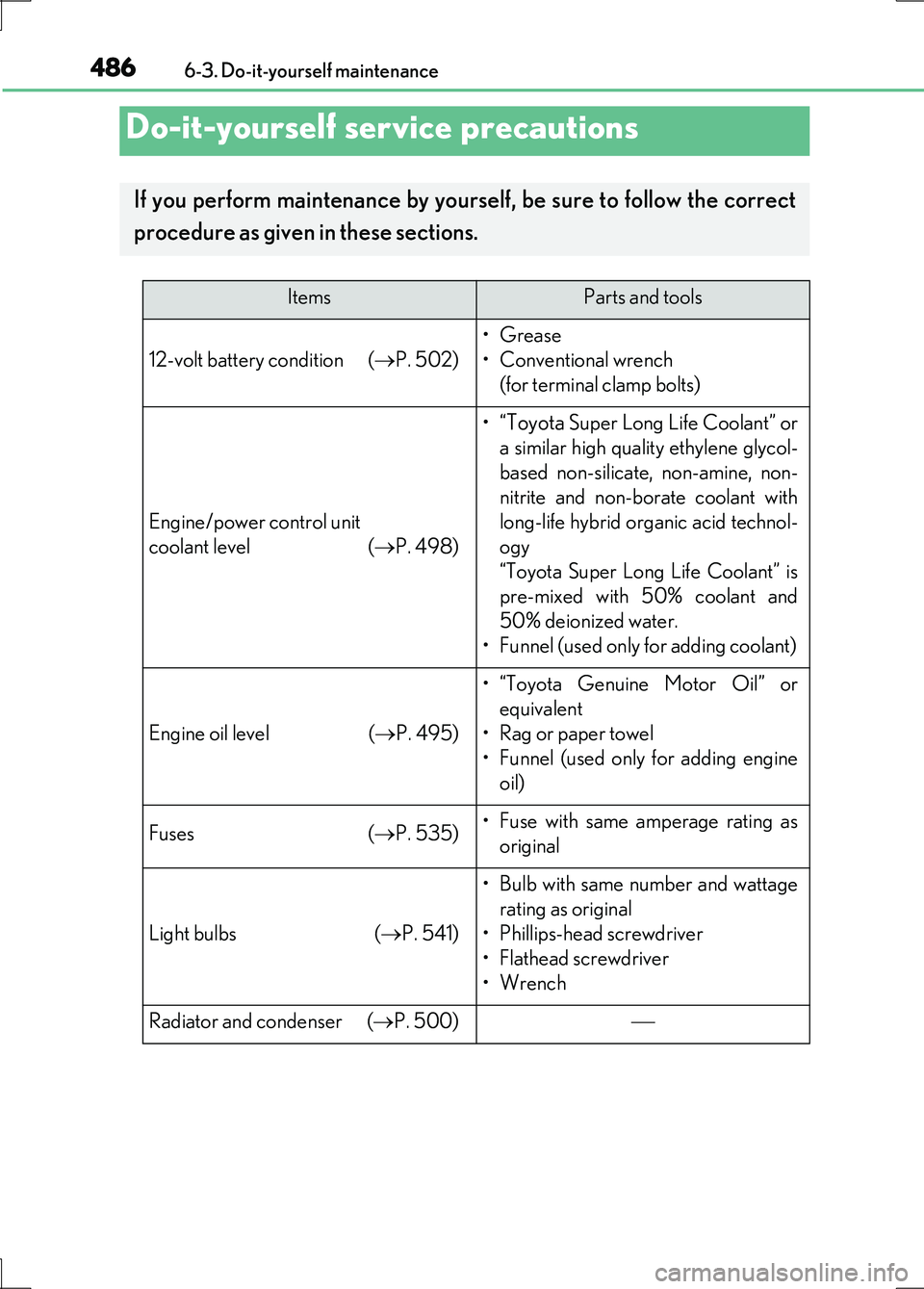

6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
12-volt battery condition (P. 502)
•Grease
• Conventional wrench
(for terminal clamp bolts)
Engine/power control unit
coolant level ( P. 498)
•“Toyota Super Long Life Coolant” or
a similar high quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite and non-borate coolant with
long-life hybrid organic acid technol-
ogy
“Toyota Super Long Life Coolant” is
pre-mixed with 50% coolant and
50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( P. 495)
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding engine
oil)
Fuses ( P. 535)• Fuse with same amperage rating as
original
Light bulbs ( P. 541)
• Bulb with same number and wattage
rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator and condenser ( P. 500)

4876-3. Do-it-yourself maintenance
6
Maintenance and care
LS600h/LS600hL_EE(OM50G20E)
Tire inflation pressure (P. 525)• Tire pressure gauge
• Compressed air source
Washer fluid ( P. 501)
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or
washer fluid)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Make sure that the indicator on the power switch and the “READY” indicator are
both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold,
etc. right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flam-
mable.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces. If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience disc omfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically
start to run if the air conditioning is on and/or the coolant temperature is high.
( P. 500)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
ItemsParts and tools

4926-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
*: For right-hand drive vehicles:
They are located on the opposite side of the engine compartment.
■12-volt battery
 P. 502
Engine compartment
* *
*
Power control unit coolant res-
ervoir ( P. 499)
Engine oil level dipstick
( P. 495)
Engine oil filler cap ( P. 496)
Fuse boxes ( P. 535)
Washer fluid tank ( P. 501)
Power control unit coolant radi-
ator ( P. 500)
Electric cooling fans
Condenser ( P. 500)
Engine coolant radiator
( P. 500)
Engine coolant reservoir
( P. 498)
1
2
3
4
5
6
7
8
9
10

4986-3. Do-it-yourself maintenance
LS600h/LS600hL_EE(OM50G20E)
■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. ( P. 611)
Coolant
1
2
3
