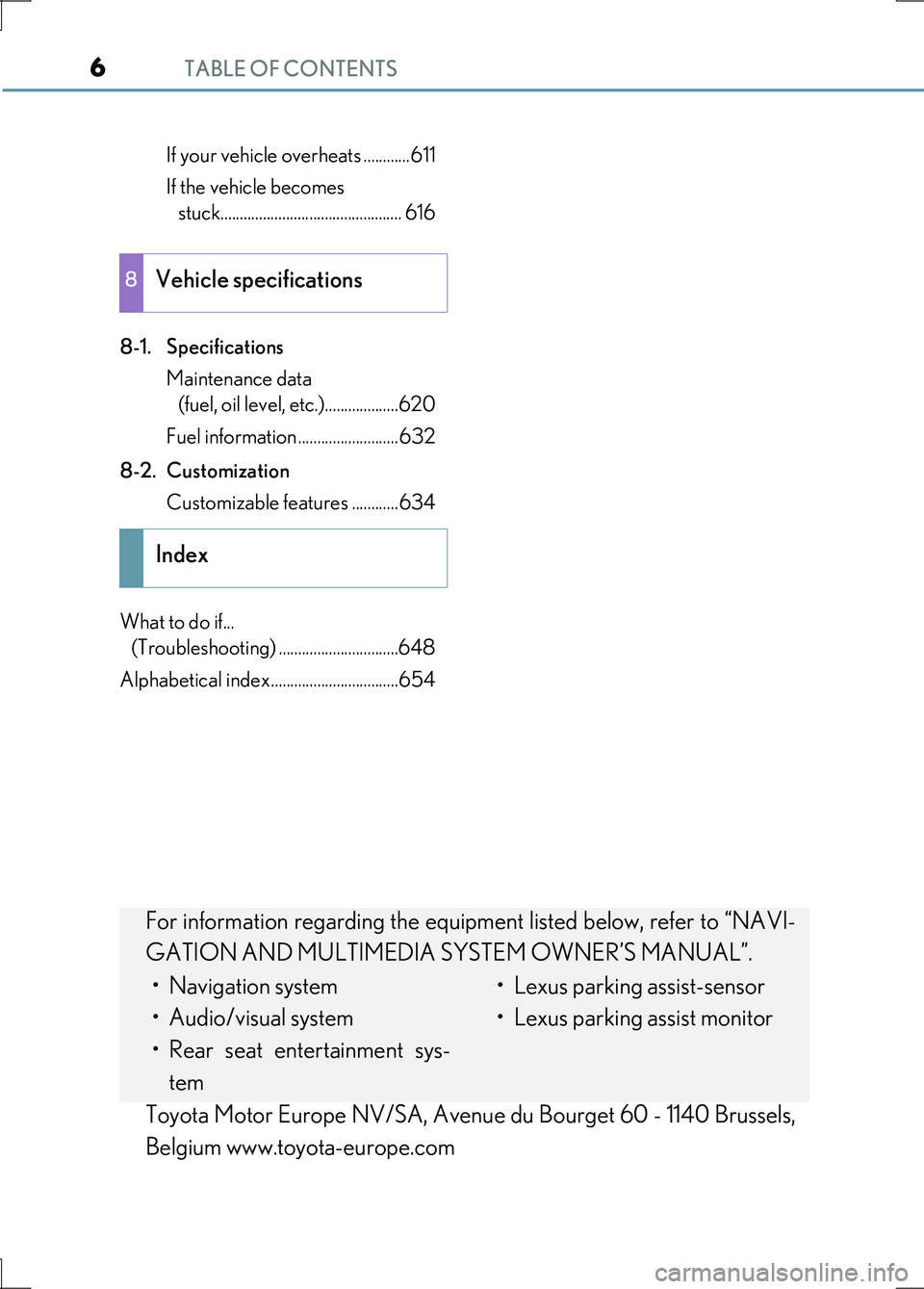

TABLE OF CONTENTS6
LS600h/LS600hL_EE(OM50G20E)
If your vehicle overheats ............611
If the vehicle becomes
stuck............................................... 616
8-1. Specifications
Maintenance data
(fuel, oil level, etc.)...................620
Fuel information ..........................632
8-2. Customization
Customizable features ............634
What to do if...
(Troubleshooting) ...............................648
Alphabetical index.................................654
8Vehicle specifications
Index
For information regarding the equipment listed below, refer to “NAVI-
GATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
• Navigation system
• Audio/visual system
• Rear seat entertainment sys-
tem
• Lexus parking assist-sensor
• Lexus parking assist monitor
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels,
Belgium www.toyota-europe.com

18Pictorial index
LS600h/LS600hL_EE(OM50G20E)
■Instrument panel switches (Left-hand drive vehicles)
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 117
Headlight cleaner switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 284
Lexus parking assist-sensor switch*2
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 366
Heated steering wheel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Adaptive High-beam System switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Odometer/trip meter and trip meter reset sw itches . . . . . . . . . . . . . . . P. 117
Lexus night view switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
1
2
3
4
5
6
7
8
9

23Pictorial index
LS600h/LS600hL_EE(OM50G20E)
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 428
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Moon roof switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Intrusion sensor and tilt sensor cancel switch*1 . . . . . . . . . . . . . . . . . . . . P. 106
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Sun visors*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
1
2
3
4
5
6
7
*3: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( P. 82)
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANU-
AL”.

26Pictorial index
LS600h/LS600hL_EE(OM50G20E)
■Instrument panel switches (Right-hand drive vehicles)
Lexus night view switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Odometer/trip meter and trip meter reset sw itches . . . . . . . . . . . . . . . P. 117
Headlight cleaner switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 284
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 117
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Adaptive High-beam System switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Heated steering wheel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 366
Lexus parking assist-sensor switch*2
1
2
3
4
5
6
7
8
9

31Pictorial index
LS600h/LS600hL_EE(OM50G20E) Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Intrusion sensor and tilt sensor cancel switch . . . . . . . . . . . . . . . . . . . . . . P. 106
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 428
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Sun visors
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
1
2
3
4
5
6
7
*3: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( P. 82)
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANU-
AL”.

511-1. For safe use
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
SRS airbag system components
Front passenger’s seat belt
buckle switch
Side impact sensors (front)
“PASSENGER AIR BAG” indi-
cator light
Airbag manual on-off switch
Front passenger airbag
Curtain shield airbags
Knee airbags
Front side airbags
Active head restraints
(if equipped)
SRS warning light
Rear side airbags (if equipped)
Seat belt pretensioners and
force limiters
Driver airbag
Seat cushion airbag
(if equipped)
Side impact sensors (rear)
Driver’s seat belt buckle switch
Driver’s seat position sensor
Airbag sensor assembly
Front impact sensors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

521-1. For safe use
LS600h/LS600hL_EE(OM50G20E)
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a fi rm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, t ilt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining con-
trol of the foot pedals, steering wheel, and your view of the instrument panel con-
trols.

901-2. Hybrid system
LS600h/LS600hL_EE(OM50G20E)
There are air intake vents on the
package tray for the purpose of
cooling the hybrid battery (traction
battery). If the vents become
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the emer-
gency shut off system blocks off the high voltage current and stops the fuel
pump to minimize the risk of electrocution and fuel leakage. If the emer-
gency shut off system activates, your vehicle will not restart. To restart the
hybrid system, contact any authoriz ed Lexus dealer or repairer, or
another duly qualified and equipped professional.
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the instruc-
tions.
Hybrid battery (traction battery) air vents
Emergency shut off system
Hybrid warning message
