2017 LEXUS LS600H Owners Manual

545
7When trouble arises
LS600h/LS600hL_EE(OM50G20E)
7-1. Essential information
Emergency flashers ..................546
If your vehicle has
to be stopped
in an emergency ...................... 547
7-2. Steps to take
in an emergency
If your vehicle needs
to be towed ............................... 548
If you think something
is wrong .......................................554
If a warning light turns
on or a warning buzzer
sounds......................................... 555
If a warning message
is displayed.................................563
If you have a flat tire
(vehicles with
a spare tire)................................ 567
If you have a flat tire
(vehicles without
a spare tire)................................ 578
If the hybrid system
will not start................................ 597
If the parking brake
cannot be released................. 599
If the electronic key does
not operate properly .............603
If the 12-volt battery
is discharged............................. 607
If your vehicle overheats ............ 611
If the vehicle becomes
stuck ...............................................616

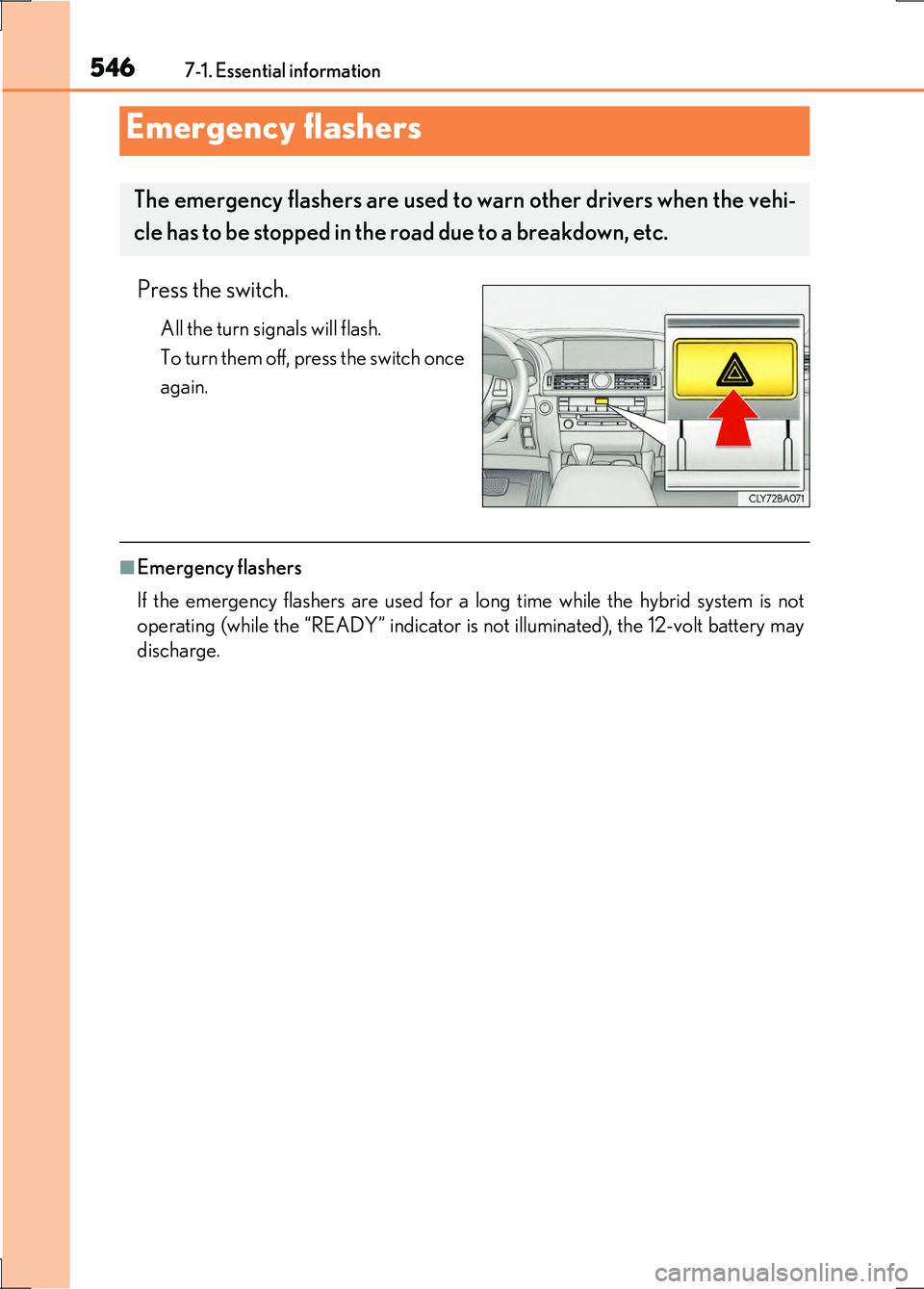

546
LS600h/LS600hL_EE(OM50G20E)
7-1. Essential information
Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not
operating (while the “READY” indicator is not illuminated), the 12-volt battery may
discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the vehi-
cle has to be stopped in the road due to a breakdown, etc.

5477-1. Essential information
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal wi th both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or
press it briefly 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehi-
cle in the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
CAUTION
■If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier
to turn. Decelerate as much as possible before turning off the hybrid system.
5

548
LS600h/LS600hL_EE(OM50G20E)
7-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or commercial towing service before towing.
●A warning message for the hybrid system is shown on the multi-infor-
mation display and the vehicle does not move.
●The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we recommen d having your vehicle towed by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or commercial towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all to wing, and abide by all state/provin-
cial and local laws.
Situations when it is necessary to contact dealers before towing

5497-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
From the frontFrom the rear
Use a towing dolly under the rear
wheels.
Use a towing dolly under the front
wheels.

5507-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
If your vehicle is transported by a
flatbed truck, it should be tied down
at the locations shown in the illustra-
tion.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie downs
or the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be tempo-
rarily towed using cables or chains secured to the emergency towing eye-
lets. This should only be attempted on hard surfaced roads for short
distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Using a flatbed truck
Emergency towing

5517-2. Steps to take in an emergency
7
When trouble arises
LS600h/LS600hL_EE(OM50G20E)
Take out the towing eyelet. (P. 568, 581)
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 259
Emergency towing procedure
1
2
3
4
5
6
7

5527-2. Steps to take in an emergency
LS600h/LS600hL_EE(OM50G20E)
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not func-
tion, making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in trunk. ( P. 568, 581)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place exces-
sive stress on the towing eyelets, cables or chains. The towing eyelets, cables or
chains may become damaged, broken debris may hit people, and cause serious
damage.
●Do not turn the power switch off.
There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground,
the drivetrain or related parts may be dam-
aged, the vehicle may fly off the truck, or
electricity generated by the operation of the
motor may cause a fire to occur depending
on the nature of the damage or malfunction.
