GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■When the Crawl Control system is operated continuously
This may cause the brake actuator to overheat. In this case, the Crawl Control system will
stop operating, a buzzer will sound, the Crawl Control indicator will turn off after flashing
and the “TRAC OFF” will be shown on the multi-
information display. In this case, quickly
stop the vehicle in a safe place and give the actuator adequate time to cool off. Refrain
from using the system until the message goes off. (The vehicle can be driven normally
during this time.)
■If the automatic transmission system overheats
The system will cease operation, a buzzer w ill sound and a warning message will be dis-
played to alert the driver. Stop the vehicle in a safe place until the warning message turns
off. ( →P. 533)
■Sounds and vibrations caused by the Crawl Control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This sound does not indicate that a malfunction has
occurred in Crawl Control system.
●Either of the following conditions may occu r when the Crawl Control system is operat-
ing. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■If the slip indicator comes on...
It may indicate a malfunction in the system. Consult your Lexus dealer.
CAUTION
■When using Crawl Control
Do not rely solely on the Crawl Control. This function does not extend the vehicle’s
performance limitations. Always thoroughly check the road conditions, and drive
safely.
■These conditions may cause the system not to operate properly
When driving on the following surfaces, the system may not be able to maintain a fixed
low speed, which may result in an accident:
●Extremely steep inclines.
●Extremely uneven surfaces.
●Snow-covered roads, or other slippery surfaces.
GX460_OM_OM60F68U_(U).book Page 348 Wednesday, June 8, 2016 6:37 PM

349
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
4
Driving
Downhill assist control system∗
Shift the “DAC” switch to ON. The
downhill assist control system indicator
light comes on and the system will
operate.
When the system is in operation, the slip
indicator light will flash, and the stop
lights/high mounted stop lights will be lit.
Shift the “DAC” switch to OFF while the system is in operation. The downhill
assist control system indicator will flash as the system gradually ceases operation,
and will turn off when the system is fully off.
Shift the “DAC” switch to ON while the downhill assist control system indicator is
flashing to start the system again.
∗: If equipped
The downhill assist control system helps to prevent excessive speed on steep
downhill slopes.
The system will operate when the vehicle is traveling under 15 mph (25 km/h)
and the four-wheel drive control switch is in the L4 position.
System operation
Turning off the system
GX460_OM_OM60F68U_(U).book Page 349 Wednesday, June 8, 2016 6:37 PM

350
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems

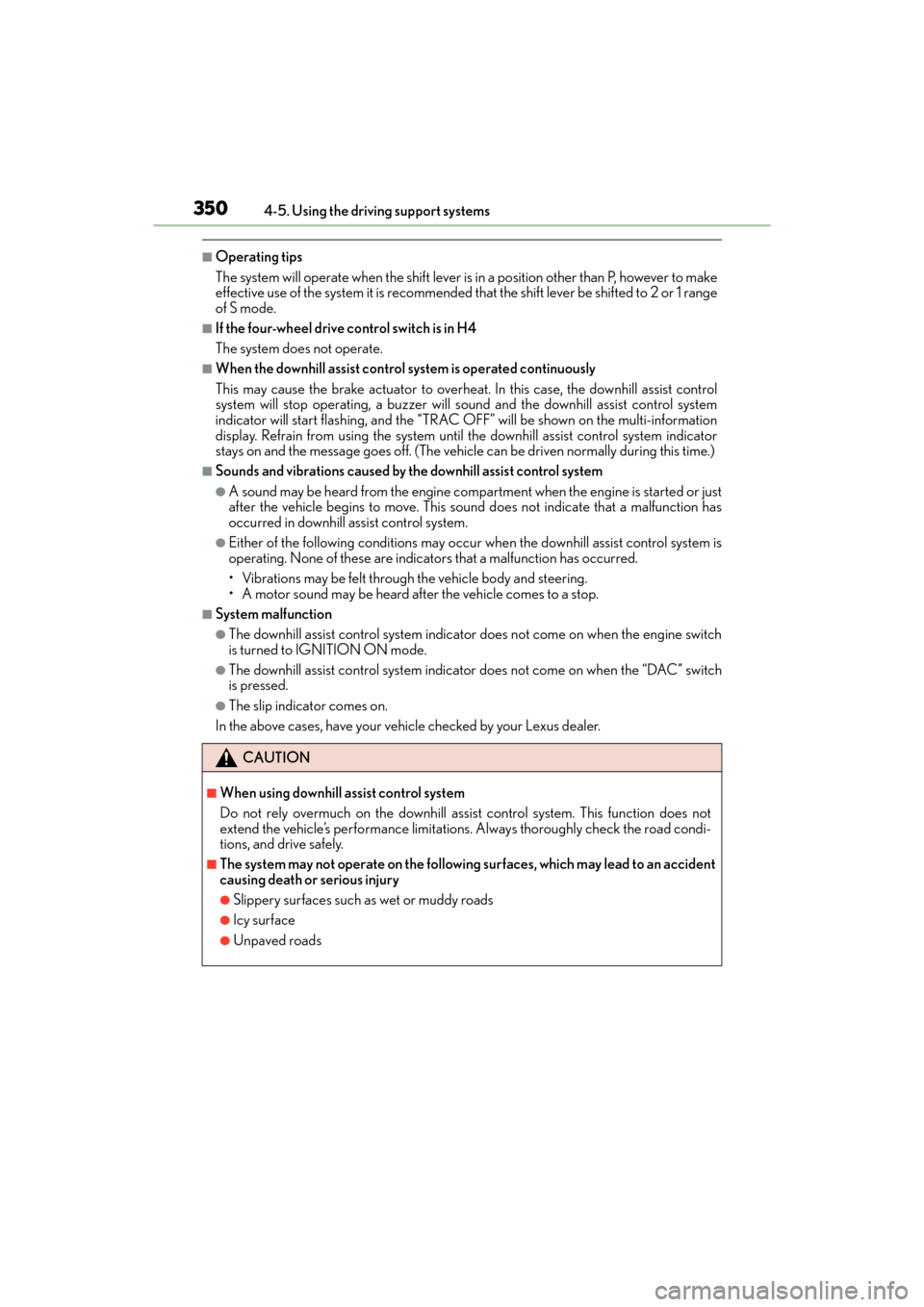

■Operating tips
The system will operate when the shift lever is
in a position other than P, however to make
effective use of the system it is recommended that the shift lever be shifted to 2 or 1 range
of S mode.
■If the four-wheel drive control switch is in H4
The system does not operate.
■When the downhill assist control system is operated continuously
This may cause the brake actuator to overheat . In this case, the downhill assist control
system will stop operating, a buzzer will sound and the downhill assist control system
indicator will start flashing, and the “TRAC OF F” will be shown on the multi-information
display. Refrain from using the system until the downhill assist control system indicator
stays on and the message goes off. (The vehicle can be driven normally during this time.)
■Sounds and vibrations caused by the downhill assist control system
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This sound does not indicate that a malfunction has
occurred in downhill assist control system.
●Either of the following conditions may occu r when the downhill assist control system is
operating. None of these are indicators that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
■System malfunction
●The downhill assist control system indicator does not come on when the engine switch
is turned to IGNITION ON mode.
●The downhill assist control system indicator does not come on when the “DAC” switch
is pressed.
●The slip indicator comes on.
In the above cases, have your vehicle checked by your Lexus dealer.
CAUTION
■When using downhill assist control system
Do not rely overmuch on the downhill assi st control system. This function does not
extend the vehicle’s performance limitations . Always thoroughly check the road condi-
tions, and drive safely.
■The system may not operate on the following surfaces, which may lead to an accident
causing death or serious injury
●Slippery surfaces such as wet or muddy roads
●Icy surface
●Unpaved roads
GX460_OM_OM60F68U_(U).book Page 350 Wednesday, June 8, 2016 6:37 PM

352
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
◆Active TRAC (Traction Control) for L4 position*
Helps to maintain drive power and prevent the 4 wheels from spinning when starting
the vehicle or accelerating on slippery roads, or in off-road conditions
◆Hill-start assist control (if equipped)
Helps to prevent the vehicle from rolling backwa
rd when starting on an incline or slip-
pery slope
◆KDSS (Kinetic Dynamic Suspension System)
KDSS helps to enhance ride comfort and handling response by using a hydraulic con-
trol system to control the suspension stabiliz er bars in response to road surface and
driving conditions during co rnering or off-road driving
◆PCS (Pre-Collision system) (if equipped)
→P. 3 6 8
◆Tr a i l e r S w a y C o n t r o l
Helps the driver to control trailer sway by selectively applying brake pressure for indi-
vidual wheels and reducing engine torque when trailer sway is detected.
Trailer Sway Control is part of the VSC sy stem and will not operate if VSC turned off
or experiences a malfunction.
*: The function only works in vehicles with Multi-terrain Select when Multi-terrain
Select is switched on
If the vehicle is in danger of slipping or
rolling backward when starting on an
incline, or if any of the drive wheels
spins, the slip indicator light flashes to
indicate that the TRAC or Active
TRAC/VSC/Trailer Sway Control/hill-
start assist control systems are operat-
ing.
The stop lights and high mounted stoplight turn on when the hill-start assist control
system is operating.
When the TRAC or Active TRAC/VSC/Trailer Sway Control/hill-start
assist control systems are operating
GX460_OM_OM60F68U_(U).book Page 352 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3534-5. Using the driving support systems
4
Driving
If the vehicle gets stuck in fresh snow or mud, the TRAC or Active TRAC/VSC/
Trailer Sway Control systems may reduce power from the engine to the wheels.
You may need to turn the system off to enable you to rock the vehicle in order to
free it.
■Turning off TRAC or Active TRAC system only
To turn the TRAC or Active TRAC
system off, quickly press and release
the switch.
The “TRAC OFF” will be shown on
the multi-information display.
Press the switch again to turn the sys-
tem back on.
■Turning off both TRAC or Active TRAC and VSC/Trailer Sway Control sys-
tems
To turn the TRAC or Active TRAC
and VSC/Trailer Sway Control sys-
tems off, press and hold the switch
for 3 seconds and more while the
vehicle is stopped.
The VSC OFF indicator light will
come on and the “TRAC OFF” will
be shown on the multi-information
display.
Press the switch again to turn the sys-
tem back on.
■When the “TRAC OFF” is displayed on the multi-information display even if the VSC
OFF switch has not been pressed
TRAC/Active TRAC, hill-start assist control, downhill assist control and Crawl Control
cannot be operated. Contact your Lexus dealer.
■Hill-start assist control operation conditions
●The shift lever is in D or S.
●The brake pedal is not depressed.
Disabling the TRAC or Active TRAC/VSC/Trailer Sway Control sys-
tems
GX460_OM_OM60F68U_(U).book Page 353 Wednesday, June 8, 2016 6:37 PM

354
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
■Sounds and vibrations caused by the ABS/Multi Terrain ABS, brake assist, TRAC/
Active TRAC, VSC/Trailer Sway Control and hill-start assist control systems
●A sound may be heard from the engine compartment when the engine is started or just
after the vehicle begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
●Any of the following conditions may occur when the above systems are operating.
None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS/Multi Terrain ABS is activated.
• The brake pedal may move down slightly after the ABS/Multi Terrain ABS is acti-
vated.
■Reactivation of the TRAC or Active TRAC/VSC/Trailer Sway Control systems after
turning off the engine
Turning off the engine after turning off the TRAC or Active TRAC/VSC/Trailer Sway
Control systems will automatically re-enabled them.
■Reactivation of the TRAC or Active TRAC system linked to vehicle speed
When only the TRAC or Active TRAC system is turned off, the TRAC or Active TRAC
system will turn on when vehicle speed increases. However, when both TRAC or Active
TRAC and VSC/Trailer Sway Control systems ar e turned off, the systems will not turn on
even when vehicle speed increases.
■When the brake system operates continuously
The brake actuator may overheat. In this case, the TRAC or Active TRAC and hill-start
assist control systems will stop operating, a buzzer will sound and the “TRAC OFF” will
be shown on the multi-information display. Refrain from using the system until the mes-
sage goes off. (There is no proble m with continuing normal driving.)
■If the slip indicator comes on...
It may indicate a malfunction in the TRAC/Active TRAC, VSC/Trailer Sway Control or
hill-start assist control system. Consult your Lexus dealer.
■KDSS
Some difference of vehicle height between left and right side can appear. This does not
indicate a malfunction in the KDSS system. For more information, contact your Lexus
dealer.
GX460_OM_OM60F68U_(U).book Page 354 Wednesday, June 8, 2016 6:37 PM

GX 460 _O M_ OM6 0F 6 8U _(U )
3554-5. Using the driving support systems
4
Driving
CAUTION
■The ABS/Multi Terrain ABS does not operate effectively when
●The limits of tire gripping performance have been exceeded (such as excessively
worn tires on a snow covered road).
●The vehicle hydroplanes while driving at high speed on the wet or slick road.
■Stopping distance when the ABS/Multi Terrain ABS is operating may exceed that of
normal conditions
The ABS/Multi Terrain ABS is not designed to shorten the vehicle’s stopping distance.
Always maintain a safe distance from the vehicl e in front of you, especially in the follow-
ing situations:
●When driving on dirt, gravel or snow-covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with potholes or uneven surfaces
■TRAC/Active TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slippery road
surfaces, even if the TRAC/Active TRAC system is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
■Hill-start assist control does not operate effectively when
Do not overly rely on the hill-start assist control. The hill-start assist control may not
operate effectively on steep inclines and roads covered with ice.
■When the VSC/Trailer Sway Control is activated
The slip indicator light flas hes. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the indicator
light flashes.
■When the TRAC or Active TRAC/VSC/Trailer Sway Control systems are turned off
Be especially careful and drive at a speed appropriate to the road conditions. As these
are the systems to help ensure vehicle stab ility and driving force, do not turn the TRAC
or Active TRAC/VSC/Trailer Sway Control systems off unless necessary.
GX460_OM_OM60F68U_(U).book Page 355 Wednesday, June 8, 2016 6:37 PM

358
GX 460 _O M_ OM6 0F 6 8U _(U )4-5. Using the driving support systems
The Blind Spot Monitor on/off screen and indicator
The Blind Spot Monitor system can be turn
ed on/off on the multi-information display.
When the system is set to on, the indicator illuminates in the meter. The Blind Spot
Monitor function and the Rear Cross Traffic Alert function are turned on/off simulta-
neously.
Outside rear view mirror indicator
The Blind Spot Monitor function:
When a vehicle is detected in the blind spot, the outside rear view mirror indicator
comes on while the turn signal lever is not operated. If the turn signal lever is operated
toward the detected side, the outside rear view mirror indicator flashes.
The Rear Cross Traffic Alert function:
When a vehicle approaching from the right or left rear of the vehicle is detected, the
outside rear view mirror indicators flash.
The Rear Cross Traffic Alert buzzer (The Rear Cross Traffic Alert function
only)
When a vehicle approaching from the right or left rear of the vehicle is detected, a
buzzer sounds from behind the rear seat.
1
2
3
GX460_OM_OM60F68U_(U).book Page 358 Wednesday, June 8, 2016 6:37 PM
