2. Bluetooth® SETTINGS
GX460_Navi_OM60N98U_(U)16.05.30 14:27
2
BASIC FUNCTION
1Display the “Bluetooth* Setup” screen.
(→ P.45)
2Select “System Settings” .
3Select the desired item to be set.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
“System Settings” SCREEN
The Bluetooth® settings can be con-
firmed and changed.
No.InformationPage
Select to set Bluetooth®
connection on/off.54
Displays system name can
be changed to a desired
name.54
PIN-code used when the
Bluetooth® device was
registered. It can be
changed to a desired code.54
Device address is unique to
the device and cannot be
changed.
Select to set the phone con-
nection status display on/
off.
Select to set the connection
status display of the audio
player on/off.
Compatibility profile of the
system.
Select to reset all setup
items.
GX_Navi_OM60N98U_(U).book Page 53 Monday, May 30, 2016 2:28 PM

157
1
2
3
4
5
6
7
8
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1. REAR SEAT ENTERTAINMENT SYSTEM FEATURES .......................... 227
DISPLAY .................................................................... 228
REAR SEAT ENTERTAINMENT
SYSTEM CONTROLLER .............................. 228
HEADPHONE JACKS ........................................ 229
HEADPHONES ..................................................... 230
CAUTION SCREEN.............................................. 231
TURNING THE REAR DISPLAY ON/OFF ................................................................... 231
CHANGING THE DISPLAY TO BE OPERATED ............................................................ 231
TURNING THE REAR DISPLAY OFF USING THE REMOTE
CONTROLLER..................................................... 231
CHANGING THE SOURCE ........................... 232
CHANGING THE SPEAKER OUTPUT................................................................. 233
OPERATION FROM THE FRONT SEATS ....................................................................... 234
USING THE RADIO............................................. 236
USING THE RADIO (INTERNET RADIO BROADCAST) .................................................... 238
PLAYING AN AUDIO CD/CD TEXT ....... 238
PLAYING MP3/WMA/AAC DISCS ......... 239
PLAYING DVD VIDEO ..................................... 240
PLAYING A USB MEMORY ........................... 246 PLAYING iPod ......................................................... 247
PLAYING Bluetooth
® AUDIO ....................... 249
USING THE AUX MODE ................................. 250
USING THE VIDEO MODE ............................ 250
CHANGING SETTINGS................................... 252
IF THE REAR SEAT ENTERTAINMENT SYSTEM MALFUNCTIONS ........................ 254
1. STEERING SWITCHES ........................ 255
1. AUDIO SETTINGS ................................. 258
AUDIO SETTINGS SCREEN .......................... 258
1. OPERATING INFORMATION......... 266
RADIO......................................................................... 266
DVD PLAYER AND DISC ................................ 268
iPod................................................................................. 273
FILE INFORMATION ........................................... 274
TERMS .......................................................................... 276
ERROR MESSAGES............................................ 278
4REAR SEAT ENTERTAINMENT
SYSTEM OPERATION
5AUDIO/VISUAL REMOTE
CONTROLS
6SETUP
7TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM
GX_Navi_OM60N98U_(U).book Page 157 Monday, May 30, 2016 2:28 PM

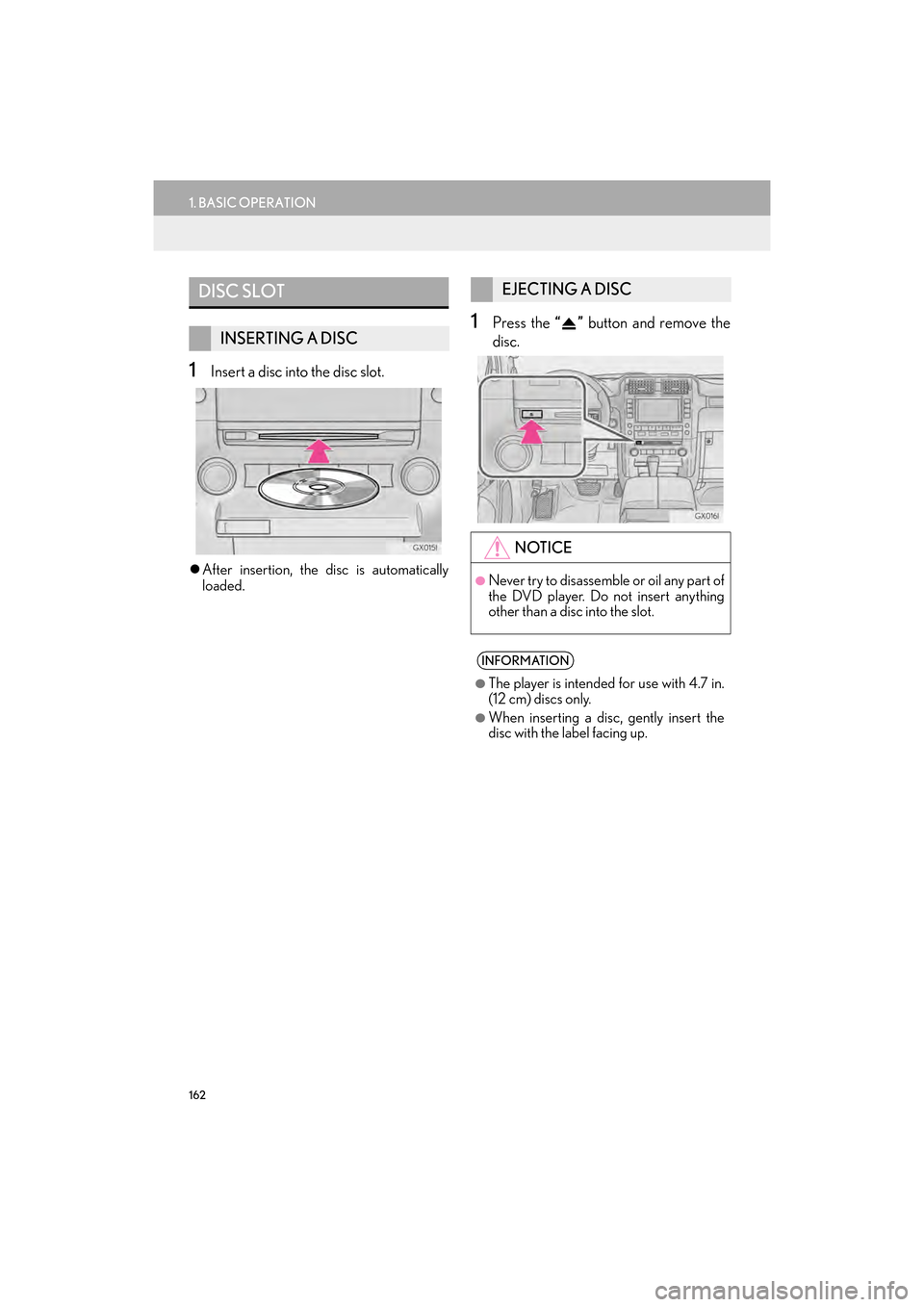

162
1. BASIC OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Insert a disc into the disc slot.
zAfter insertion, the disc is automatically
loaded.
1Press the “” button and remove the
disc.
DISC SLOT
INSERTING A DISC
EJECTING A DISC
NOTICE
●Never try to disassemble or oil any part of
the DVD player. Do not insert anything
other than a disc into the slot.
INFORMATION
●
The player is intended for use with 4.7 in.
(12 cm) discs only.
●When inserting a disc, gently insert the
disc with the label facing up.
GX_Navi_OM60N98U_(U).book Page 162 Monday, May 30, 2016 2:28 PM

163
1. BASIC OPERATION
4
AUDIO/VISUAL SYSTEM
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Slide the auxiliary box lid.
2Open the cover and connect a device.
zTurn on the power of th e device if it is not
turned on.
zWhen using an iPod video, a cable that has
a 4-pole AUX plug and a USB connector is
necessary. Connect the plug and connec-
tor to the AUX and USB ports.
USB/AUX PORT
There are 2 USB ports and an AUX port
in the auxiliary box.
INFORMATION
●
Up to two portable players can be con-
nected to the USB port at the same time.
●Even if a USB hub is used to connect
more than two USB devices, only the first
two connected devices will be recog-
nized.
USING A 4-POLE AUX CABLE
To view a video on an iPod video or
VTR, it is necessary to use a 4-pole
AUX cable to connect the portable au-
dio device.
When connecting a portable audio de-
vice to the AUX port, use a 4-pole AUX
cable with a plug that matches the exact
layout shown in the illustration.
INFORMATION
●
If a 4-pole AUX cable with a different lay-
out is used, audio and/or video may not
be output properly.
Connected device
(portable audio
device, etc.)
Left
audio Right
audioGround Video
GX_Navi_OM60N98U_(U).book Page 163 Monday, May 30, 2016 2:28 PM

195
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
2. DVD
For safety reasons, the DVD video discs can only be viewed when the following con-
ditions are met:
(a) The vehicle is completely stopped.
(b) The engine switch is in ACCESSORY or IGNITION ON mode.
(c) The parking brake is applied.
While driving in DVD video mode, only the DVD’s audio can be heard.
The playback condition of some DVD discs may be determined by the DVD software
producer. This DVD player plays a disc as the software producer intended. As such,
some functions may not work properly. Be sure to read the instruction manual that
comes with the individual DVD disc. ( →P.268)
OVERVIEW
The DVD operation screen can be reached by the following methods:
XInserting a disc ( →P.162)
Press the “A U D I O ” button to display the audio control screen.
Select “Source” and select “DISC”.
GX_Navi_OM60N98U_(U).book Page 195 Monday, May 30, 2016 2:28 PM

200
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
1Select “Search” .
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ” .
2Each time “Change” is selected, the au-
dio language is changed.
z The languages available are restricted to
those available on the DVD disc.
1Select “Subtitle” .
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
z The languages available are restricted to
those available on the DVD disc.
z When “Hide” is selected, the subtitles can
be hidden.
1Select “A n g l e ” .
2Each time “Change” is selected, the an-
gle is changed.
z The angles available are restricted to those
available on the DVD disc.
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE
CHANGING THE SUBTITLE
LANGUAGE
CHANGING THE ANGLE
The angle can be selected for discs that
are multi-angle compatible when the an-
gle mark appears on the screen.
GX_Navi_OM60N98U_(U).book Page 200 Monday, May 30, 2016 2:28 PM

201
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
XVehicles with rear seat entertainment
system
zFront passengers can cancel this setup
operation by touching “Play”. The player
will resume normal play.
z Likewise, a rear passenger can cancel a
front passenger’s sele ction of the setup
menu.
z To lock the rear seat entertainment system,
see “OPERATION FROM THE FRONT
SEATS” on page 234.
SETUP OPERATION FROM
THE REAR SEAT
This screen appears when a rear pas-
senger selects the setup menu.
GX_Navi_OM60N98U_(U).book Page 201 Monday, May 30, 2016 2:28 PM

205
3. MEDIA OPERATION
GX460_Navi_OM60N98U_(U)16.05.30 14:27
4
AUDIO/VISUAL SYSTEM
CAUTION
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Depending on the size and shape of the USB memory that is connected to the system, the
lid may not close fully. In this case, do not forcibly close the lid as this may damage the USB
memory or the terminal, etc.
●Do not leave your portable player in the car. In particular, high temperatures inside the vehi-
cle may damage the portable player.
●Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its ter-
minal.
INFORMATION
●
If tag information exists, the file/folder names will be changed to track/album names.
