821-2. Hybrid system
GS450h_300h_OM_OM30F92E_(EE)
■If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY” indicator does not come on, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light ( P. 462) go off. If there is only a small amount of fuel, the hybrid system may not be able to start.(The standard amount of fuel is about 9.9 L [2 .6 gal., 2.2 Imp.gal.], when the vehicle is on
a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
■Electromagnetic waves
●High voltage parts and cables on hybrid ve hicles incorporate electromagnetic shield- ing, and therefore emit approximately the same amount of electromagnetic waves asconventional gasoline powered vehicles or home electronic appliances.
●Your vehicle may cause sound interference in some third party-produced radio parts.
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a lim ited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving condi- tions.
■Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100 (Battery electric vehicle safety).
WARNING
■High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and
AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables or their
connectors.
●The hybrid system will become hot after starting as the system uses high voltage. Be careful of both the high voltage and the hi gh temperature, and always obey the warn-
ing labels attached to the vehicle.
●Never try to open the service plug access
hole located behind the rear seats. The ser- vice plug is used only when the vehicle is ser-viced and is subject to high voltage.

3845-5. Using the other interior features
GS450h_300h_OM_OM30F92E_(EE)
ERA-GLONASS
“SOS” button
Indicator lights
Microphone
■Automatic Collision Notification
If any airbag deploys, the system is designed to automatically call the Public
Safety Answering Point (PSAP)*. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level
of emergency. If the occupants are unable to communicate, the agent auto-
matically treats the call as an emer gency, contacts the nearest emergency
services provider to describe the situation, and requests that assistance be
sent to the location.
*: In some cases, the call cannot be made. ( P. 386)
: If equipped
ERA-GLONASS is a telematics service that uses Global Navigation Satellite
System (GLONASS) data and embedded cellular technology to enable the
following emergency calls to be ma de: Automatic emergency calls (Auto-
matic Collision Notification) and manu al emergency calls (by pressing the
“SOS” button). This service is require d by Eurasian Customs Union Regula-
tions.
System components
1
2
3
Emergency Notification Services

3855-5. Using the other interior features
5
Interior features
GS450h_300h_OM_OM30F92E_(EE)
■Emergency Assistance Button (“SOS”)
In the event of an emergency, push the “SOS” button to reach the Public
Safety Answering Point (PSAP). The answering agent will determine your
vehicle’s location, assess the emergency, and dispatch the necessary assis-
tance required.
If you accidentally press the “SOS” button, tell the agent that you are not experi-
encing an emergency.
When the power switch is turned to ON mode, the red indicator light will illumi-
nate for 10 seconds and then the green indicator light will illuminate for 2 sec-
onds, indicating that the system is enab led. The indicator lights indicate the
following:
●If the green indicator light illuminates and stays on, the system is enabled.
●If the green indicator light flashes, an emergency call is being made (either
automatically or manually).
●If no indicator lights illuminate, the system is not enabled.
●If the red indicator light illuminates any time other than immediately after the
power switch is turned to ON mode, the system may be malfunctioning or the
backup battery may be depleted. Contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
The service life of the backup battery is 3 years or more.
Indicator lights

3865-5. Using the other interior features
GS450h_300h_OM_OM30F92E_(EE)

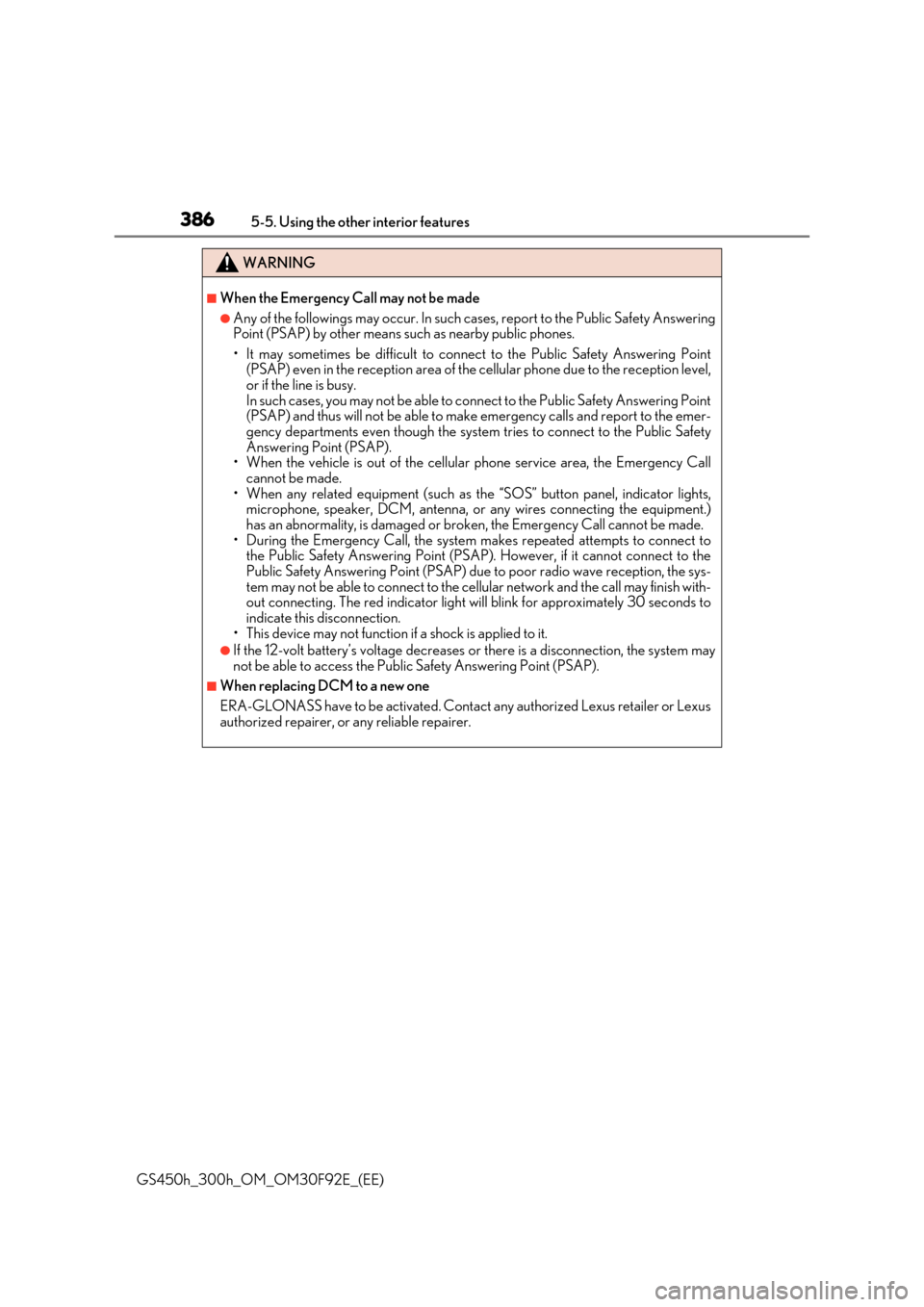

WARNING
■When the Emergency Call may not be made
●Any of the followings may occur. In such cases, report to the Public Safety Answering Point (PSAP) by other means such as nearby public phones.
• It may sometimes be difficult to connect to the Public Safety Answering Point (PSAP) even in the reception area of the cellular phone due to the reception level,or if the line is busy.
In such cases, you may not be able to connect to the Public Safety Answering Point (PSAP) and thus will not be able to make emergency calls and report to the emer- gency departments even though the system tries to connect to the Public Safety
Answering Point (PSAP). • When the vehicle is out of the cellular phone service area, the Emergency Callcannot be made.
• When any related equipment (such as th e “SOS” button panel, indicator lights, microphone, speaker, DCM, antenna, or any wires connecting the equipment.)has an abnormality, is damaged or brok en, the Emergency Call cannot be made.
• During the Emergency Call, the system makes repeated attempts to connect to the Public Safety Answering Point (PSAP). However, if it cannot connect to thePublic Safety Answering Point (PSAP) due to poor radio wave reception, the sys-
tem may not be able to connect to the cellular network and the call may finish with- out connecting. The red indicator light w ill blink for approximately 30 seconds to indicate this disconnection.
• This device may not function if a shock is applied to it.
●If the 12-volt battery’s voltage decreases or there is a disconnection, the system may
not be able to access the Public Safety Answering Point (PSAP).
■When replacing DCM to a new one
ERA-GLONASS have to be activated. Contact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

5227-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
NOTICE
■When performing an emergency repair
●Perform the emergency repair without removing the nail or screw that has punctured the tread of the tire. If the object that has punctured the tire is removed, repair by the
emergency tire puncture repair kit may not be possible.
●The repair kit is not waterproof. Make sure that the repair kit is not exposed to water, such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the side of theroad. If the repair kit vacuums up dust etc., a malfunction may occur.
■Handling the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do not con- nect the repair kit to any other source.
●If gasoline splatters on the repair kit, the repair kit may deteriorate. Take care not to
allow gasoline to contact it.
●Store the emergency tire puncture repair kit in the trunk. The kit may be thrown around during sudden braking and so forth, damaging the kit.
●Store the repair kit in the trunk out of reach of children.
●Do not disassemble or modify the repair kit. Do not subject parts such as the air pres- sure indicator to impacts. This may cause a malfunction.
■To avoid damage to the tire pressure warning valves and transmitters (vehicles withthe tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans-
mitter may not operate properly. If a liquid sealant is used, contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer or other qualified service shop as soon as possible. After use of liquid sealant, make sure to replace the
tire pressure warning valve and transmitte r when repairing or replacing the tire. ( P. 418)

594Alphabetical index
GS450h_300h_OM_OM30F92E_(EE)
Refueling .................................................. 257
Capacity .................................................549
Fuel types ...............................................549
Opening the fuel tank cap ............259
When the fuel filler door
cannot be opened ......................... 259
Regenerative braking ............................ 78
Remote Touch*
Replacing
Electronic key battery......................435
Fuses ........................................................ 437
Light bulbs ............................................. 442
Tires ......................................................... 498
Rev indicator............................................ 106
Rev peak .................................................... 106
Road accident cautions.........................83
Seat belt reminder light ...................... 462
Seat belts .....................................................38
Adjusting the seat belt ........................ 39
Child restraint system
installation.............................................. 67
Cleaning and maintaining
the seat belt .......................................395
Emergency Locking
Retractor (ELR).................................. 40
How to wear your seat belt ............. 38
How your child should wear
the seat belt .......................................... 40
Pregnant women, proper
seat belt use ........................................... 41
Reminder light and buzzer ........... 462
Seat belt pretensioners ...................... 39
SRS warning light.............................. 460
Seat heaters ............................................ 362
Seat position memory...........................178
Seat ventilators ...................................... 362
Seats............................................................. 175
Adjustment ............................................. 175
Adjustment precautions................... 176
Child seats/child restraint
system installation ............................. 66
Cleaning ................................................ 394
Driving position memory ................ 178
Head restraints .....................................183
Power easy access system............. 178
Properly sitting in the seat................ 36
Seat heaters.......................................... 362
Seat position memory ....................... 178
Seat ventilators ................................... 362
Sensor
Automatic headlight system ........ 240
Automatic High Beam
system.................................................. 246
Inside rear view mirror .....................189
Intrusion sensor and tilt sensor.......94
Lexus parking assist-sensor*
LKA (Lane-Keeping Assist) ........ 282
Radar sensor .............................263, 318
Rain-sensing windshield
wipers .................................................. 255
Service plug ............................................... 80
Service reminder indicators ............... 98
S-FLOW mode ..................................... 347
