2017 Lexus GS F load capacity

231
4
4-1. Before driving
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
Cargo and luggage
Take notice of the following information about storage precautions, cargo
capacity and load:
WARNING
■Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk:
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly, may block the
driver’s vision, or may result in items hitting the driver or passengers, possibly causing
an accident.
●Stow cargo and luggage in the trunk whenever possible.
●Do not place cargo or luggage in or on the following locations.

233
4
4-1. Before driving
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
Trailer towing (vehicles with towing package)
◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass), MPAC
(Maximum Permissible Axle Capacity), and permissible drawbar load before
towing. (P. 612)
◆Towing hitch/bracket
Lexus recommends the use of the Lexus hitch/bracket for your vehicle. Other
products of a suitable nature and comparable quality may also be used.
Your vehicle is designed primaril y as a passenger carrying vehicle.
Towing a trailer will have an adverse effect on handling, performance, brak-
ing, durability, and fuel consumption. Your safety and satisfaction depend on
the proper use of correct equipment and cautious driving habits. For your
safety and the safety of others, do not overload the vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in accordance
with the trailer’s characteristics and operating conditions.
Lexus warranties do not apply to damage or malfunction caused by towing a
trailer for commercial purposes.
Ask your local authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer for further details before towing, as there are additional legal
requirements in some countries.

2344-1. Before driving
GS350_200t_GS F_OM_OM30F83E_(EE)
■Total trailer weight and permissible drawbar load
Total trailer weight
Weight of the trailer itself plus the
trailer load should be within the max-
imum towing capacity. Exceeding
this weight is dangerous. ( P. 612)
When towing a trailer, use a friction
coupler or friction stabilizer (sway
control device).
Permissible drawbar load
Allocate the trailer load so that the drawbar load is greater than 25 kg (55.1 lb.) or
4% of the towing capacity. Do not let the drawbar load exceed the indicated
weight. ( P. 612)
■Information tag (manufacturer’s label)
Gross vehicle mass
The combined weight of the driver,
passengers, towing hitch, luggage,
total curb mass and drawbar load
should not exceed the gross vehicle
mass by more than 100 kg (220.5
lb.). Exceeding this weight is danger-
ous.
Maximum permissible rear axle capacity
The weight borne by the rear axle should not exceed the maximum permissible
axle capacity by 15% or more. Exceeding this weight is dangerous.
The values for towing capacity were derived from testing conducted at sea level.
Take note that engine output and towing capacity will be reduced at high altitudes.
Important points regarding trailer loads
1
2
1
WARNING
■When the gross vehicle mass limit or maximum permissible axle capacity is exceeded
Do not exceed the established speed limit fo r towing a trailer in built-up areas or 100
km/h (62 mph), whichever is lower.
Failing to observe this precaution may lead to an accident causing death or serious
injury.
2

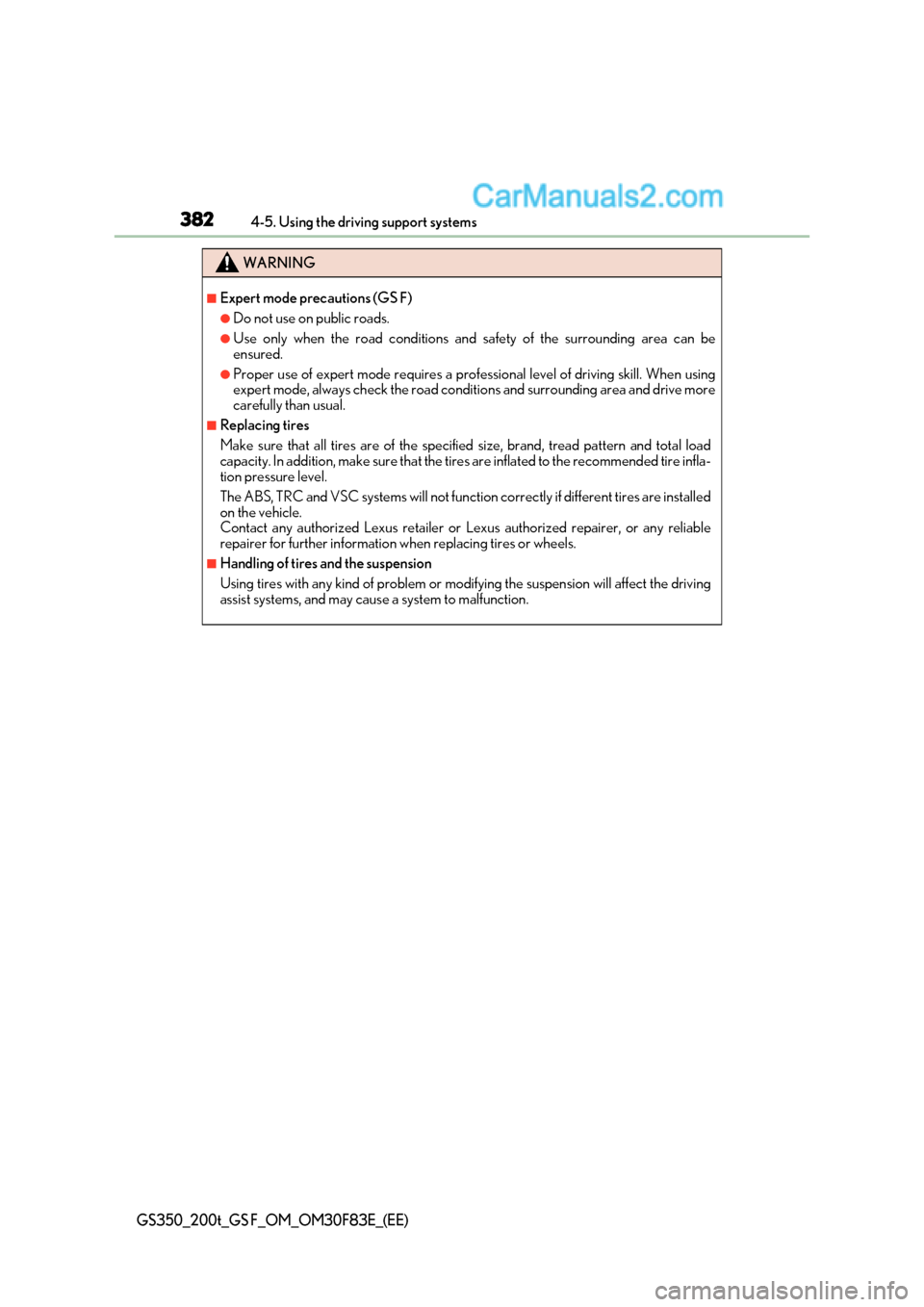

3824-5. Using the driving support systems
GS350_200t_GS F_OM_OM30F83E_(EE)
WARNING
■Expert mode precautions (GS F)
●Do not use on public roads.
●Use only when the road conditions and safety of the surrounding area can be
ensured.
●Proper use of expert mode re quires a professional level of driving skill. When using
expert mode, always check the road conditions and surrounding area and drive more
carefully than usual.
■Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and total load
capacity. In addition, make sure that the tires are inflated to the recommended tire infla-
tion pressure level.
The ABS, TRC and VSC systems will not function correctly if different tires are installed
on the vehicle.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer for further information when replacing tires or wheels.
■Handling of tires and the suspension
Using tires with any kind of problem or modi fying the suspension will affect the driving
assist systems, and may cause a system to malfunction.

487
6
6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30F83E_(EE)
Wheels
When replacing wheels, care should be taken to ensure that they are equivalent
to those removed in load capacity, diameter, rim width and inset*.
Replacement wheels are available at any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
* : Conventionally referred to as “offset”.
Lexus does not recommend using the following: ● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Steel wheels (except for GS200t with steel spare wheel)
● Use only Lexus wheel nuts and wrenches designed for use with your alumi-
num wheels.
● When rotating, repairing or changing your tires, check that the wheel nuts are
still tight after driving 1600 km (1000 miles).
● Be careful not to damage the aluminum wheels when using tire chains.
● Use only Lexus genuine balance weights or equivalent and a plastic or rubber
hammer when balancing your wheels.
■When replacing wheels (vehicles with the tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warnin g valves and transmit-
ters that allow the tire pressure warning sy stem to provide advance warning in the event
of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure warning
valves and transmitters must be installed. (P. 473)
If a wheel is bent, cracked or heavily corroded, it should be replaced. Other-
wise, the tire may separate from the wheel or cause a loss of handling control.
Wheel selection
Aluminum wheel precautions

6128-1. Specifications
GS350_200t_GS F_OM_OM30F83E_(EE)
Maintenance data (fuel, oil level, etc.)
GS350/GS200t
* 1
: Unladen vehicle
* 2
: Vehicles with 265/35R19 tires
* 3
: Vehicles with towing package
* 4
:2WD models
* 5
:AWD models
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height *12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tread
*1
Front 1575 mm (62.0 in.)
Rear 1590 mm (62.6 in.)
1560 mm (61.4 in.)
*2
Gross vehicle mass2WD
2170 kg (4784 lb.)
AWD2250 kg (4960 lb.)
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load*3
80 kg (176 lb.)
Towing capacity*3With brake 1600 kg (3527 lb.)
*4
1000 kg (2205 lb.) *5
Without brake
750 kg (1653 lb.)
