ES350_OM_OM33C68U_(U)8-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.
Multi-information display
If any of the warning messages are shown again after the following actions have
been performed, contact your Lexus dealer.
The warning lights and warning buzzers operate as follows depending on the
content of the message. If a message indicates the need for inspection by a
dealer, have the vehicle inspected by your Lexus dealer immediately.
The multi-information display shows warnings of system malfunctions, incor-
rectly performed operations, and messages that indicate a need for mainte-
nance. When a message is shown, perform the correction procedure
appropriate to the message.
1
2
Messages and warnings
System
warning light
Warning buzzer*Wa r n i n g
Comes on 
Sounds Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performed
Comes on
or flashesSounds
Indicates an important situation, such
as when the systems shown on the
multi-information display may be mal-
functioning
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may
result

4898-2. Steps to take in an emergency
ES350_OM_OM33C68U_(U)
8
When trouble arises
*: A buzzer sounds the first time a message is shown on the multi-information display.
■If “Maintenance Required Soon” is shown (U.S.A. only)
Indicates that all maintenance according to the driven distance on the maintenance
schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been reset.
If necessary, perform maintenance.
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement” for
the maintenance interval applicable to your vehicle.
■If “Maintenance Required Visit Your Dealer” is shown (U.S.A. only)
Indicates that all maintenance is required to correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles (80 00 km) after the message has been reset.
(The indicator will not work properly unless the message has been reset.)
Perform the necessary maintenance. Please reset the message after the maintenance is
performed ( →P. 4 2 1 )
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement” for
the maintenance interval applicable to your vehicle.
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indicator will not work
properly unless the oil maintenance data has been reset.)
Check the engine oil, and change if necessary. After changing the engine oil, the oil
change system should be reset. ( →P. 4 3 5 )
■If “Oil Maintenance Required Visit Your Dealer” is shown
Indicates that the engine oil should be change d. (After the engine oil is changed and the
oil maintenance data has been reset.)
Check and change the engine oil, and oil filter by your Lexus dealer. After changing the
engine oil, the oil change system should be reset. ( →P. 4 3 5 )
Comes
onDoes not sound
Indicates a condition, such as malfunc-
tion of electrical components, their
condition, or indicates the need for
maintenance
FlashesDoes not sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly
System
warning
lightWarning buzzer*Wa r n i n g

4908-2. Steps to take in an emergency
ES350_OM_OM33C68U_(U)
■If “Power Turned Off to Save Battery” is shown
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and maintain that
level for approximately 5 minutes to recharge the battery.
■If “Forward Camera System Unavailable” or “Forward Camera System Unavailable
Clean Windshield” is displayed. (if equipped)
The following systems may be suspended until the problem shown in the message is
resolved.
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert with steering control)
●Dynamic radar cruise control
●Automatic High Beam
■When a message that indicates the need for the shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the vehicle from moving
unexpectedly, a message that requires shifting the shift lever may be shown on the multi-
information display. In that case, follow the instruction of the message and shift the shift
lever.
■If “Visit Your Dealer” is shown
The system or part shown on the multi-info rmation display is malfunctioning. Have the
vehicle inspected by your Lexus dealer immediately.
■If “See Owner’s Manual” is shown
●If the following message is shown, following the instructions, accordingly.
• “Engine Coolant Temp High” (→ P. 5 1 0 )
●If the following message is shown, there may be a malfunction.
Immediately have the vehicle inspected by your Lexus dealer.
• “Check Access System with Elec. Key”
●If the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continuing
to drive the vehicle may be dangerous.
• “Braking Power Low Stop in a Safe Place”
• “Charging System Malfunction”
• “Oil Pressure Low Stop in a Safe Place”
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.

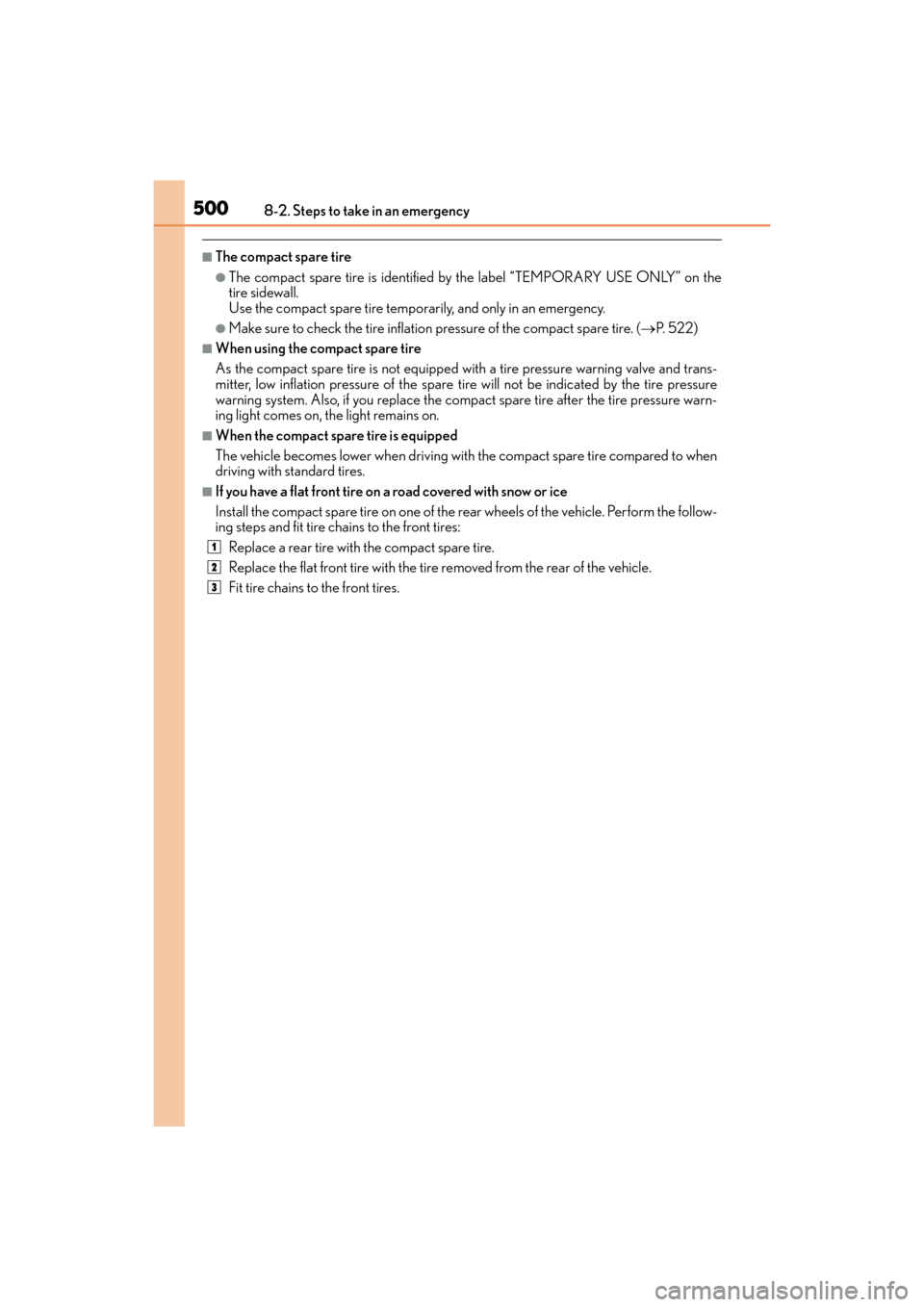

5008-2. Steps to take in an emergency
ES350_OM_OM33C68U_(U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire. (→P. 5 2 2 )
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire pressure
warning system. Also, if you replace the compact spare tire after the tire pressure warn-
ing light comes on, the light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to when
driving with standard tires.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the follow-
ing steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
1
2
3

562What to do if... (Troubleshooting)
ES350_OM_OM33C68U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 4 8 3 )
●The parking brake indicator is on
Is the parking brake released? ( →P. 1 6 4 )
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 482, 488)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 6 7 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. ( →P. 4 8 8 )
●When a warning light turns on or a warning message is displayed, refer to
P. 482, 488.
●Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(→ P. 4 9 1 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(→ P. 5 1 3 )
A warning buzzer sounds during driving
An alarm is activate
d and the horn sounds
A warning buzzer sounds wh en leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

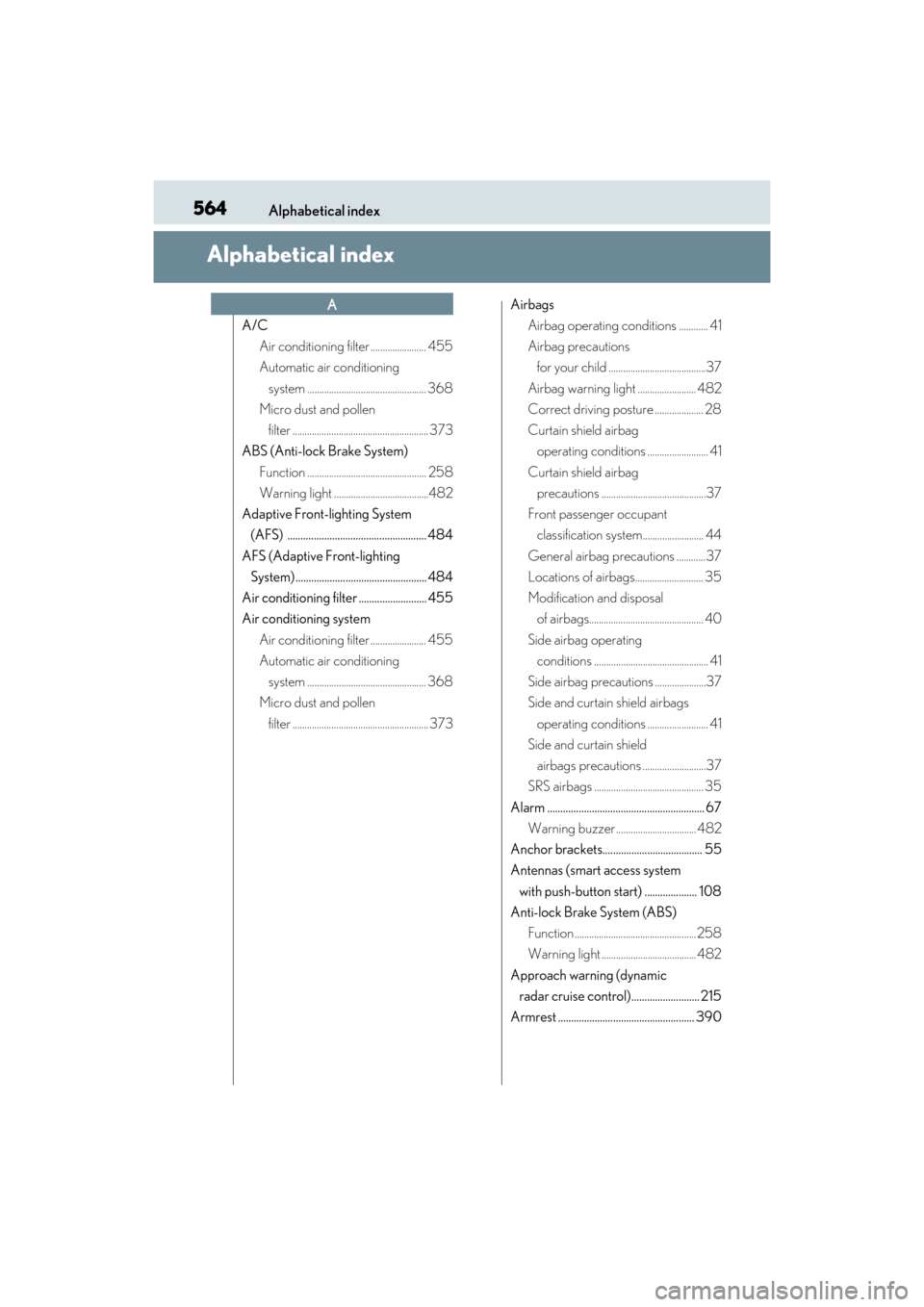

564Alphabetical index
ES350_OM_OM33C68U_(U)
Alphabetical index
A/CAir conditioning filter ....................... 455
Automatic air conditioning system ................................................. 368
Micro dust and pollen
filter ........................................................ 373
ABS (Anti-lock Brake System)
Function ................................................. 258
Warning light .......................................482
Adaptive Front-lighting System (AFS) ..................................................... 484
AFS (Adaptive Front-lighting System) .................................................. 484
Air conditioning filter .......................... 455
Air conditioning system Air conditioning filter ....................... 455
Automatic air conditioning system ................................................. 368
Micro dust and pollen
filter ........................................................ 373 Airbags
Airbag operating conditions ............ 41
Airbag precautions for your child ........................................37
Airbag warning light ........................ 482
Correct driving posture .................... 28
Curtain shield airbag operating conditions ......................... 41
Curtain shield airbag precautions ...........................................37
Front passenger occupant classification system......................... 44
General airbag precautions ............37
Locations of airbags............................ 35
Modification and disposal of airbags............................................... 40
Side airbag operating conditions ............................................... 41
Side airbag precautions .....................37
Side and curtain shield airbags operating conditions ......................... 41
Side and curtain shield
airbags precautions ..........................37
SRS airbags ............................................. 35
Alarm ............................................................ 67 Warning buzzer ................................. 482
Anchor brackets...................................... 55
Antennas (smart access system with push-button start) .................... 108
Anti-lock Brake System (ABS)
Function ..................................................258
Warning light ....................................... 482
Approach warning (dynamic radar cruise control).......................... 215
Armrest .................................................... 390
A

565Alphabetical index
ES350_OM_OM33C68U_(U)
Armrest door ......................................... 393
Assist grip ................................................ 394
Audio input.............................................. 279
Audio system
*....................................... 270
Audio input............................................ 279
AUX port ............................................... 279
Bluetooth
® audio ............................. 328
CD player ............................................. 302
iPod .......................................................... 309
MP3/WMA disc .............................. 302
Optimal use ......................................... 289
Portable music player ........................317
Radio ........................................................296
Setup menu ...........................................282
Steering wheel audio switches ............................................... 276
USB memory ........................................ 313
Automatic air conditioning
system .................................................... 368
Automatic headlight leveling
system ...................................................... 167
Automatic High Beam ........................ 168
Automatic light control system ......................................................165
Automatic transmission ...................... 159 If the shift lever
cannot be shifted from P ............. 162
AUX port
*.............................................. 279
Auxiliary box ..........................................385 Back-up lights
Replacing light bulbs ....................... 469
Wattage ................................................. 524
Battery ...................................................... 439 If the battery
is discharged ................................... 506
Preparing and checking before
winter.................................................... 263
Bluetooth
®*
Audio system ........................................ 318
Hands-free system
(for cellular phone) ....................... 329
Brake
Fluid ..........................................................438
Parking brake ........................................164
Warning light ....................................... 482
Brake assist ............................................. 258
Break-in tips ............................................. 142
Brightness control
Instrument panel light control ......... 77
BSM (Blind Spot Monitor) ............... 250
Care Aluminum wheels ................................415
Exterior ..................................................... 414
Interior ....................................................... 417
Seat belts..................................................418
Cargo capacity ........................................ 151
Cargo hooks .......................................... 386
CD player
*............................................. 302
Chains........................................................264
B
C
*: For vehicles with navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.

566Alphabetical index
ES350_OM_OM33C68U_(U)
Child restraint systemBooster seats, definition ......................51
Booster seats, installation..................60
Convertible seats, definition ..............51
Convertible seats, installation ........ 58
Front passenger occupant
classification system ......................... 44
Infant seats, definition ............................51
Infant seats, installation ...................... 58
Installing CRS
with LATCH anchors .....................56
Installing CRS with seat belts ......... 58
Installing CRS with top tether strap ...........................61
Child safety ................................................ 50 Airbag precautions .............................. 37
Battery precautions...........................440, 509
Child restraint system ...........................51
How your child should wear the seat belt ............................................31
Installing child restraints.....................55
Moon roof precautions.....................137
Power window lock switch .............. 131
Power window precautions .......... 133
Rear door child-protectors .............98
Removed electronic key battery precautions.............. 458
Seat belt extender precautions........................................... 33
Seat belt precautions .......................... 33
Seat heater precautions.................. 377
Trunk precautions............................... 104 Child-protectors ..................................... 98
Cleaning
Aluminum wheels ................................415
Exterior ..................................................... 414
Interior ....................................................... 417
Seat belts..................................................418
Clock......................................................... 389
Coat hooks ............................................. 394
Condenser...............................................437
Console box........................................... 383
Console box light ................................. 383
Consumption screen ............................. 86
Cooling system Engine overheating ........................... 510
Cruise control Cruise control ..................................... 220
Dynamic radar cruise control .....208
Cup holders............................................ 384
Curtain shield airbags ........................... 35
Customizable features ...................... 538
Daytime running light system............ 166
Defogger
Front windshield..................................372
Outside rear view mirrors .............372
Rear window .........................................372
Dimension ................................................. 516
Dinghy towing ......................................... 153
Display
Dynamic radar cruise control .....208
LDA (Lane Departure Alert with steering control) .....................199
Multi-information display..................80
Trip information ..................................... 87
Warning message............................ 488
D
