2017 KIA SOUL Owners Manual

Maintenance
96
8

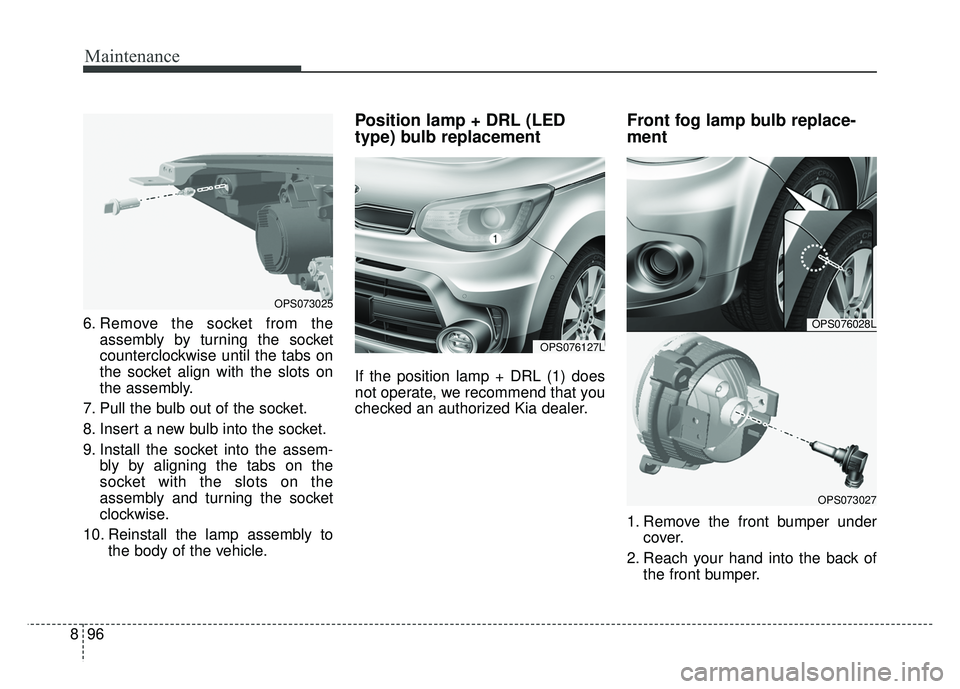

6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Pull the bulb out of the socket.
8. Insert a new bulb into the socket.
9. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
10. Reinstall the lamp assembly to the body of the vehicle.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (1) does
not operate, we recommend that you
checked an authorized Kia dealer.
Front fog lamp bulb replace-
ment
1. Remove the front bumper undercover.
2. Reach your hand into the back of the front bumper.
OPS073025
OPS076028L
OPS073027
OPS076127L

897
Maintenance

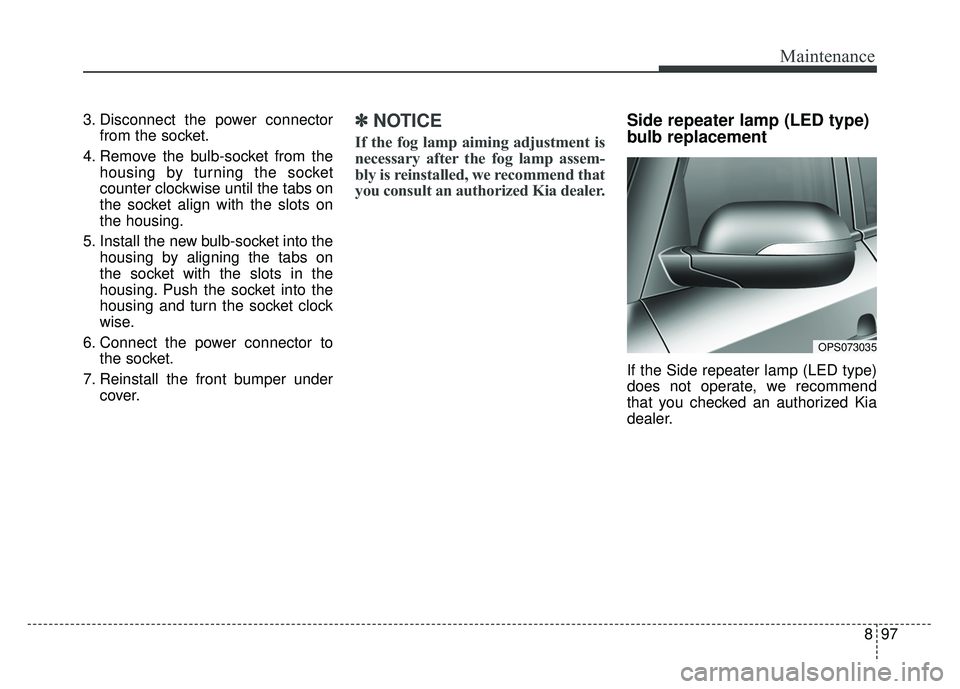

3. Disconnect the power connectorfrom the socket.
4. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
5. Install the new bulb-socket into the housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock
wise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover.✽ ✽NOTICE
If the fog lamp aiming adjustment is
necessary after the fog lamp assem-
bly is reinstalled, we recommend that
you consult an authorized Kia dealer.
Side repeater lamp (LED type)
bulb replacement
If the Side repeater lamp (LED type)
does not operate, we recommend
that you checked an authorized Kia
dealer.
OPS073035

Maintenance
98
8
Rear turn signal lamp bulb
replacement
1. Open the liftgate.
2. Loosen the lamp assembly retain-
ing screws with a screwdriver.
3. Remove the rear combination lamp assembly from the body of
the vehicle.
4. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly and
turning the socket clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.
OPS073031
OPS076032L
OPS073034
■Type A
■Type B

899
Maintenance

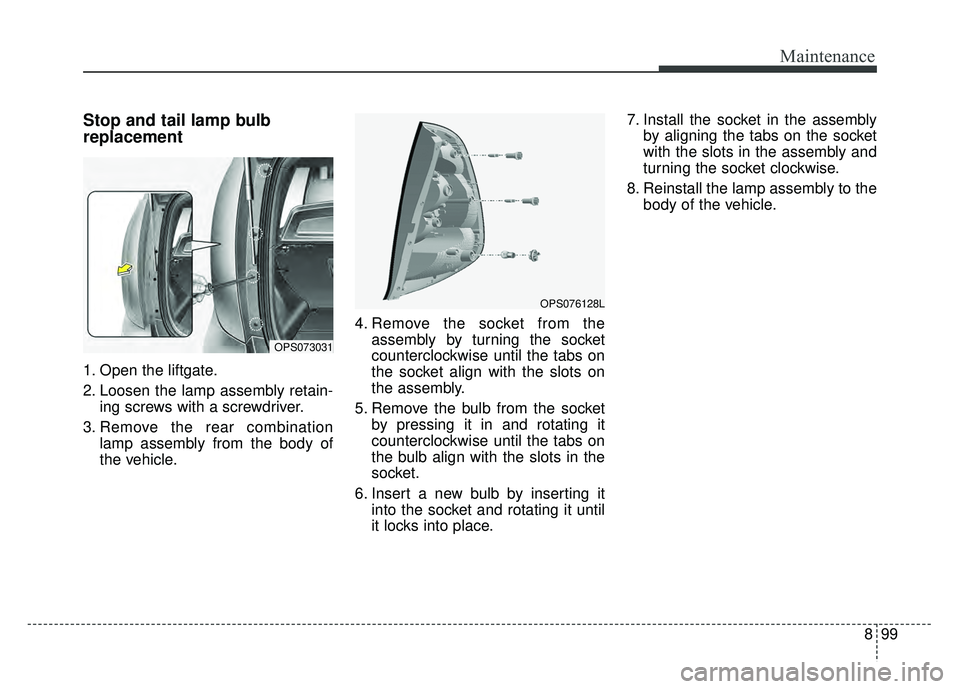

Stop and tail lamp bulb
replacement
1. Open the liftgate.
2. Loosen the lamp assembly retain-ing screws with a screwdriver.
3. Remove the rear combination lamp assembly from the body of
the vehicle. 4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly and
turning the socket clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.
OPS073031
OPS076128L

Maintenance
100
8

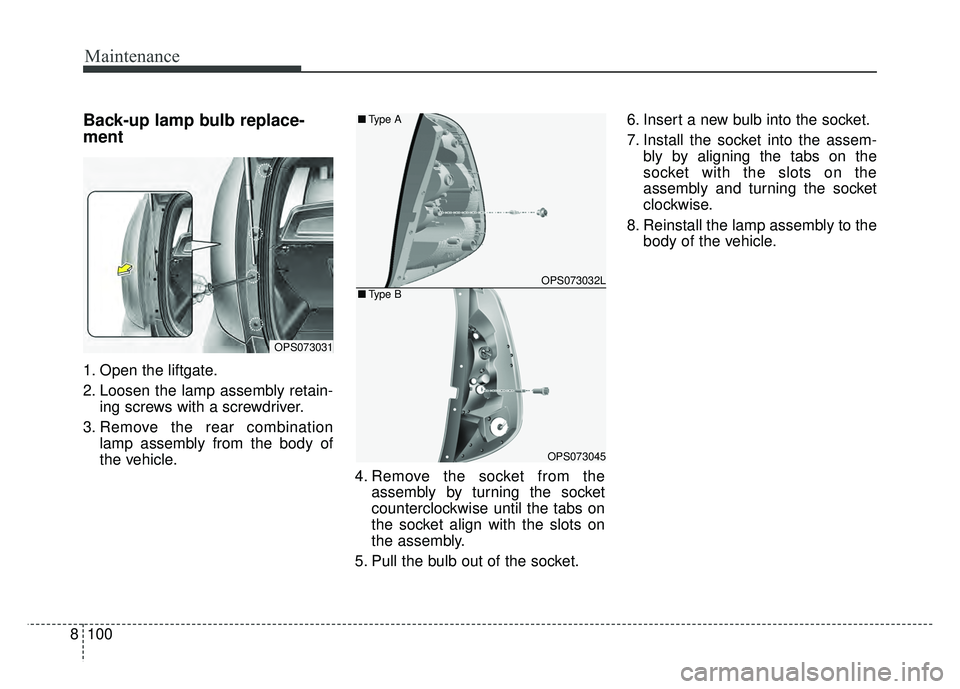

Back-up lamp bulb replace-
ment
1. Open the liftgate.
2. Loosen the lamp assembly retain-
ing screws with a screwdriver.
3. Remove the rear combination lamp assembly from the body of
the vehicle.
4. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Pull the bulb out of the socket. 6. Insert a new bulb into the socket.
7. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.
OPS073031
OPS073032L
OPS073045
■Type A
■Type B

8101
Maintenance

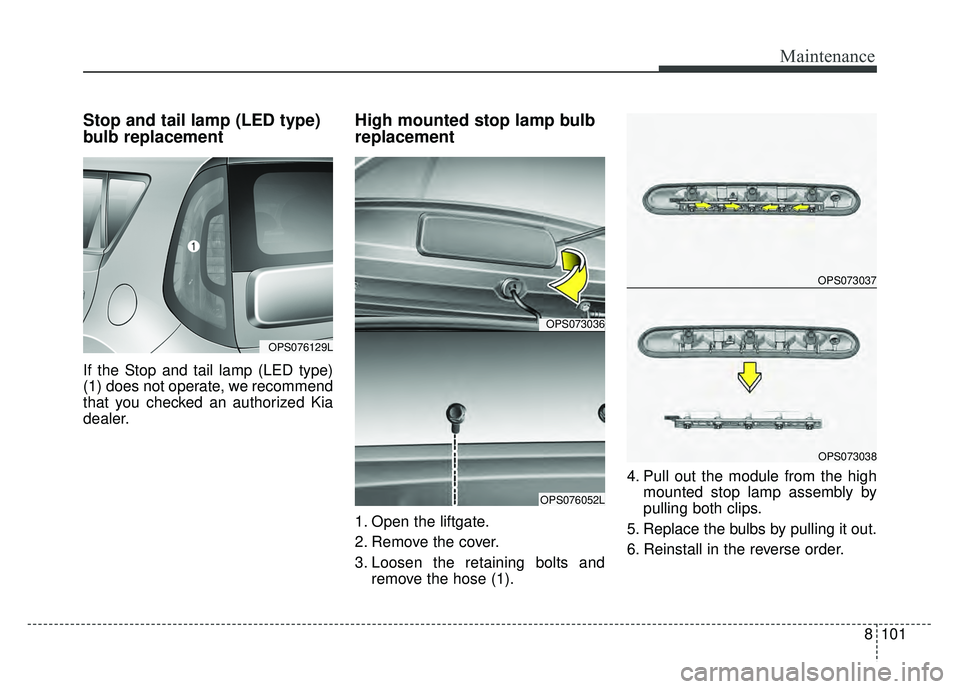

Stop and tail lamp (LED type)
bulb replacement
If the Stop and tail lamp (LED type)
(1) does not operate, we recommend
that you checked an authorized Kia
dealer.
High mounted stop lamp bulb
replacement
1. Open the liftgate.
2. Remove the cover.
3. Loosen the retaining bolts andremove the hose (1). 4. Pull out the module from the high
mounted stop lamp assembly by
pulling both clips.
5. Replace the bulbs by pulling it out.
6. Reinstall in the reverse order.
OPS076129L
OPS073036
OPS076052L
OPS073037
OPS073038

Maintenance
102
8

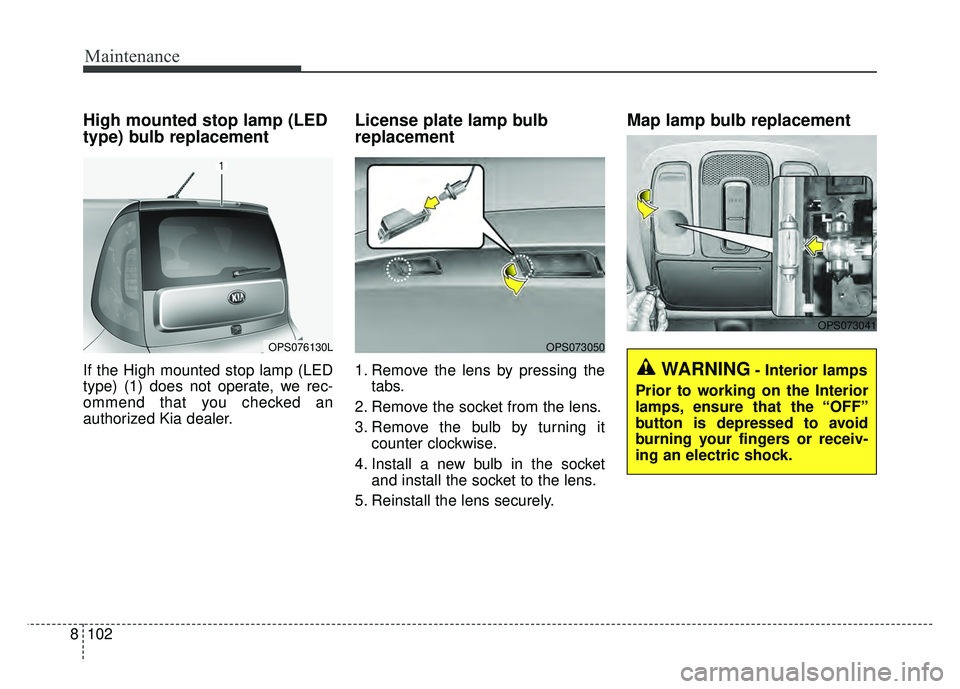

High mounted stop lamp (LED
type) bulb replacement
If the High mounted stop lamp (LED
type) (1) does not operate, we rec-
ommend that you checked an
authorized Kia dealer.
License plate lamp bulb
replacement
1. Remove the lens by pressing the
tabs.
2. Remove the socket from the lens.
3. Remove the bulb by turning it counter clockwise.
4. Install a new bulb in the socket and install the socket to the lens.
5. Reinstall the lens securely.
Map lamp bulb replacement
OPS076130LOPS073050
OPS073041
WARNING- Interior lamps
Prior to working on the Interior
lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.

8103
Maintenance

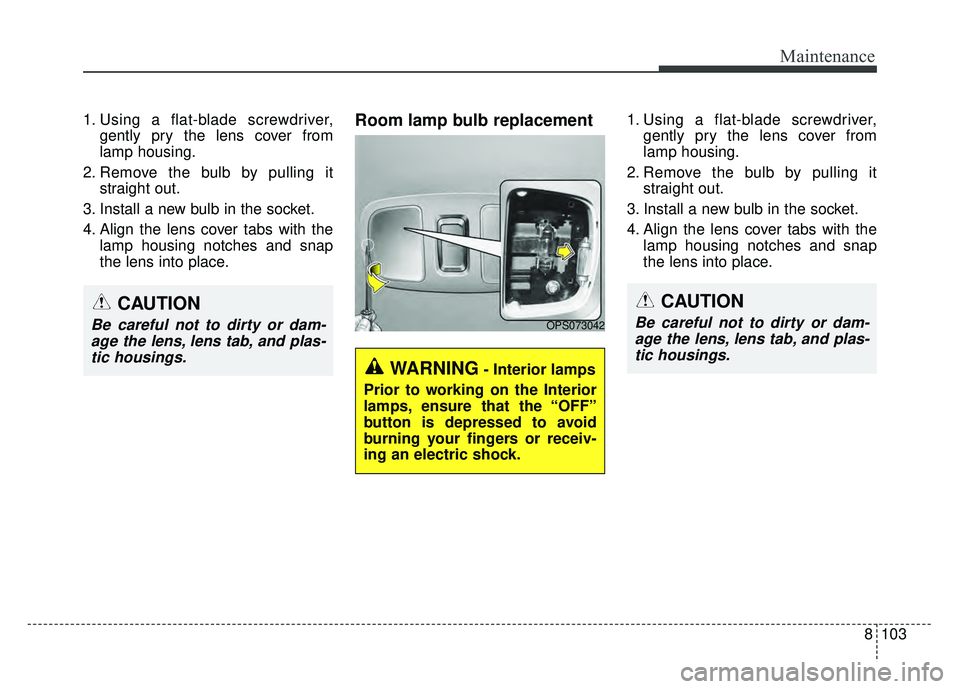

1. Using a flat-blade screwdriver,gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.Room lamp bulb replacement 1. Using a flat-blade screwdriver,gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
CAUTION
Be careful not to dirty or dam-age the lens, lens tab, and plas-tic housings.
CAUTION
Be careful not to dirty or dam-age the lens, lens tab, and plas-tic housings.OPS073042
WARNING- Interior lamps
Prior to working on the Interior
lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
