Maintenance

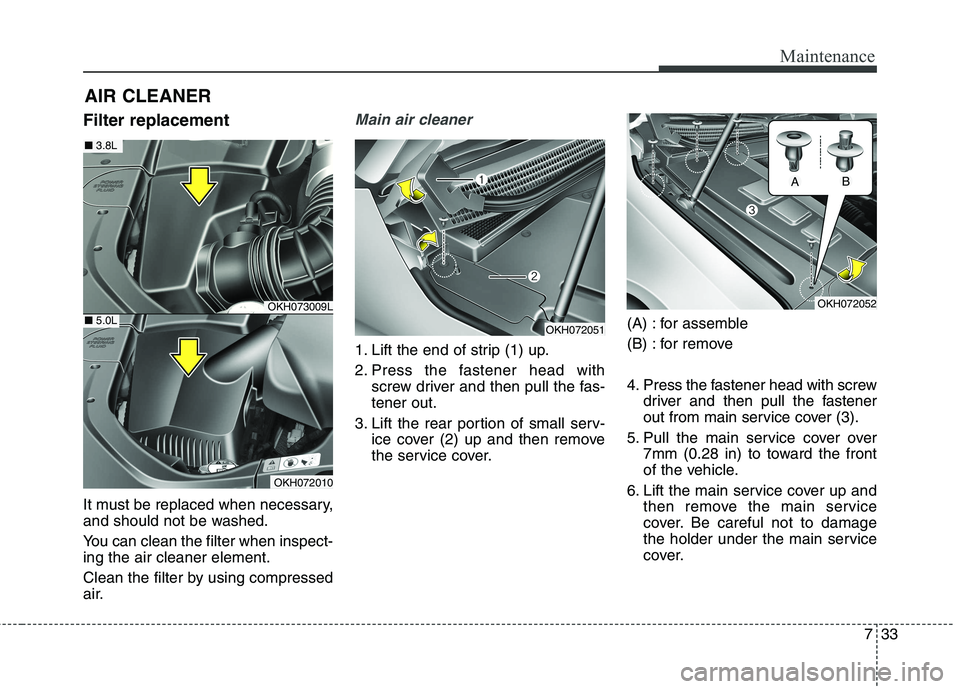

AIR CLEANER
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect- ing the air cleaner element.
Clean the filter by using compressed
air.
Main air cleaner
1. Lift the end of strip (1) up.
2. Press the fastener head with screw driver and then pull the fas- tener out.
3. Lift the rear portion of small serv- ice cover (2) up and then remove
the service cover. (A) : for assemble
(B) : for remove
4. Press the fastener head with screw
driver and then pull the fastener
out from main service cover (3).
5. Pull the main service cover over 7mm (0.28 in) to toward the front
of the vehicle.
6. Lift the main service cover up and then remove the main service
cover. Be careful not to damage
the holder under the main service
cover.
OKH072052
OKH072051
AB
OKH073009L
OKH072010
■3.8L
■5.0L

Maintenance
34
7

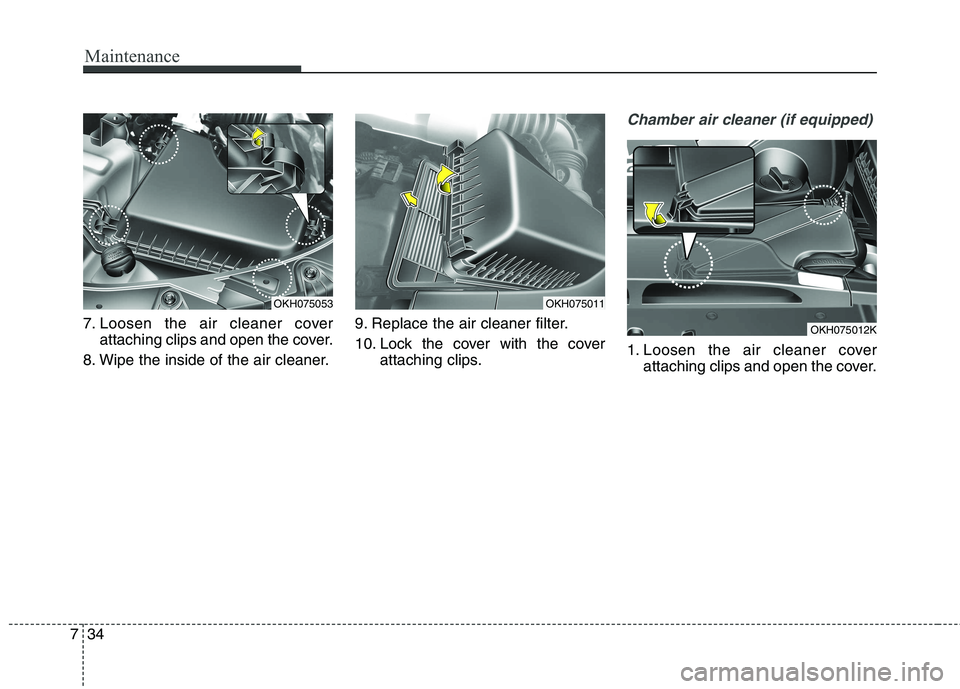

7. Loosen the air cleaner cover
attaching clips and open the cover.
8. Wipe the inside of the air cleaner. 9. Replace the air cleaner filter.
10. Lock the cover with the cover
attaching clips.
Chamber air cleaner (if equipped)
1. Loosen the air cleaner coverattaching clips and open the cover.
OKH075053
OKH075012K
OKH075011

735
Maintenance
2. Replace the air cleaner filter afterpulling up the locking tab (1).
3. Lock the cover with the cover attaching clips.
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extreme- ly dusty or sandy areas, replace the element more often than the usual recommended intervals. (Refer to“Maintenance under severe usageconditions” in this section.)
OKH075013K
CAUTION
Do not drive with the air clean- er removed; this will result inexcessive engine wear.
When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
We recommend that you use parts for replacement from anauthorized Kia dealer.
When you clean the filter, use the compressed air and blowthe air from the clean side tothe dirty side.

Maintenance
36
7
CLIMATE CONTROL AIR FILTER
Filter inspection The climate control air filter should be replaced according to the mainte-
nance schedule. If the vehicle is
operated in the severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you, the owner, replace the cli-
mate control air filter, replace it per-
forming the following procedure, and
be careful to avoid damaging other
components. Replace the filter according to the
maintenance Schedule. Filter replacement
1. With the glove box open, remove
the stoppers on both sides. 2. Open the glove box and remove
the support strap (1).
OKH072015
OKH072016

737
Maintenance

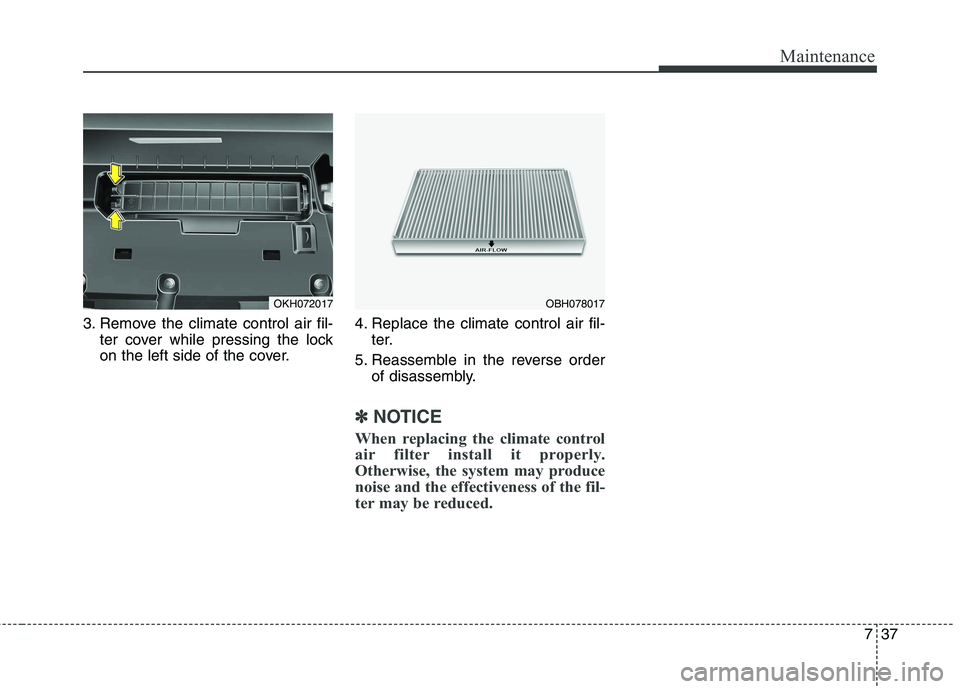

3. Remove the climate control air fil-ter cover while pressing the lock
on the left side of the cover. 4. Replace the climate control air fil-
ter.
5. Reassemble in the reverse order of disassembly.
✽✽ NOTICE
When replacing the climate control
air filter install it properly.
Otherwise, the system may produce
noise and the effectiveness of the fil-
ter may be reduced.
OKH072017OBH078017

Maintenance
38
7

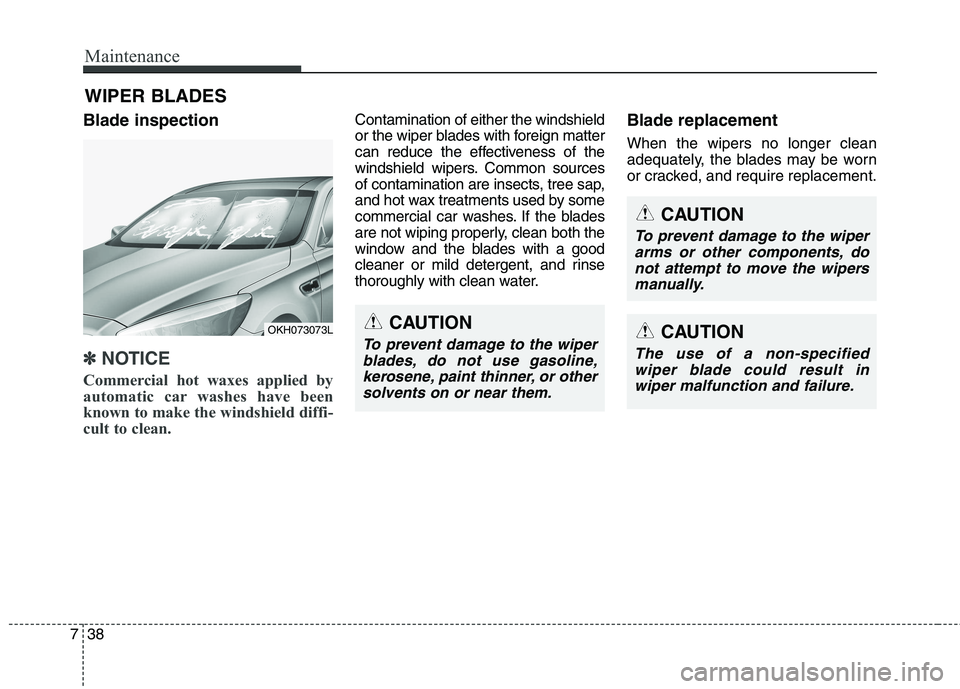

WIPER BLADES
Blade inspection
✽✽ NOTICE
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wipers. Common sources
of contamination are insects, tree sap,
and hot wax treatments used by some
commercial car washes. If the blades
are not wiping properly, clean both the
window and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water. Blade replacement When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
OKH073073LCAUTION
To prevent damage to the wiper
blades, do not use gasoline,kerosene, paint thinner, or other solvents on or near them.
CAUTION
To prevent damage to the wiperarms or other components, donot attempt to move the wipers manually.
CAUTION
The use of a non-specifiedwiper blade could result inwiper malfunction and failure.

739
Maintenance
Front windshield wiper blade
For your convenience, move the
windshield wiper blades to the serv-
ice position as follows;
Turn off the engine.Move the wiper switch to the single wiping (MIST) position within 20 sec-
onds and hold the switch until the
wiper blade is in the fully up position.
1. Raise the wiper arm.
OHM078059
CAUTION
Do not allow the wiper arm tofall against the windshield,since it may chip or crack the windshield.
OKH073040
OKH073040L
■ Type A
■Type B

Maintenance
40
7

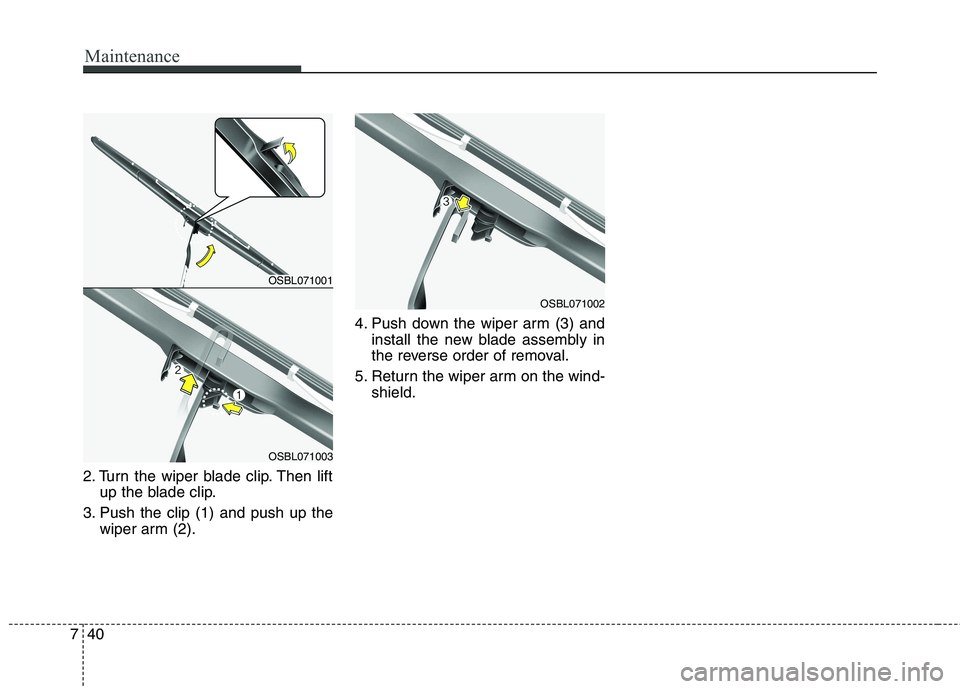

2. Turn the wiper blade clip. Then lift
up the blade clip.
3. Push the clip (1) and push up the wiper arm (2). 4. Push down the wiper arm (3) and
install the new blade assembly in
the reverse order of removal.
5. Return the wiper arm on the wind- shield.
OSBL071002
OSBL071001
OSBL071003
