2017 KIA OPTIMA Owners Manual

Maintenance
74
8
Fuse NameFuse ratingCircuit Protected
FUSE
FUEL PUMP20AFuel Pump Relay
ECU 120APCM/ECM
SENSORS 210A
E/R Junction Block (Fuel Pump Relay, Cooling Fan 1/2 Relay)
[G4KJ] Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister
Close Valve
[G4KH] Oil Control Valve (Exhaust), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Valve
[G4FJ] Oil Control Valve #1/#2, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Va l ve
TCU 215ATransaxle Range Switch, TCM
ABS 310AESC Module, Multipurpose Check Connector
POWER
OUTLET 320ARear Power Outlet
B/UP LAMP10APCM/TCM, Transaxle Range Switch, Audio, Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH
SENSOR 115AOxygen Sensor (Up/Down)
IGN COIL20AIgnition Coil #1/#2/#3/#4
ECU 210APCM/ECM
TCU 110APCM/TCM
VACUUM PUMP 210AVacuum Pump, Vacuum Switch
ECU 310APCM/ECM
POWER
OUTLET 220AFront Power Outlet #1
HORN20AHorn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 130AWiper Power Relay
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 74

875
Maintenance

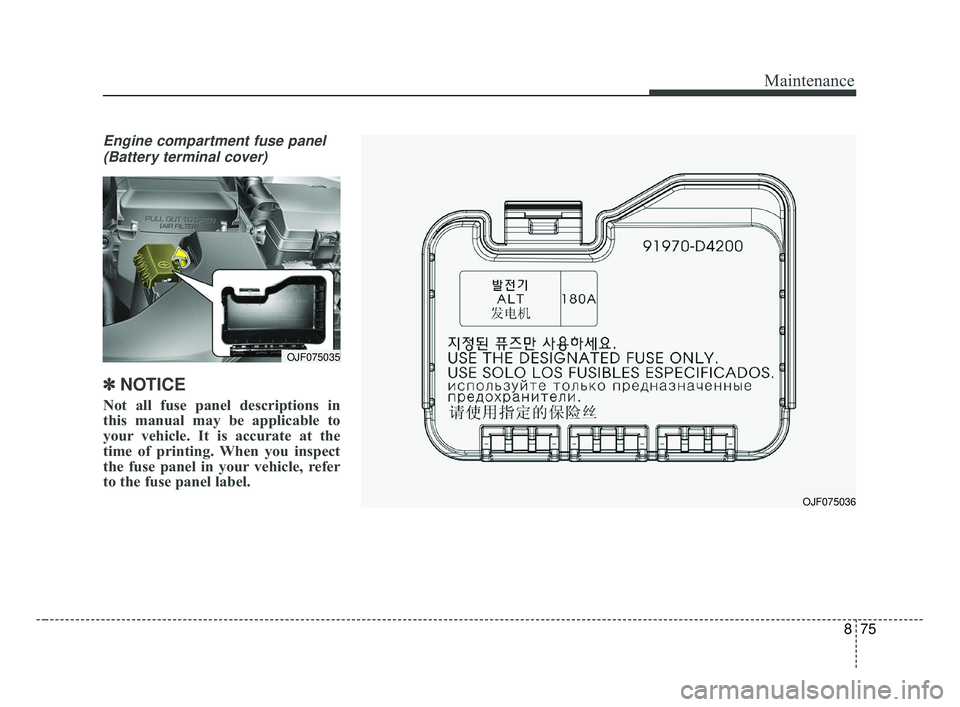

Engine compartment fuse panel(Battery terminal cover)
✽ ✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OJF075035
OJF075036
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 75

Maintenance
76
8
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specified
wattage.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 76

877
Maintenance
✽ ✽NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non- genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
OJFA076134
OJFA076136
■ Head lamp - Type A
■Head lamp - Type B
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 77

Maintenance
78
8
(1) Front turn signal lamp
(and position lamp for Type A)
(2) Headlamp (Low)
(3) Headlamp (High) (and DRL for Type A)
(4) Day time running lamp /Position lamp (LED type)
(5) Side markerLight bulb position (Rear)
OJFA075092
OJFA075040
■Rear combination lamp - Type A
■Rear combination lamp - Type B
OJFA076190
■
Head lamp - Type C
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 78

879
Maintenance
(1) Rear turn signal lamp
(2) Stop and tail lamp
(3) Position lamp
(4) Back-up lamp
(5) Stop lamp (LED type)
(6) Tail lamp (LED type)
(7) Side marker
(8) License plate lamp
(9) High mounted stop lampLight bulb position (Side)
(1) Side repeater lamp (LED type)
OJF075039L
OJFA075131
OJFA075132
■License plate lamp
■High mounted stop lamp
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 79

Maintenance
80
8
Headlamp (Low beam) bulb
replacement
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise. 3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from bulb-socket by pulling it out. 5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the bulb-socket in the head- lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.
OJFA075073
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 80

881
Maintenance
Headlamp bulb Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
OHD076046
