NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water, and
dry with a soft cloth. Do not cover the lens.
CAUTION!
• To avoid vehicle damage, Rear Back Up Camera
should only be used as a parking aid. The Rear Back
Up Camera is unable to view every obstacle or object
in your drive path.
• To avoid vehicle damage, the vehicle must be driven
slowly when using the Rear Back Up Camera to be
able to stop in time when an obstacle is seen. It is
(Continued)

Selec-Terrain Switch (Trailhawk)
290 STARTING AND OPERATING

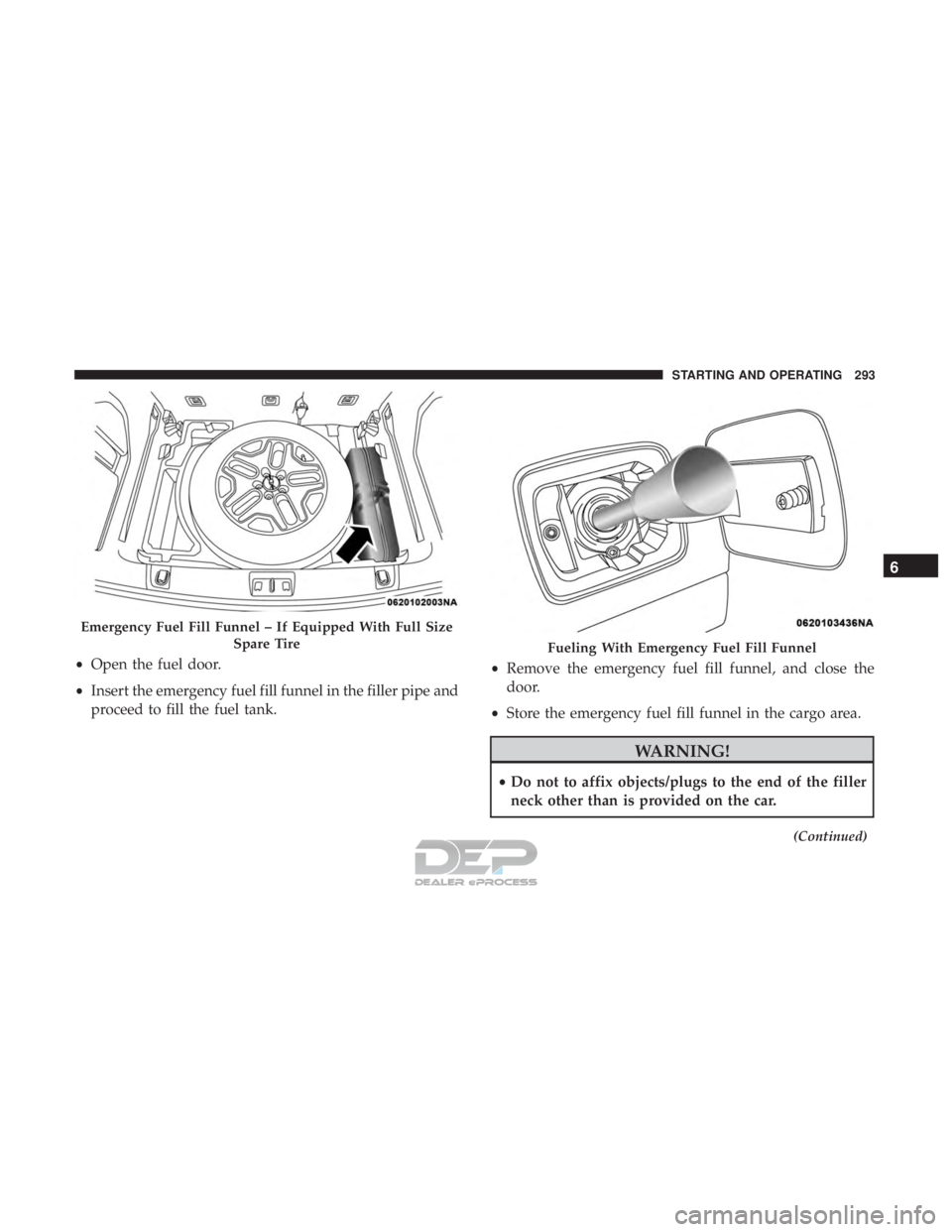

Emergency Fuel Fill Funnel
292 STARTING AND OPERATING

•Open the fuel door.
• Insert the emergency fuel fill funnel in the filler pipe and
proceed to fill the fuel tank. •
Remove the emergency fuel fill funnel, and close the
door.
• Store the emergency fuel fill funnel in the cargo area.
Fueling With Emergency Fuel Fill Funnel
6
STARTING AND OPERATING 293

WARNING!(Continued)
•The use of objects/plugs do not comply with the
vehicle and may cause pressure increases inside the
tank, creating dangerous conditions.
• Do not approach the neck of the tank with open
flames or lit cigarettes its an extreme fire hazard.
Also, avoid close contact with the filler pipe with
your face, do not inhale harmful vapors.
• Do not use your mobile phone in the vicinity of the
pump fuel nozzle, it can be a possible risk of fire.
VEHICLE LOADING
Certification Label
As required by National Highway Traffic Safety Adminis-
tration regulations, your vehicle has a certification label
affixed to the driver’s side door or pillar.
This label contains the month and year of manufacture,
Gross Vehicle Weight Rating (GVWR), Gross Axle Weight
Rating (GAWR) front and rear, and Vehicle Identification
Number (VIN). A Month-Day-Hour (MDH) number is
included on this label and indicates the Month, Day and
Hour of manufacture. The bar code that appears on the
bottom of the label is your VIN.
Gross Vehicle Weight Rating (GVWR)
The GVWR is the total permissible weight of your vehicle
including driver, passengers, vehicle, options and cargo.
The label also specifies maximum capacities of front and
rear axle systems (GAWR). Total load must be limited so
GVWR and front and rear GAWR are not exceeded.
Payload
The payload of a vehicle is defined as the allowable load
weight a truck can carry, including the weight of the driver,
all passengers, options and cargo.
Gross Axle Weight Rating (GAWR)
The GAWR is the maximum permissible load on the front
and rear axles. The load must be distributed in the cargo
area so that the GAWR of each axle is not exceeded.
Each axle GAWR is determined by the components in the
system with the lowest load carrying capacity (axle,
springs, tires or wheels). Heavier axles or suspension
components sometimes specified by purchasers for in-
creased durability does not necessarily increase the vehi-
cle’s GVWR.
