2017 JEEP RENEGADE LATITUDE Owners Manual

Green TelltaleLight What It Means
Automatic High Beam Indicator Light
This indicator shows that the automatic high beam headlights are on.
Cruise Control Set Indicator Light — If Equipped
Green Telltale
Light What It Means
Cruise Control Set Indicator Light
This light will turn on when the Speed Control is SET. Refer to “Speed Control — If Equipped”
in “Starting And Operating” for further information.
Front Fog Indicator Light — If Equipped
Green Telltale
Light What It Means
Front Fog Indicator Light
This indicator will illuminate when the front fog lights are on.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 159

Green TelltaleLight What It Means
Hazard Warning Lights
The hazard warning indicators light up when the vehicles Hazard Warning flasher switch has
been pushed.
Park/Headlight ON Indicator Light
Green Telltale
Light What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
Turn Signal Warning Lights
Green Telltale
Light What It Means
Turn Signal Indicator Lights
The instrument cluster arrow will flash independently for the left or right turn signal as selected,
as well as the exterior turn signal lamp(s) (front and rear) as selected when the multifunction le-
ver is moved down (left) or up (right).
160 GETTING TO KNOW YOUR INSTRUMENT PANEL

Green TelltaleLight What It Means
Stop/Start Active Indicator Light
This telltale will illuminate when the Stop/Start function is in “Autostop” mode.
Blue Telltale Lights
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control lever
away from you to switch the headlights to high beam. Pull the lever toward you to switch the
headlights back to low beam. Pull the lever toward you for a temporary high beam on,
flash to
pass scenario.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 161

White TelltaleLight What It Means
Cruise Control Ready Indicator Light
This light will turn on when the electronic speed control is ON, but not set.
Light Sensor Failure
White Telltale
Light What It Means
Light Sensor Failure
This light illuminates when there is light sensor failure. If this light illuminates, have an autho-
rized dealer inspect it.
162 GETTING TO KNOW YOUR INSTRUMENT PANEL

White WarningLight What It Means
Set Speed Warning Light
When Set Speed Warning is turned on the speed warning telltale will illuminate in the instru-
ment cluster, with a number matching the set speed. Each time the set speed is exceeded, an au-
dible chime will sound for up to 10 seconds, or until the speed is no longer exceeded. The telltale
in the instrument cluster will also change from white to yellow, and a pop up warning message
will pop up on the instrument cluster display screen. Speed Warning can be turned on and off in
the instrument cluster display, for further information refer to “Instrument Cluster Display Menu
Items” in “Getting To Know Your Instrument Panel.”
NOTE:
The number “120” is only an example of a speed that can be set.
Gray Telltale Lights
Cruise Control Cancelled Light
White Telltale
Light What It Means
Cruise Control Cancelled Light
This light will turn on when the cruise control has been cancelled by the driver. Refer to “Speed
Control — If Equipped” in “Starting and Operating” for further information.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 163

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors the
performance of the emissions, engine, and automatic trans-
mission control systems. When these systems are operating
properly, your vehicle will provide excellent performance
and fuel economy, as well as engine emissions well within
current government regulations.

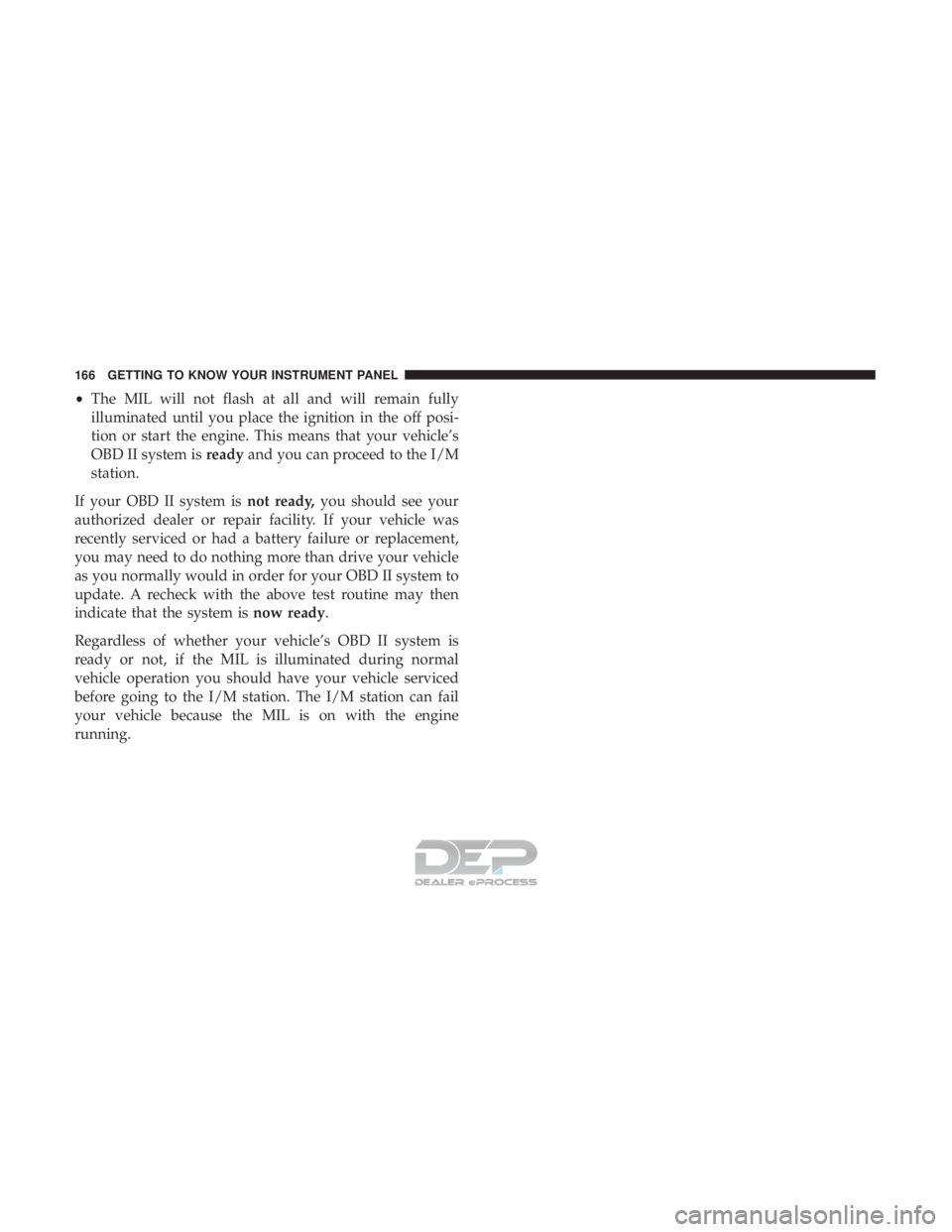

If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Although
your vehicle will usually be drivable and not need towing,
see your authorized dealer for service as soon as possible.

4
GETTING TO KNOW YOUR INSTRUMENT PANEL 165
