791
Maintenance

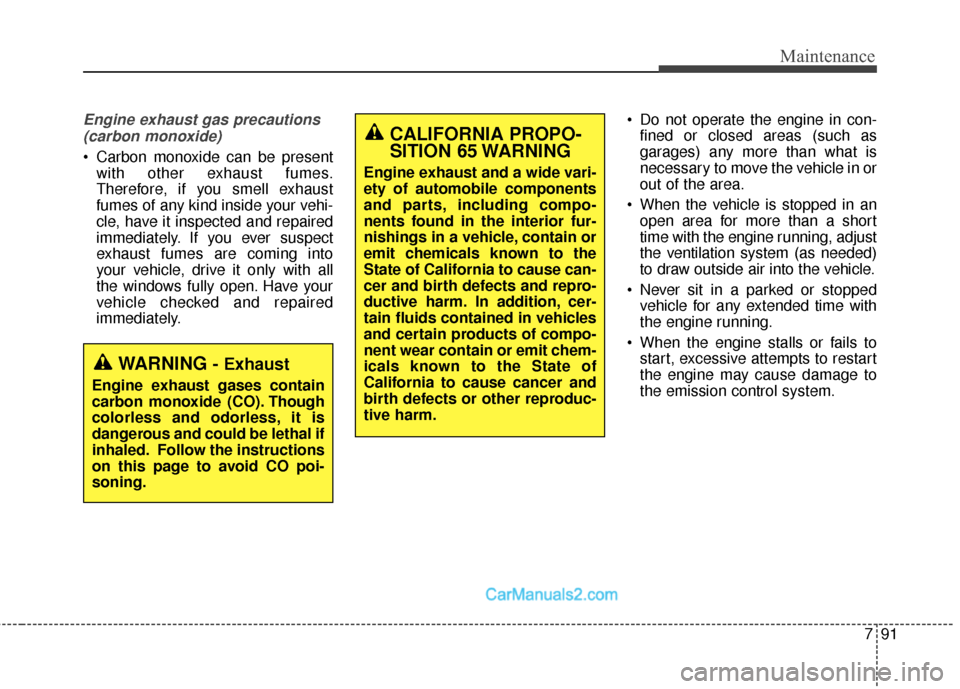

Engine exhaust gas precautions(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running, adjust
the ventilation system (as needed)
to draw outside air into the vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.
CALIFORNIA PROPO-
SITION 65 WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.

Specifications, Consumer information, Reporting safety defects
88

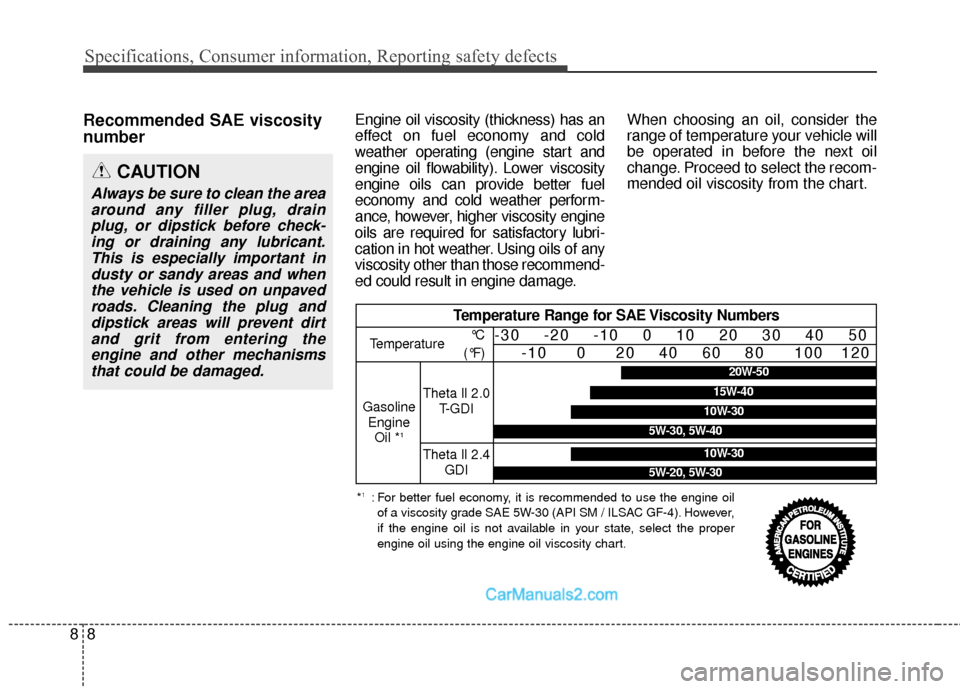

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
*1: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-30 (API SM / ILSAC GF-4). However,
if the engine oil is not available in your state, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Theta ll 2.0T-GDI
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Theta ll 2.4GDI10W-30
5W-20, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40

I3

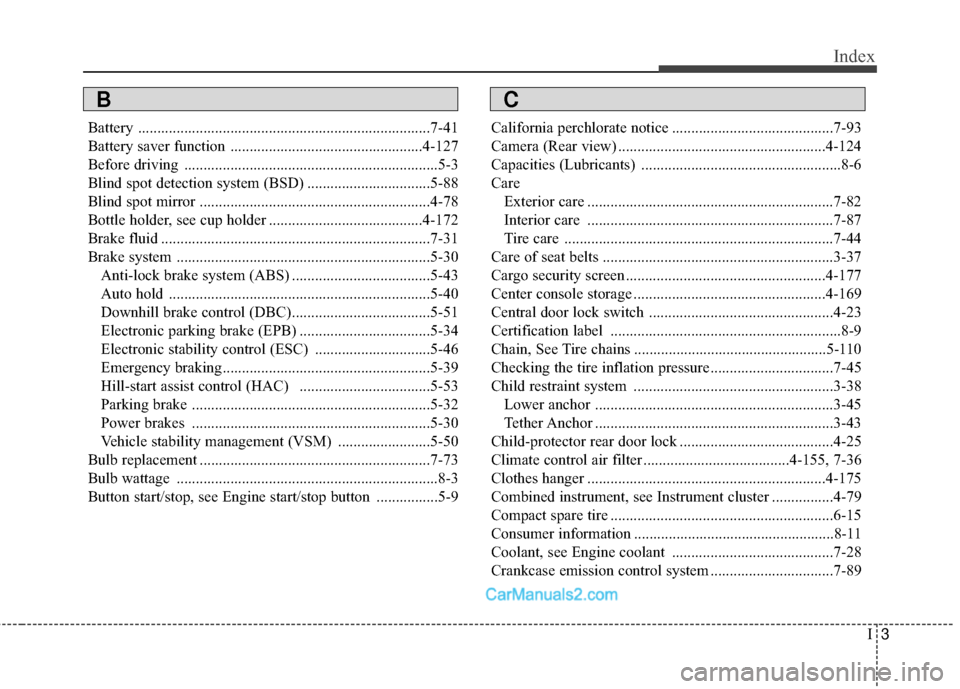

Index
Battery ........................................................................\
....7-41
Battery saver function ..................................................4-127
Before driving ..................................................................5-3
Blind spot detection system (BSD) ................................5-88
Blind spot mirror ............................................................4-78
Bottle holder, see cup holder ........................................4-172
Brake fluid ......................................................................7-\
31
Brake system ..................................................................5-30Anti-lock brake system (ABS) ....................................5-43
Auto hold ....................................................................5-40\
Downhill brake control (DBC)....................................5-51
Electronic parking brake (EPB) ..................................5-34
Electronic stability control (ESC) ..............................5-46
Emergency braking......................................................5-39
Hill-start assist control (HAC) ..................................5-53
Parking brake ..............................................................5-32
Power brakes ..............................................................5-30
Vehicle stability management (VSM) ........................5-50
Bulb replacement ............................................................7-73
Bulb wattage ....................................................................8-3
Button start/stop, see Engine start/stop button ................5-9 California perchlorate notice ..........................................7-93
Camera (Rear view) ......................................................4-124
Capacities (Lubricants) ....................................................8-6
Care
Exterior care ................................................................7-82
Interior care ................................................................7-87
Tire care ......................................................................7-\
44
Care of seat belts ............................................................3-37
Cargo security screen ....................................................4-177
Center console storage ..................................................4-169
Central door lock switch ................................................4-23
Certification label ............................................................8-9
Chain, See Tire chains ..................................................5-110
Checking the tire inflation pressure ................................7-45
Child restraint system ....................................................3-38 Lower anchor ..............................................................3-45
Tether Anchor ..............................................................3-43
Child-protector rear door lock ........................................4-25
Climate control air filter ......................................4-155, 7-36
Clothes hanger ..............................................................4-175
Combined instrument, see Instrument cluster ................4-79
Compact spare tire ..........................................................6-15
Consumer information ....................................................8-11
Coolant, see Engine coolant ..........................................7-28
Crankcase emission control system ................................7-89
