2017 Hyundai Santa Fe Sport audio

Maintenance
62
7
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced.Fuse switch
Always, put the mode switch at the
ON position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly.
Engine compartment panel fuse
replacement
1. Turn the ignition switch and all other switches off.
2. Remove the fuse box cover by pressing the tab and pulling up.
ODM072019
CAUTION
Always place the fuse switch inthe ON position while drivingthe vehicle.
OAN077007N

765
Maintenance
DescriptionFuse ratingProtected Component
A/BAG IND10AInstrument Cluster, A/C Control Module
A/BAG15AACU, Passenger Occupant Detection Sensor
5 MODULE7.5ASmart Key Control Module, BCM, Rear Seat Warmer LH/RH,
Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module, AVM
1 MODULE7.5ASport Mode Switch, Key Solenoid, Console Switch LH/RH, Front Console Switch,
Rear Power Window Switch LH/RH, Data Link Connector
FOG LAMP REAR10A-
2 MEMORY10ABCM, Tire Pressure Monitoring Module, Electro Chromic Mirror, Driver/Passenger Door Module,
Auto Light & Photo Sensor, A/C Control Module, Instrument Cluster, FRT DRV-Seat
2 SMART KEY7.5ASmart Key Control Module, Immobilizer Module
3 MODULE10A
BCM, Instrument Cluster, Tire Pressure Monitoring Module, A/C Control Module, Audio,
Driver/Passenger Door Module, ATM Shift Lever Indicator, Rear Seat Warmer LH/RH, AWD ECM,
Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module,
MTS Module, Rear Parking Assist Sensor LH/RH, A/V & Navigation Head Unit, Rear Parking Assist
Sensor (Center) LH/RH, EPB EXTN, Console SW AT LH
4 SMART KEY10AStart/Stop Button Switch, Immobilizer Module
INTERIOR LAMP15ACargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Center Room Lamp,
Personal Lamp LH/RH
MULTI MEDIA15AAudio, A/V & Navigation Head Unit, MTS Module
MDPS7.5AMDPS Unit
HEATED STEERING15ASteering Wheel Switch
1 MEMORY10ARF Receiver, Ignition Key Ill. & Door Warning Switch

767

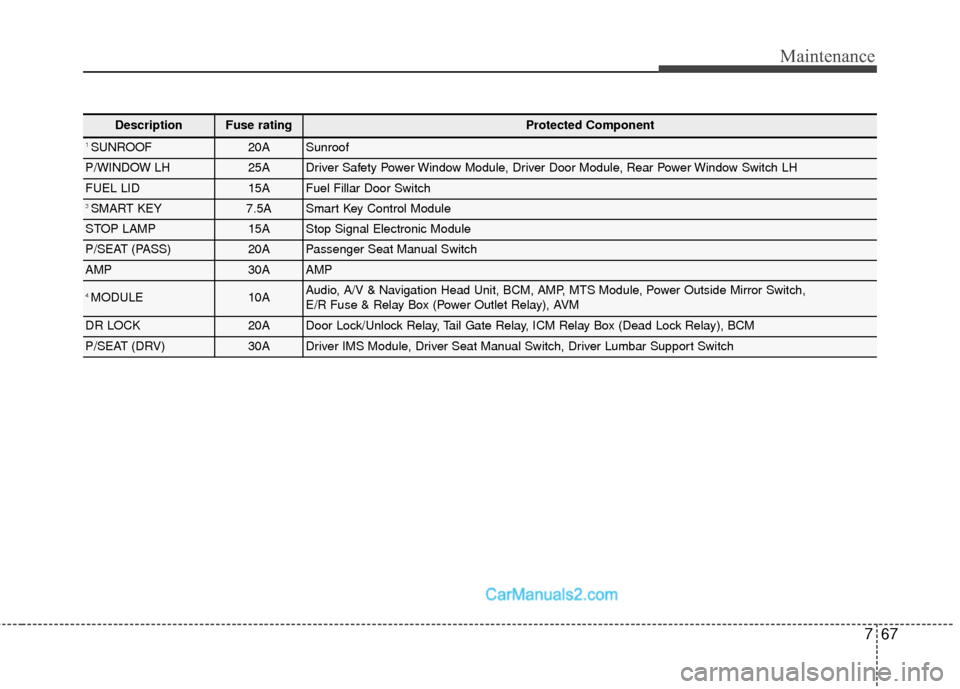

Maintenance
DescriptionFuse ratingProtected Component
1 SUNROOF20ASunroof
P/WINDOW LH25ADriver Safety Power Window Module, Driver Door Module, Rear Power Window Switch LH
FUEL LID15AFuel Fillar Door Switch
3 SMART KEY7.5ASmart Key Control Module
STOP LAMP15AStop Signal Electronic Module
P/SEAT (PASS)20APassenger Seat Manual Switch
AMP30AAMP
4 MODULE10AAudio, A/V & Navigation Head Unit, BCM, AMP, MTS Module, Power Outside Mirror Switch,
E/R Fuse & Relay Box (Power Outlet Relay), AVM
DR LOCK20ADoor Lock/Unlock Relay, Tail Gate Relay, ICM Relay Box (Dead Lock Relay), BCM
P/SEAT (DRV)30ADriver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch

771
Maintenance
DescriptionFuse ratingProtected Component
FUSE
AMS (WIPER)10ABCM, PCM
WIPER (FRT)25AWiper LO Relay, Front Wiper Motor
B/UP LAMP10AA/T - Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, Audio, A/V & Navigation Head Unit
3 ABS 7.5AESC Module
5 SENSOR7.5APCM
TCU15AA/T : Transaxle Range Switch
FUEL PUMP15AFuel Pump Relay
ECU 115APCM
ECU 210A-
3 SENSOR10AE/R Fuse & Relay Box (Cooing Fan Relay)
IGN COIL20AIgnition Coil #1/#2/#3/#4
2 SENSOR10APurge Control Solenoid Valve, Variable Intake Solenoid Valve(G4KJ),
RCV Control Solenoid Valve(G4KH), Oil Control Valve #1/#2, Canister Close Valve
1 SENSOR15AOxygen Sensor (Up), Oxygen Sensor(Down)
4 SENSOR20APCM
B/ALARM HORN10ABurglar Alarm Horn Relay, SCC radar
3 E-CVVT40AE-CVVT Relay
1 E-CVVT20APCM
2 E-CVVT20APCM
1 EPB15AEPB UNIT
2 EPB15AEPB UNIT
POWER TAILGATE30APower Tail Gate

Index
2I
A/V Mode ......................................................................4-\
86
Active ECO system ......................................................5-100
Adaptive Front Lighting System (AFLS) ....................4-136
Additional safety precautions ........................................3-74
Advanced smart cruise control system ..........................5-72
Air bag ........................................................................\
....3-47Air bag collision sensors ............................................3-68
Air bag inflation conditions ........................................3-69
Air bag non-inflation conditions ................................3-71
Air bag Hazards ............................................................3-2
Air bag warning label ..................................................3-75
Air bag warning light ..................................................3-50
Curtain air bag ............................................................3-66
Driver's and passenger's front air bag ........................3-60
Occupant classification system ..................................3-54
Side air bag ..................................................................3-65
SRS Care ....................................................................3-73\
SRS components and functions ..................................3-51
Air cleaner ......................................................................7-\
34
Air Conditioning refrigerant label ................................4-156
Air conditioning system....................................................8-5
All wheel drive (AWD) ..................................................5-21
Antenna ........................................................................\
4-182
Anti-lock brake system (ABS) ......................................5-43 Appearance care..............................................................7-82
Exterior care ................................................................7-82
Interior care ................................................................7-87
Armrest (Rear seat) ........................................................3-20
Audio system ................................................................4-182 Antenna......................................................................4-\
182
Steering wheel audio control ....................................4-182
AUTO light position ....................................................4-129
Automatic climate control system ................................4-157 Automatic heating and air conditioning ....................4-158
Manual heating and air conditioning ........................4-159
Auto hold ........................................................................\
5-40
Automatic emergency braking (AEB) ............................5-56
Automatic transaxle ........................................................5-14 Manual shift mode ......................................................5-17
Shift-lock override ......................................................5-18
Automatic turn off function ..........................................4-141
Aux, USB and iPod
®port ............................................4-176
A

Seat belts ........................................................................\
3-26Care of seat belts ........................................................3-37
Height adjustment (Front) ..........................................3-29
Pre-tensioner seat belt ................................................3-31
Seat belt precautions....................................................3-34
Seat belt warning ........................................................3-27
Seat warmer (Front) ........................................................3-12
Seat warmer (Rear) ........................................................3-20
Seatback pocket ..............................................................3-14
Seats ........................................................................\
..........3-4 Air ventilation seat ......................................................3-13
Armrest (Rear seat) ....................................................3-20
Driver position memory system (for power seat) ......3-15
Folding the rear seat ....................................................3-22
Front seat adjustment - Manual ....................................3-7
Front seat adjustment - Power ......................................3-8
Headrest (Front) ..........................................................3-10
Headrest (Rear)............................................................3-18
Rear seat adjustment....................................................3-17
Seat warmer (Front) ....................................................3-12
Seat warmer (Rear)......................................................3-20
Seatback pocket ..........................................................3-14
Service Mode ..................................................................4-86
Shift-lock override ..........................................................5-18
Side air bag ....................................................................3-65\
Side curtain ..................................................................4-179
Side view mirrors............................................................4-76 Smart High Beam ........................................................4-133
Smart key ........................................................................\
4-10
Smart Liftgate (Smart Tailgate) ......................................4-34
Smooth cornering..........................................................5-105
Snow tires ....................................................................5-10\
9
Spare tire
Changing tires..............................................................6-18
Removing and storing the spare tire ..........................6-16
Special driving conditions ............................................5-103 Driving at night ........................................................5-105
Driving in flooded areas ............................................5-107
Driving in the rain ....................................................5-106
Driving off-road ........................................................5-107
Hazardous driving conditions....................................5-103
Highway driving ........................................................5-107
Reducing the risk of a rollover..................................5-103
Rocking the vehicle ..................................................5-104
Smooth cornering ......................................................5-105
Speedometer....................................................................4-80\
Digital Speedometer ..................................................4-105
SRS components and functions ......................................3-51
Starting difficulties, see engine will not start ..................6-4
Steering wheel ................................................................4-56 Electric power steering (EPS) ....................................4-56
Heated steering wheel ................................................4-58
Horn ........................................................................\
....4-58
