2017 Hyundai Ioniq Electric fuse box

7-50
Maintenance
Fuse NameSymbolFuse RatingCircuit Protected
AMP30AAMP
Module 1MODULE110ADriver Power Outside Mirror, Passenger Power Outside Mirror, Data Link Connector, AEB Unit
Door Lock20ADoor Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay),
Driver/Passenger Smart Key Outside Handle, Driver/Passenger Door Module
Wiper Front 2FRT210AWiper Motor, PCB Block (Front Wiper (Low) Relay)
Module 6MODULE 67.5ABCM, Smart Key Control Module
Seat Heater FrontFRT25AFront Seat Warmer Control Module, Front Air Ventilation Seat Control Module
Heated Mirror10ADriver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
Rear Heated25ARear Defogger (+) (Upper)
Wiper Front 1FRT130AWiper Motor, PCB Block (Front Wiper (Low) Relay)
Instrument panel fuse panel

7-51
7
Maintenance

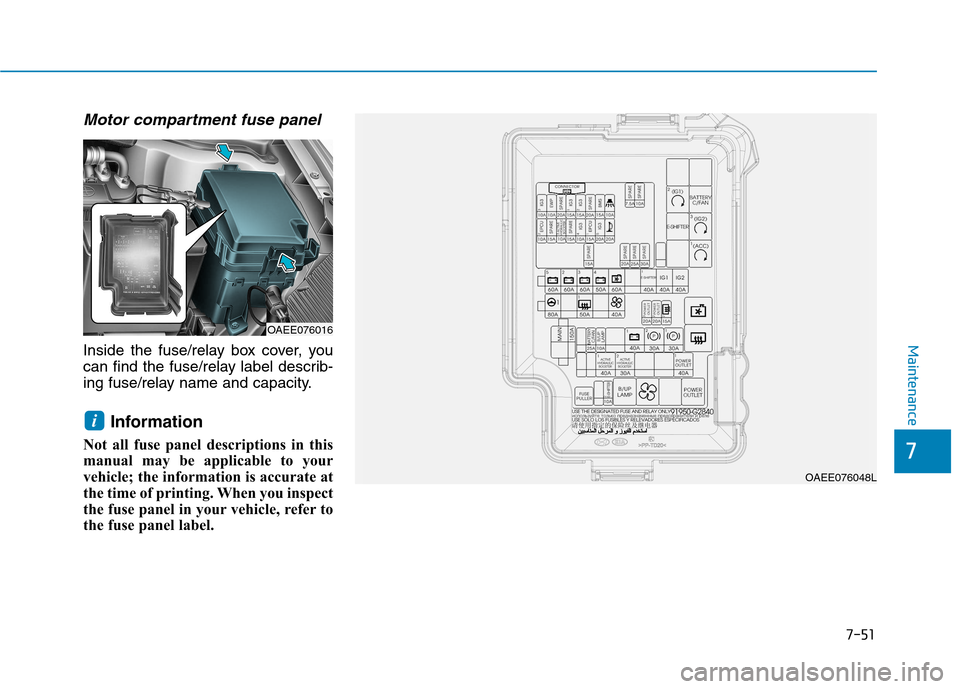

Motor compartment fuse panel
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OAEE076016
OAEE076048L

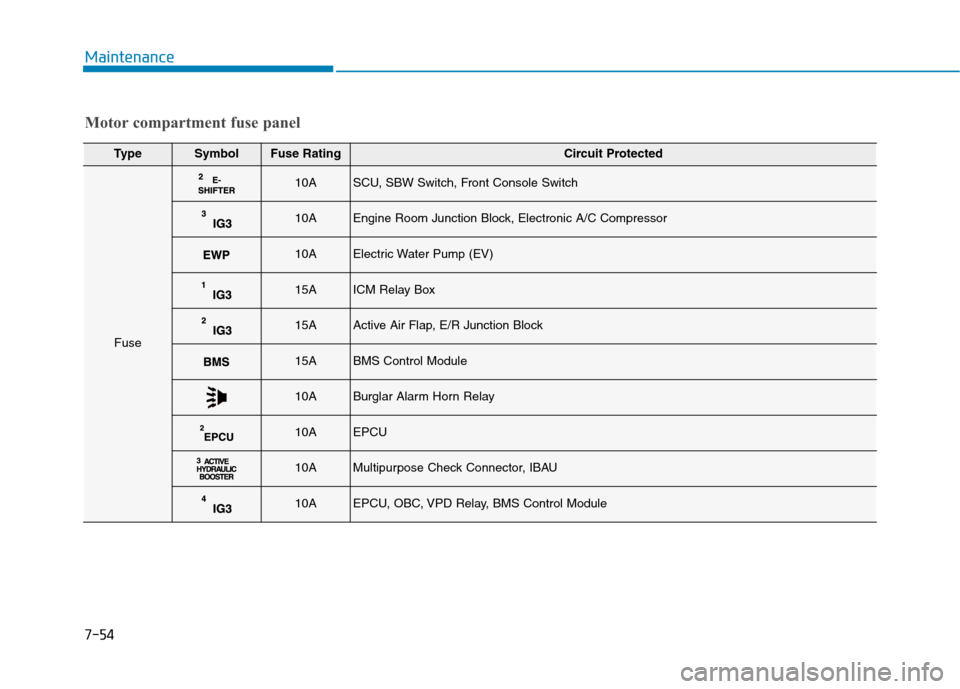

7-54
Maintenance
TypeSymbolFuse RatingCircuit Protected
Fuse
10ASCU, SBW Switch, Front Console Switch
10AEngine Room Junction Block, Electronic A/C Compressor
10AElectric Water Pump (EV)
15AICM Relay Box
15AActive Air Flap, E/R Junction Block
15ABMS Control Module
10ABurglar Alarm Horn Relay
10AEPCU
10AMultipurpose Check Connector, IBAU
10AEPCU, OBC, VPD Relay, BMS Control Module
Motor compartment fuse panel

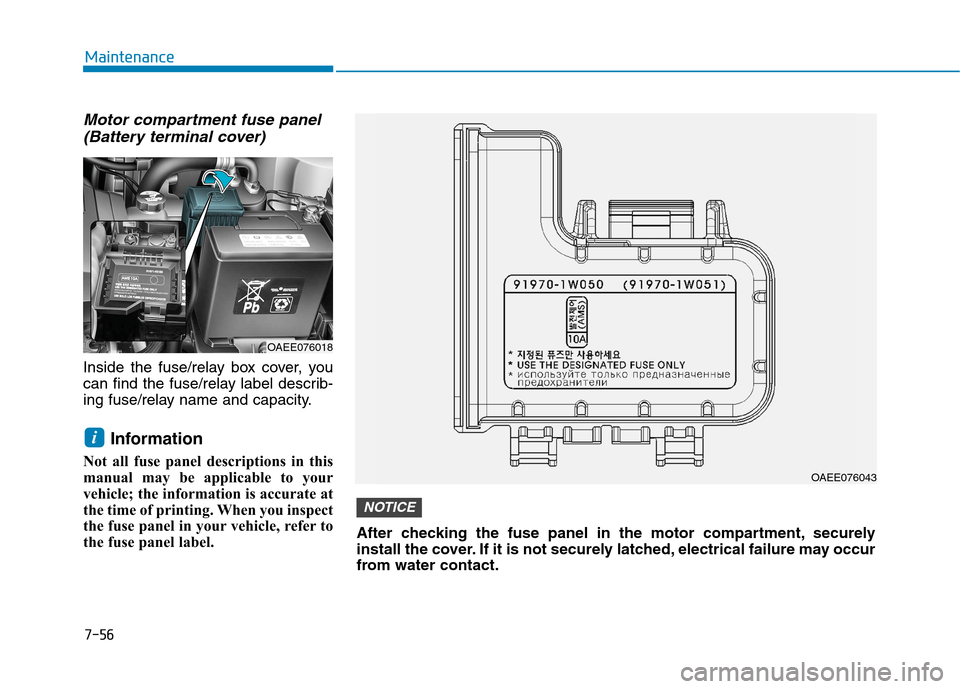

Motor compartment fuse panel(Battery terminal cover)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
7-56
Maintenance
OAEE076018
OAEE076043
After checking the fuse panel in the motor compartment, securely
install the cover. If it is not securely latched, electrical failure may occur
from water contact.
NOTICE

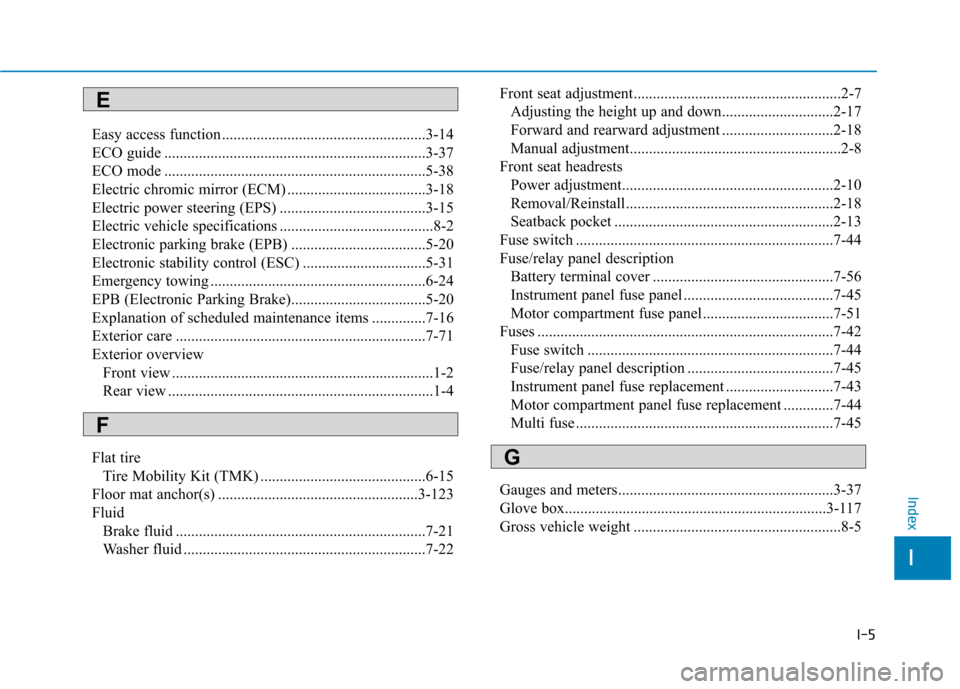

I-5
Easy access function .....................................................3-14
ECO guide ....................................................................3-37
ECO mode ....................................................................5-38
Electric chromic mirror (ECM) ....................................3-18
Electric power steering (EPS) ......................................3-15
Electric vehicle specifications ........................................8-2
Electronic parking brake (EPB) ...................................5-20
Electronic stability control (ESC) ................................5-31
Emergency towing ........................................................6-24
EPB (Electronic Parking Brake)...................................5-20
Explanation of scheduled maintenance items ..............7-16
Exterior care .................................................................7-71
Exterior overview
Front view ....................................................................1-2
Rear view .....................................................................1-4
Flat tire Tire Mobility Kit (TMK) ...........................................6-15
Floor mat anchor(s) ....................................................3-123
Fluid Brake fluid .................................................................7-21
Washer fluid ...............................................................7-22 Front seat adjustment......................................................2-7
Adjusting the height up and down.............................2-17
Forward and rearward adjustment .............................2-18
Manual adjustment.......................................................2-8
Front seat headrests
Power adjustment.......................................................2-10
Removal/Reinstall......................................................2-18
Seatback pocket .........................................................2-13
Fuse switch ...................................................................7-44
Fuse/relay panel description Battery terminal cover ...............................................7-56
Instrument panel fuse panel .......................................7-45
Motor compartment fuse panel ..................................7-51
Fuses .............................................................................7-42 Fuse switch ................................................................7-44
Fuse/relay panel description ......................................7-45
Instrument panel fuse replacement ............................7-43
Motor compartment panel fuse replacement .............7-44
Multi fuse ...................................................................7-45
Gauges and meters........................................................3-37
Glove box....................................................................3-117
Gross vehicle weight ......................................................8-5
I
Index
E
F
G

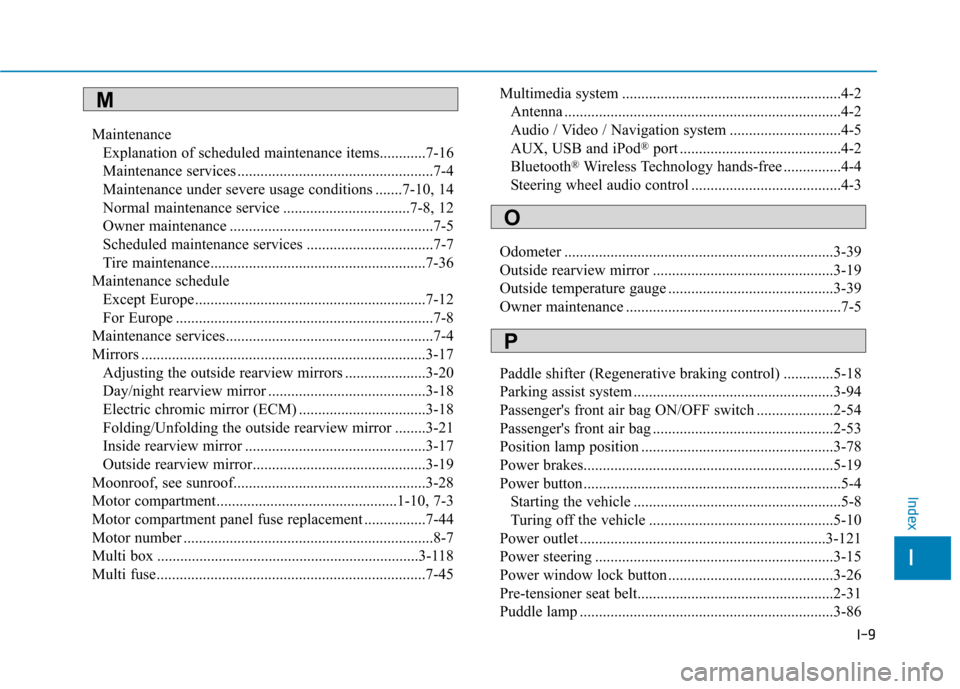

I-9
Maintenance
Explanation of scheduled maintenance items............7-16
Maintenance services ...................................................7-4
Maintenance under severe usage conditions .......7-10, 14
Normal maintenance service .................................7-8, 12
Owner maintenance .....................................................7-5
Scheduled maintenance services .................................7-7
Tire maintenance........................................................7-36
Maintenance schedule Except Europe............................................................7-12
For Europe ...................................................................7-8
Maintenance services......................................................7-4
Mirrors ..........................................................................3-17 Adjusting the outside rearview mirrors .....................3-20
Day/night rearview mirror .........................................3-18
Electric chromic mirror (ECM) .................................3-18
Folding/Unfolding the outside rearview mirror ........3-21
Inside rearview mirror ...............................................3-17
Outside rearview mirror.............................................3-19
Moonroof, see sunroof..................................................3-28
Motor compartment...............................................1-10, 7-3
Motor compartment panel fuse replacement ................7-44
Motor number .................................................................8-7
Multi box ....................................................................3-118
Multi fuse......................................................................7-45 Multimedia system .........................................................4-2
Antenna ........................................................................4-2
Audio / Video / Navigation system .............................4-5
AUX, USB and iPod ®
port ..........................................4-2
Bluetooth ®
Wireless Technology hands-free ...............4-4
Steering wheel audio control .......................................4-3
Odometer ......................................................................3-39
Outside rearview mirror ...............................................3-19
Outside temperature gauge ...........................................3-39
Owner maintenance ........................................................7-5
Paddle shifter (Regenerative braking control) .............5-18
Parking assist system ....................................................3-94
Passenger's front air bag ON/OFF switch ....................2-54
Passenger's front air bag ...............................................2-53
Position lamp position ..................................................3-78
Power brakes.................................................................5-19
Power button ...................................................................5-4 Starting the vehicle ......................................................5-8
Turing off the vehicle ................................................5-10
Power outlet ................................................................3-121
Power steering ..............................................................3-15
Power window lock button ...........................................3-26
Pre-tensioner seat belt...................................................2-31
Puddle lamp ..................................................................3-86
I
Index
O
P
M
