2017 Hyundai Ioniq Electric bulb

7-63
7
Maintenance
Unit: mm (in)
■
Type A

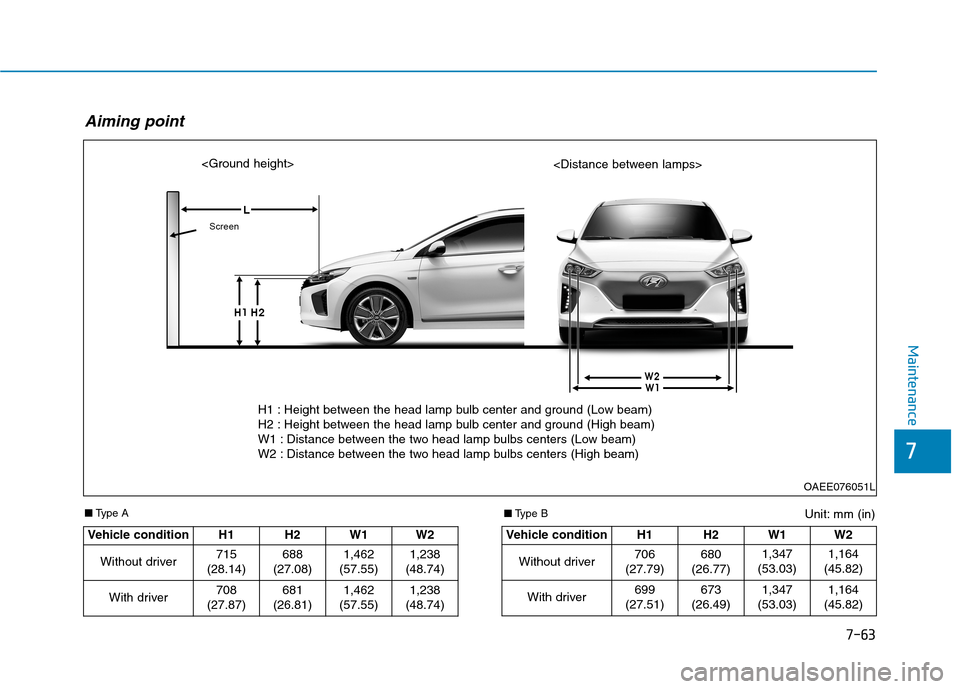

Aiming point
OAEE076051L


Vehicle condition H1 H2
W1 W2
Without driver 715
(28.14) 688
(27.08)
1,462
(57.55) 1,238
(48.74)
With driver 708
(27.87) 681
(26.81)
1,462
(57.55) 1,238
(48.74)
Vehicle condition H1 H2W1 W2
Without driver 706
(27.79) 680
(26.77)
1,347
(53.03) 1,164
(45.82)
With driver 699
(27.51) 673
(26.49)
1,347
(53.03) 1,164
(45.82)
■ Type B
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)

7-66
Maintenance

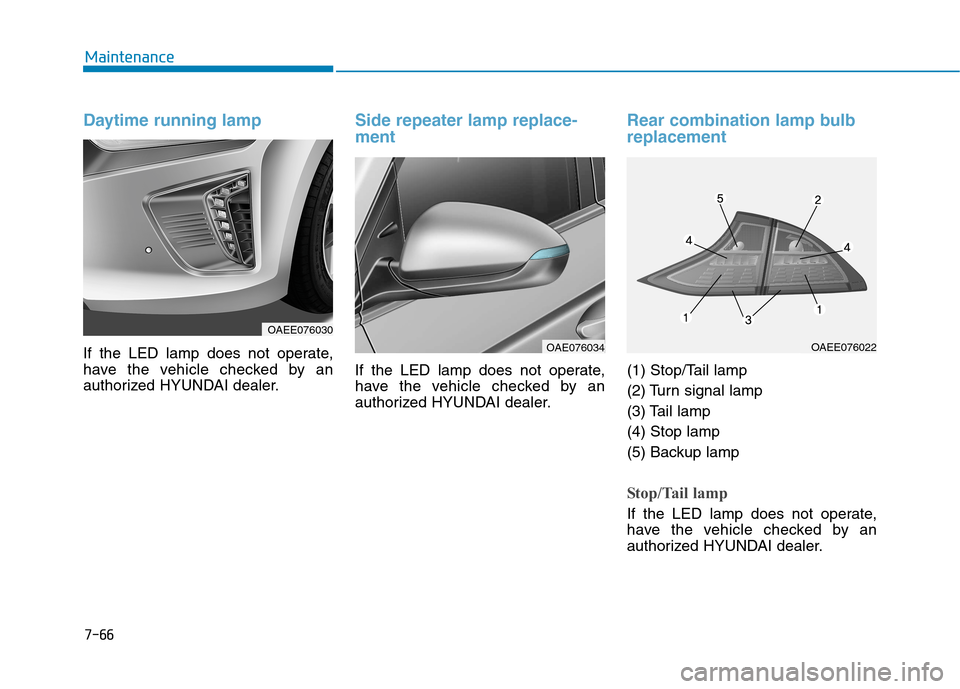

Daytime running lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Side repeater lamp replace- ment
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Rear combination lamp bulb replacement
(1) Stop/Tail lamp
(2) Turn signal lamp
(3) Tail lamp(4) Stop lamp
(5) Backup lamp
Stop/Tail lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
OAEE076030
OAE076034OAEE076022

7-67
7
Maintenance
Turn signal lamp
1. Turn off the vehicle.
2. Open the tailgate.
3. Open the lamp assembly retainingscrew covers.
4. Loosen the lamp assembly retain- ing screws with a cross-tip screw-
driver. 5. Remove the rear combination
lamp assembly from the body of
the vehicle. 6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
7. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
8. Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
OAE076038OAE076037OAE076040
Turn signal lamp

7-68
Maintenance

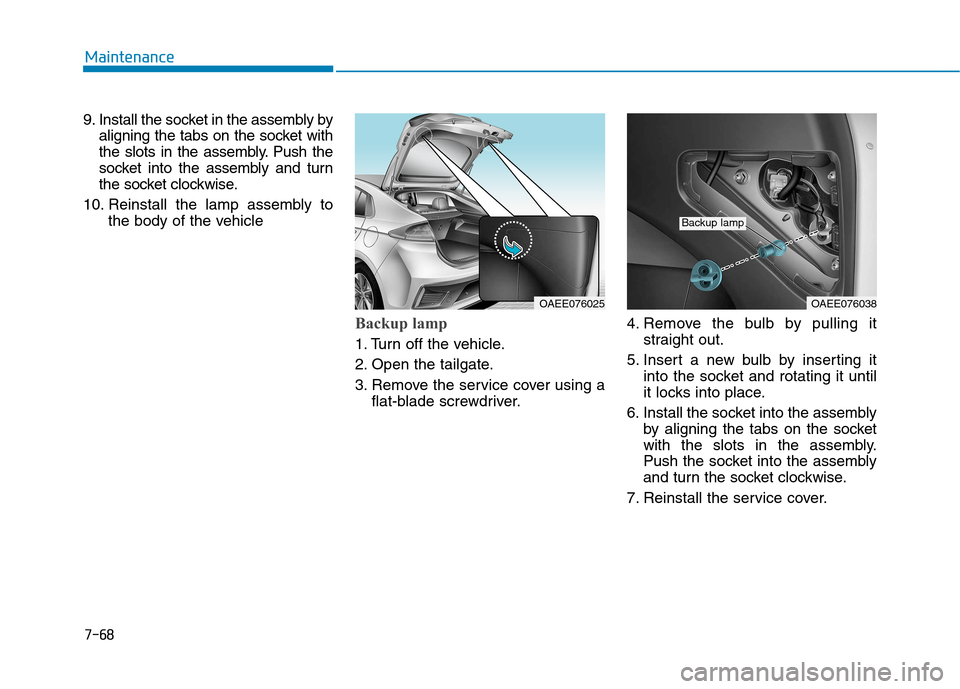

9. Install the socket in the assembly byaligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn
the socket clockwise.
10. Reinstall the lamp assembly to the body of the vehicle
Backup lamp
1. Turn off the vehicle.
2. Open the tailgate.
3. Remove the service cover using aflat-blade screwdriver. 4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
6. Install the socket into the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Reinstall the service cover.
OAEE076038
Backup lamp
OAEE076025

7-69
7
Maintenance
Rear fog lamp (if equipped)
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
High mounted stop lamp
If the high mounted stop lamp does not
operate, we recommend that you con-
tact an authorized HYUNDAI dealer.
License plate light bulb replacement
1. Using a flat-blade screwdriver,gently pry the lens cover from the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
Interior light bulb replacement
Map lamp and room lamp
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.
OAE076044OAEE076026
■ Map lamp (LED type)
OAEE076023
OAEE076027
■ Room lamp (LED type)

7-70
Maintenance
1. Using a flat-head screwdriver,gently pry the lens from the interi- or light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap
the lens into place.
Use care not to dirty or damage
lenses, lens tabs, and plastichousings.
NOTICE
■ Vanity mirror lamp
■Tailgate room lamp
OAE076048
OAE076047
■ Map lamp (Bulb type)
OAE076045
OAE076046
■Room lamp (Bulb type)
Map lamp, room lamp, vanity mirror lamp and tailgate room lamp

8
Specifications & Consumer information
8
Specifications & Consumer information
8

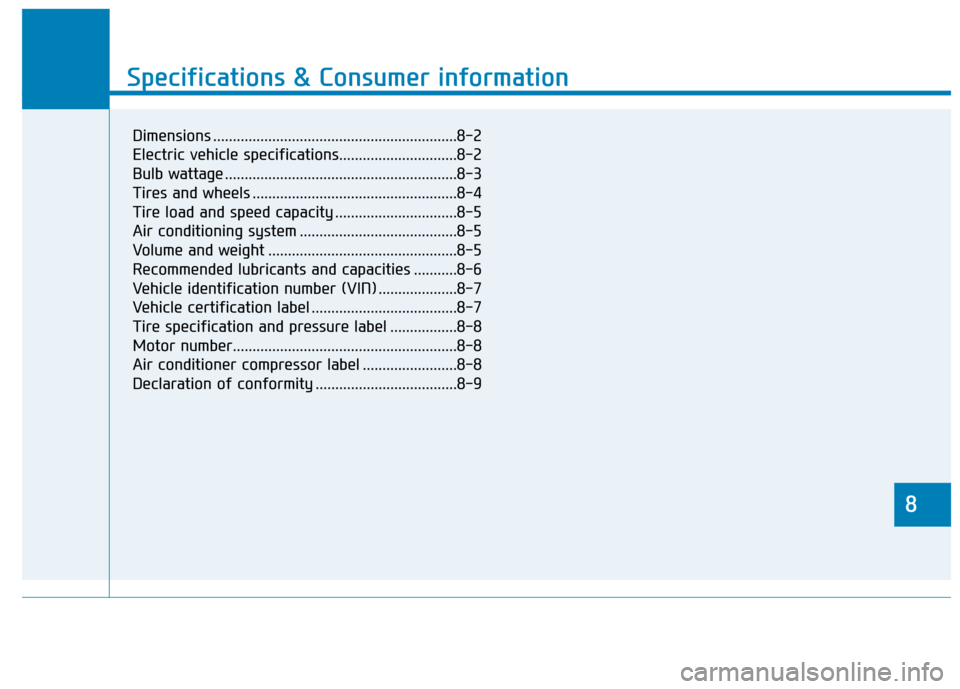

Dimensions ..............................................................8-2
Electric vehicle specifications..............................8-2
Bulb wattage ...........................................................8-3
Tires and wheels ....................................................8-4
Tire load and speed capacity ...............................8-5
Air conditioning system ........................................8-5
Volume and weight ................................................8-5
Recommended lubricants and capacities ...........8-6
Vehicle identification number (VIN) ....................8-7
Vehicle certification label .....................................8-7
Tire specification and pressure label .................8-8
Motor number.........................................................8-8
Air conditioner compressor label ........................8-8
Declaration of conformity ....................................8-9

8-3
8
Specifications & Consumer information
BBUU LLBB WW AATTTTAA GG EE
Light bulb Bulb type Wattage
Front Type A
Headlamp
Low H7LL 55
High 9005HL+ 60
Position lamp W5W 5
Turn signal lamp PY21W 21
Type B Headlamp
Low LED LED
High 9005HL+ 60
Position lamp LED LED
Turn signal lamp LED LED
Daytime running light (DRL) LED LED
Side repeater lamp LED LED
Rear Tail/Stop lamp
LED LED
Turn signal lamp PY21W 21
Tail lamp LED LED
Backup lamp W16W 16
Fog lamp LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
Interior Map lamp
Type A W10W 10
Type B LED LED
Room lamp Type A FESTOON 8
Type B LED LED
Vanity mirror lamp FESTOON 5
Luggage room lamp FESTOON 5
