2017 HONDA CLARITY ELECTRIC seat memory

127

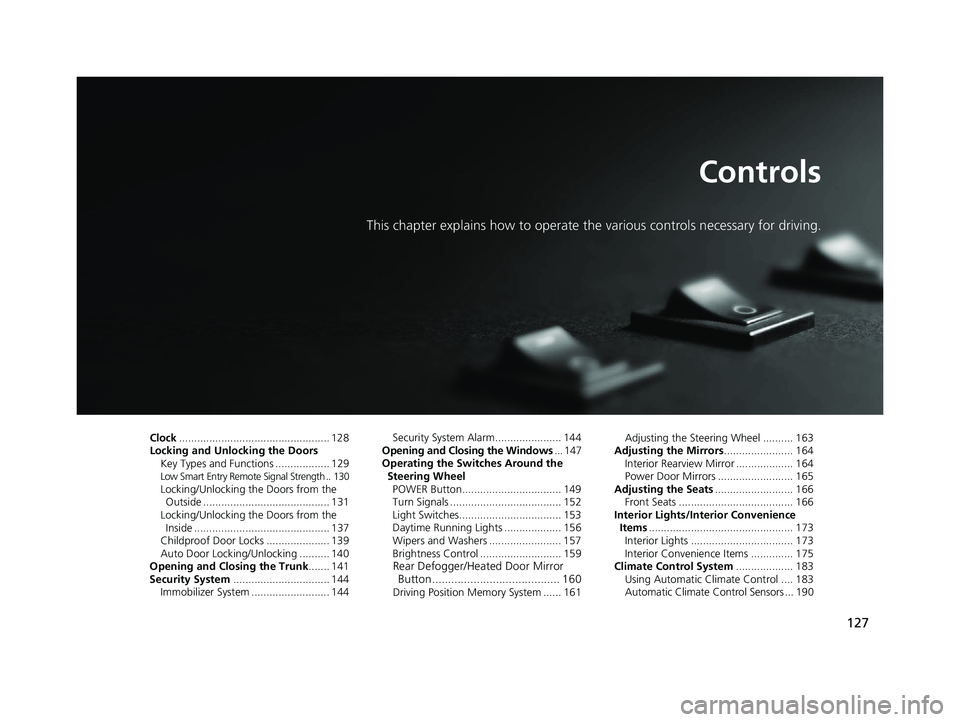

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 128
Locking and Unlocking the Doors Key Types and Functions .................. 129
Low Smart Entry Remote Signal Strength .. 130Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 137
Childproof Door Locks ..................... 139
Auto Door Locking/Unlocking .......... 140
Opening and Closing the Trunk ....... 141
Security System ................................ 144
Immobilizer System .......................... 144 Security System Alarm...................... 144
Opening and Closing the Windows ... 147
Operating the Switches Around the
Steering Wheel POWER Button................................. 149
Turn Signals ..................................... 152
Light Switches.................................. 153
Daytime Running Lights ................... 156
Wipers and Washers ........................ 157
Brightness Control ........................... 159
Rear Defogger/Heated Door Mirror Button........................................ 160
Driving Position Memory System ...... 161 Adjusting the Steering Wheel .......... 163
Adjusting the Mirrors ....................... 164
Interior Rearview Mirror ................... 164
Power Door Mirrors ......................... 165
Adjusting the Seats .......................... 166
Front Seats ...................................... 166
Interior Lights/Interior Convenience Items ................................................ 173
Interior Lights .................................. 173
Interior Convenience Items .............. 175
Climate Control System ................... 183
Using Automatic Climate Control .... 183
Automatic Climate Control Sensors ... 190
17 CLARITY BEV CSS-31TRV6000.book 127 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

161
uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
Continued
Controls

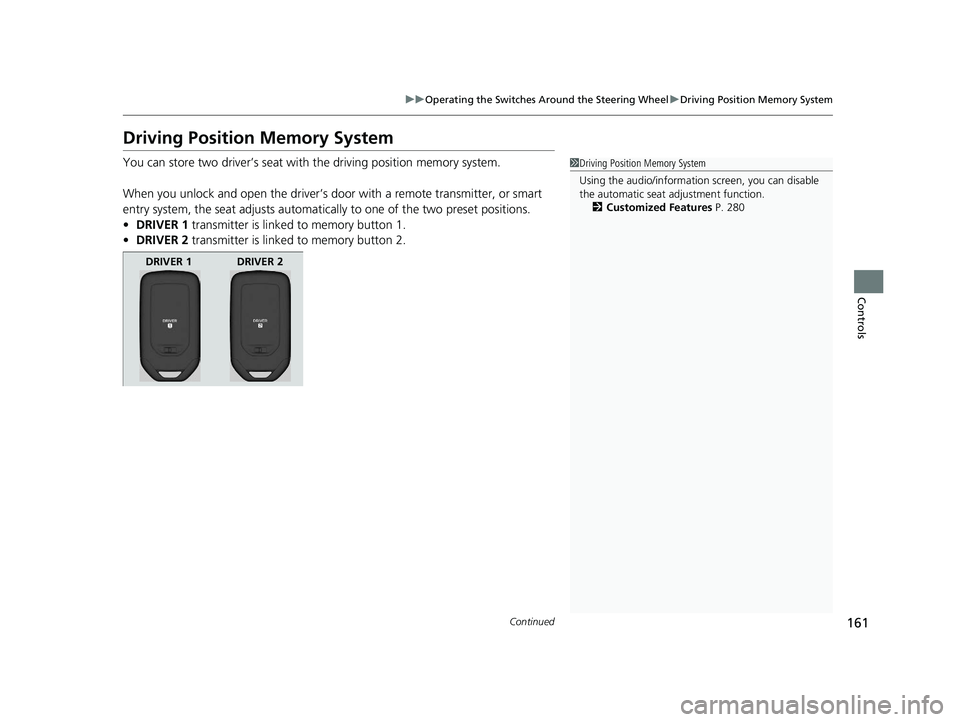

Driving Position Memory System
You can store two driver’s seat with the driving position memory system.
When you unlock and open the driver’s door with a remote transmitter, or smart
entry system, the seat adjusts automatica lly to one of the two preset positions.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.1Driving Position Memory System
Using the audio/informati on screen, you can disable
the automatic seat adjustment function. 2 Customized Features P. 280
DRIVER 1 DRIVER 2
17 CLARITY BEV CSS-31TRV6000.book 161 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

uuOperating the Switches Around the Steering Wheel uDriving Position Memory System
162
Controls
1. Set the power mode to ON. Adjust the
driver’s seat to the desired position.
2. Press the SET button.
u You will hear the beeper, and the
memory button indicator light will blink.
3. Press and hold memory button
(1 or (2
within five seconds of pressing the SET
button.
u Once the seat position has been
memorized, the indicator light on the
button you pressed stays on.
1. Put the transmission into
(P.
2. Apply the parking brake.
3. Press a memory button (
(1 or (2).
u You will hear the beeper, and the
indicator light will blink.
The seat will automatically move to the
memorized position. When it has finished
moving, you will hear the beeper, and the
indicator light stays on.
■Storing a Position in Memory1 Storing a Position in Memory
After you press the SET button, the storing operation
will be canceled when:
•You do not press the memory button within five
seconds.
•You readjust the seat position before the double-
beep.
•You set the power mode to any position except
ON.
Memory Button 1
Memory Button 2
SET Button
■Recalling the Stored Position1 Recalling the Stored Position
The seat will st op moving if you:
•Press the SET button or memory button (1 or ( 2.•Adjust the seat position.
•Put the transmission into a position other than (P.
Memory Buttons
17 CLARITY BEV CSS-31TRV6000.book 162 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

532
Index
Coolant...................................................... 451
Overheating............................................. 501
Creeping (Transmission) ........................... 354
Cup Holders ............................................... 177
Customer Service Information ................. 528
Customized Features ........................ 126, 280
D
Daytime Running Lights ........................... 156
Dead Battery (12-Volt) ............................. 498
Deceleration Paddle Selector ................... 362
Defrosting the Windshield and
Windows .................................................. 187
Devices that Emit Radio Waves ................ 523
Dimming
Headlights ............................................... 153
Rearview Mirror ....................................... 164
Directional Signals (Turn Signal) .............. 152
Display Button .......................................... 199
Door Mirrors ............................................. 165
Doors ......................................................... 129
Auto Door Locking .................................. 140
Auto Door Unlocking ............................... 140
Door Open Message .................................. 41
Keys ........................................................ 129
Locking/Unlocking the Doors from the
Inside ............................................... 23, 137
Locking/Unlocking the Doors from the Outside .................................................. 131
Lockout Prevention System ...................... 136 DOT Tire Quality Grading
........................ 462
Driver Information Interface ................... 118
Driver’s Knee Airbag .................................. 57
Driving ...................................................... 343
Braking ................................................... 404
Shifting Gear ........................................... 355
Transmission ........................................... 354
Turning on the Power.............................. 350
Driving Position Memory System ............ 161
Dust and Pollen Filter ............................... 471
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/ Lifetime Points ........................................ 124
ECON Button ............................................ 365
Elapsed Time ............................................. 121
Electric Power Steering (EPS) System Indicator............................................ 88, 504
Electric Vehicle Precautions ....................... 13
Electricity Consumption and Driving Range ........................................................ 17
Electricity Consumption Indicator
(ENERGY USAGE) .................................... 117
Electronic Stability Control (ESC) ............. 395
Emergency ................................................ 515
Energy Instant Energy Economy .......................... 121
Range ..................................................... 114
Energy Economy ....................................... 439 EPS (Electric Power Steering) System
........ 88
Expanded View Driver’s Mirror ............... 165
Exterior Care (Cleaning) .......................... 474
Exterior Mirrors ........................................ 165
F
Features.................................................... 191
Filters Dust and Pollen....................................... 471
Flat Tire ..................................................... 482
Floor Mats ................................................ 473
Fluids
Brake ...................................................... 452
Coolant .................................................. 451
Transmission ........................................... 452
Windshield Washer ................................. 453
FM/AM Radio ........................................... 229
Foot Brake ................................................ 406
Front Airbags (SRS) .................................... 53
Front Seat Heaters ................................... 181
Front Seats ................................................ 166
Adjusting ................................................ 166
Front Sensor Camera ............................... 367
Fuses ......................................................... 508
Inspecting and Changing ........................ 514
Locations ........................................ 508, 510
G
Gauges ...................................................... 114
17 CLARITY BEV CSS-31TRV6000.book 532 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分
