2017 HONDA ACCORD HYBRID Owners Manual

504
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle's braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Brake Reservoir
MIN
MAX
17 ACCORD FHEV-31T3W6200.book 504 ページ ２０１６年４月１１日　月曜日　午後２時４０分

505
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle's paint. A
vinegar/water solution ca n damage the windshield
washer pump.Canadian models
17 ACCORD FHEV-31T3W6200.book 505 ページ ２０１６年４月１１日　月曜日　午後２時４０分

506
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Unlock the holding clip s, then remove the
upper part of the air intake duct.
2. Remove the reserve tank.
High beam headlight: LED type*
High beam headlight: 60 W (HB3 for halogen bulb type)*
Low beam headlight: LED type*
Low beam headlight: 55 W (H11 for halogen bulb type)*
■High Beam Headlights
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Models with halogen headlights
All models
Models with halogen headlights
1 High Beam Headlights
High beam headlights ar e LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with LED headlights
Models with halogen headlights
Holding
ClipsPassenger side
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 506 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Continued507
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
3. Push the tab to remove the coupler.
4. Rotate the old bulb to the left to remove.
5. Insert a new bulb into the headlight
assembly and turn it to the right.
6. Insert the coupler into the connector of the
bulb.
1 High Beam Headlights
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Models with halogen headlights
Center pin
Push until the
pin is flat.
Tab
Coupler
Bulb
Both sides
17 ACCORD FHEV-31T3W6200.book 507 ページ ２０１６年４月１１日　月曜日　午後２時４０分

uuReplacing Light Bulbs uFog Lights
508
Maintenance
1. Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clip and screw, and
pull the inner fender back.
3. Push the tab to remove the coupler.
4. Rotate the old bulb to the left to remove.
5. Insert a new bulb into the headlight
assembly and turn it to the right.
6. Insert the coupler into the connector of the
bulb.
Fog Lights
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
■Low Beam Headlights1 Low Beam Headlights
Low beam headlights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Models with LED headlights
Models with halogen headlights
Center pin
Push until the
pin is flat.
Models with halogen headlights
Screw Holding
Clip
Bulb
Coupler Tab
17 ACCORD FHEV-31T3W6200.book 508 ページ ２０１６年４月１１日　月曜日　午後２時４０分

509
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
Turn the steering wheel an d pull the inner fender back in the same way as when
replacing the halogen low beam headlight bulbs
*.
2 Low Beam Headlights P. 508
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Side Marker Light: 3 CP
Models with LED headlights
Bulb Socket
Models with LED headlights
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 509 ページ ２０１６年４月１１日　月曜日　午後２時４０分

510
uuReplacing Light Bulbs uFront Turn Signal/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Side Marker Light Bulbs
When replacing, use the following bulbs.
Turn the steering wheel and pull the inner fender back in the same way as when
replacing the halogen low beam headlight bulbs
*.
2 Low Beam Headlights P. 508
1.Turn the socket to the left and remove it.
2. Remove the old bulb and insert a new bulb.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal/Side Mark er Light: 28/8 W (Amber)
Models with halogen headlights
BulbSocket
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 510 ページ ２０１６年４月１１日　月曜日　午後２時４０分

511

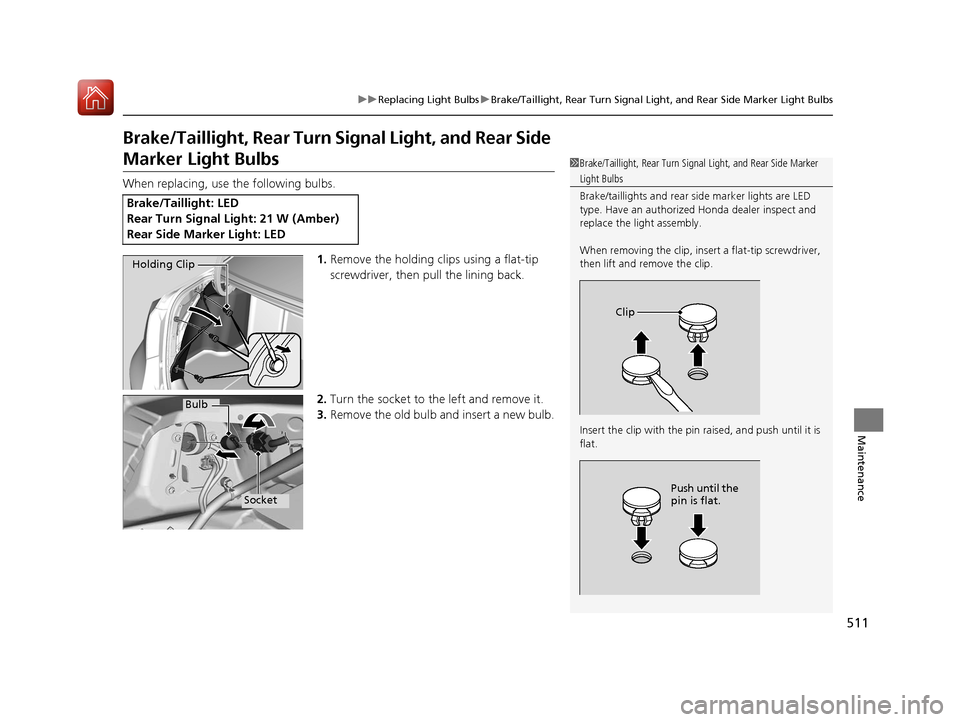

uuReplacing Light Bulbs uBrake/Taillight, Rear Turn Signal Light, and Rear Side Marker Light Bulbs
Maintenance
Brake/Taillight, Rear Turn Si gnal Light, and Rear Side
Marker Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket to th e left and remove it.
3. Remove the old bulb and insert a new bulb.
Brake/Taillight: LED
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker Light: LED
1Brake/Taillight, Rear Turn Signal Light, and Rear Side Marker
Light Bulbs
Brake/taillights and rear side marker lights are LED
type. Have an authorized Honda dealer inspect and
replace the light assembly.
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat.
Holding Clip
Bulb
Socket
