2017 GMC SIERRA 1500 Owners Manual

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
312 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
6.2L V8 –Gooseneck/Fifth-Wheel
Trailer 3.23 3 856 kg (8,500 lb) 6 804 kg (15,000 lb)
6.2L V8 –Conventional Trailer 3.425 398 kg (11,900 lb) 8 029 kg (17,700 lb)
6.2L V8 –Gooseneck/Fifth-Wheel
Trailer 3.42
4 808 kg (10,600 lb) 8 029 kg (17,700 lb)
1500 Series 2WD Crew Cab Short Box (b) 4.3L V6 3.232 495 kg (5,500 lb) 4 990 kg (11,000 lb)
5.3L V8 3.082 903 kg (6,400 lb) 5 443 kg (12,000 lb)
5.3L V8, 6-speed automatic
transmission 3.42
4 264 kg (9,400 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission 3.42
4 218 kg (9,300 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission with Enhanced
Towing Package 3.42
4 990 kg (11,000 lb) 7 575 kg (16,700 lb)
5.3L V8 3.734 990 kg (11,000 lb) 7 575 kg (16,700 lb)
6.2L V8 3.234 218 kg (9,300 lb) 6 804 kg (15,000 lb)
6.2L V8 3.425 443 kg (12,000 lb) 8 029 kg (17,700 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
Driving and Operating 313
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
1500 Series 2WD Regular Cab Long Box 4.3L V6 3.23 2 676 kg (5,900 lb) 4 990 kg (11,000 lb)
5.3L V8 –Conventional Trailer 3.08 3 084 kg (6,800 lb) 5 443 kg (12,000 lb)
5.3L V8 –Gooseneck/Fifth-Wheel
Trailer 3.08 3 039 kg (6,700 lb) 5 443 kg (12,000 lb)
5.3L V8 –Conventional Trailer 3.424 445 kg (9,800 lb) 6 804 kg (15,000 lb)
5.3L V8 –Gooseneck/Fifth-Wheel
Trailer 3.42
4 400 kg (9,700 lb) 6 804 kg (15,000 lb)
1500 Series 4WD Regular Cab Standard Box 4.3L V6 –Conventional Trailer 3.423 447 kg (7,600 lb) 5 806 kg (12,800 lb)
4.3L V6 –Gooseneck/Fifth-Wheel
Trailer 3.42
3 402 kg (7,500 lb) 5 806 kg (12,800 lb)
5.3L V8 3.082 994 kg (6,600 lb) 5 443 kg (12,000 lb)
5.3L V8 3.423 901 kg (8,600 lb) 6 350 kg (14,000 lb)
1500 Series 4WD Double Cab Standard Box 4.3L V6 3.423 221 kg (7,100 lb) 5 806 kg (12,800 lb)
5.3L V8 3.082 812 kg (6,200 lb) 5 443 kg (12,000 lb)
5.3L V8 –Conventional Trailer 3.424 173 kg (9,200 lb) 6 804 kg (15,000 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16

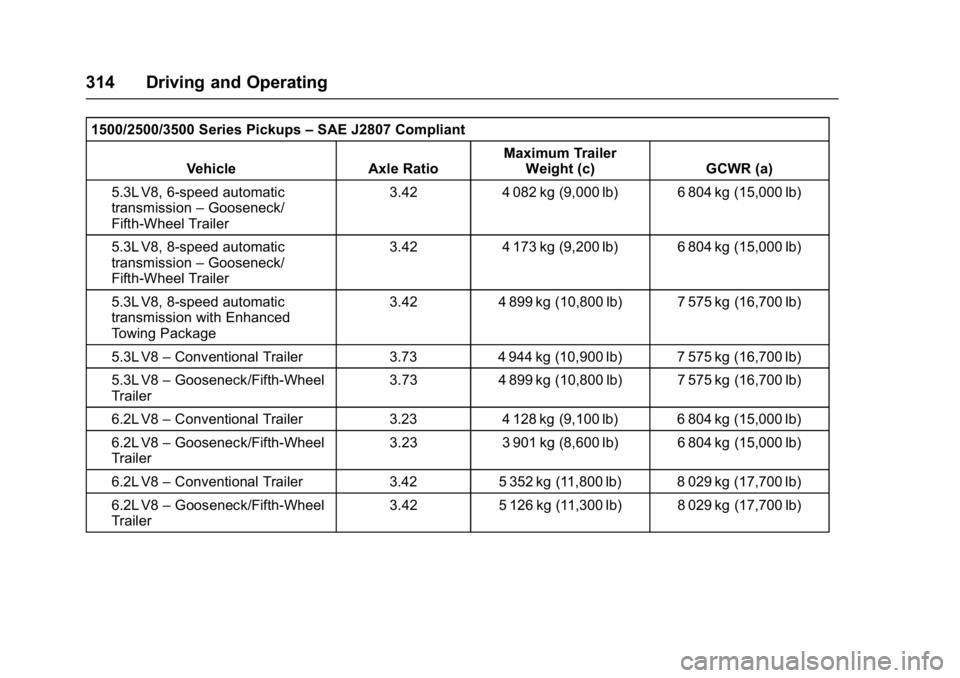

314 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
5.3L V8, 6-speed automatic
transmission –Gooseneck/
Fifth-Wheel Trailer 3.42 4 082 kg (9,000 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission –Gooseneck/
Fifth-Wheel Trailer 3.42 4 173 kg (9,200 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission with Enhanced
Towing Package 3.42 4 899 kg (10,800 lb) 7 575 kg (16,700 lb)
5.3L V8 –Conventional Trailer 3.734 944 kg (10,900 lb) 7 575 kg (16,700 lb)
5.3L V8 –Gooseneck/Fifth-Wheel
Trailer 3.73
4 899 kg (10,800 lb) 7 575 kg (16,700 lb)
6.2L V8 –Conventional Trailer 3.234 128 kg (9,100 lb) 6 804 kg (15,000 lb)
6.2L V8 –Gooseneck/Fifth-Wheel
Trailer 3.23
3 901 kg (8,600 lb) 6 804 kg (15,000 lb)
6.2L V8 –Conventional Trailer 3.425 352 kg (11,800 lb) 8 029 kg (17,700 lb)
6.2L V8 –Gooseneck/Fifth-Wheel
Trailer 3.42
5 126 kg (11,300 lb) 8 029 kg (17,700 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16

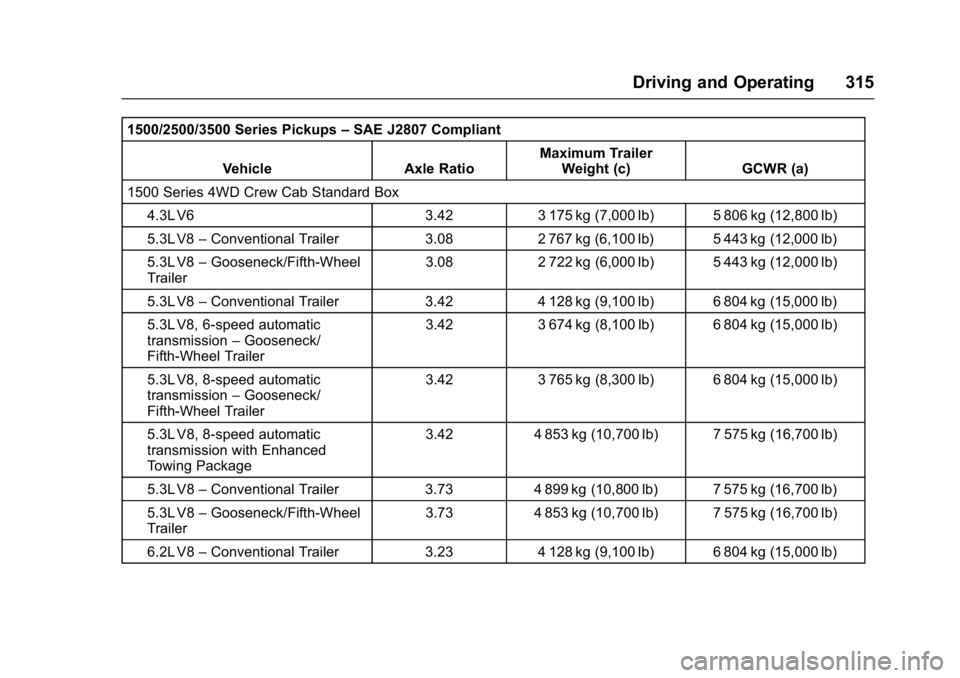

Driving and Operating 315
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
1500 Series 4WD Crew Cab Standard Box 4.3L V6 3.42 3 175 kg (7,000 lb) 5 806 kg (12,800 lb)
5.3L V8 –Conventional Trailer 3.08 2 767 kg (6,100 lb) 5 443 kg (12,000 lb)
5.3L V8 –Gooseneck/Fifth-Wheel
Trailer 3.08 2 722 kg (6,000 lb) 5 443 kg (12,000 lb)
5.3L V8 –Conventional Trailer 3.424 128 kg (9,100 lb) 6 804 kg (15,000 lb)
5.3L V8, 6-speed automatic
transmission –Gooseneck/
Fifth-Wheel Trailer 3.42
3 674 kg (8,100 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission –Gooseneck/
Fifth-Wheel Trailer 3.42
3 765 kg (8,300 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission with Enhanced
Towing Package 3.42
4 853 kg (10,700 lb) 7 575 kg (16,700 lb)
5.3L V8 –Conventional Trailer 3.734 899 kg (10,800 lb) 7 575 kg (16,700 lb)
5.3L V8 –Gooseneck/Fifth-Wheel
Trailer 3.73
4 853 kg (10,700 lb) 7 575 kg (16,700 lb)
6.2L V8 –Conventional Trailer 3.234 128 kg (9,100 lb) 6 804 kg (15,000 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16

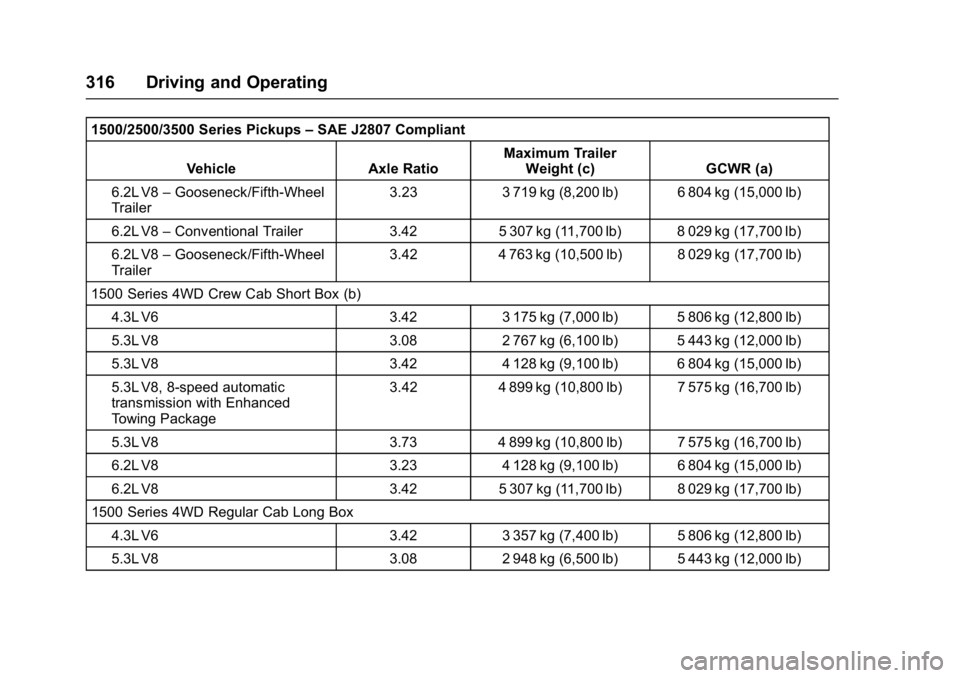

316 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
6.2L V8 –Gooseneck/Fifth-Wheel
Trailer 3.23 3 719 kg (8,200 lb) 6 804 kg (15,000 lb)
6.2L V8 –Conventional Trailer 3.425 307 kg (11,700 lb) 8 029 kg (17,700 lb)
6.2L V8 –Gooseneck/Fifth-Wheel
Trailer 3.42
4 763 kg (10,500 lb) 8 029 kg (17,700 lb)
1500 Series 4WD Crew Cab Short Box (b) 4.3L V6 3.423 175 kg (7,000 lb) 5 806 kg (12,800 lb)
5.3L V8 3.082 767 kg (6,100 lb) 5 443 kg (12,000 lb)
5.3L V8 3.424 128 kg (9,100 lb) 6 804 kg (15,000 lb)
5.3L V8, 8-speed automatic
transmission with Enhanced
Towing Package 3.42
4 899 kg (10,800 lb) 7 575 kg (16,700 lb)
5.3L V8 3.734 899 kg (10,800 lb) 7 575 kg (16,700 lb)
6.2L V8 3.234 128 kg (9,100 lb) 6 804 kg (15,000 lb)
6.2L V8 3.425 307 kg (11,700 lb) 8 029 kg (17,700 lb)
1500 Series 4WD Regular Cab Long Box 4.3L V6 3.423 357 kg (7,400 lb) 5 806 kg (12,800 lb)
5.3L V8 3.082 948 kg (6,500 lb) 5 443 kg (12,000 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
Driving and Operating 317
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
5.3L V8 3.42 4 309 kg (9,500 lb) 6 804 kg (15,000 lb)
2500 Series 2WD Double Cab Standard Box 6.0L V8 3.73 4 536 kg (10,000 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.105 897 kg (13,000 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 577 kg (14,500 lb) 9 571 kg (21,100 lb)
2500 Series 2WD Crew Cab Standard Box 6.0L V8 3.734 445 kg (9,800 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.105 897 kg (13,000 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 486 kg (14,300 lb) 9 571 kg (21,100 lb)
2500 Series 2WD Regular Cab Long Box 6.0L V8 3.734 672 kg (10,300 lb) 7 530 kg (16,600 lb)
6.0L V8 (RPO UB7) 3.734 627 kg (10,200 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.106 577 kg (14,500 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 713 kg (14,800 lb) 9 571 kg (21,100 lb)
2500 Series 2WD Double Cab Long Box 6.0L V8 3.734 491 kg (9,900 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.106 532 kg (14,400 lb) 9 571 kg (21,100 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16

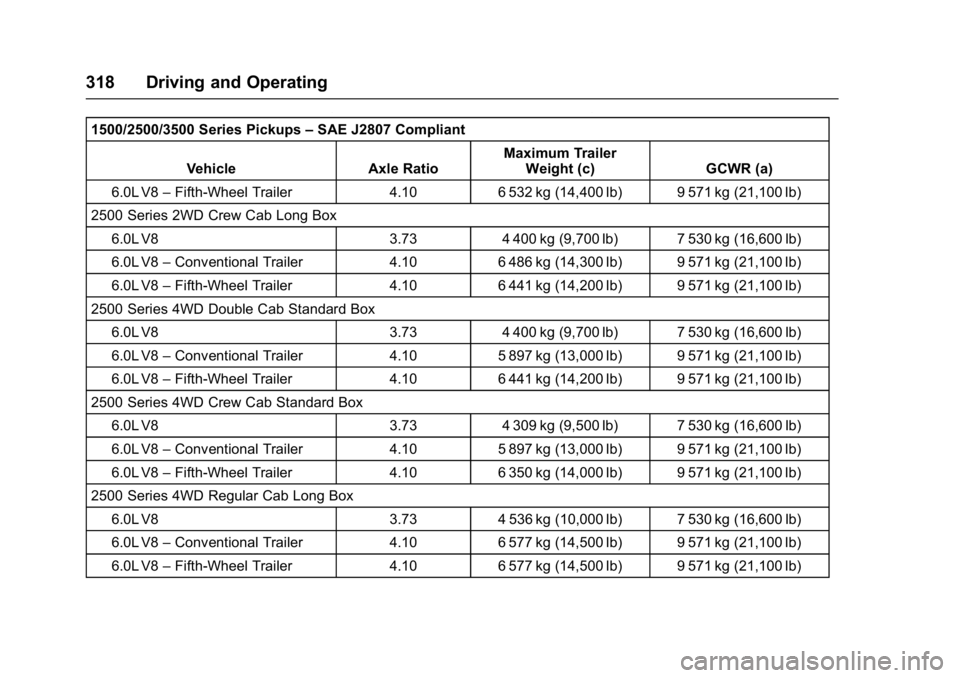

318 Driving and Operating
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
6.0L V8 –Fifth-Wheel Trailer 4.106 532 kg (14,400 lb) 9 571 kg (21,100 lb)
2500 Series 2WD Crew Cab Long Box 6.0L V8 3.734 400 kg (9,700 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.106 486 kg (14,300 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 441 kg (14,200 lb) 9 571 kg (21,100 lb)
2500 Series 4WD Double Cab Standard Box 6.0L V8 3.734 400 kg (9,700 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.105 897 kg (13,000 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 441 kg (14,200 lb) 9 571 kg (21,100 lb)
2500 Series 4WD Crew Cab Standard Box 6.0L V8 3.734 309 kg (9,500 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.105 897 kg (13,000 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 350 kg (14,000 lb) 9 571 kg (21,100 lb)
2500 Series 4WD Regular Cab Long Box
6.0L V8 3.734 536 kg (10,000 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.106 577 kg (14,500 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 577 kg (14,500 lb) 9 571 kg (21,100 lb)

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16

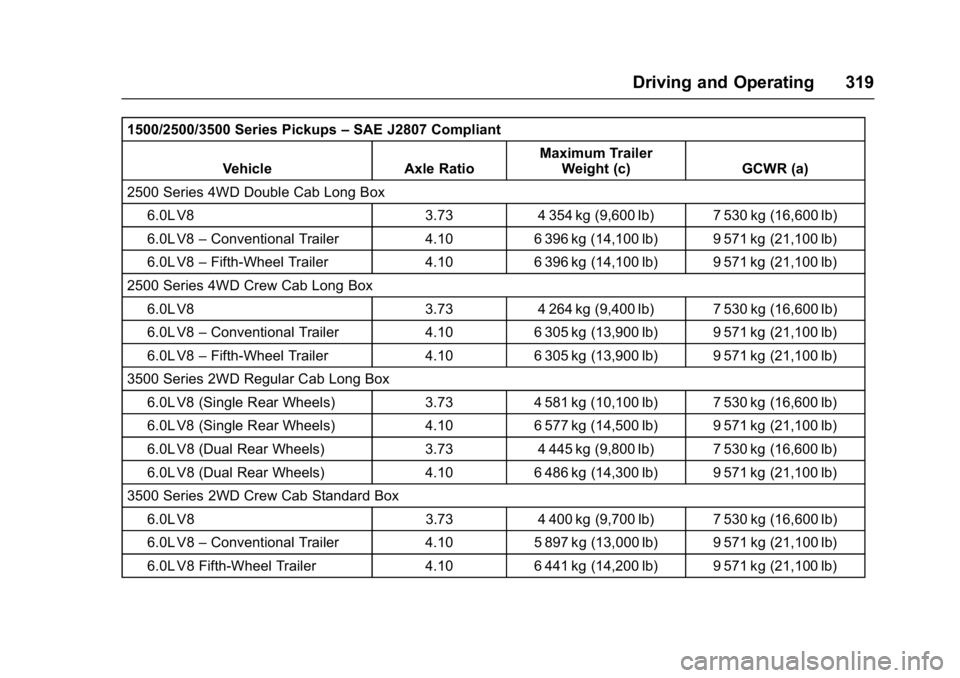

Driving and Operating 319
1500/2500/3500 Series Pickups–SAE J2807 Compliant
Vehicle Axle Ratio Maximum Trailer
Weight (c) GCWR (a)
2500 Series 4WD Double Cab Long Box 6.0L V8 3.73 4 354 kg (9,600 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.10 6 396 kg (14,100 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 396 kg (14,100 lb) 9 571 kg (21,100 lb)
2500 Series 4WD Crew Cab Long Box 6.0L V8 3.734 264 kg (9,400 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.106 305 kg (13,900 lb) 9 571 kg (21,100 lb)
6.0L V8 –Fifth-Wheel Trailer 4.106 305 kg (13,900 lb) 9 571 kg (21,100 lb)
3500 Series 2WD Regular Cab Long Box 6.0L V8 (Single Rear Wheels) 3.734 581 kg (10,100 lb) 7 530 kg (16,600 lb)
6.0L V8 (Single Rear Wheels) 4.106 577 kg (14,500 lb) 9 571 kg (21,100 lb)
6.0L V8 (Dual Rear Wheels) 3.734 445 kg (9,800 lb) 7 530 kg (16,600 lb)
6.0L V8 (Dual Rear Wheels) 4.106 486 kg (14,300 lb) 9 571 kg (21,100 lb)
3500 Series 2WD Crew Cab Standard Box
6.0L V8 3.734 400 kg (9,700 lb) 7 530 kg (16,600 lb)
6.0L V8 –Conventional Trailer 4.105 897 kg (13,000 lb) 9 571 kg (21,100 lb)
6.0L V8 Fifth-Wheel Trailer 4.106 441 kg (14,200 lb) 9 571 kg (21,100 lb)
