2017 GENESIS G90 start stop button

1. Instrument cluster ...................................3-60
2. Horn ........................................................3-19
3. Driver’s front air bag ...............................2-59
4. Engine Start/Stop button ..........................5-7
5. DIS navigation system .............................4-4
6. Climate control system.........................3-141
7. Clock .....................................................3-151
8. Hazard warning flasher ............................6-2
9. Passenger’s front air bag .......................2-59
10. Driver’s knee air bag ............................2-59
11. Glove box ...........................................3-14412. Automatic transmission ........................5-11
13. Multi-view camera system..................3-116
14. Parking assist system ........................3-117
15. Auto hold ..............................................5-31
16. Drive mode integrated control
system ..................................................5-44
17. Seat warmers and coolers ...................2-28
18. Heated steering wheel button ..............3-18
19. Rear curtain folding button .................3-153
20. Center control panel ...............................4-4
21. Center console storage ......................3-143
I I N
N S
ST
T R
R U
U M
M E
EN
N T
T
P
P A
A N
N E
EL
L
O
O V
VE
ER
R V
V I
IE
E W
W
(
( I
I)
)
1-5
01
The actual shape may differ from the illustration.
OHI016004

2-19
02
Rear seat
1. The seatback (including the shoul-der portion) is leaned back, the
head restraint is tilted backward,
and the head restraint is lowered.
2. The seat position is adjusted for- ward, the seat cushion tilt is raised
and the lower lumbar support
increases.
Information
Relaxation mode switches for adjust-
ing the front passenger's seat do not
operate in the following situations.
- When the Engine Start/Stop buttonis in the OFF position.
- A passenger occupies the front pas- senger's seat.
- An item occupies the front passen- ger's seat.
- The front passenger's door is open.
- The front passenger's seatbelt is fas- tened.
Do not re-press the relaxation mode switch again, while oper-
ating the seat positions for
relaxation mode. It may abruptly
stop the seat movement.
When you operate the seat con- trol switch while adjusting the
seat positions for the relaxation
mode, it stops the automatic
seat position adjustment. In this
case, manually adjust the seat
positions.
Any items, which occupy the front passenger's seat, may get
damaged while automatically
adjusting the seat positions for
the relaxation mode. Do not put
any items on the front passen-
ger's seat.
Return function
Press the switch (2) to adjust both
the front passenger's seat and the
rear seat, as follows.
Rear seat
1. The seat position is adjusted to the rearmost position, the seat
cushion tilt is adjusted to the low-
est position, and the lumbar sup-
port decreases.
2. The head restraint is lowered, and the seatback (including the shoul-
der portion) is leaned backward.
Front passenger's seat
1. The seat position is adjusted backward.
2. The seat cushion height is raised, and the head restraint is adjusted
to the lowest height.
Information
Return function switch for adjusting
the front passenger's seat do not oper-
ate in the following situations.
- When Engine Start/Stop button is inthe OFF position.
- A passenger occupies the front pas- senger's seat.
- An item occupies the front passen- ger's seat.
- The front passenger's door is open.
- The front passenger's seatbelt is fas- tened.
i
NOTICE
i

2-29
02

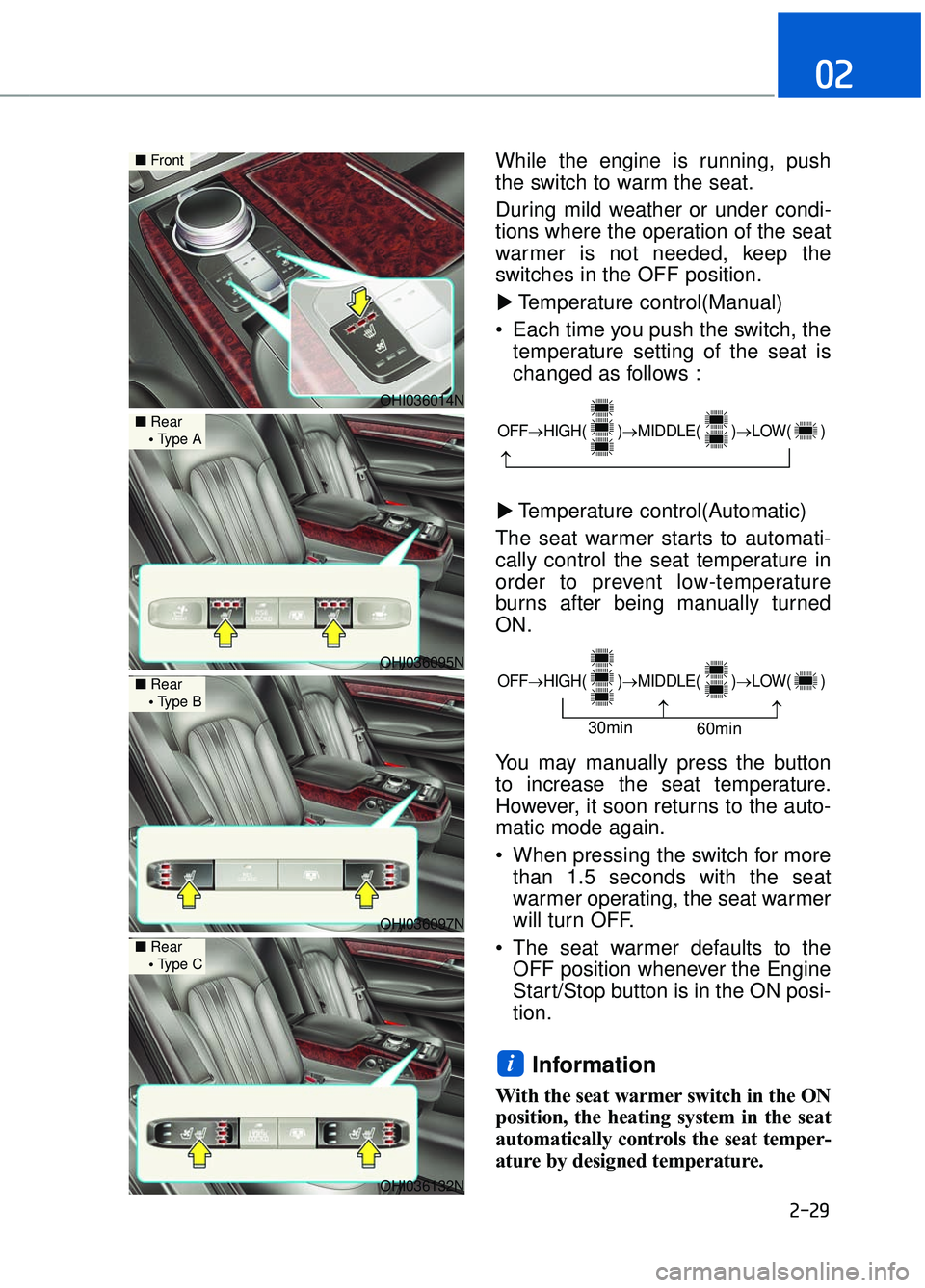

While the engine is running, push
the switch to warm the seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.Temperature control(Manual)
• Each time you push the switch, the temperature setting of the seat is
changed as follows :
Temperature control(Automatic)
The seat warmer starts to automati-
cally control the seat temperature in
order to prevent low-temperature
burns after being manually turned
ON.
You may manually press the button
to increase the seat temperature.
However, it soon returns to the auto-
matic mode again.
When pressing the switch for more than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
The seat warmer defaults to the OFF position whenever the Engine
Start/Stop button is in the ON posi-
tion.
Information
With the seat warmer switch in the ON
position, the heating system in the seat
automatically controls the seat temper-
ature by designed temperature.
i
▼▼
OFF→ HIGH( )→ MIDDLE( )→ LOW( )
→
OFF→HIGH( )→ MIDDLE( )→ LOW( )
→
→30min 60min
OHI036014N
■Front
OHI036095N
■Rear
• Type A
OHI036097N
■ Rear
Type B
OHI036132N
■ Rear
Type C

Seat coolers (by air) (if equipped)
The seat coolers are provided to
cool the seats by blowing air through
small vent holes on the surface of the
seat cushions and seatbacks. When the operation of the seat cool-
er is not needed, keep the switches
in the OFF position.
While the engine is running, push the
switch to cool the seat.
Each time you push the switch, the
air flow changes as follows:
When pressing the switch for more than 1.5 seconds with the seat
cooler operating, the seat cooler
will turn OFF.
The seat coolers defaults to the OFF position whenever the Engine
Start/Stop button is turned to the
ON position.
Information
• If the outside temperature is under39°F (4°C), the seat cooler may not
operate.
• Use the seat cooler when the climate control system is on. Using the seat
cooler for prolonged periods of time
with the climate control system off
could cause the climate control seat
performance to be reduced.
i
2-30
Safety system of your vehicle
OHI036131N
■ Front
OHI036096N
■Rear
OFF→ HIGH( )→ MIDDLE( )→ LOW( )
→

2-33
02
Seat Belt Warning Light
Seat belt warning
(1) Driver's seat belt warning light
(2) Front passenger's seat belt warn-ing light
The driver's and front passenger's
seat belt warning lights will illuminate
each time you turn the Engine Start/
Stop button ON regardless of seat
belt fastening.
Damaged seat belts and seat
belt assemblies will not operate
properly. Always replace:
Frayed, contaminated, or
damaged webbing
Damaged hardware
The entire seat belt assembly after it has been worn in an
accident, even if damage to
webbing or assembly is not
apparent
WARNING
WHI-001
OHI036034
■ Driver
■Front passenger

2-39
02
Body work on the front area of the
vehicle may damage the pre-ten-
sioner seat belt (retractor pre-ten-
sioner seat belt and emergency
fastening device) system.The Pre-Tensioner Seat Belt System
consists mainly of the following com-
ponents. Their locations are shown in
the illustration above:
1. SRS air bag warning light
2. Retractor pre-tensioner
3. SRS control module
4. Emergency Fastening Device
System
Information
The sensor that activates the SRS air
bag is connected with the pre–tension-
er seat belts. The SRS air bag warning
light on the instrument panel will illu-
minate for approximately 6 seconds
after the engine Start/Stop button in
the ON position, and then it should
turn off.
If the pre-tensioner is not working
properly, the warning light will illumi-
nate even if the SRS air bag is not mal-
functioning. If the warning light does
not illuminate, stays illuminated or
illuminates when the vehicle is being
driven, have an authorized Dealer of
Genesis Brand Products inspect the
pre-tensioner seat belts and SRS air
bags as soon as possible.
i
NOTICE
(Continued)
Always replace your pre-ten-sioners after activation or an
accident.
NEVER inspect, service, repair or replace the pre-tensioners
yourself. This must be done by
an authorized Dealer of
Genesis Brand Products.
Do not hit the seat belt assem- blies.
Do not touch the pre-tensioner
seat belt assemblies for several
minutes after they have been
activated. When the pre-ten-
sioner seat belt mechanism
deploys during a collision, the
pre-tensioners become hot and
can burn you.
WARNING
OLMB033040/Q

2-62
Safety system of your vehicle
Curtain air bags
Curtain air bags are located along
both sides of the roof rails above the
front and rear doors.
They are designed to help protect the
heads of the front seat occupants
and the rear outboard seat occupants
in certain side impact collisions.
The curtain air bags are designed to
deploy only during certain side
impact collisions, depending on the
crash severity, angle, speed and
impact.
The side and curtain air bags on both
sides of the vehicle may deploy if a
rollover or possible rollover is detect-
ed.
However, the curtain air bags are not
designed to deploy in all side impact
or rollover situations.
(Continued)
Do not place any objects over
the air bag or between the air
bag and yourself.
Do not place any objects between the door and the
seat. They may become dan-
gerous projectiles if the side
air bag inflates.
Do not install any accessories on the side or near the side air
bags.
Do not cause impact to the doors when the Engine Start/
Stop button is in the ON posi-
tion or this may cause the
side air bags to inflate.
If the seat or seat cover is damaged, have the vehicle
checked and repaired by an
authorized Dealer of Genesis
Brand Products.
OHI036051
OHI036052

2-64
Safety system of your vehicle
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while
the Engine Start/Stop button is in the
ON position to determine if a crash
impact is severe enough to require air
bag deployment or pre-tensioner seat
belt deployment.
SRS warning light
The SRS (Supplement Restraint
System) air bag warning light on the
instrument panel displays the air bag
symbol depicted in the illustration.
The system checks the air bag elec-
trical system for malfunctions. The
light indicates that there is a potential
malfunction with your air bag system,
which could include your side and
curtain air bags used for rollover pro-
tection.
If your SRS malfunctions, the
air bag may not inflate properly
during an accident increasing
the risk of serious injury or
death.
If any of the following condi-
tions occur, your SRS is mal-
functioning:
The light does not turn on for approximately six seconds
when the engine Start/Stop
button is in the ON position.
The light stays on after illumi- nating for approximately six
seconds.
The light comes on while the vehicle is in motion.
The light blinks when the engine is running.
Have an authorized Dealer of
Genesis Brand Products
inspect the SRS as soon as
possible if any of these condi-
tions occur.
WARNING
