2017 GENESIS G90 Owner's Manual

2-5
02
Front seat
(1) Seat sliding forward or rearward/Seat cushion tilt adjustment
/Seat cushion height adjustment
(2) Seat cushion length adjustment
(3) Seatback angle adjustment
(4) Lumbar support adjustment
(5) Seat bolster adjustment*
(6) Seat position memory system (7) Head restraint adjustment
(8) Shoulder adjustment*
(9) Seat warmer
/Seat cooler (by air)
(10) Seat sliding forward or rearward
/Seatback angle adjustment
(for front passenger seat)
* : if equipped
S S E
E A
A T
TS
S

OHI036001N

2-6
Safety system of your vehicle
OHI036090N
Rear seat
(11) Seat sliding forward or rearward/Seat cushion tilt adjustment*
(12) Seat sliding or shoulder adjust- ment*
(13) Lumbar support adjustment*
(14) Head restraint adjustment*
(15) Seat sliding forward or rearward/
Seatback angle adjustment*
(for front passenger seat)
(16) Seat mode switches* (17) Seat warmer
(18) Seat cooler (by air)*
(19) RSE LOCKED indicator
(20) Rear curtain control
(details in Chapter 3)
(21) Armrest
(22) Ski through
(23) Seat position memory system* (details in Chapter 3)
* : if equipped
■ Type A
■Type B
■Type C

2-7
02
Safety Precautions
Adjusting the seats so that you are sit-
ting in a safe, comfortable position
plays an important role in driver and
passenger safety together with the
seat belts and air bags in an accident.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air
bag. Sitting too close to an air bag
greatly increases the risk of injury in
the event the air bag inflates.
The National Highway Traffic Safety
Administration (NHTSA) recommends
that drivers allow at least 10 inches
(25 cm) between the center of the
steering wheel and their chest.
Do not use a cushion that
reduces friction between the
seat and the passenger. The
passenger's hips may slide
under the lap portion of the seat
belt during an accident or a
sudden stop. Serious or fatal
internal injuries could result
because the seat belt cannot
operate properly.
WARNING
To reduce the risk of serious
injury or death from an inflating
air bag, take the following pre-
cautions:
• Adjust the driver's seat as far
to the rear as possible while
maintaining the ability to
maintain full control of the
vehicle.
Adjust the front passenger seat as far to the rear as pos-
sible.
Hold the steering wheel by the rim with hands at the 9 o'clock
and 3 o'clock positions to
minimize the risk of injuries to
your hands and arms.
NEVER place anything or any- one between the steering
wheel and the air bag.
Do not allow the front passen- ger to place feet or legs on the
dashboard to minimize the
risk of leg injuries.
WARNING

2-8
Safety system of your vehicle
Seat belts
Always fasten your seat belt before
starting any trip.
At all times, passengers should sit
upright and be properly restrained.
Infants and small children must be
restrained in appropriate child restraint
systems. Adults and children who
have outgrown a booster seat must be
restrained using the seat belts.
Front Seats
The front seat can be adjusted by
using the switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily con-
trol the steering wheel, foot pedals
and controls on the instrument panel.
Take the following precautions
when adjusting your seat belt:
NEVER use one seat belt for more than one occupant.
Always position the seatback upright with the lap portion of
the seat belt snug and low
across the hips.
NEVER allow children or small infants to ride in a pas-
senger's lap.
Do not route the seat belt across your neck, across
sharp edges, or reroute the
shoulder strap away from
your body.
Do not allow the seat belt to become caught or jammed.
WARNINGTake the following precautions
when adjusting your seat:
NEVER attempt to adjust theseat while the vehicle is mov-
ing. The seat could respond
with unexpected movement
and may cause loss of vehicle
control resulting in an acci-
dent.
Do not place anything under the front seats. Loose objects
in the driver's foot area could
interfere with the operation of
the foot pedals, causing an
accident.
Do not allow anything to inter- fere with the normal position
and proper locking of the
seatback.
Do not place a cigarette lighter on the floor or seat.
When you operate the seat,
gas may exit out of the lighter
causing a fire.
Use extreme caution when picking small objects trapped
under the seats or between
the seat and the center con-
sole. Your hands might be cut
or injured by the sharp edges
of the seat mechanism.
WARNING

2-9
02
To prevent damage to the seats:
Always stop adjusting the seatswhen the seat has been adjusted
as far forward or rearward as
possible.
Do not adjust the seats longer than necessary when the engine
is turned off. This may result in
unnecessary battery drain.
Do not operate two or more seats at the same time. This may
result in an electrical malfunc-
tion.
NOTICE
To prevent injury:
Do not adjust your seat whilewearing your seat belt.
Moving the seat cushion for-
ward may cause strong pres-
sure on your abdomen.
Do not allow your hands or fingers to get caught in the
seat mechanisms while the
seat is moving.
WARNING
NEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
WARNING

2-10
Safety system of your vehicle
Forward and rearward adjust-ment
To move the seat forward or rear-
ward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat reaches the desired position.
When the seat is adjusted forward or
rearward, the headrest height and
the seatback angle is automatically
adjusted according to the position of
the seat.
Information
The forward/rearward seat adjust-
ment may be restricted, when the seat-
back is leaned back. Adjust your seat,
as follows, before adjusting the seat
position rearward.
- Push and hold the control switch rearward as far as possible, release
the control switch, and re-push the
control switch rearward again.
Then, the seat position is adjusted
rearward, while putting the seat-
back upright.
Seat cushion length adjustment(for driver's seat)
To move the front part of the cushion
forward:
1. Push the front part of the control
switch to move the seat cushion
to the desired length.
2. Release the switch once the seat cushion reaches the desired
length.
To move the front part of the cushion
rearward:
1. Push the rear part of the control switch to move the seat cushion to
the desired length.
2. Release the switch once the seat cushion reaches the desired
length.
Be careful not to damage your
body or clothes when using the
cushion adjustment.
NOTICE
i
OHI036002OHI036003

2-11
02

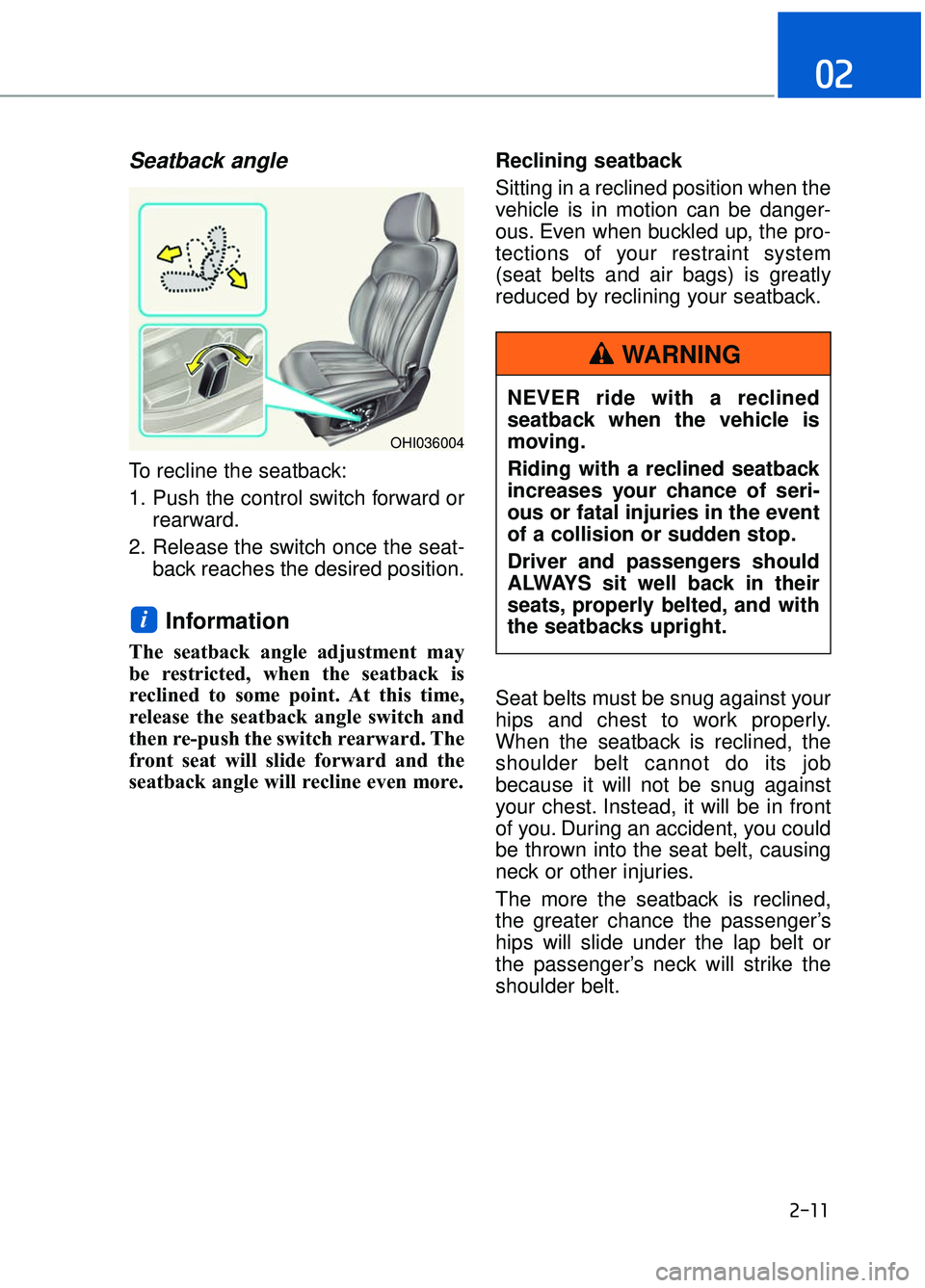

Seatback angle
To recline the seatback:
1. Push the control switch forward orrearward.
2. Release the switch once the seat- back reaches the desired position.
Information
The seatback angle adjustment may
be restricted, when the seatback is
reclined to some point. At this time,
release the seatback angle switch and
then re-push the switch rearward. The
front seat will slide forward and the
seatback angle will recline even more. Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be danger-
ous. Even when buckled up, the pro-
tections of your restraint system
(seat belts and air bags) is greatly
reduced by reclining your seatback.
Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
i
OHI036004
NEVER ride with a reclined
seatback when the vehicle is
moving.
Riding with a reclined seatback
increases your chance of seri-
ous or fatal injuries in the event
of a collision or sudden stop.
Driver and passengers should
ALWAYS sit well back in their
seats, properly belted, and with
the seatbacks upright.
WARNING

2-12
Safety system of your vehicle
Seat cushion height and tilt
To tilt or change the height of the
seat cushion:
1. Push the front portion of the con-trol switch up to raise or down to
lower the front part of the seat
cushion.
Push the rear portion of the con-
trol switch up to raise or down to
lower the height of the seat cush-
ion.
2. Release the switch once the seat reaches the desired position.
Lumbar support
The lumbar support can be adjust-ed by pressing the lumbar support
switch.
Press the front portion of the switch (1) to increase support or
the rear portion of the switch (2) to
decrease support.
To move the support position up or down, press switch (3) or (4).
The lumbar support does not oper-
ate up or down when the lumbar sup-
port is in the rearmost position.
In this case, to use the system,
slightly increase support by pushing
the front portion of the switch (1).
OHI036006NOHI036005
■
Tilt ■Height
