2017 FORD POLICE INTERCEPTOR SEDAN rear view mirror

The image of the approaching vehicle is
small and near the inboard edge of the
main mirror when it is at a distance. The
image becomes larger and begins to move
outboard across the main mirror as the
vehicle approaches (A). The image
transitions from the main mirror and begins
to appear in the blind spot mirror as the
vehicle approaches (B). The vehicle
transitions to your peripheral field of view
as it leaves the blind spot mirror (C).
Blind Spot Information System (If
Equipped)
See
Blind Spot Information System
(page 126). INTERIOR MIRROR WARNING
Do not adjust the mirror when your
vehicle is moving.
Note:
Do not clean the housing or glass of
any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.
You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.
Pull the tab below the mirror toward you
to reduce glare at night.
Auto-Dimming Mirror
(If Equipped)
Note: Do not block the sensors on the front
and back of the mirror. Mirror performance
may be affected. A rear center passenger or
raised rear center head restraint may also
block light from reaching the sensor.
The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a clear
view when backing up.
64
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Windows and MirrorsA
B
C
E138665

Coverage area of up to 6 ft (1.8 m) from
the rear bumper. There may be decreased
coverage area at the outer corners of the
bumper.
The system detects certain objects while
the transmission is in reverse (R) :
• Your vehicle is moving toward a
stationary object at a speed of
3 mph
(5 km/h) or less.
• Your vehicle is not moving, but a
moving object is approaching the rear
of your vehicle at a speed of
3 mph
(5 km/h) or less.
• Your vehicle is moving at a speed of
less than 3 mph (5 km/h) and a moving
object is approaching the rear of your
vehicle at a speed of less than
3 mph
(5 km/h).
The system provides audio warnings only
when your vehicle is moving or when your
vehicle is stationary and the detected
obstacle is less than
12 in (30 cm) away
from the bumper. REAR VIEW CAMERA WARNINGS
The rear view camera system is a
reverse aid supplement device that
still requires the driver to use it in
conjunction with the interior and exterior
mirrors for maximum coverage. Objects that are close to either
corner of the bumper or under the
bumper, might not be seen on the
screen due to the limited coverage of the
camera system. Back up as slow as possible since
higher speeds might limit your
reaction time to stop your vehicle.
Use caution when using the rear
video camera and the luggage
compartment door is ajar. If the
luggage compartment door is ajar, the
camera will be out of position and the
video image may be incorrect. All
guidelines disappear when the luggage
compartment door is ajar. Use caution when turning camera
features on or off. Make sure your
vehicle is not moving.
The rear view camera system provides a
video image of the area behind your
vehicle.
During operation, lines appear in the
display which represent your vehicle
’s path
and proximity to objects behind your
vehicle.
121
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Parking AidsE130178

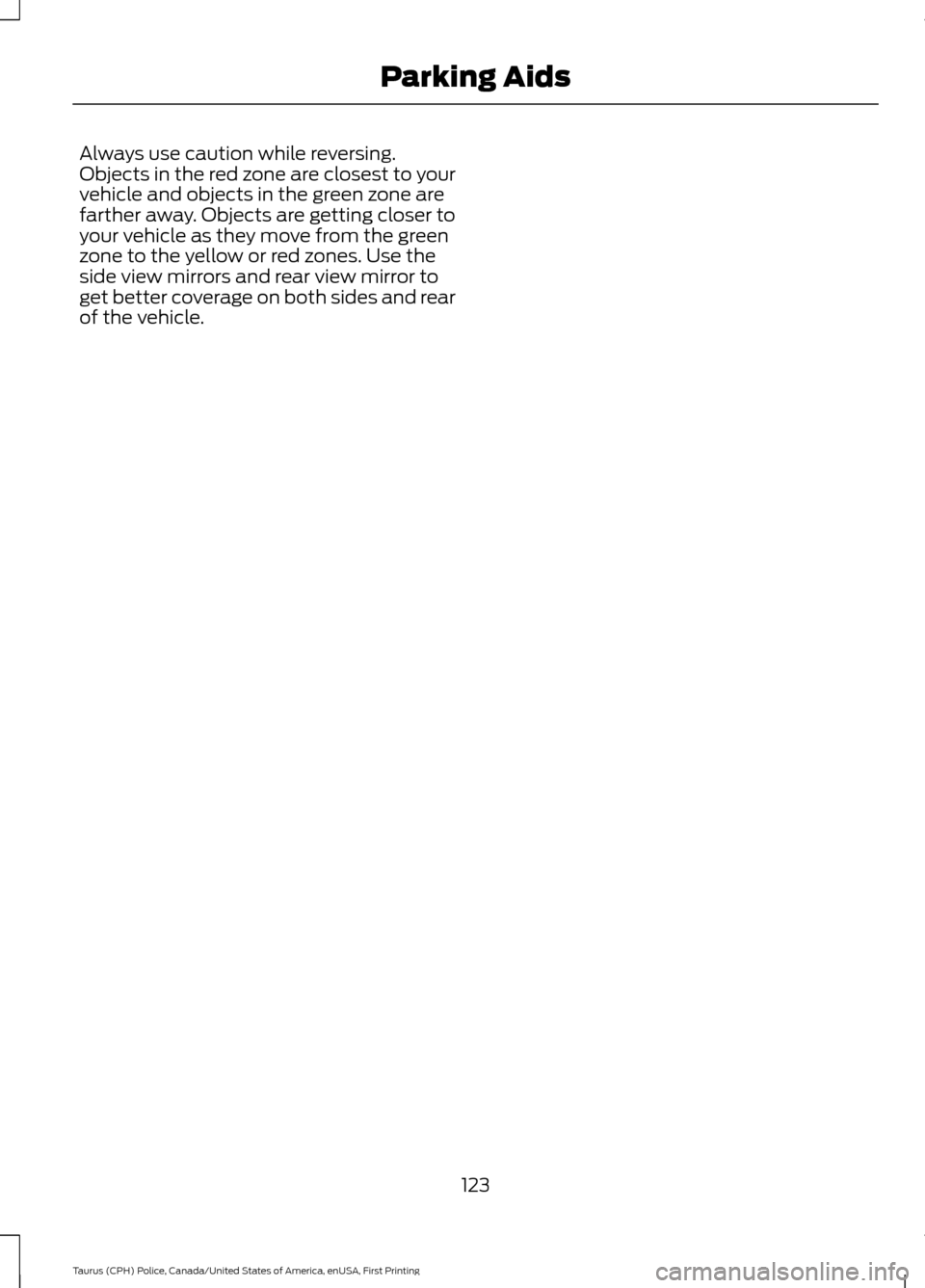

Always use caution while reversing.
Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects are getting closer to
your vehicle as they move from the green
zone to the yellow or red zones. Use the
side view mirrors and rear view mirror to
get better coverage on both sides and rear
of the vehicle.
123
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Parking Aids

Fuse Specification Chart...........................158
Passenger Compartment Fuse Panel........163
Power Distribution Box..................................... 158
G
Gauges...............................................................66 Fuel Gauge............................................................. 66
Information Display............................................. 66
Speedometer........................................................ 66
General Information on Radio Frequencies...................................................48
General Maintenance Information........301
Multi-Point Inspection..................................... 303
Owner Checks and Services.......................... 302
Protecting Your Investment............................ 301
Why Maintain Your Vehicle?.......................... 301
Why Maintain Your Vehicle at Your Dealership?...................................................... 301
Getting Assistance Outside the U.S. and Canada..........................................................154
Getting the Services You Need.................151 Away From Home................................................ 151
H
Handbrake See: Parking Brake.............................................. 116
Hazard Warning Flashers...........................147
Headlamp Adjusting See: Adjusting the Headlamps...................... 187
Head Restraints
..............................................84
Adjusting the Head Restraint.......................... 85
Tilting Head Restraints ..................................... 85
Heated Windows and Mirrors....................82 Heated Exterior Mirror........................................ 82
Heated Rear Window......................................... 82
Heating See: Climate Control.......................................... 80
Hints on Controlling the Interior Climate.............................................................81
Cooling the Interior Quickly............................... 81
General Hints.......................................................... 81
Heating the Interior Quickly............................... 81
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions................................. 82
Recommended Settings for Cooling ...........82 Recommended Settings for Heating.............81
Side Window Defogging in Cold
Weather.............................................................. 82
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 82
Hints on Driving With Anti-Lock Brakes..............................................................115
Hood Lock See: Opening and Closing the Hood...........169
I
Ignition Switch
................................................90
In California (U.S. Only)..............................152
Information Display Control.......................55
Information Displays
......................................71
General Information............................................. 71
Information Messages..................................74 AdvanceTrac ™...................................................... 74
Alarm........................................................................\
. 74
AWD........................................................................\
... 75
Battery and Charging System.......................... 75
Blind Spot Information and Cross Traffic Alert System...................................................... 76
Brake System......................................................... 76
Doors and Locks................................................... 76
Fuel........................................................................\
..... 77
Maintenance........................................................... 77
Park Aid..................................................................... 77
Police Engine Idle feature.................................. 78
Power Steering...................................................... 78
Reminder Messages............................................ 78
Seats........................................................................\
. 79
Tire Pressure Monitoring System................... 79
Traction Control.................................................... 79
Installing Child Restraints............................19 Child Seats............................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 22
Using Tether Straps............................................. 24
Instrument Cluster........................................66
Instrument Lighting Dimmer.....................59
Instrument Panel Overview........................16
Interior Lamps
.................................................60
Dome Task Lamp.................................................. 61
Front Map Lamps................................................ 60
350
Taurus (CPH) Police, Canada/United States of America, enUSA, First Printing Index
