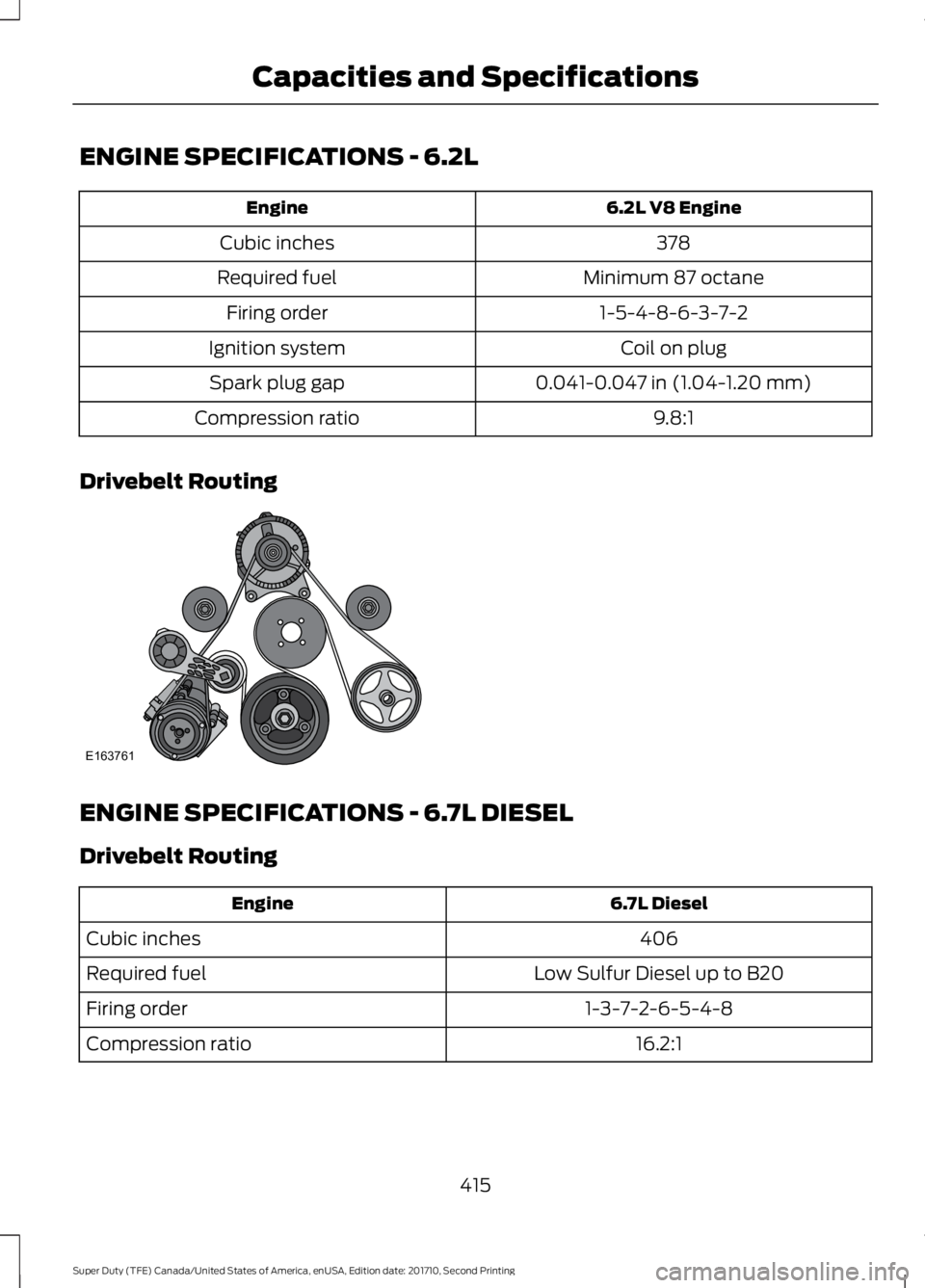

ENGINE SPECIFICATIONS - 6.2L
6.2L V8 EngineEngine
378Cubic inches
Minimum 87 octaneRequired fuel
1-5-4-8-6-3-7-2Firing order
Coil on plugIgnition system
0.041-0.047 in (1.04-1.20 mm)Spark plug gap
9.8:1Compression ratio
Drivebelt Routing
ENGINE SPECIFICATIONS - 6.7L DIESEL
Drivebelt Routing
6.7L DieselEngine
406Cubic inches
Low Sulfur Diesel up to B20Required fuel
1-3-7-2-6-5-4-8Firing order
16.2:1Compression ratio
415
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing

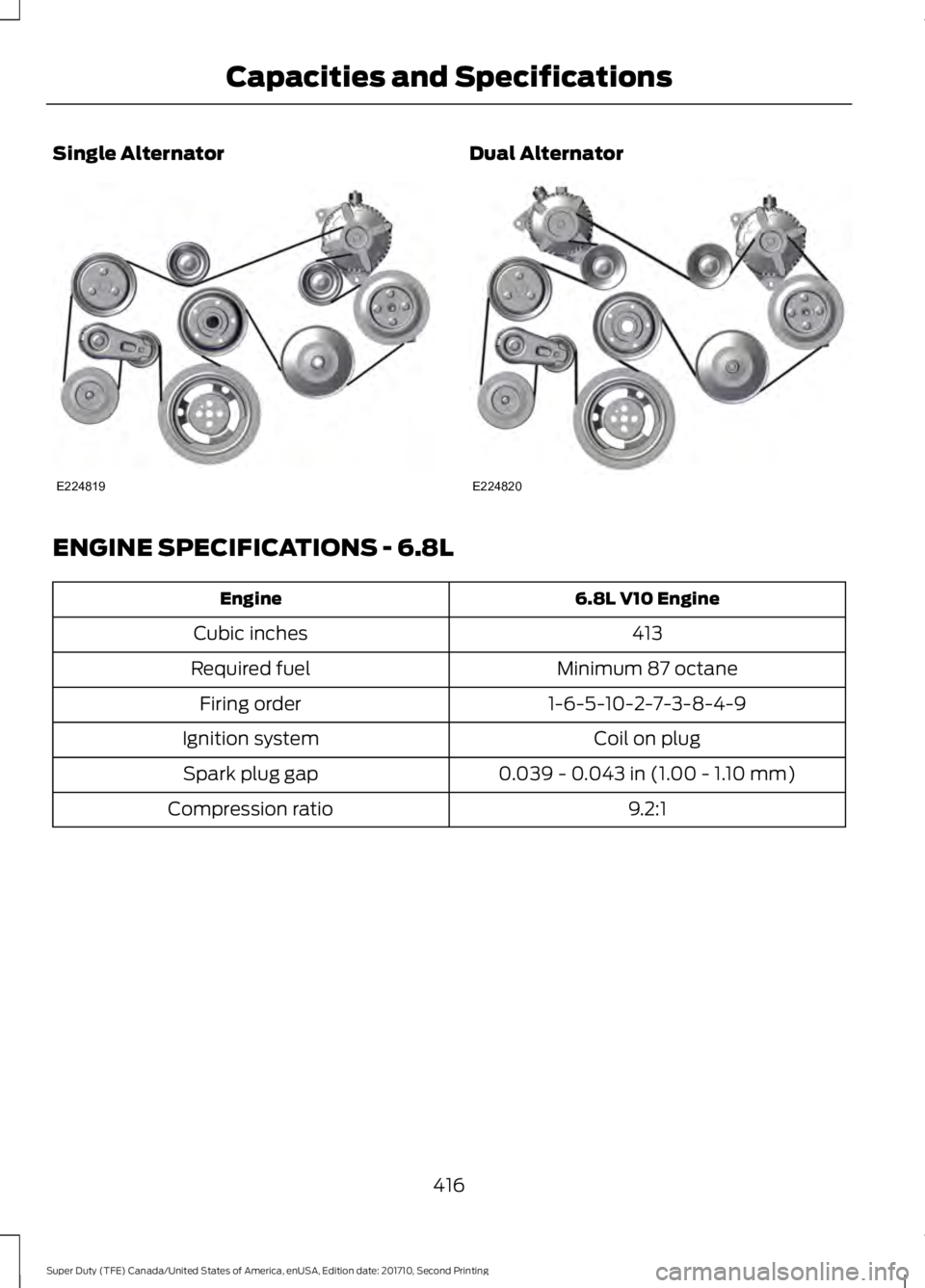

Capacities and SpecificationsE163761
Single AlternatorDual Alternator
ENGINE SPECIFICATIONS - 6.8L
6.8L V10 EngineEngine
413Cubic inches
Minimum 87 octaneRequired fuel
1-6-5-10-2-7-3-8-4-9Firing order
Coil on plugIgnition system
0.039 - 0.043 in (1.00 - 1.10 mm)Spark plug gap
9.2:1Compression ratio
416
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE224819 E224820
