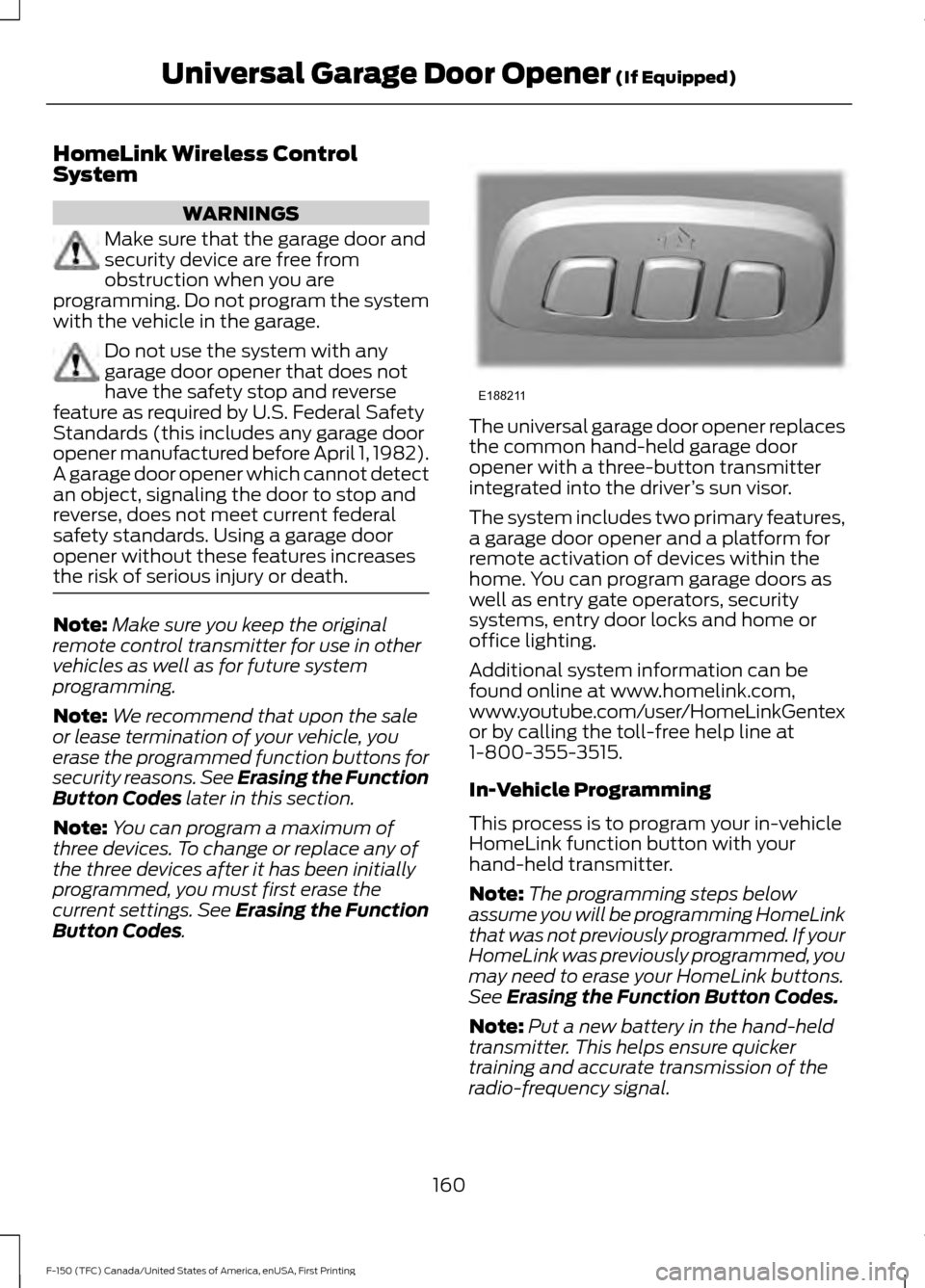

HomeLink Wireless Control
System
WARNINGS
Make sure that the garage door and
security device are free from
obstruction when you are
programming. Do not program the system
with the vehicle in the garage. Do not use the system with any
garage door opener that does not
have the safety stop and reverse
feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death. Note:
Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.
Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the Function
Button Codes later in this section.
Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the Function
Button Codes
. The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
integrated into the driver
’s sun visor.
The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. You can program garage doors as
well as entry gate operators, security
systems, entry door locks and home or
office lighting.
Additional system information can be
found online at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.
In-Vehicle Programming
This process is to program your in-vehicle
HomeLink function button with your
hand-held transmitter.
Note: The programming steps below
assume you will be programming HomeLink
that was not previously programmed. If your
HomeLink was previously programmed, you
may need to erase your HomeLink buttons.
See
Erasing the Function Button Codes.
Note: Put a new battery in the hand-held
transmitter. This helps ensure quicker
training and accurate transmission of the
radio-frequency signal.
160
F-150 (TFC) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)E188211

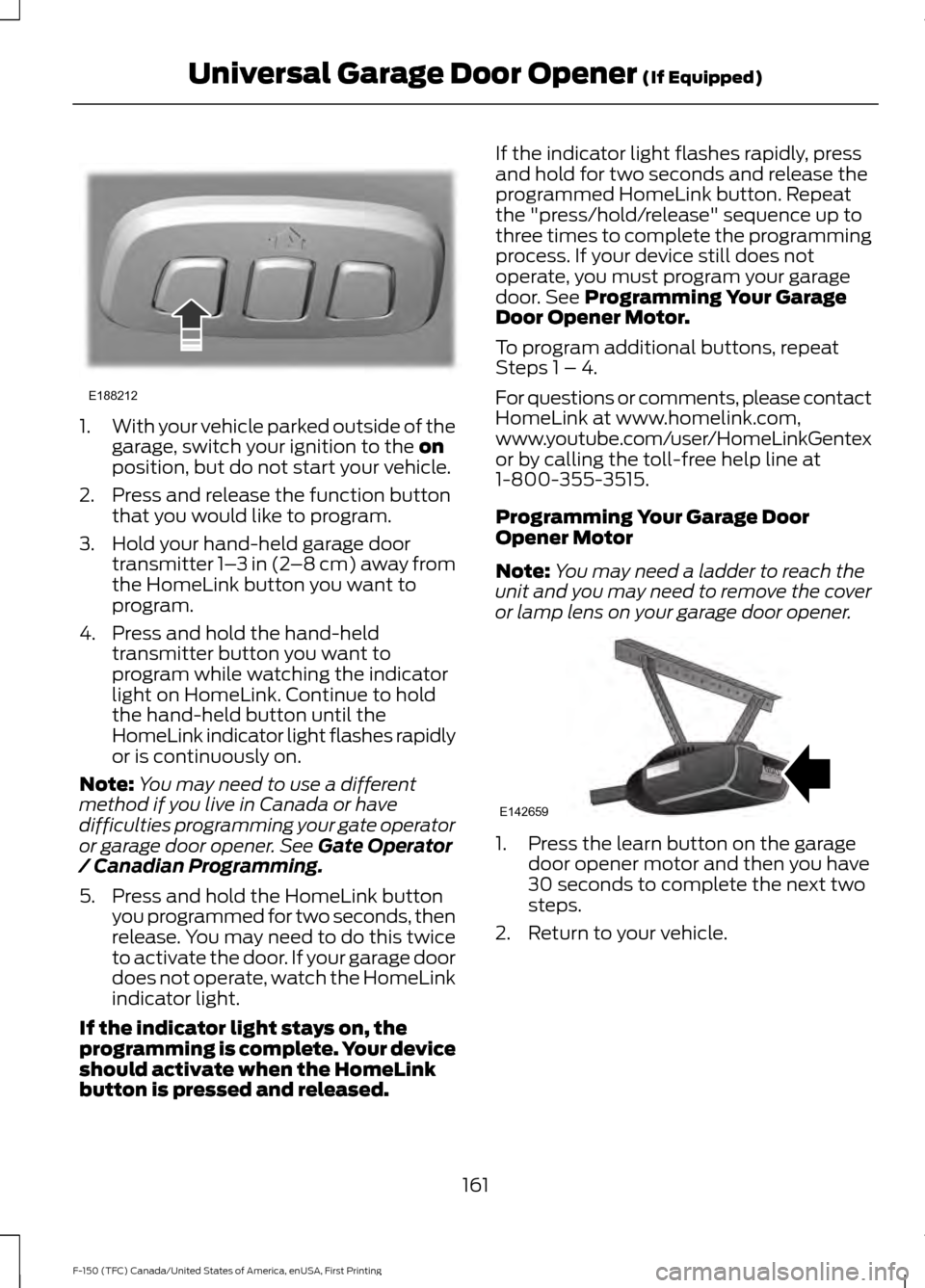

1.
With your vehicle parked outside of the
garage, switch your ignition to the on
position, but do not start your vehicle.
2. Press and release the function button that you would like to program.
3. Hold your hand-held garage door transmitter 1– 3 in (2–8 cm) away from
the HomeLink button you want to
program.
4. Press and hold the hand-held transmitter button you want to
program while watching the indicator
light on HomeLink. Continue to hold
the hand-held button until the
HomeLink indicator light flashes rapidly
or is continuously on.
Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See
Gate Operator
/ Canadian Programming.
5. Press and hold the HomeLink button you programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.
If the indicator light stays on, the
programming is complete. Your device
should activate when the HomeLink
button is pressed and released. If the indicator light flashes rapidly, press
and hold for two seconds and release the
programmed HomeLink button. Repeat
the "press/hold/release" sequence up to
three times to complete the programming
process. If your device still does not
operate, you must program your garage
door. See
Programming Your Garage
Door Opener Motor.
To program additional buttons, repeat
Steps 1 – 4.
For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.
Programming Your Garage Door
Opener Motor
Note: You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener. 1. Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.
2. Return to your vehicle.
161
F-150 (TFC) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)E188212 E142659

3.
Press and hold the function button you
want to program for 2 seconds, then
release. Repeat this step. Depending
on your brand of garage door opener,
you may need to repeat this sequence
a third time.
Gate Operator / Canadian
Programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators are designed to
“time-out” in the same manner.
Note: If programming a garage door opener
or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.
1. Press and release, every two seconds,
your hand-held transmitter until the
HomeLink indicator light changes to a
rapidly blinking or continuously on light.
2. Release the hand-held transmitter button.
3. Continue programing HomeLink. See In-Vehicle Programming, Step 4.
Erasing the Function Button Codes
Note: You cannot erase individual buttons. 1. Press and hold the outer two function
buttons simultaneously for
approximately 10 seconds until the
indicator light above the buttons
flashes rapidly.
2. When the indicator light flashes, release the buttons. You erased the
codes for all buttons.
Reprogramming a Single Button
To program a device to a previously trained
button, follow these steps:
1. Press and hold the desired button. Do NOT release the button.
2. The indicator light begins to flash after
20 seconds. Without releasing the
button, follow Step 1 in the
Programming section.
For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.
162
F-150 (TFC) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)E188212 E188213

FCC and RSS-210 Industry Canada
Compliance
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications to your
device not expressly approved by the party
responsible for compliance can void the
user ’s authority to operate the equipment.
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least 8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.
The term “IC:” before the
certification/registration number only
signifies that Industry Canada technical
specifications were met.
163
F-150 (TFC) Canada/United States of America, enUSA, First Printing Universal Garage Door Opener
(If Equipped)

Rear Inflatable Seatbelt....................................
38
Seatbelt Locking Modes.................................... 37
Using Seatbelts During Pregnancy................36
Using the Seatbelt with Cinch Tongue (Front Center Seat)........................................ 35
Floor Mats......................................................289
Fog Lamps - Front See: Front Fog Lamps......................................... 91
Foot Pedals See: Adjusting the Pedals................................. 84
Ford Credit..........................................................11
US Only...................................................................... 11
Ford Protect
...................................................537
Ford Protect (CANADA ONLY)..................... 538
Ford Protect Extended Service Plans (U.S. Only).................................................................. 537
Four-Wheel Drive
.........................................193
Front Fog Lamps.............................................91
Front Passenger Sensing System.............47
Front Seat Armrest......................................159
Fuel and Refueling........................................176
Fuel Consumption........................................182 Calculating Fuel Economy.............................. 183
Filling the Fuel Tank........................................... 182
Fuel Filler Funnel Location - Regular Cab..................................................................178
Fuel Filler Funnel Location - SuperCab/ SuperCrew....................................................179
Fuel Filter
........................................................329
Fuel Quality - E85.........................................177 Choosing the Right Fuel - Flex Fuel
Vehicles.............................................................. 177
Switching Between E85 and Gasoline............................................................. 178
Fuel Quality - Gasoline
...............................178
Choosing the Right Fuel................................... 178
Fuel Shutoff...................................................294
Fuses................................................................307
Fuse Specification Chart..........................307 Passenger Compartment Fuse Panel.........312
Power Distribution Box.................................... 307
G
Garage Door Opener See: Universal Garage Door Opener...........160
Gauges ..............................................................
102
Engine Coolant Temperature Gauge..........104 Engine Oil Pressure Gauge.............................
104
Fuel Gauge............................................................ 104
Information Display........................................... 105
Transmission Fluid Temperature Gauge................................................................. 104
Type 1 and 2.......................................................... 102
Type 3..................................................................... 103
General Information on Radio Frequencies...................................................53
Intelligent Access................................................. 53
General Maintenance Information
.......539
Multi-Point Inspection...................................... 541
Owner Checks and Services......................... 540
Protecting Your Investment........................... 539
Why Maintain Your Vehicle?......................... 539
Why Maintain Your Vehicle at Your Dealership?..................................................... 539
Getting Assistance Outside the U.S. and Canada.........................................................303
Getting the Services You Need..............300 Away From Home............................................. 300
H
Handbrake See: Parking Brake............................................ 204
Hazard Warning Flashers.........................294
Headlamp Adjusting See: Adjusting the Headlamps..................... 332
Head Restraints
............................................149
Adjusting the Head Restraint......................... 150
Heated Seats
.................................................156
Rear Heated Seats.............................................. 157
Heated Windows and Mirrors...................147 Heated Exterior Mirror....................................... 147
Heated Rear Window........................................ 147
Heating See: Climate Control.......................................... 141
Hill Descent Control.....................................212 Principle of Operation....................................... 212
Hill Start Assist
............................................206
Switching the System On and Off...............207
Using Hill Start Assist....................................... 207
Hints on Controlling the Interior Climate..........................................................144
Cooling the Interior Quickly............................ 146
General Hints....................................................... 144
Heating the Interior Quickly............................ 145
589
F-150 (TFC) Canada/United States of America, enUSA, First Printing Index

Steering...........................................................243
Electric Power Steering................................... 243
Steering Wheel Lock...................................169
Steering Wheel...............................................80
Storage Compartments............................166
Sunroof See: Moonroof..................................................... 100
Sun Visors
.......................................................100
Illuminated Vanity Mirror................................. 100
Supplementary Restraints System.........45 Principle of Operation........................................ 45
Symbols Glossary
.............................................7
SYNC™ 3.........................................................461 General Information.......................................... 461
SYNC™ 3 Troubleshooting.......................521
SYNC™ Applications and Services........................................................439
911 Assist............................................................... 439
SYNC Mobile Apps............................................. 441
SYNC™............................................................423 General Information......................................... 423
SYNC™ Troubleshooting.........................453
T
Tailgate Lock
....................................................69
Tailgate Step.....................................................71
Closing the Step..................................................... 71
Opening the Step................................................... 71
Tailgate..............................................................69
Technical Specifications See: Capacities and Specifications.............381
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................302
Tire Care
...........................................................351
Glossary of Tire Terminology......................... 352
Information About Uniform Tire Quality Grading.............................................................. 351
Information Contained on the Tire Sidewall............................................................ 353
Temperature A B C............................................ 352
Traction AA A B C................................................ 351
Treadwear.............................................................. 351
Tire Pressure Monitoring System...........367 Changing Tires With a Tire Pressure
Monitoring System....................................... 368
Understanding Your Tire Pressure Monitoring System ...................................... 368Tires
See: Wheels and Tires..................................... 349
Towing a Trailer
............................................256
Load Placement................................................. 257
Towing Points
...............................................298
Towing the Vehicle on Four Wheels..........................................................285
Emergency Towing............................................ 285
Recreational Towing......................................... 285
Towing.............................................................256
Traction Control
...........................................208
Principle of Operation..................................... 208
Trailer Reversing Aids..................................257 Principle of Operation...................................... 258
Pro Trailer Backup Assist™............................ 257
Setting Up Pro Trailer Backup Assist.........258
Troubleshooting................................................. 262
Using Pro Trailer Backup Assist..................... 261
Trailer Sway Control....................................267
Transfer Case Fluid Check........................328
Transmission Code Designation............387
Transmission..................................................186
Transmission See: Transmission.............................................. 186
Transporting the Vehicle...........................297
Type Approvals
............................................582
RF Certification Logos for Tire Pressure
Monitoring Sensor(s).................................. 582
U
Under Hood Overview - 2.7L EcoBoost™..................................................318
2.7L EcoBoost...................................................... 318
Under Hood Overview - 3.5L Ecoboost™.................................................320
Under Hood Overview - 3.5L....................319
Under Hood Overview - 5.0L....................321
Unique Driving Characteristics.................174
Universal Garage Door Opener...............160 HomeLink Wireless Control System...........160
USB Port
..........................................................422
Using Adaptive Cruise Control................225 Blocked Sensor.................................................. 230
Changing the Set Speed................................. 228
Detection Issues................................................. 229
Disengaging the System................................. 228
Following a Vehicle........................................... 226
594
F-150 (TFC) Canada/United States of America, enUSA, First Printing Index
