2017 FIAT FIORINO technical data

ENGINE CODES - BODYWORK
VERSION
Version Engine code
1.4 Euro 6350A1000
1.3 16V Multijet 80HP
Euro 6225A2000
1.3 16V Multijet 95 HP
Euro 6330A1000
The following body version code and key are an
example that may be applied to all body version
codes.
Example:
225BXB1AAX
Key :
225Model
BBodywork
XBEngine
1Traction
ATransmission
AXVersion
BODYWORK
ACombi M1 (5 seats)
BCargo (2 seats)
CCombi N1 (4 seats)ENGINES
XA1.4 petrol Euro 6
XG1.3 16V Multijet 80HP Euro 6
XH1.3 16V Multijet 95HP Euro 6
DRIVE
1Front
TRANSMISSION
AManual gearbox
1Comfort/Dualogic gearbox
218
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

ENGINE
Introduction 1.4 Euro 61.3 16V Multijet
80HP Euro 61.3 16V Multijet
95HP Euro 6
Engine code 350A1000 225A2000 330A1000
Cycle Otto Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 69.6 × 82 69.6 × 82
Total displacement (cm3) 1368 1248 1248
Compression ratio 11.1 16.8 16.8
Maximum power (EC) (kW) 57 59 70
Maximum power (EEC) (HP) 77 80 95
Corresponding engine speed (rpm) 6000 3750 3750
Maximum torque (EC) (Nm) 115 200 200
Maximum torque (EC) (kgm) 11.7 20.4 20.4
Corresponding engine speed (rpm) 3000 1500 1500
Spark plugs NGK ZKR7A-10 HIDRIA 5011–721–431 HIDRIA 5011–721–431
FuelUnleaded petrol 95
R.O.N. (Specification
EN590)Diesel for motor
vehicles (EN590
Specification)Diesel for motor
vehicles (EN590
Specification)
219
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

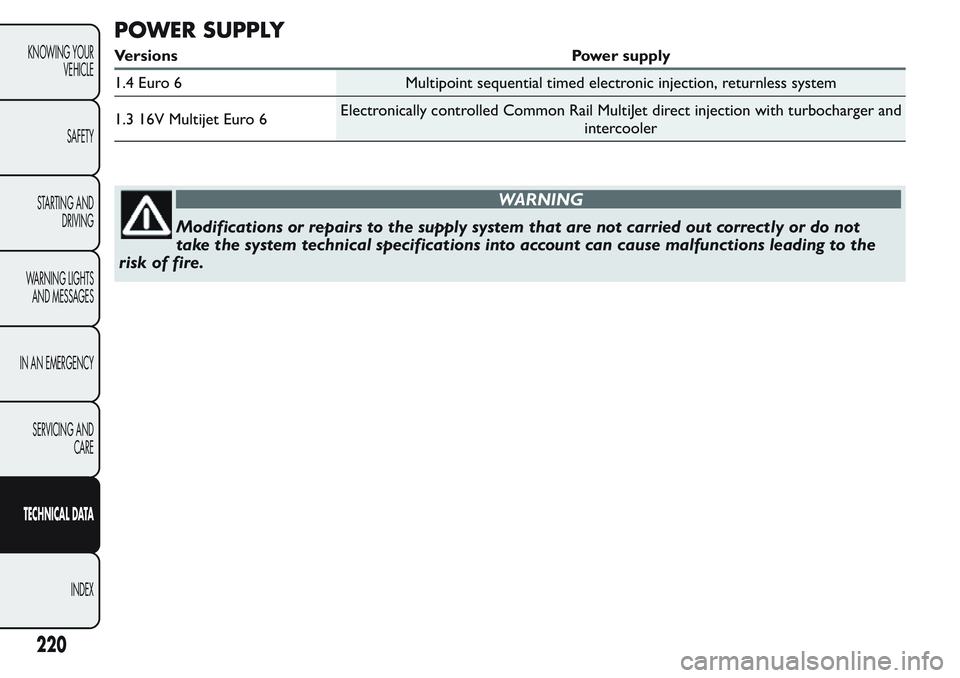

POWER SUPPLY
Versions Power supply
1.4 Euro 6 Multipoint sequential timed electronic injection, returnless system
1.3 16V Multijet Euro 6Electronically controlled Common Rail MultiJet direct injection with turbocharger and
intercooler
WARNING
Modifications or repairs to the supply system that are not carried out correctly or do not
take the system technical specifications into account can cause malfunctions leading to the
risk of fire.
220
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

TRANSMISSION
Versions Transmission Clutch Traction
1.4 Euro 6Five forward gears and
reverse with synchronizers
for forward gear
engagementMechanical control (1.4
versions)/Hydraulic control
(Multijet versions)Front
1.3 16V Multijet Euro 6
221
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

BRAKES
Versions Front service brakes Rear service brakes Parking brake
1.4 Euro 6
disk drumcontrolled by hand lever,
working on rear brakes 1.3 16V Multijet 80 HP Euro 6
1.3 16V Multijet 95 HP Euro 6
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking
efficiency the first time the brakes are applied.
222
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

SUSPENSION
Versions Front Rear
1.4 Euro 6
independent wheel MacPherson type torsion beam 1.3 16V Multijet 80 HP Euro 6
1.3 16V Multijet 95 HP Euro 6
STEERING SYSTEM
Versions Kerb-to-kerb turning circle (m) Type
1.4 Euro 6
9.95rack and pinion with hydraulic power
steering (for versions/markets, where
provided) 1.3 16V Multijet 80 HP Euro 6
1.3 16V Multijet 95 HP Euro 6
223
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. The logbook also contains all type-approved
tyres.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter.
Respect the prescribed size to ensure safety of the
vehicle in movement. Fit tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers with tubeless
tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheels toe-in measured between rims: -1 ±1
mm.
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE
Example: 175/70 R 14 91T(see fig. 204)
175Rated width (S, distance in mm between the
sides)
70Height/width ratio (H/S) as a percentage
RRadial tyre
14Rim diameter in inches (Ø)
91Load index (capacity)
TMaximum speed index
Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/h
fig. 204F0T0014
224
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Maximum speed index for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (capacity)
Load index (capacity)
60 = 250 kg 84 = 500 kg
61 = 257 kg 85 = 515 kg
62 = 265 kg 86 = 530 kg
63 = 272 kg 87 = 545 kg
64 = 280 kg 88 = 560 kg
65 = 290 kg 89 = 580 kg
66 = 300 kg 90 = 600 kg
67 = 307 kg 91 = 615 kg
68 = 315 kg 92 = 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94 = 670 kg
71 = 345 kg 95 = 690 kg
72 = 355 kg 96 = 710 kg
73 = 365 kg 97 = 730 kg
74 = 375 kg 98 = 750 kg
75 = 387 kg 99 = 775 kg
Load index (capacity)
76 = 400 kg 100 = 800 kg
77 = 412 kg 101 = 825 kg
78 = 425 kg 102 = 850 kg
79 = 437 kg 103 = 875 kg
80 = 450 kg 104 = 900 kg
81 = 462 kg 105 = 925 kg
82 = 475 kg 106 = 950 kg
83 = 487 kg
