CAUTION!(Continued)
•Revving the engine or spinning the wheels too
fast may lead to transmission overheating and
failure. It can also damage the tires. Do not spin
the wheels above 30 mph (48 km/h) while in gear
(no transmission shifting occurring).
GEAR SELECTOR OVERRIDE
If a malfunction occurs and the gear selector cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the gear
selector:
1. Turn the engine OFF.
2. Firmly apply the parking brake.
3. Remove the gear selector override access cover (lo- cated on the right side of the gear selector housing)
by prying at the bottom edge of the cover. 4. Press and maintain firm pressure on the brake pedal.
5. Insert a small screwdriver or similar tool into the
access hole, and push and hold the override release
lever in.
6. Move the gear selector to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the gear selector override access cover.
Gear Selector Override Access Hole
6
WHAT TO DO IN EMERGENCIES 263

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing Condition Wheels OFF TheGroundAUTOMATIC
TRANSMISSION MANUAL
TRANSMISSION
Flat Tow NONENOT ALLOWED If transmission is oper-
able:
• Transmission in
NEUTRAL
• 65 mph (104 km/h)
max speed
Wheel Lift or Dolly Tow RearNOT ALLOWED NOT ALLOWED
Front OKOK
Flatbed ALLBEST METHOD BEST METHOD
Proper towing or lifting equipment is required to pre-
vent damage to your vehicle. Use only tow bars and
other equipment designed for this purpose, following
equipment manufacturer ’s instructions. Use of safety
chains is mandatory. Attach a tow bar or other towing
device to main structural members of the vehicle, not to bumpers or associated brackets. State and local laws
regarding vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/
RUN mode.
264 WHAT TO DO IN EMERGENCIES

CAUTION!
•Do not use sling-type equipment when towing.
Vehicle damage may occur.
•
When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
Automatic Transmission
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).
If the ignition key is unavailable, or the vehicle’s battery
is discharged, refer to “Gear Selector Override” in this
section for instructions on shifting the transmission out
of PARK in order to move the vehicle.
CAUTION!
• DO NOT flat tow any vehicle equipped with an
automatic transmission. Damage to the drivetrain
will result. If these vehicles require towing, make
sure all drive wheels are OFF the ground.
(Continued)
CAUTION! (Continued)
•Towing this vehicle in violation of the above
requirements can cause severe transmission dam-
age. Damage from improper towing is not covered
under the New Vehicle Limited Warranty.
Manual Transmission
• Vehicle can be flat towed (all four wheels on the
ground) with the transmission in NEUTRAL.
• Vehicle can be towed with the front wheels elevated.
• Vehicle can be towed on a flatbed truck (all wheels off
the ground).
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe engine and/or transmission
damage. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 265

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed.
266 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 1.4L TURBO . . .269

ONBOARD DIAGNOSTIC SYSTEM — OBD II . .270
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ...................... .270
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS ............271
 REPLACEMENT PARTS .................272
 DEALER SERVICE ....................272
 MAINTENANCE PROCEDURES ..........273
▫ Engine Oil ........................ .274
▫ Engine Oil Filter .....................275
▫ Engine Air Cleaner Filter ...............275
▫ Maintenance-Free Battery ..............276
▫ Air Conditioner Maintenance ............277
▫ Body Lubrication ....................281 ▫
Windshield Wiper Blades ..............281
▫ Adding Washer Fluid .................283
▫ Exhaust System .....................283
▫ Cooling System .....................285
▫ Brake System ...................... .290
▫ Manual Transmission — If Equipped ......291
▫ Automatic Transmission — If Equipped . . . .292
▫ Appearance Care And Protection From
Corrosion ......................... .293
 FUSES ............................ .299
▫ Interior Fuses ...................... .299
▫ Underhood Fuses ....................301
 VEHICLE STORAGE ...................304
 REPLACEMENT BULBS ................304
7

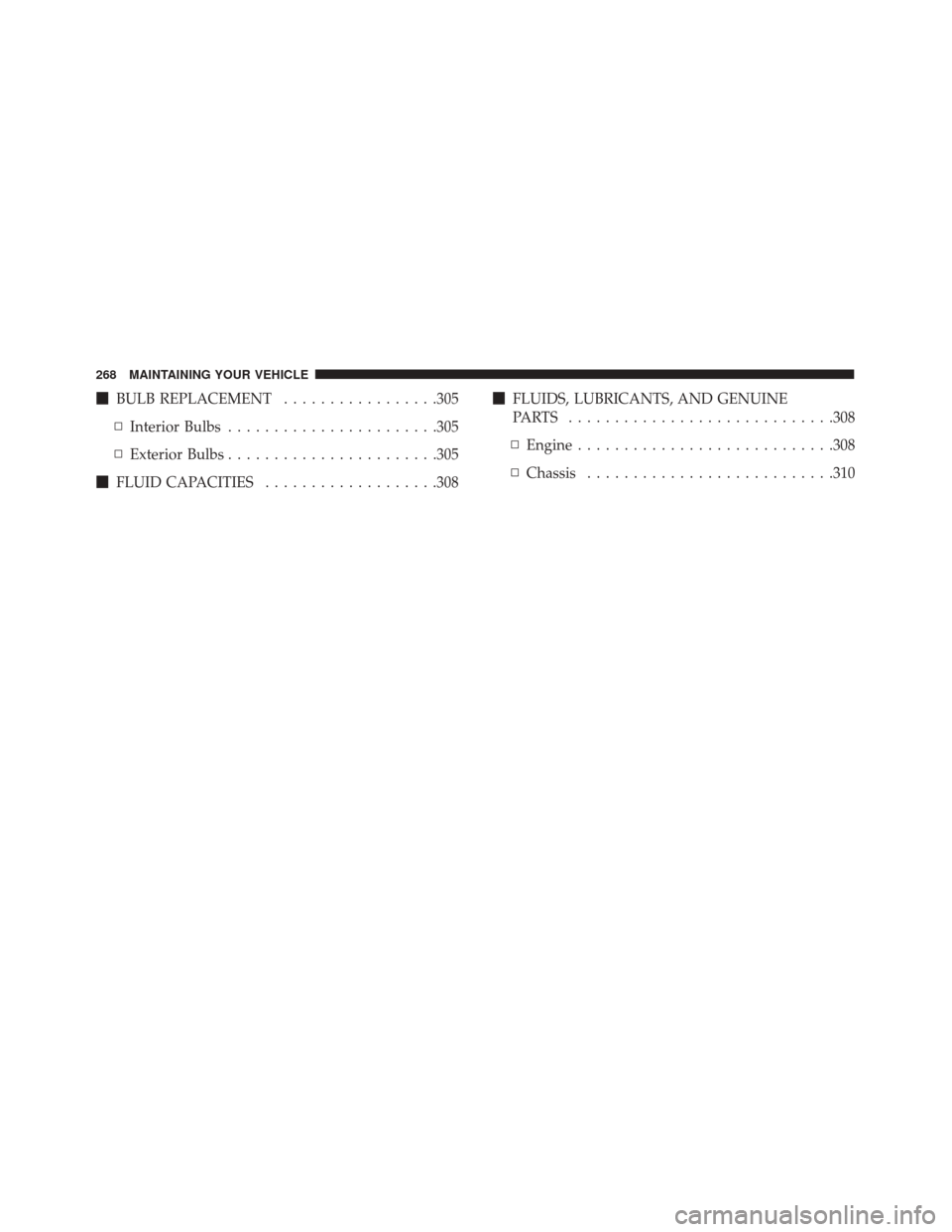

BULB REPLACEMENT .................305
▫ Interior Bulbs ...................... .305
▫ Exterior Bulbs ...................... .305
 FLUID CAPACITIES ...................308
FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................ .308
▫ Engine ........................... .308
▫ Chassis .......................... .310
268 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Battery
2 — Engine Oil Dipstick 6 — Engine Oil Fill
3 — Brake Fluid Reservoir 7 — Washer Fluid Reservoir
4 — Front Distribution Unit (Fuses)
7
MAINTAINING YOUR VEHICLE 269

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated Onboard
Diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II
system will turn on the Malfunction Indicator Light
(MIL). It will also store diagnostic codes and other
information to assist your service technician in making
repairs. Although your vehicle will usually be drivable
and not need towing, see your authorized dealer for
service as soon as possible.
CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emis-
sions tests can be performed.
• If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Onboard Diagnostic System (OBD II)
Cybersecurity
Your vehicle is required to have an Onboard Diagnostic
system (OBD II) and a connection port to allow access to
information related to the performance of your emis-
sions controls. Authorized service technicians may need
to access this information to assist with the diagnosis
and service of your vehicle and emissions system.
