2017 FIAT 500 ABARTH CABRIO Owners Manual

To Lock The Doors And Liftgate
Push and release the LOCK button on the key fob to
lock all doors and the liftgate. The turn signal lights will
flash and the horn will chirp to acknowledge the signal.
Programming Additional Key Fobs
Refer to “Sentry Key” in “Things To Know Before
Starting” for further information.
If you do not have a programmed key fob, contact your
authorized dealer for details.
Key Fob Battery Replacement
NOTE:Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate The recommended replacement battery is CR2032.
1. Push the mechanical key release button and release
the mechanical key to access the battery case screw
located on the side of the key fob.
Mechanical Key Release Button
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

2. Rotate the screw located on the side of the key fobusing a small screwdriver.
3. Take out the battery case. Remove and replace the battery observing its polarity. 4. Refit the battery case inside the key fob and turn the
screw to lock it into place.
Key Fob Screw Location
Battery Case Removed
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
DOOR LOCKS
The door locks can be manually locked or unlocked
from inside the vehicle by using the door handle. If the
door handle is pushed a red lock indicator will show on
the door handle (indicating locked) when the door is
closed, the door will lock.
WARNING!
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up
may cause serious injury or death.
• For personal security and safety in the event of a
collision, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.
• Before exiting a vehicle, always shift the auto-
matic transmission into PARK or the manual
transmission into FIRST gear or REVERSE, apply
(Continued)
Driver ’s Door Lock Handle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

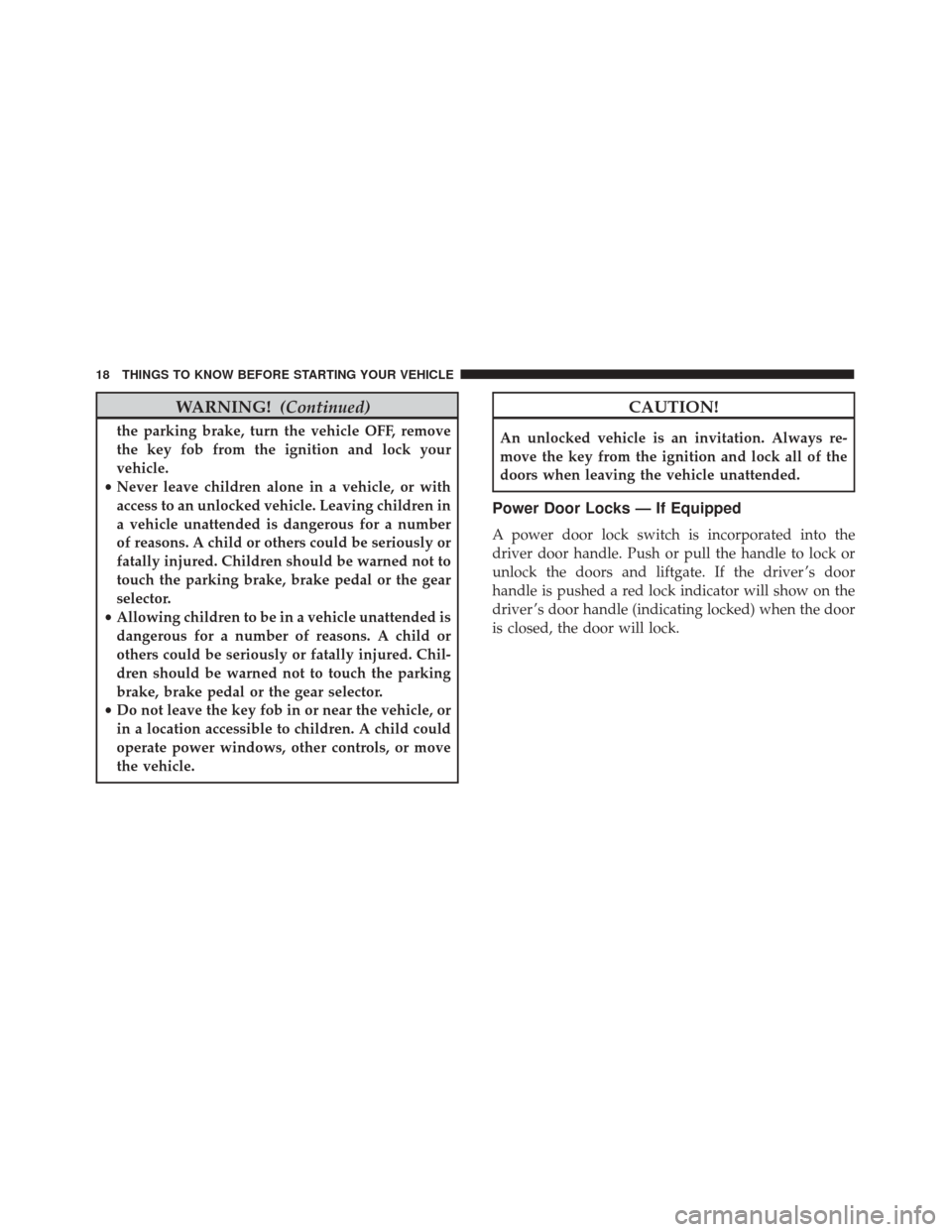

WARNING!(Continued)
the parking brake, turn the vehicle OFF, remove
the key fob from the ignition and lock your
vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in
a vehicle unattended is dangerous for a number
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the key fob in or near the vehicle, or
in a location accessible to children. A child could
operate power windows, other controls, or move
the vehicle.
CAUTION!
An unlocked vehicle is an invitation. Always re-
move the key from the ignition and lock all of the
doors when leaving the vehicle unattended.
Power Door Locks — If Equipped
A power door lock switch is incorporated into the
driver door handle. Push or pull the handle to lock or
unlock the doors and liftgate. If the driver ’s door
handle is pushed a red lock indicator will show on the
driver ’s door handle (indicating locked) when the door
is closed, the door will lock.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:To prevent the key from being locked in the
vehicle, the doors will automatically unlock if the
driver’s door handle is pushed when the key is in the
ignition.Auto Door Locks
When enabled, the door locks will lock automatically
when the vehicles speed exceeds 12 mph (20 km/h).
NOTE: Use the Automatic Door Locks feature in accor-
dance with local laws.
Refer to “Uconnect Settings” in “Understanding Your
Instrument Panel” for further information.
POWER WINDOWS
Power Window Switches
There are single window controls located on the shifter
bezel, below the climate controls, which operate the
driver and passenger door windows. The window
controls will operate when the ignition switch is in the
ON/RUN position.
WARNING!
Never leave children unattended in a vehicle, and
do not let children play with power windows. Do
not leave the key fob in or near the vehicle, or in a
(Continued)
Driver ’s Power Door Lock Handle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

WARNING!(Continued)
location accessible to children. Occupants, particu-
larly unattended children, can become entrapped
by the windows while operating the power window
switches. Such entrapment may result in serious
injury or death.
Auto-Down
The driver’s door window switch has an Auto-Down
feature. Push the window switch for approximately one
second, release, and the window will go down auto-
matically. To cancel the Auto-Down movement, operate
the switch in either the up or down direction and
release the switch.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal
occurrence and can be minimized. If the buffeting
occurs with the sunroof open, adjust the sunroof open-
ing to minimize the buffeting or open any window.
LIFTGATE
To unlock the liftgate, use the key fob or activate the
power door lock switches located on the driver door
handle.
To open the liftgate, squeeze the liftgate release handle
and pull the liftgate open with one fluid motion.Power Window Switches
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
• If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
Do not use the recirculation mode. NOTE:
Gas props support the liftgate in the open
position. However, because the gas pressure drops with
temperature, it may be necessary to assist the props
when opening the liftgate in cold weather.
OCCUPANT RESTRAINT SYSTEMS
Some of the most important safety features in your
vehicle are the restraint systems.
Occupant Restraint Systems Features
• Seat Belt Systems
• Supplemental Restraint Systems (SRS) Air Bags
• Child Restraints
Some of the safety features described in this section
may be standard equipment on some models, or may be
optional equipment on others. If you are not sure, ask
your authorized dealer.
Important Safety Precautions
Some of the safety features described in this section
may be standard equipment on some models, or may be
optional equipment on others. If you are not sure, ask
your authorized dealer.
Liftgate Handle
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

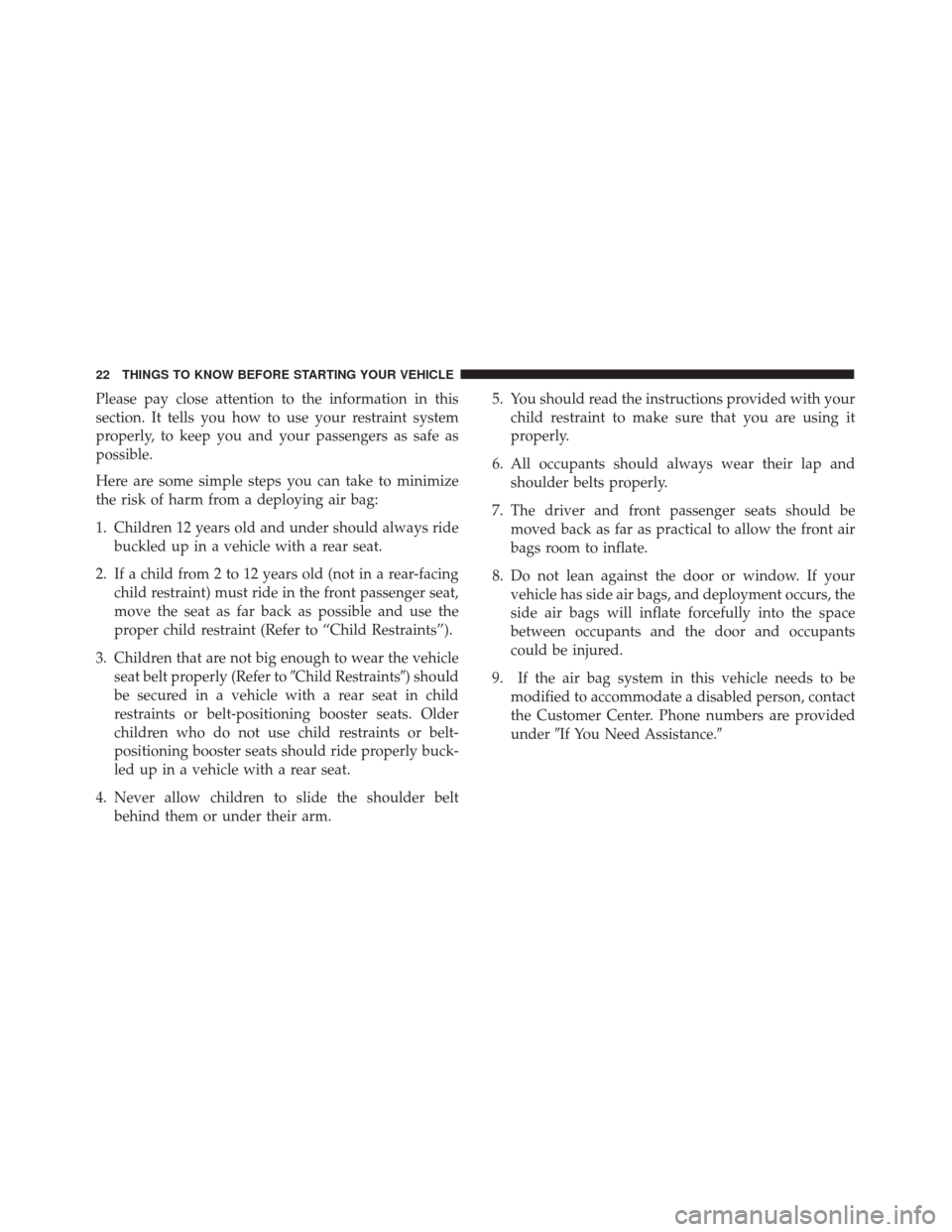

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.
Here are some simple steps you can take to minimize
the risk of harm from a deploying air bag:
1. Children 12 years old and under should always ridebuckled up in a vehicle with a rear seat.
2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat,
move the seat as far back as possible and use the
proper child restraint (Refer to “Child Restraints”).
3. Children that are not big enough to wear the vehicle seat belt properly (Refer to Child Restraints) should
be secured in a vehicle with a rear seat in child
restraints or belt-positioning booster seats. Older
children who do not use child restraints or belt-
positioning booster seats should ride properly buck-
led up in a vehicle with a rear seat.
4. Never allow children to slide the shoulder belt behind them or under their arm. 5. You should read the instructions provided with your
child restraint to make sure that you are using it
properly.
6. All occupants should always wear their lap and shoulder belts properly.
7. The driver and front passenger seats should be moved back as far as practical to allow the front air
bags room to inflate.
8. Do not lean against the door or window. If your vehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between occupants and the door and occupants
could be injured.
9. If the air bag system in this vehicle needs to be modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under If You Need Assistance.
