2017 DODGE GRAND CARAVAN display

•Key Not Programmed
• Vehicle Not In Park
• Key Left Vehicle
• Key Not Detected
• Press Brake Pedal And Push Button To Start
• Liftgate Ajar (Chime Will Sound When Vehicle Starts
Moving)
• Low Tire Pressure
• Service Tpm System (Refer To “Tire Pressure Monitoring
System” In “Starting And Operating”)
• Tire Pressure Screen With Low Tire(S) “Inflate Tire To
Xx”
• Turn Signal On
• Battery Low
• Service Keyless System
• Low Washer Fluid
• Oil Change Required
• Check Gascap •
Left Front Turn Signal Light Out
• Left Rear Turn Signal Light Out
• Right Front Turn Signal Light Out
• Right Rear Turn Signal Light Out
• Park Assist Disabled
• Service Park Assist System
• Personal Settings Not Available — Vehicle Not In Park
• Blind Spot System Off — This message is displayed
when the ignition is turned to ON to indicate the Blind
Spot System has been turned off.
• Blind Spot System Not Available — This message is
displayed to indicate the Blind Spot Monitor (BSM)
system is temporarily unavailable due to sensor block-
age, electronic interference, or other temporarycondi-
tions. When this message is displayed, both outside rear
view icons will be illuminated. If electronic interference
is present, the BSM system will illuminate the icon only
on the side of interference as long as interference is
present.
• Service Blind Spot System — This message is displayed
to indicate the Blind Spot Monitor (BSM) system is
262 UNDERSTANDING YOUR INSTRUMENT PANEL

permanently unavailable. The driver will receive an
Instrument Cluster Display message and the BSM dis-
play warning in both mirrors will be permanently
illuminated. If this message is present, see an authorized
dealer.
Oil Change Required
Your vehicle is equipped with an engine oil change indi-
cator system. The Oil Change Required message will
display in the Instrument Cluster Display for approxi-
mately 10 seconds, after a single chime has sounded, to
indicate the next scheduled oil change interval. The engine
oil change indicator system is duty-cycle based, which
means the engine oil change interval may fluctuate depen-
dent upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition to the ON/RUN position or
cycle the ignition to the ON/RUN position if equipped
with Keyless Enter-N-Go. To turn off the message tempo-
rarily, push and release the BACK button. To reset the oil
change indicator system (after performing the scheduled
maintenance) refer to the following procedure.Vehicles Equipped With Keyless Enter-N-Go
1. Without pressing the brake pedal, push the ENGINE
START/STOP button and cycle the ignition to the ON/
RUN position (do not start the engine).
2. Fully press the accelerator pedal, slowly, three times within 10 seconds.
3. Without pressing the brake pedal, push the ENGINE START/STOP button once to return the ignition to the
OFF/LOCK position.
Vehicles Not Equipped With Keyless Enter-N-Go
1. Turn the ignition to the ON/RUN position (do not start the engine).
2. Fully press the accelerator pedal, slowly, three times within 10 seconds.
3. Turn the ignition to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you start
the engine, the oil change indicator system did not reset. If
necessary, repeat these steps.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 263

Fuel Economy
Push and release theUPorDOWNarrow button
until “Fuel Economy” displays highlighted in the In-
strument Cluster Display and push the RIGHT
ar-
row button. The following Fuel Economy functions
display in the Instrument Cluster Display:
• Average Fuel Economy (MPG or L/100 km)
• Distance To Empty (mi or km)
• Current Fuel Economy (MPG or L/100 km)
Average Fuel Economy
Shows the average fuel economy since the last reset. The
Average Fuel Economy can be reset by following the
prompt in the Instrument Cluster Display to use the
RIGHT button. When the fuel economy is reset, the display
will read “zero” for two seconds. Then, the history infor-
mation will be erased, and the averaging will continue
from the last fuel average reading before the reset.
Distance To Empty (DTE)
Shows the estimated distance that can be traveled with the
fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level. DTE cannot be reset through the RIGHT
arrow button.
NOTE:Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE displayed value.
Average Fuel Economy Display
264 UNDERSTANDING YOUR INSTRUMENT PANEL

When the DTE value is less than 30 miles (48 km) estimated
driving distance, the DTE display will change to a “LOW
FUEL” message. This display will continue until the ve-
hicle runs out of fuel. Adding a significant amount of fuel
to the vehicle will turn off the “LOW FUEL” message and
a new DTE value will display.
Current Fuel Economy (MPG or L/100 km)
This display shows the instantaneous MPG or L/100 km in
bar graph form while driving. This will monitor the gas
mileage in real-time as you drive and can be used to
modify driving habits in order to increase fuel economy.
Vehicle Speed
Push and release theUPorDOWNarrow button
until “Vehicle Speed” displays highlighted in the Instru-
ment Cluster Display and push the RIGHT
arrow
button. Push and release the RIGHT
arrow button to
display the current speed in mph or km/h. Pushing the
RIGHT
arrow button a second time will toggle the
unit of measure between mph or km/h.
NOTE: Changing the unit of measure in the Vehicle Speed
menu will not change the unit of measure in the Instrument
Cluster Display.
Trip Info
Push and release the UPorDOWNarrow button
until “Trip Info” is highlighted in the Instrument Cluster
Display and push the RIGHT
button. Push and
release the UP
orDOWNarrow button to high-
light one of the following functions.
Trip A
• Shows the total distance traveled for Trip A since the last
reset.
• Shows the elapsed time traveled for Trip A since the last
reset.
Trip B
•Shows the total distance traveled for Trip B since the last
reset.
• Shows the elapsed time traveled for Trip B since the last
reset.
Elapsed Time
Shows the total elapsed time of travel since the last reset
when the ignition switch is in the ACC position. Elapsed
time will increment when the ignition switch is in the ON
or START position.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 265

To Reset A Trip Function
Reset will only occur while a resettable function is selected
(highlighted). Push and hold the RIGHT button to clear the
resettable function being displayed.
Tire Pressure
Push and release theUPorDOWNarrow button
until “Tire PSI:” displays highlighted in the Instrument
Cluster Display. Push and release the RIGHT
arrow
button to view a graphic of the vehicle with a tire
pressure value at each corner of the graphic.
Units
Push and release the UPorDOWNarrow button
until “Units” displays highlighted in the Instrument
Cluster Display and push the RIGHT
arrow button.
The Instrument Cluster Display, odometer, and naviga-
tion system (if equipped) can be changed between
English and Metric units of measure. To make your
selection, scroll up or down until the preferred setting is
highlighted, then push and release the RIGHT
arrow
button until a check-mark appears next to the setting,
showing that the setting has been selected. Vehicle Info (Customer Information Features)
Push and release the
UPorDOWNarrow button
until “Vehicle Info” displays in the Instrument Cluster
Display. Then, push and release the RIGHT
arrow
button. Push and release the UP
orDOWNarrow
button to scroll through the available information dis-
plays, then push and release RIGHT
arrow button to
display any one of the following choices.
• Coolant Temp
Displays the actual coolant temperature.
• Oil Temp
Displays the actual oil temperature.
• Oil Pressure
Displays the actual oil pressure.
• Engine Hours
Displays the number of hours of engine operation.
Messages #
Select from Main Menu using the UPorDOWN
arrow button. This feature shows the number of
stored warning messages (in the # place holder). Push-
ing the RIGHT
arrow button will allow you to see
266 UNDERSTANDING YOUR INSTRUMENT PANEL

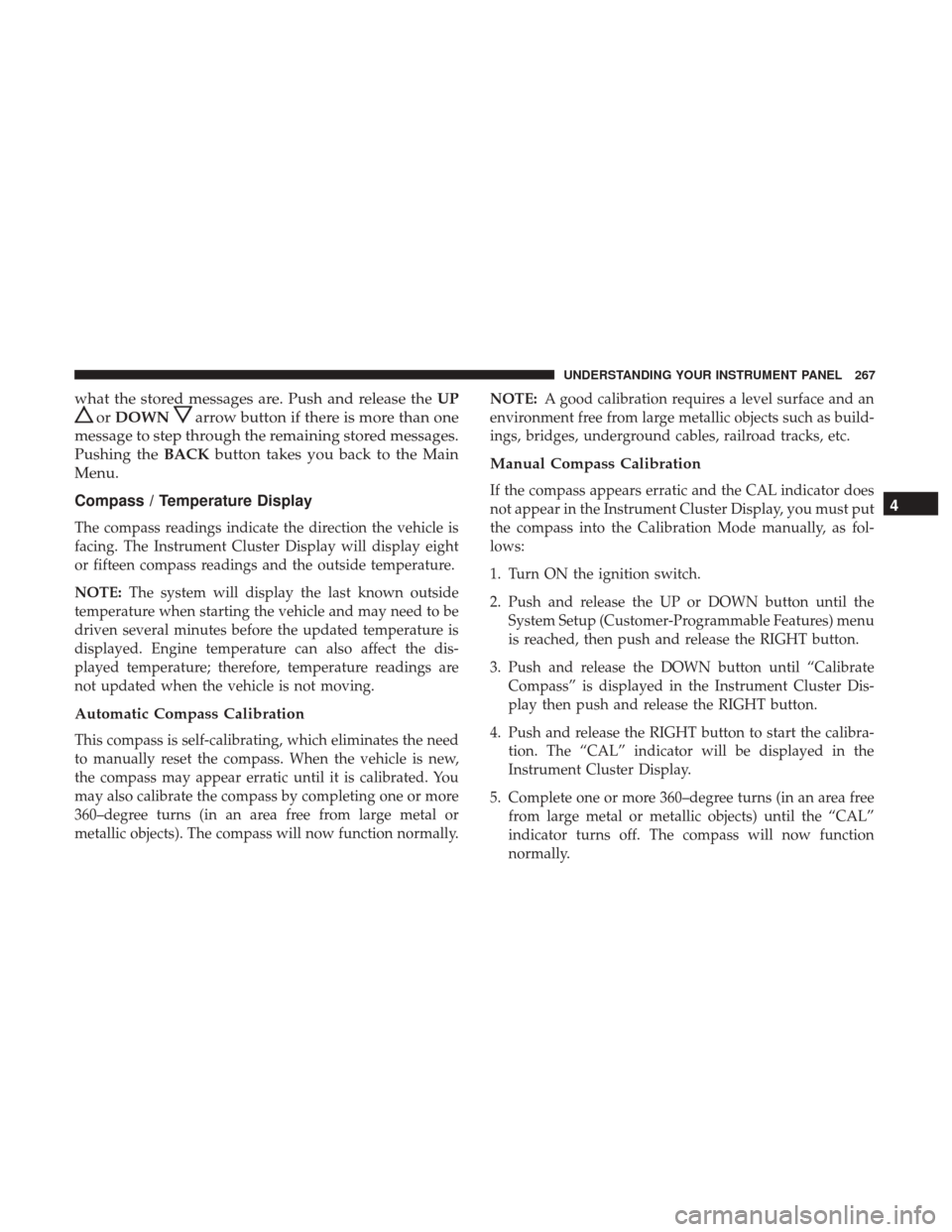

what the stored messages are. Push and release theUP
orDOWNarrow button if there is more than one
message to step through the remaining stored messages.
Pushing the BACKbutton takes you back to the Main
Menu.
Compass / Temperature Display
The compass readings indicate the direction the vehicle is
facing. The Instrument Cluster Display will display eight
or fifteen compass readings and the outside temperature.
NOTE: The system will display the last known outside
temperature when starting the vehicle and may need to be
driven several minutes before the updated temperature is
displayed. Engine temperature can also affect the dis-
played temperature; therefore, temperature readings are
not updated when the vehicle is not moving.
Automatic Compass Calibration
This compass is self-calibrating, which eliminates the need
to manually reset the compass. When the vehicle is new,
the compass may appear erratic until it is calibrated. You
may also calibrate the compass by completing one or more
360–degree turns (in an area free from large metal or
metallic objects). The compass will now function normally. NOTE:
A good calibration requires a level surface and an
environment free from large metallic objects such as build-
ings, bridges, underground cables, railroad tracks, etc.
Manual Compass Calibration
If the compass appears erratic and the CAL indicator does
not appear in the Instrument Cluster Display, you must put
the compass into the Calibration Mode manually, as fol-
lows:
1. Turn ON the ignition switch.
2. Push and release the UP or DOWN button until the System Setup (Customer-Programmable Features) menu
is reached, then push and release the RIGHT button.
3. Push and release the DOWN button until “Calibrate Compass” is displayed in the Instrument Cluster Dis-
play then push and release the RIGHT button.
4. Push and release the RIGHT button to start the calibra- tion. The “CAL” indicator will be displayed in the
Instrument Cluster Display.
5. Complete one or more 360–degree turns (in an area free from large metal or metallic objects) until the “CAL”
indicator turns off. The compass will now function
normally.4
UNDERSTANDING YOUR INSTRUMENT PANEL 267

Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly set,
the compass will automatically compensate for the differ-
ences, and provide the most accurate compass heading. For
the most accurate compass performance, the compass must
be set using the following steps.
NOTE:Keep magnetic materials away from the top of the
instrument panel, such as iPod’s, Mobile Phones, Laptops
and Radar Detectors. This is where the compass module is
located, and it can cause interference with the compass
sensor, and it may give false readings. 1. Turn the ignition switch ON.
2. Push and release the UP or DOWN button until the
Setup (Customer-Programmable Features) menu is
reached, then push the RIGHT button.
3. Push and release the DOWN button until the “Compass Variance” message is displayed in the Instrument Clus-
ter Display, then press the RIGHT button. The last
variance zone number displays in the Instrument Clus-
ter Display.
4. Push and release the RIGHT button until the proper variance zone is selected, according to the map.
Compass Variance Map
268 UNDERSTANDING YOUR INSTRUMENT PANEL

5. Push and release the RETURN button to exit.
Turn Menu Off
Push and release theRIGHTarrow button to turn the
menu off.
Customer-Programmable Features (System Setup)
Personal Settings allows you to set and recall features
when the transmission is in PARK. If the transmission is
out of PARK or the vehicle begins moving, a warning
message SYSTEM SETUP NOT AVAILABLE VEHICLE
NOT IN PARK displays when you try to select “System
Setup” from the main menu.
Push and release the UP
orDOWNarrow button
until System Setup is highlighted in the main menu of
the Instrument Cluster Display. Then, push and release
the RIGHT
arrow button to enter the System Setup
sub-menu. Push and release the UP
orDOWN
arrow button to select a feature form the following
choices.
Language
When in this display you may select one of three languages
for all display screens, including the trip functions and the
navigation system (if equipped). Push and release the UP
orDOWNarrow buttonn while in this display
and scroll through the language choices. Push and
release the RIGHT
arrow button to select English,
Spanish (Español), or French (Français). Then, as you
continue, the information will display in the selected
language.
Nav–Turn By Turn
When this feature is selected, the navigation system utilizes
voice commands, guiding you through the drive route mile
by mile, turn-by-turn, until the final destination is reached.
To make your selection, push and release the RIGHT
arrow button until a check-mark appears next to the
feature showing the system has been activated, or the
check-mark is removed showing the system has been
deactivated.
Enable/Disable The Rear Park Assist System — If
Equipped
The Rear Park Assist system will scan for objects behind
the vehicle when the transmission is in the REVERSE
position and the vehicle speed is less than 11 mph
(18 km/h). The system can be enabled with Sound Only,
Sound and Display, or turned OFF through the Instrument
Cluster Display. To make your selection, push and release
the RIGHT
arrow button until a check-mark appears 4
UNDERSTANDING YOUR INSTRUMENT PANEL 269
