With you, CITROËN acts to protect the
environment.
We invite you to visit the
www.citroen.co.uk website. As the driver, you also can contribute to
protecting the environment in the following
way:
-

drive smoothly
, without frequent and
harsh acceleration,
-

observe the service intervals; we

recommend that services are carried
out by a CITROËN dealer, authorised to
collect used batteries and fluids,
-

in order to preserve the reliability of the

engine and emission control systems,
do not use engine oil additives. Refer to information on eco-driving at
the end of this section.
1
OVErVIEW
Motoring & the Environment

12
EcO-drIVInG
Optimise the use of your gearbox
With a manual gearbox, move off gently
and change up without waiting. While
accelerating changing up early. If your
vehicle has the system, the gear efficiency
indicator invites you to engage the most
suitable gear; follow its instructions as
soon as it is displayed in the instrument
panel.
drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption
and CO
2 emissions and also helps reduce
the background traffic noise.
If your vehicle has cruise control, make
use of the system at speeds above 20 mph
(30 km/h) when the traffic is flowing well.
control the use of your electrical
equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down. Switch off the headlamps and front
foglamps when they are not needed for
safety.
Eco-driving is a range of everyday
practices that allow the motorist to optimise
their fuel consumption and CO
2 emissions.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.
Disconnect your portable devices before
leaving the vehicle.Switch off the air conditioning, unless it
has automatic digital regulation, as soon
as the desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Motoring & the Environment

13

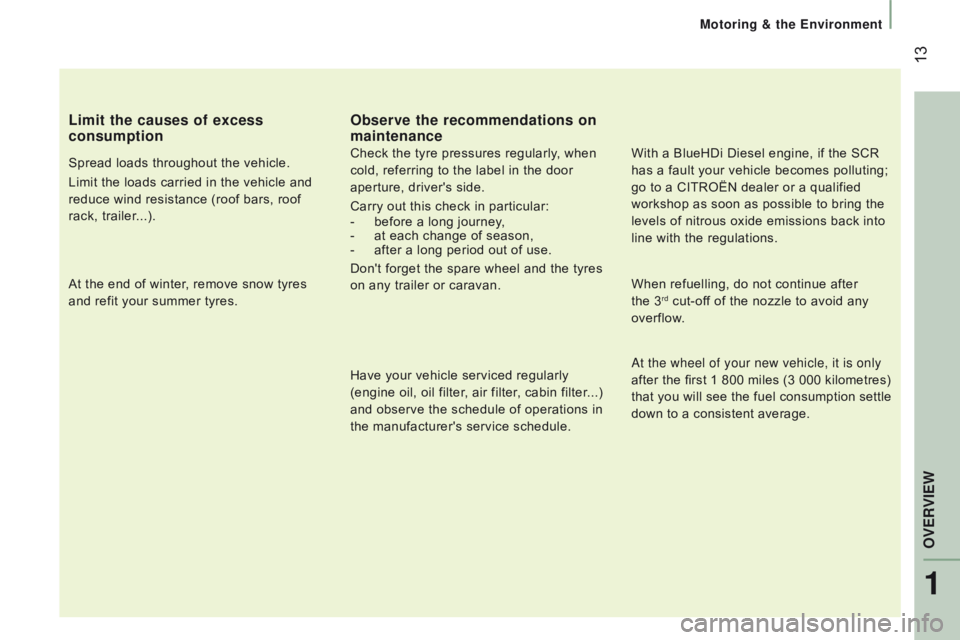

Limit the causes of excess
consumption
Spread loads throughout the vehicle.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, trailer...).
At the end of winter, remove snow tyres
and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-

at each change of season,
-


after a long period out of use.
Don't forget the spare wheel and the tyres


on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil filter, air filter, cabin filter...)
and observe the schedule of operations in
the manufacturer's service schedule. With a BlueHDi Diesel engine, if the SCR
has a fault your vehicle becomes polluting;
go to a CITROËN dealer or a qualified
workshop as soon as possible to bring the
levels of nitrous oxide emissions back into
line with the regulations.
When refuelling, do not continue after
the 3
rd cut-off of the nozzle to avoid any
overflow.
At the wheel of your new vehicle, it is only
after the first 1 800 miles (3 000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.
1
OVErVIEW
Motoring & the Environment

16
KEY
This locks and unlocks the vehicle's doors,
opens and closes the fuel filler cap, as well
as starting and stopping the engine.
rEMOtE cOntrOL BAtt E rY
Reference: CR 2032/3 volts.
changing the battery
- Press the button to eject the key .
-
T
urn the screw 1 from the closed
padlock to the open padlock using a
screwdriver with a thin lip.
-

Use the screwdriver as a lever to extract

the battery holder housing 2 .-

Remove the housing and change the

battery 3 observing the polarities.
-
Put the battery holder housing
2
back
inside the key and secure it by turning
the screw 1 .
There is a risk of damage if the
replacement battery is not of the
correct type.
Only use batteries which are identical or of
an equivalent type to those recommended
by a CITROËN dealer. Take used batteries
to an authorised collection point.
Access

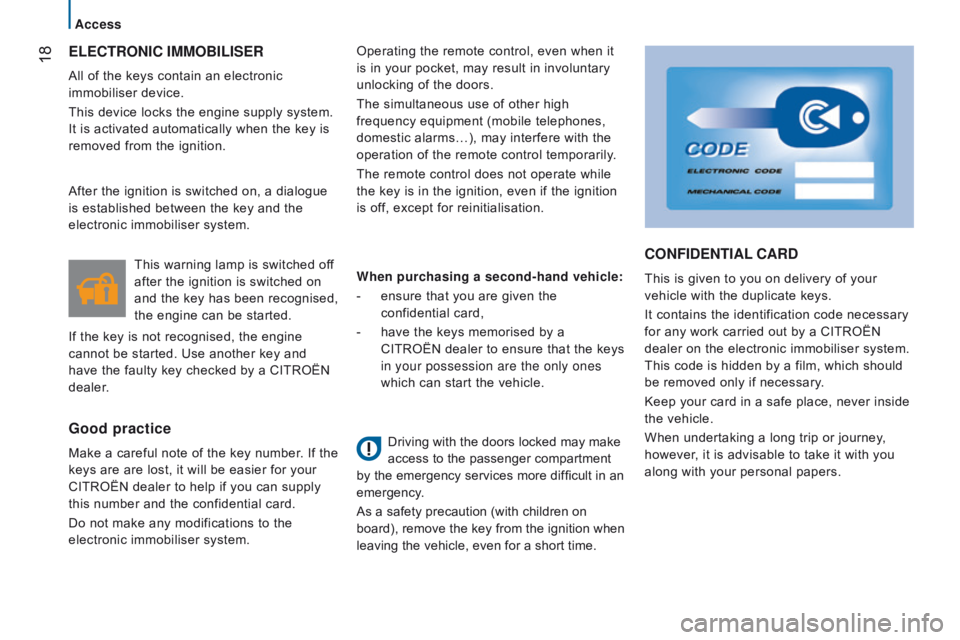

18ELEctrOnIc IMMOBILISEr
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the key number. If the
keys are are lost, it will be easier for your
CITROËN dealer to help if you can supply
this number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer. After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
cOnFIdEntIAL cArd
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
When purchasing a second-hand vehicle:
-

ensure that you are given the


confidential card,
-

have the keys memorised by a


CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more difficult in an
emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.
Access

19remote control fault
Unlock the doors by using the key in the
door lock; the alarm is triggered.
Switch on the ignition, recognition of the
key's code turns off the alarm.Locking the doors by using the key in
the door lock does not set the alarm.
deactivation using the remote control
When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.
deactivation of the anti-tilt
protection*
Press this control to deactivate
the protection (when towing the
vehicle with the alarm on, for
example).
The protection remains active until the doors
are unlocked with the central locking.
ALArM
If your vehicle is fitted with an anti-theft
alarm.
This provides:
-

exterior perimeter protection by

detectors on the openings (doors,
bonnet) and on the electrical power
supply,
-

anti-tilt protection*.
Activation of the alarm
First ensure that all of the doors and bonnet
are closed correctly.
*
Depending on engine.
Good practice
to deactivate the siren quickly following
a false alarm:
-

switch on the ignition, recognition of the

key's code will switch off the alarm,
-

press the unlocking button (cab and key)

on the remote control.
To avoid setting the alarm, when washing
the vehicle for example, lock the vehicle
using the key.
Unlocking the vehicle using the remote
control deactivates the siren automatically.
The alarm is set by pressing this
padlock, the protection is active
after a few seconds.
While the alarm is monitoring,
any intrusion triggers the siren for
approximately 30 seconds, accompanied by
illumination of the direction indicators.
The alarm then returns to
monitoring mode but the
triggering event is stored and is
indicated by illumination of the
electronic immobiliser warning lamp for about
10

seconds when the ignition is switched on.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.
2
Access
