2017 Citroen GRAND C4 PICASSO RHD engine

131
Label on door panel
Before leaving the vehicle, check
that the parking brake is applied: the
indicator lamps in the instrument panel
and the control lever must be on fixed,
not flashing.
If the parking brake is not applied, there
is an audible signal and a message is
displayed on opening the driver's door.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.When towing, parking on a steep slope,
or if your vehicle is heavily laden,
turn the wheels towards the kerb and
engage a gear (with a manual gearbox)
or place the gear selector at position
P
with an automatic gearbox.
For towing, your vehicle is approved for
parking on slopes of up to 12%.
Manual operation
Application of the parking brake is confirmed
by illumination of the brake indicator lamp
and the
P indicator lamp in the control lever,
accompanied by the display of the message
"Parking brake applied".
Manual release
With the ignition on or the engine running, to
release the parking brake:
F

p
ress the brake pedal,
F

w
hile maintaining pressure on the brake
pedal, briefly push the control lever.
The complete release of the parking brake
is confirmed by the brake indicator lamp and
the
P indicator lamp in the control lever going
off, accompanied by the display of the message
"Parking brake released".
If you push the control lever without
pressing the brake pedal, the parking
brake will not be released and a
message is displayed.
Manual application
With the vehicle stationary: briefly pull the control lever.
Confirmation of the command is signalled by
flashing of the indicator lamp in the control
l eve r.
4
Driving

132
With the vehicle stationary, the parking brake
is automatically applied when the engine
is switched off by pressing the START/STOP
button.Application of the parking brake
is confirmed by illumination of the
brake indicator lamp and the P
indicator lamp in the control lever,
accompanied by the display of the
message "Parking brake applied".
With the engine stalled or in STOP
mode of Stop & Start, automatic
application does not take place.
In automatic mode, you can manually
apply or release the parking brake using
the control lever.
Automatic operation
Automatic release
The complete release of the parking
brake is confirmed by the brake
indicator lamp and the P indicator
lamp in the control lever going off,
accompanied by the display of the
message "Parking brake released".
When stationary with the engine running, do not
depress the accelerator pedal unnecessarily,
you risk releasing the parking brake.
Ensure first that the engine is running and the
driver's door is properly closed.
The electric parking brake releases
automatically and progressively when you
press the accelerator:
F

M
anual gearbox: fully depress the clutch
pedal, engage 1
st or reverse gear; press
the accelerator pedal and let up the clutch
pedal.
F

A

utomatic gearbox: select position D , M or
R then press the accelerator.
Automatic application
With an automatic gearbox, if the brake
does not release automatically, check
that the front doors are correctly closed.
Driving

133
Special cases
Application of the parking brake
is confirmed by illumination of
the brake indicator lamp and
the P indicator lamp in the control
lever, accompanied by the display of
the message "Parking brake applied". The complete release of the parking
brake is confirmed by the brake
indicator lamp and the P indicator
lamp in the control lever going off,
accompanied by the display of the
message "Parking brake released".
In some situations, you may need to operate
the parking brake manually.
Immobilisation of the vehicle
with the engine running
To immobilise the vehicle with the engine
running, briefly pull the control lever.
Parking the vehicle with the
brake released
In very cold conditions, it is
recommended that the parking brake
not be applied (risk of freezing).
To immobilise your vehicle, engage a
gear or fit a chock to one of the wheels.
Immobilisation of the vehicle with the
parking brake released
F

S

witch off the engine.
I

llumination of the warning lamps in the
instrument panel and control lever confirm
application of the parking brake,
F

S

witch on the ignition again, without
starting the engine.
F

R

elease the parking brake manually by
pushing the control lever while keeping
your foot on the brake. F

S
witch off the ignition.
4
Driving

134
Emergency braking
In the event of a failure of the main service
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc.) a continuous
pull on the control lever will brake the vehicle.
Braking takes place while the control lever is
being pulled. It is interrupted if the control lever
is released.
The ABS and DSC systems provide stability of
the vehicle during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed.
If a failure of the ABS and DSC systems occurs,
signalled by the illumination of one or both
warning lamps in the instrument panel, then
stability of the vehicle is no longer guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever until the vehicle is
immobilised.The emergency braking should only be
used in an exceptional situation.
Repeat this procedure to reactivate automatic
operation.
Reactivation of automatic operation is
confirmed by the indicator lamp in the
instrument panel going off.
Deactivating automatic operation
In some situations, such as very cold weather
or towing (caravan, recovery), it may be
necessary to deactivate automatic operation of
the system.
F

S
tart the engine.
F

A
pply the parking brake with the control
lever, if it is released.
F

T
ake your foot off the brake pedal.
F

P
ush and hold the control lever in the
release direction for at least 10 seconds
and no more than 15 seconds.
F

R
elease the control lever.
F

P
ress and hold the brake pedal.
F

P
ull the control lever in the apply direction
for 2 seconds.
Deactivation of the automatic functions
is confirmed by illumination of this
indicator lamp in the instrument panel.
F

R
elease the control lever and the brake
pedal. From this point the parking brake can only
be applied and released manually using the
control lever.
Driving

135
Operating faults
The various alert situations are described in the table below.
In the event of a fault with the electric parking brake it is recommended that you contact a CITROËN dealer or a qualified workshop without delay.Situations Consequences
Display of the message " Parking brake fault" and this
warning lamp: -

A
utomatic release is not available.
-

I
f you attempt an automatic release, a help message is displayed on acceleration
when the parking brake is applied, prompting you to use manual release.
Display of the message " Parking brake fault" and these
warning lamps: -

S
econdary braking does not have full power.
-

I
f automatic release is not available, a help message is displayed on acceleration
when the parking brake is applied, prompting you to use manual release.
Display of the message " Parking brake fault" and these
warning lamps: -

A
utomatic application is not available: use the control lever.
-

T
he electric parking brake can only be used manually.
-

I
f automatic release is also not available, a help message is displayed on
acceleration when the parking brake is applied, prompting you to use manual
release.
Display of the message " Parking brake fault" and these
warning lamps: -

I
f manual application and release do not work, the control lever is faulty.
-

T
he automatic functions must be used in all circumstances: they are
automatically reactivated in the event of failure of the control lever.
-

Y
ou can no longer immobilise the vehicle with the engine running.
4
Driving

137
Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
moving off on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
This system only operates when:
-
t
he vehicle is completely stationary, with
your foot on the brake pedal,
-

c
ertain conditions of slope are met,
-

w
ith the driver’s door closed.
The hill start assist system cannot be
deactivated.
On an ascending slope, with the vehicle
stationary, the vehicle is held momentarily
when you release the brake pedal:
-

p
rovided you are in first gear or neutral with
a manual gearbox,
-

p
rovided you are in position D or M with an
automatic gearbox.Operation
On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a fault in the system occurs, these warning
lamps come on, accompanied by an alert
message. Contact a CITROËN dealer or
a qualified workshop to have the system
checked.
Do not get out of the vehicle while it is
being held in the hill start assist phase.
If you have to get out of the vehicle with
the engine running, apply the parking
brake manually then ensure that the
parking brake warning lamp (and the
warning lamp
P in the lever of the
electric parking brake) are on fixed (not
flashing).
4
Driving

138

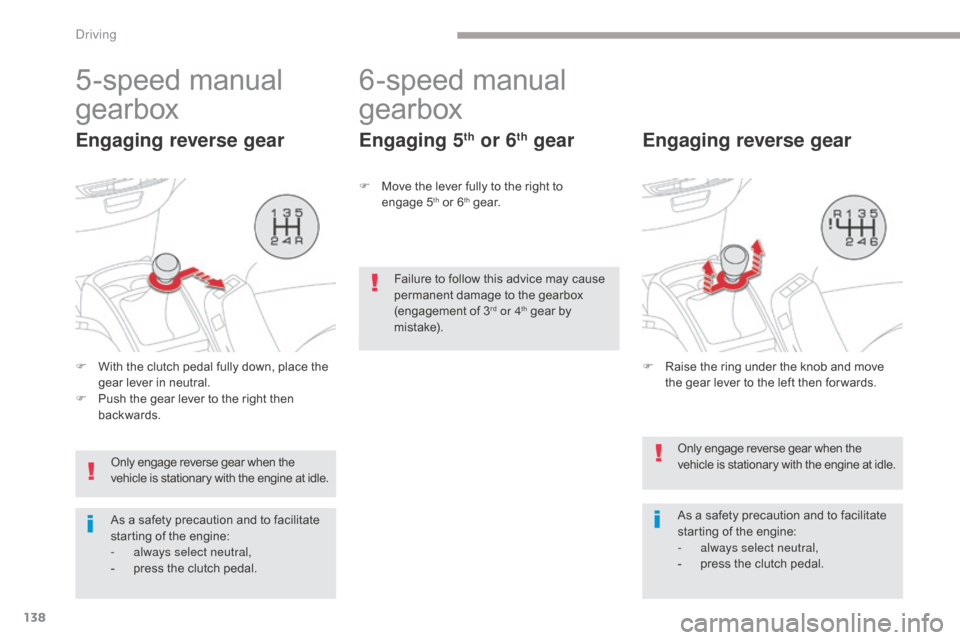

5-speed manual
gearbox
Engaging reverse gear
F With the clutch pedal fully down, place the gear lever in neutral.
F

P
ush the gear lever to the right then
backwards.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
6-speed manual
gearbox
Engaging 5th or 6th gear
F Move the lever fully to the right to engage 5th or 6th g e a r.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
Engaging reverse gear
Failure to follow this advice may cause
permanent damage to the gearbox
(engagement of 3
rd or 4th gear by
m i st a ke).
F

R
aise the ring under the knob and move
the gear lever to the left then for wards.
Driving

139
Automatic gearbox
This gearbox offers two driving modes.
- a utomated mode for automatic
management of the gears by the gearbox,
without any action on the part of the driver,
-

m
anual mode for sequential gear changing
by the driver using the steering mounted
paddles.
P.
Pa

rk.
-

I
mmobilisation of the vehicle, parking brake
applied or released.
-

S
tarting the engine.
R.
R

everse.
-

R
eversing, vehicle stationary and engine at
idle.
N.
N

eutral.
-

I
mmobilisation of the vehicle, parking brake
applied.
-

S
tarting the engine.
D.
A

utomatic operation.
M.
M

anual operation with sequential changing
of the six gears.Gear selector lever
To select position P , move the gear
selector to the highest position
(towards
R )

, then push it for wards and
then to the left.
Only engage it when the vehicle is at a
complete stop. In this position, the front
wheels are locked. Ensure that the gear
selector is correctly positioned.
To move the gear selector, switch on
the ignition or start the engine.
If the battery is not sufficiently charged,
it is not possible to move the gear
selector. To come out of position P , move the
gear selector to the right to the desired
position, while keeping your foot on the
brake pedal.
It is possible to change from one mode
to the other at any time.
With the automated mode, you can
temporarily take control of the gear
changes at any time.
4
Driving
