Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip recorder
It measures the distance travelled since it was
reset by the driver.
F
W
ith the ignition on, press the button until
zeros appear.
Touch screen
The touch screen gives access to:
- t he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
and, depending on equipment, allows:
-

t
he display of alert messages and the visual
parking sensors information,
-

t
he permanent display of the time and the
exterior temperature (a blue warning lamp
appears when there is a
risk of ice),
-

a
ccess to the internet ser vices and
navigation system controls and the display
of associated information.
As a
safety measure, the driver should
only carry out operations that require
close attention with the vehicle
stationary.
Some functions are not accessible when
driving.
General operation
Recommendations
Use is possible in all temperatures.
Principles
Use the buttons on each side of the touch
screen to access the menus, then use the
buttons that appear on the touch screen.
Certain functions may be displayed over 1
or
2


pages.
To deactivate/activate a
function, press OFF/
ON.
To modify a
setting (lighting duration, etc.) or
find additional information, press the symbol for
the function.
After a
few moments with no action on
the secondary page, the primary page is
displayed automatically.
Use this button to confirm.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Use a
soft clean cloth to clean the touch
screen.
Use this button to return to the
previous page.
1
Instruments

32
Menus
For more information on Heating, Manual
air conditioning and Automatic air
conditioning , refer to the corresponding
sections.
Upper bar
* Depending on equipment Certain information is always present in the
upper bar of the touch screen:
-
S
ummary of air conditioning information and
access to the simplified menu (temperature
and air flow adjustment only).
-
S
ummary of information from the Radio
Media , Telephone menus and navigation
instructions*.
-
N
otifications zone (texts and email)*.
Air conditioning.
Allows adjustment of the various
settings for temperature, air flow,
etc.
Connected navigation.
See the "Audio and telematics" section.
Radio Media.
See the "Audio and telematics" section. Telephone.
See the "Audio and telematics" section.
Applications.
Enables the trip computer to
be displayed with the digital
monochrome instrument panel.
See the "Audio and telematics" section. Driving.
Allows the activation, deactivation
and adjustment of settings for
certain functions.
The functions accessible from this menu are
arranged under two tabs: " Vehicle settings"
and " Driving functions ".
Volume control/mute.
See the "Audio and telematics"
section. Access to Configuration
.
Instruments

34
FamiliesFunctions with CITROËN Connect Radio Functions with CITROËN Connect Nav
Comfort -

"
Rear wiper in reverse": activation/deactivation of the
rear wiper on with reverse gear.
-
"

Mood lighting": activation/deactivation of the interior
ambient lighting.
-
"

Mirror adaptation in reverse": activation/deactivation
of the automatic mirror tilt when engaging reverse
g e a r. -

"
Rear wiper in reverse": activation/deactivation of the
rear wiper on with reverse gear.
-
"

Guide-me-home lighting": activation/deactivation of
automatic guide-me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior
welcome lighting.
-
"

Mood lighting": activation/deactivation of the interior
ambient lighting.
-
"

Mirror adaptation in reverse": activation/deactivation
of the automatic mirror tilt when engaging reverse
g e a r.
Security -
"

Collision risk alert": activation/deactivation of the
collision risk alert.
-
"

Recommended speed display": activation/
deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of
the driver fatigue detection system. -
"

Collision risk alert": activation/deactivation of the
collision risk alert.
-
"

Recommended speed display": activation/
deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of
the driver fatigue detection system.
For more information on one of these
functions, refer to the corresponding
section.
Instruments

36
The functions available through the
upper menu bar are detailed in the
table below. Certain settings can be
accessed on the second page.

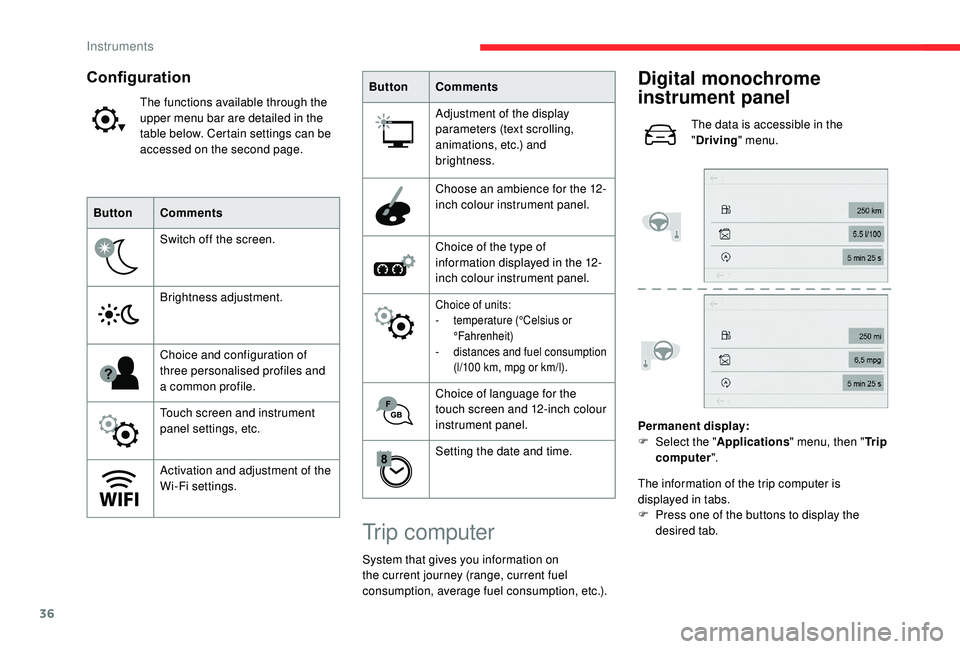

Configuration
ButtonComments
Switch off the screen.
Brightness adjustment.
Choice and configuration of
three personalised profiles and
a


common profile.
Touch screen and instrument
panel settings, etc.
Activation and adjustment of the
Wi-Fi settings. Button
Comments
Adjustment of the display
parameters (text scrolling,
animations, etc.) and
brightness.
Choose an ambience for the 12-
inch colour instrument panel.
Choice of the type of
information displayed in the 12-
inch colour instrument panel.
Choice of units:
- t
emperature (°Celsius or
°Fahrenheit)
-

d
istances and fuel consumption
(l/100
km, mpg or km/l).
Choice of language for the
touch screen and 12-inch colour
instrument panel.
Setting the date and time.
Trip computer
System that gives you information on
the current journey (range, current fuel
consumption, average fuel consumption, etc.).
Digital monochrome
instrument panel
The data is accessible in the
"Driving " menu.
Permanent display:
F

Sel

ect the " Applications " menu, then " Tr i p
computer ".
The information of the trip computer is
displayed in tabs.
F

P

ress one of the buttons to display the
desired tab.
Instruments

37
F When the desired trip is displayed, press the reset button or on the end of the wiper
control stalk.
Tr i p s " 1" and " 2" are independent and are used
identically.
For example, trip 1 can be used for daily
calculations, and trip 2 for monthly calculations.
12" colour instrument panel
Display of data on the instrument
panel
Trip computer data is displayed permanently
when you select the "Dials" or "Personal"
display mode.
F

P
ress the button on the end of the wiper
control stalk to display the various tabs in
succession.
The current information tab with:
-
Range.
-

C

urrent fuel consumption.
-

S

top & Start time counter.
The trip " 1" tab with:
-

A

verage speed for the first trip.
-
A

verage fuel consumption.
-
D

istance travelled.
The trip " 2" tab with:
-

A

verage speed for the second trip.
-
A

verage fuel consumption.
-
D

istance travelled.
Trip resetTemporar y display in a specific window:
F P ress the end of the wiper control stalk for
access to the information and to display the
different tabs.
In all other display modes, pressing the end of
the wiper control stalk will cause this data to
appear temporarily in a specific window.
1
Instruments

38
- The current information tab with:• range,
•

c
urrent fuel consumption,
•

S
top & Start time counter.
-
Trip 1
with:
•
t

he average speed,
•
t

he average fuel consumption,
•

t
he distance travelled,
for the first trip.
-
Trip 2
with:
•
t

he average speed,
•
t

he average fuel consumption,
•

t
he distance travelled,
for the second trip.
Resetting the trip recorder
F When the desired trip is displayed, press the button at the end of the wiper control
stalk for more than two seconds.
Tr i p s 1
and 2 are independent and are used
identically.
For example, trip 1
can be used for daily
calculations, and trip 2
for monthly calculations.
A few definitions
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled). This value may vary following a
change in
the style of driving or the terrain, resulting
in a significant change in the current fuel
consumption.
When the range falls below 19 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed if it exceeds 62 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits, contact
a
CITROËN dealer or a qualified workshop.
Current fuel consumption
(mpg or l/100 km or km/l)
C alculated during the last few
seconds.
This function is only displayed from
19 mph (30 km/h).
Average fuel consumption
(mpg or l/100 km or km/l)
C alculated since the last time the
trip was reset.
Instruments

39
(mph or km/h)
Calculated since the last time the
trip was reset.
Distance travelled
(miles or km)
Calculated since the last time the
trip was reset.
Stop & Star t time counter
(minutes/seconds or hours/minutes)
A time counter calculates the total of the
periods in STOP mode during a
journey.
It resets to zero every time the ignition is
switched on.
Average speed
Setting the date and time
With CITROËN Connect
Radio
F Select the Settings menu.
F

Sel

ect " System configuration ".
F

Sel
ect "Date and time ". F

Sel
ect "
Date " or "Time ".
F
C
hoose the display formats.
F
C
hange the date and/or time using the
numeric keypad.
F
Pr
ess this button to confirm.
With CITROËN Connect Nav
Adjustment of the time and date is only
available if synchronisation with GPS is
deactivated.
F

Sel
ect the Settings menu.
F

P
ress the " OPTIONS " button to go to the
secondary page.
F

Sel
ect "Setting the time- date".
F

Sel
ect the " Date" or "Time " tab.
F

A
djust the date and/or time using the
numeric keypad.
F

Pr
ess this button to confirm.F

Pr
ess this button to confirm.
Additional adjustments
You can choose:
- T o change the display format of the date
and time (12h/24h).
-

T
o change the time zone.
-

T
o activate or deactivate synchronisation
with the GPS (UTC).
The system does not automatically
manage the change between winter and
summer time (depending on country).
The change between winter and summer
time is done by changing the time zone.
1
Instruments

47
Changing the battery
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Doors
Opening
From outside
F After unlocking the vehicle or with the electronic key of the K eyless Entry and
Starting system in the recognition zone, pull
the door handle.
From inside
F Pull the interior opening control of a front
door; this unlocks the vehicle completely.
Closing
When a door is not closed correctly:
- e ngine running , this warning
lamp and a


message appear
in the instrument panel (digital
monochrome) for a
few seconds,
-

v
ehicle moving (speed above
6
mph (10 km/h)), this warning
lamp and a


message appear
in the instrument panel (digital
monochrome and 12
inch colour)
for a
few seconds, accompanied
by an audible signal.
Battery ref.: CR2032/3

volts.
Battery replacement is signalled by the display
of a

message.
F

U

nclip the cover using a

small screwdriver
at the cutout.
F
R
emove the cover.
F
R
emove the discharged battery from its
housing.
F

P

lace the new battery into its location
observing the original direction.
F

C

lip the cover onto the casing.
Boot
Opening the tailgate
Using the electronic key/remote
control
F Press and hold this button to release the tailgate. If the vehicle
was locked, this action unlocks
the vehicle beforehand.
F

Ra
ise the tailgate.
When selective unlocking is activated, the
electronic key must be close to the rear of
the vehicle.
With the tailgate opening control
2
Access
