2017 Citroen C4 AIRCROSS Owner's Manual

87
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
Front demist - defrost
1. Press button A, to select "exterior air intake". The lamp in the button
is off.
2.
P

lace the air distribution dial in the "windscreen, side windows and
footwells" position.
3.
S

elect the desired level of air flow.
4.
S

elect the desired temperature.
5.
I

f your vehicle has air conditioning, switch it on by pressing button B.
The lamp in this button comes on.Rapid demisting
1. Place the distribution control on the "windscreen and side window" position.
2.
S

elect maximum air flow.
3.
Sel

ect maximum temperature.
3
Ease of use and comfort

88
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
Rear screen demist - defrost
Switching on
The rear screen demisting/defrosting can only
operate when the engine is running.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F
I
t is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.
F

S
witch off the demisting/defrosting of the
rear screen and door mirrors as soon as
appropriate, as lower current consumption
results in reduced fuel consumption.
The control button is located on the air conditioning system control panel.
F

P

ress this button to demist /defrost
the rear screen and (depending
on version) the door mirrors. The
indicator lamp associated with the
button comes

on.
Ease of use and comfort

89
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
Front fittings
1. Sun visor.
2. Glove box.
3.
P

ortable ashtray.
4.
C

igarette lighter
1

2 V socket (120 W max).
5.
A

rmrest with storage compartments.
6.
C

up holder.
7.
B

ottle holder.
3
Ease of use and comfort

90
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
Mat
When removing the mat on the driver's side,
move back the seat as far as possible and
remove the fixings.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat is
secured firmly.
To prevent any risk of jamming under the
pedals:
-
o
nly use mats suited to the fixings already
present in the vehicle; it is imperative that
these fixings are used.
-

n
ever fit one mat on top of another.
Sun visor Glove box
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
F

T
o open the glove box, raise the handle.
It is illuminated when the lid is opened.
It houses the front passenger airbag
deactivation switch A.
If the vehicle is fitted with air conditioning,
it has a ventilation nozzle B , distributing the
same conditioned air as the vents in the
passenger compartment.
If your vehicle is fitted with the "Keyless Entry
and Starting" system, it contains the back-up
starting unit C .
The sun visors fold for wards, and to the side
when they are unhooked.
They are fitted with a courtesy mirror and a
ticket holder.
Ease of use and comfort

91
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
Portable ashtray
F Pull the cover to open the ashtray.
F T o empty it, remove the ashtray by pulling it
upwards.
Cigarette lighter /
1 2 V accessory
socket
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F

T
o connect a 12 V accessory (max power:
120
W), remove the cigarette lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter
back into
place straight away.
3
Ease of use and comfort

92
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
Front armrest
Pull the right-hand lever to open the storage
compartment lid, which serves as an armrest.
To close, fold down the lid until it locks.Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
This storage compartment may contain up
to 3 accessory sockets.This operates when the ignition switch is in the
"LOCK", "ACC" or "ON" position.
Open the cover of the front armrest to gain
access to the socket.
Upper storage compartment
Lower storage compartment
Check that the electrical equipment
operates on 12 V and that its maximum
electrical power is 120 W.
The prolonged use of electrical
equipment without running the engine
may discharge the battery.
12 V socket
(120 W max)
Ease of use and comfort

93
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016
It permits the connection of a portable device,
such as a digital audio player of the iPod® or
USB memory stick type.
Open the front armrest cover for access to the
port.
It reads certain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel.
For more information on Audio and
Telematics and in particular the use of this
equipment, refer to the corresponding section.
USB port
Connected to the USB port, the
portable device charges automatically
while in use.
During charging, a message is
displayed if the consumption of the
portable device is higher than the
amperage supplied by the vehicle.
Auxiliary sockets
(RCA)
They are used to connect a portable device
(MP3 player, etc.).
Open the front armrest cover for access to the
sockets.
For more information on Audio and
Telematics and in particular the use of this
equipment, refer to the corresponding section.
3
Ease of use and comfort

94
C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

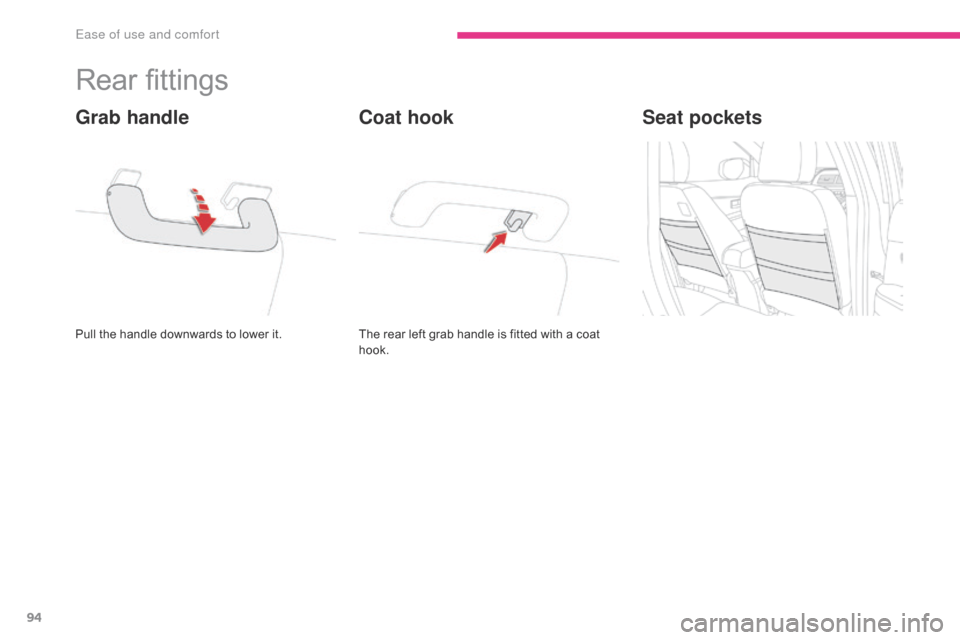

Rear fittings
Pull the handle downwards to lower it.
Grab handle
The rear left grab handle is fitted with a coat
hook.
Coat hookSeat pockets
Ease of use and comfort
