2017 Citroen BERLINGO Owner's Manual

 167
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
Once the 350 miles (600 km) threshold is reached, the UREA warning lamp
flashes
  and   the   Service   warning   lamp
comes on, accompanied by a message
on

  the   remaining   driving   range.
The alert is repeated every 30 seconds
with an update of the remaining driving
range
  in   steps   of   30   miles   (50   km)
travelled.
Every time the ignition is switched
on, the alert is given together with an
audible

  signal.
At 0 miles the system installed in
the vehicle to meet the emissions
standard will prevent engine
starting. Your vehicle's exhaust emissions no
longer meet the "Euro 6" standard and
the
  engine   will   not   start.
To be able to restart the vehicle, you
must add at least 4 litres of AdBlue
®.
-

Pour


the

additive

into

the

tank

(by
the


filler

with

the

blue

cap).
-

Switch on the ignition without
starting.
-


W

ait 10 seconds before starting the
engine.
Remaining range less than 350 miles
(600 km) and more than 0 miles
Starting prevented, breakdown related
to a lack of AdBlue
®
in the special tank
The

0

fluid

level

has   been   reached.
Avoid waiting until the
remaining range is 0 miles!
The alert is repeated when driving until
the AdBlue
® tank has been topped-up with

sufficient   additive.
Unless the additive in the special
additive

tank   is   topped-up,   you   risk
immobilisation

  of   the   vehicle. Following
  this,   make   a   further   fill  to
  the   special   additive   tank,   the
capacity of which is

17 litres.
Fault with the SCR system
The UREA, Service and diagnostic
warning  lamps   comes   on.
Every time the ignition is switched on,
the
  emissions   fault   is   confirmed   by   an
audible

  signal   and   a   message.
If it is a temporary fault, the alert
disappears as soon as the exhaust
emissions return to the levels required
by
  the   standard.
Detection
On the other hand, if the warning
lamps are still on after 30 miles
(50   km)   of   driving,   the   fault   is
confirmed.
An engine start prevention system
will be activated automatically after
650 miles

  (1   100   km)   travelled
following

  this   confirmation.
Go
  to   a   CITROËN   dealer   or   a   qualified
workshop.
Or go to a CITROËN dealer or a
qualified


workshop.
CHECKS
7
AdBlue®

168
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
Fault confirmed
In addition to the previous signals,
the  UREA

warning   lamp   flashes   and
the remaining range allowed will be
displayed

  in   miles   (kilometres).
The alert will be repeated every
30
seconds with an update of the
driving range in steps of 30 miles
(50 km).
Go
  to   a   CITROËN   dealer   or   a   qualified
workshop

  as   soon   as   possible.
You
  risk   not   being   able   to   start   the
engine.
Starting prevented, having
covered the 650 miles (1 100 km)
At each attempt at starting, the alert is
activated and the message "Emissions
fault:

  Starting   prevented"   is   displayed.Refilling / Topping-up the
AdBlue®
Precautions to take
Use only AdBlue ® that meets the
ISO

22241

standard.
The AdBlue
® fluid is an urea-based solution.
This

fluid

is

non-flammable,   colourless
and


odourless.
To

be

kept

in
  a   cool   area.
Containers (5 or 10 litres) and
bottles (1.89 litres) of AdBlue
®
Please check the use-by date.
Read   the   instructions   on   the   label.
Ensure that you have a suitable
filler
  pipe,   which   may   or   may   not   be
supplied

  with   the   container. In
  the   event   of   an   overflow,   wipe
around

  the   filler   mouth   using   a
damp

  cloth.
If any AdBlue
® fluid is split or splashed on to you, wash immediately with cold
water or wipe yourself with a clean
damp

cloth.
If

the

fluid

has
  crystallised,   clean   it   off
using


a

sponge   and   hot   water.
To

facilitate   filling,   an   adaptor   is
available


from   CITROËN   dealers.
AdBlue®

169
Berlingo2VP_en_Chap07_Verification_ed02-2016Berlingo2VP_en_Chap07_Verification_ed02-2016
Filling
Ensure that the vehicle is parked on a flat  and   level   surface.
Pour
  the   contents   of   the   container   /
bottle

  into   the   dedicated   tank.
After
  filling   the
AdBlue® tank, observe the

following

procedure:
-

Switch on the ignition without
starting.
-


W

ait 10 seconds before starting the
engine.
Never dispose of empty AdBlue
®
containers and bottles in the
household

waste.
Place them in a special container
provided

this

purpose

or

take

them

to
your


dealer. Keep AdBlue
® out of the
reach of children, in its original
container.
Never transfer AdBlue
® to another
container:

it

would

loose   its   purity.
Never

dilute

the

fluid

with   water.
Never

pour

the

fluid

into   the   Diesel   fuel
tank.
Recommendations on storage
Never store containers or bottles of
AdBlue® in your vehicle.
Freezing of the AdBlue
®
AdBlue® freezes at about -11°C (12.2° F) and

deteriorates   above   25°C   (77°F).
It is recommended that containers and
bottles be stored in a cool area and
protected
  from   direct   sunlight.
Under

these   conditions,   the   fluid   can
be


kept
  for   at   least   a   year.
Additive that has been frozen can
be used once it has thawed out in
ambient air. The SCR system includes an
AdBlue
® tank heater that ensures operation of the vehicle in normal
conditions.
In exceptional situations, such as when
the

vehicle

is   kept   at   temperatures
below -15°C (5°F) for a long period,
there may be an emission fault alert
related to freezing of the

AdBlue
®
additive.
Park

the

vehicle

in

an

area

at

a

more
moderate temperature for a few hours
until

the AdBlue
® becomes a fluid again.
The emissions warning lamp does not
go of
f immediately, but does so after a
few

miles

of

driving.
CHECKS
7
AdBlue®

170
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off  the   ignition.
Never disconnect a terminal when the
engine
  is   running.
Never
  charge   a   battery   without   first
disconnecting

  the   terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems
  to   be   initialised.   If   problems
remain after doing this, please contact
a

  CITROËN   dealer   or   a   qualified
workshop.
After changing bulbs, wait
approximately 3 minutes before
reconnecting

  the   battery.
It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one month.
To charge the battery using a
battery charger
- Disconnect  the   battery.
-
Follow the instructions for use
given by the battery charger
manufacturer

.
-

Reconnect starting with the
negative

  (-)   terminal.
-

Check
  that   the   terminals   and
connectors

  are   clean.   If   they   are
covered with sulphate (white or
greenish deposit), disconnect them
and

  clean   them.
To start the vehicle from
another battery
- Connect the red cable to the
positive (+) terminals of the
two batteries.
-

Connect one end of the green
or

  black   cable   to   the   negative   (-)
terminal

  of   the   slave   battery.
-

Connect the other end of the green
or

  black   cable   to   an   earth   point   on
the

  broken   down   vehicle   as   far   as
possible

  from   the   battery.
-
 Operate

  the   starter,   let   the   engine   run.
-

W
ait for the engine to return to idle,
then
  disconnect   the   cables.
The presence of this label
indicates the use of a 12 V
lead-acid battery with special
technology

and

specification,

for

which

the involvement of a CITROËN dealer
or


qualified

workshop

is

required

when

replacing


or

disconnecting

the

battery.
Failure to observe this recommendation
may cause premature wear of the
battery.
After

refitting

the

battery,

the

Stop &

Start system will only be active after
several hours depending on the
climatic conditions and the state of
charge of the battery (up to about
8 hours).
The Stop & Start battery does not have
to


be

disconnected

for

charging.
Battery

171
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
ECONOMY MODE
After the engine has stopped, with
the
  key   in   the   ignition   position,   certain
functions (windscreen wiper

, electric
windows, courtesy lamps, audio
equipment,
  etc.)   can   only   be   used   for   a
cumulative duration of thirty minutes, to
prevent

  discharging   of   the   battery.
Once the thirty minutes have elapsed,
the active functions are put on standby
and
  the   battery   warning   lamp   flashes
accompanied by a message in the
screen.
T

o resume the use of these functions
immediately, start the engine and let it
run
  for   a   few   minutes.
The time available will then be double
the time for which the engine was left
running.
  However,   this   time   will   always
be

  between   five   and   thirty   minutes.
A


flat   battery   will   prevent   the
engine

  from   starting.
Battery
QUICK HELP
8

172
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
The temporary tyre repair kit consists of a compressor and a bottle
(containing  a   sealant).
Using the kit
- Tick  the   deflated   wheel   on   the  speed
  limitation   sticker   then   affix
the

  sticker   to   the   vehicle's   steering
wheel to remind you that a wheel is
in

  temporary   use.
-

Clip the bottle
1 on the
compressor
2.
-

Connect the bottle
1 to the valve of
the
  tyre   to   be   repaired.
-

T
ake   care   to   unwind   the
compressor pipe before connecting
it

  to   the   bottle.
-

Connect the power lead to one of
the

  vehicle's   12V   sockets.
-

Switch on the compressor by
pressing button

A until the tyre
pressure
  reaches   2.0   bars.   If   this
pressure cannot be reached, the
tyre

  cannot   be   repaired.
-

Remove
  and   store   the   compressor.
-

Drive immediately
, for a few miles
(kilometres),
  at   reduced   speed,   to
fill

  the   puncture.
-

Adjust
  the   pressure   using   the
compressor in accordance with the
recommendation for the vehicle and
check

  that   the   leak   is   filled   correctly
(no

  further   loss   of   pressure).
-

Drive at reduced speed (50
mph
[80
  km/h]).
The
  tyre   must   be
examined and repaired by a
specialist

  as   soon   as   possible.After use, the bottle can be stored in
a
  plastic   bag,   supplied   in   the   kit,   to  avoid staining your vehicle with traces
of
  fluid.
Warning:
  the   sealant   product   is
harmful if swallowed and causes
irritation

  to   the   eyes.
Keep
  it   out   of   reach   of   children.
After use, do not discard the bottle into
the
  environment,   take   it   to   a   CITROËN
dealer or to an specialised waste
disposal

  site.
Replacement bottles of sealant are
available
  from   CITROËN   dealers.
TEMPORARY PUNCTURE
REP

AIR KIT
The kit is located in one of the two storage compartments located
under
  the   front   seats.
Vehicles supplied with a temporary
puncture
  repair   kit   do   not   have   a   spare
wheel

  or   tooling   (jack,   wheelbrace, ...).

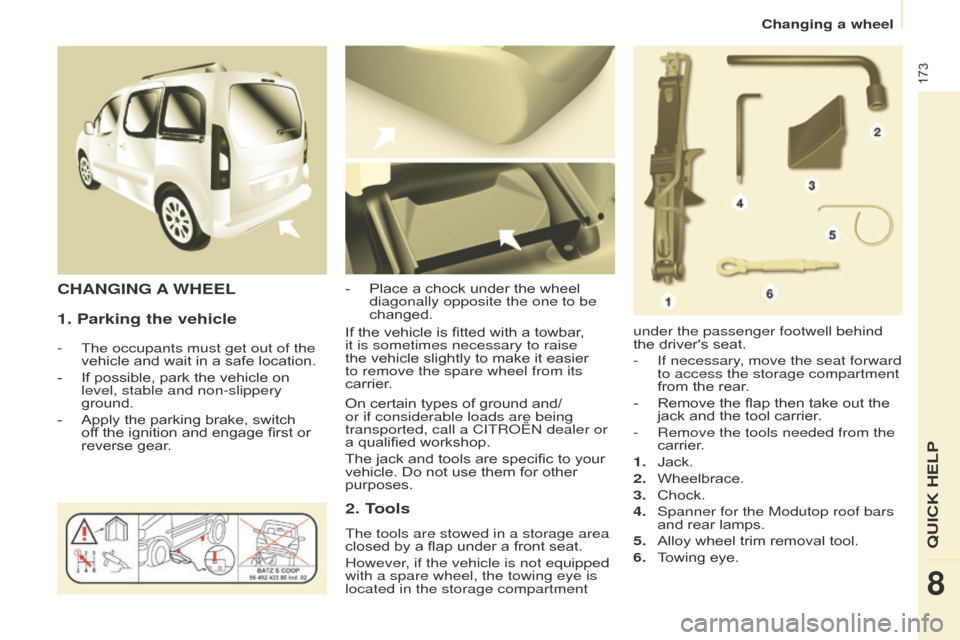

Changing a wheel

173
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
1. Parking the vehicle
- The occupants must get out of the
vehicle  and   wait   in   a   safe   location.
-

If
  possible,   park   the   vehicle   on
level, stable and non-slippery
ground.
-


Apply
  the   parking   brake,   switch
of

f   the   ignition   and   engage   first   or
reverse

  gear. -

Place
  a   chock   under   the   wheel
diagonally opposite the one to be
changed.CHANGING A WHEEL
under the passenger footwell behind
the
  driver's   seat.
-

If necessary
, move the seat forward
to access the storage compartment
from
  the   rear.
-

Remove
  the   flap   then   take   out   the
jack

  and   the   tool   carrier.
-

Remove the tools needed from the
carrier

.
1.

Jack.
2.


Wheelbrace.
3.


Chock.
4.


Spanner for the Modutop roof bars
and

  rear   lamps.
5.

Alloy
  wheel   trim   removal   tool.
6.

T
owing   eye.
If

the

vehicle

is

fitted

with

a

towbar,
 it is sometimes necessary to raise
the

vehicle

slightly

to

make

it

easier

to remove the spare wheel from its
carrier

.
2. Tools
The tools are stowed in a storage area
closed   by   a   flap   under   a   front   seat.
However, if the vehicle is not equipped
with a spare wheel, the towing eye is
located in the storage compartment On   certain   types   of   ground   and/
or if considerable loads are being
transported, call a CITROËN dealer or
a   qualified   workshop.
The   jack   and   tools   are   specific   to   your
vehicle.

  Do   not   use   them   for   other
purposes.
QUICK HELP
8
Changing a wheel

174
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016

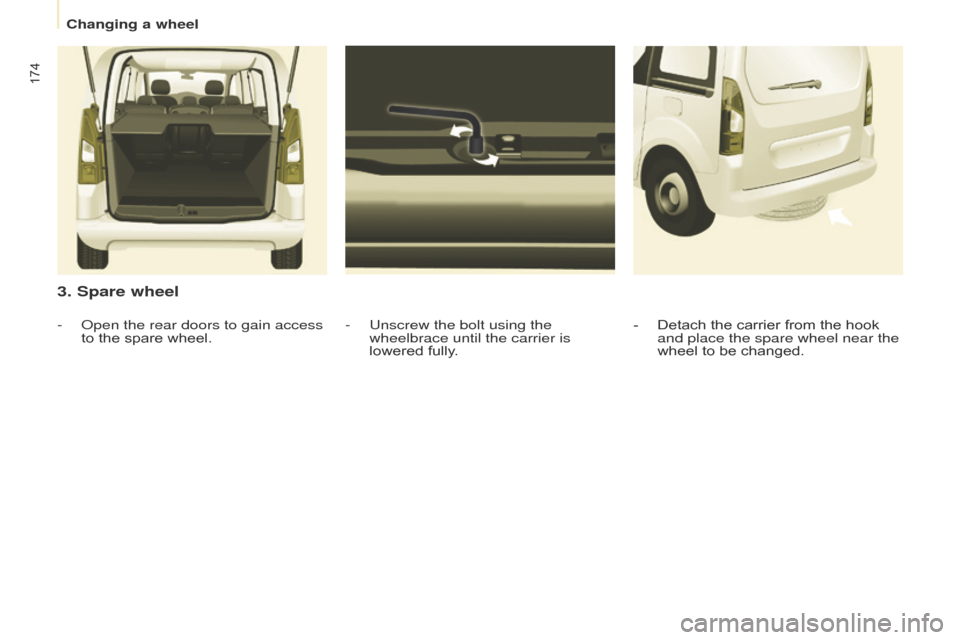

3. Spare wheel
- Unscrew the bolt using the
wheelbrace until the carrier is
lowered  fully.
-
Open the rear doors to gain access
to

the

spare

wheel. -
 Detach   the   carrier   from   the   hook  and place the spare wheel near the
wheel
  to   be   changed.
Changing a wheel
