2017 Citroen BERLINGO Owner's Manual

95
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
Overhead storage unit
This is located above the sun visors
and  can   accommodate   various   objects
(a

  jumper,   file,   gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects
  stored   in   the   overhead   storage
unit.
The maximum weight permitted in the
overhead

  storage   unit   is   5   Kg.
Do
  not   place   objects   in   this   storage
unit

  which   could   present   a   risk   to   the
occupants.
Central storage console
This console offers an appreciable
additional  storage   area:   it   can   be
removed and clips onto a base which
also incorporates two cup holders at
the

  rear.
Ensure
  that   the   object   (bottle,   can...)
placed in the cup holder is retained
securely

  and   does   not   risk   being
dislodged

  while   driving.
Any liquid which could spill presents
a
  risk   of   damage   on   contact   with   the
instrument panel and centre console
controls.
T

ake   care.
Sun visor
To prevent dazzle from ahead, fold the
sun  visor   down.
A


pocket   is   provided   in   the   driver's   sun
visor

  for   storing   toll   cards,   tickets,   ...
Storage compartment under
seats
Storage compartments are available,
with  or   without   lid,   in   the   floor   under   the
front

  seats.
To gain access to them, move the seat
forward.

The
  lid   must   be   lifted   from   the
rear

  of   the   seat.
EASE OF USE and COMFORT
4
Practical information

96
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

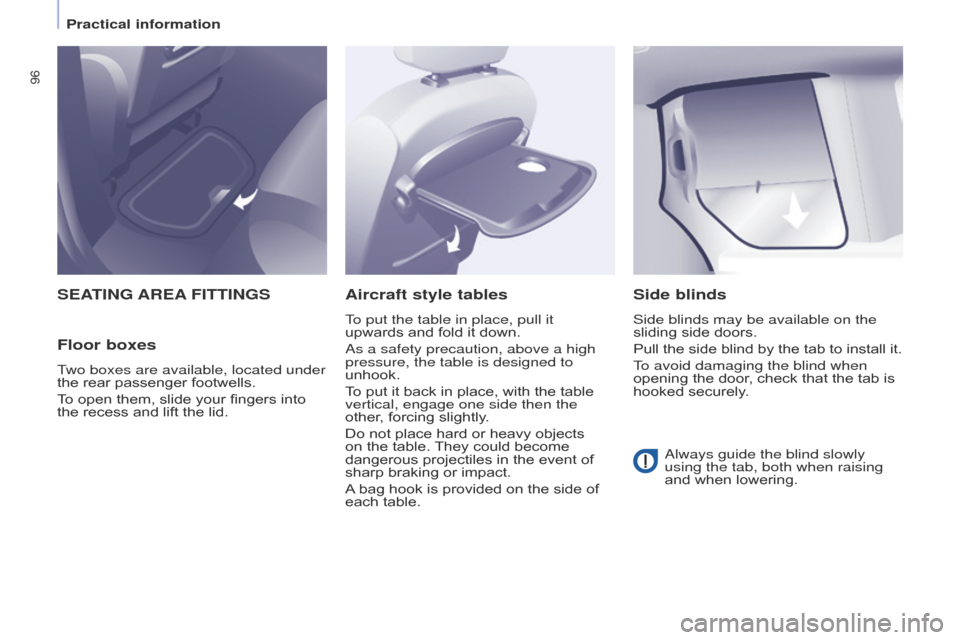

SEATING AREA FITTINGS
Floor boxes
Two boxes are available, located under
the  rear   passenger   footwells.
To
  open   them,   slide   your   fingers   into
the

  recess   and   lift   the   lid.
Aircraft style tables
To put the table in place, pull it
upwards  and   fold   it   down.
As a safety precaution, above a high
pressure, the table is designed to
unhook.
To
  put   it   back   in   place,   with   the   table
vertical, engage one side then the
other

,   forcing   slightly.
Do
  not   place   hard   or   heavy   objects
on

  the   table.
They
  could   become
dangerous

  projectiles   in   the   event   of
sharp

  braking   or   impact.
A


bag   hook   is   provided   on   the   side   of
each

  table.
Side blinds
Side blinds may be available on the
sliding   side   doors.
Pull the side blind by the tab to install it.
To avoid damaging the blind when
opening  the   door,   check   that   the   tab   is
hooked

  securely.
Always guide the blind slowly
using the tab, both when raising
and
  when   lowering.
Practical information

 97
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
MODUTOP ROOF
The multifunction roof extends the
overhead
  storage   unit.   It   consists   of
the

  following   components:
Storage compartments
Storage compartments are provided
on  each   side   of   the   roof.  The   maximum
authorised

  load   is   6   kg.
The translucent base assists with
finding
  objects   stored   inside.
Do
  not   store   objects   which   could
present

  a   risk   to   the   occupants.
Courtesy lamp
The operation of the courtesy lamp is
identical  to   that   of   the   front   courtesy   lamp.
Refer to chapter 4 "Practical
information", "Courtesy lamps"
section.
EASE OF USE and COMFORT
4
Practical information

98
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
From insideFrom outside
Rear box
This roof box can be accessed from
the
  rear   seats   and   the   boot.
From
  the   rear   seats,   slide   the   flaps   to
open.
Vents
A 3-position control allows you to
adjust  the   air   flow   through   the   vents.
The
  vents   are   also   fitted   with   a   scented
air

  freshener.
From the boot, place your thumb on
the recess then pull the handle to
open.
Open

carefully

to

prevent

objects

stored in this interior roof box from
fallin

g

out.
The

maximum

authorised

load

is

10

kg.
Practical information

99
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
SCENTED AIR FRESHENER
The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console
vents.
Adjusting the flow
Turn the chromed button to adjust the diffusion:
-

to the left to decrease,
-


to
  the   right   to   increase.
To stop the diffusion, turn the chromed
button
  fully   to   the   left.
Removing the scented air
freshener
- Press the button down while turning
it a quarter of a turn to the left to
the  stop.
-

Remove the scented air freshener
from

  the   roof   console.
-

Replace
  the   cartridge.
EASE OF USE and COMFORT
4
Practical information

100
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

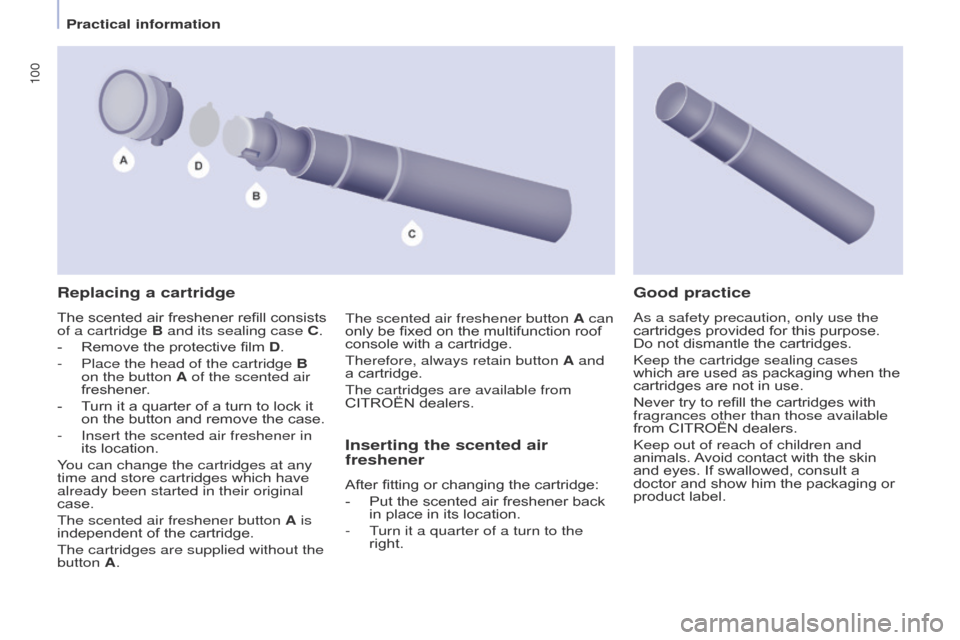

Replacing a cartridge
The scented air freshener refill consists of a cartridge B and its sealing case C.
-

Remove
  the   protective   film   D.
-

Place the head of the cartridge
B
on the button A of the scented air
freshener.
-

T
urn   it   a   quarter   of   a   turn   to   lock   it
on

  the   button   and   remove   the   case.
-

Insert the scented air freshener in
its

  location.
You can change the cartridges at any
time and store cartridges which have
already been started in their original
case.
The scented air freshener button A is
independent
  of   the   cartridge.
The cartridges are supplied without the
button A.
Inserting the scented air
freshener
After fitting or changing the cartridge:
-
Put
  the   scented   air   freshener   back
in

  place   in   its   location.
-

T
urn it a quarter of a turn to the
right.
Good practice
As a safety precaution, only use the
cartridges   provided   for   this   purpose.
Do

  not   dismantle   the   cartridges.
Keep the cartridge sealing cases
which
  are   used   as   packaging   when   the
cartridges

  are   not   in   use.
Never
  try   to   refill   the   cartridges   with
fragrances other than those available
from

  CITROËN   dealers.
Keep out of reach of children and
animals.

A
void   contact   with   the   skin
and

  eyes.   If   swallowed,   consult   a
doctor

  and   show   him   the   packaging   or
product

  label.
The scented air freshener button A can
only

be

fixed

on

the

multifunction

roof

console


with

a

cartridge.
Therefore, always retain button A and
a

cartridge.
The cartridges are available from
CITROËN

dealers.
Practical information

101
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
MODUTOP ROOF BARS
The maximum authorised weight on
each
  roof   bar   is   35   kg. In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or
the
  glazing   of   the   roof.
Recommendations for loading the
roof
This procedure requires the use of
a spanner supplied with the tools for
changing
  a   wheel.
These two longitudinal Modutop roof
bars   can   be   removed.
Chapter 9, "Changing a wheel"
section.
-

Open
  the   protective   covers.
-

Slacken
  the   four   screws   using   the
spanner

  and   remove   them.
-

T
urn the bars 90° placing the
hollow
  parts   towards   the   front.
-

Refit
  the   the   4   screws   and   tighten
them

  using   the   spanner.
-

Close
  the   protective   covers.
-

Use the strap passages
A only to
secure
  the   load   firmly.
EASE OF USE and COMFORT
4
Practical information

102
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
ExTERIOR ROOF BARS
If you install transverse bars on these bars, refer to the weight values\
indicated
by  the   manufacturer   but   do   not   exceed:   75   kg.
Practical information
