2017 Citroen BERLINGO display

 275
Berlingo2VP_en_Chap10b_RD45_ed02-2016
Receiving a call
An incoming call is announced by a ring and a
superimposed  display   in   the   screen.
Select the YES tab on the display
using
  the   buttons.
Confirm by pressing OK.
Press this button at the steering
mounted
  controls   to   accept   the   call.
Making a call
From the "Bluetooth : Telephone - Audio "
menu.
Select " Manage the telephone call".
Select " Call".
Or
Select " Calls list ".
Or
Select " Directory ".
Press this button for more than two
seconds for access to your directory,
then
  navigate   using   the   thumbwheel.
Or
To
  dial   a   number,   use   your   telephone's   keypad,
w

ith   the   vehicle   stationary.
Ending a call
During a call, press this button for
more  than   2   seconds.
Confirm with OK


to   end   the   call.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected
by Bluetooth
®.
With certain telephones connected by
Bluetooth
® you can send a contact to
the

directory   of   the   audio   system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible
  if   it   is   empty.
Audio and Telematics
TECHNOLOGY on BOARD
10

276
Berlingo2VP_en_Chap10b_RD45_ed02-2016
Screen menu map(s)
Radio- CD
REG mode
CD repeat
Shuffle play
Vehicle config*
R wiper in rev
Options
Diagnostic
RDS options
View
Abandon
1
2
3
3
1
2
2
2
2
1
2
Screen A
* The settings vary according to the trim level of the   vehicle.
Guide lighting
2
Units
Temperature: °Celsius
/ °Fahrenheit
Fuel consumption: KM/L - L/100 - MPG
1
2
2
Display adjust
Month
Day
Hour
Minutes Ye a r
12 H/24 H mode
Language
Italiano
Nederlands
Portuguès
Português do Brasil Français
Deutsch
Čeština English
Hr vatski Español
Magyar
1
2
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2
Audio and Telematics

 277
Berlingo2VP_en_Chap10b_RD45_ed02-2016
Screen C
Press the OK dial for access to
short-cut menus according to the
display
  on   the   screen.
activate
/ deactivate RDS
activate
/ deactivate REG mode
activate
/ deactivate radiotext
Radio
activate / deactivate Intro
CD / MP3 CD
activate / deactivate track repeat
(the entire current CD for CD, the entire
current folder for MP3 CD)
activate
/ deactivate random play
(the
entire current CD for CD, the entire
current folder for MP3 CD) activate
/ deactivate track repeat
(of the current   folder   /   artist   /   genre   /  p
laylist)
USB
activate / deactivate random play
( of the current   folder   /   artist   /   genre   /
p

laylist)
1
1
1
1
1
1
1
1
Audio and Telematics
TECHNOLOGY on BOARD
10

278
Berlingo2VP_en_Chap10b_RD45_ed02-2016
Screen C
Audio functions
Alternative frequencies (RDS)Activate   /   deactivate
FM
preferences
Regional mode (REG) Activate
  /   deactivate
Radio-text information (RDTXT) Activate
  /   deactivate
1
2
3
4
3
4
3
4
Play modesAlbum repeat (RPT)Activate
  /   deactivate
Track
  random   play   (RDM)
Activate
  /   deactivate2
3
4
3
4
Enter distance to destination1
1
1
2
2
2
Pressing the MENU  button   displays:
Audio functions Trip computerDistance: x miles
Vehicle diagnosis
Warning log
Systems activated or deactivated
State of systems
Audio and Telematics

 279
Berlingo2VP_en_Chap10b_RD45_ed02-2016
Bluetooth configuration11
1
22
22
2
3
3
3
2
3
Normal video
Brightness-video adjustment
Display configuration Define the vehicle
parameters*
Inverse video
Brightness
  (-   +)   adjustment
Date and time adjustment
Setting
  the   day/month/year
Setting
  the   hour/minute
Choice
  of   12   h   /   24   h   mode
Choice of units
l/100
  km   -   mpg   -   km/l
°Celsius
 / °

Fahrenheit
1
1
3
3
2
3
2
3
3
2
3
3
3
Personalisation-
configuration Bluetooth: Telephone -
Audio
Telephone function
Delete a paired equipment
Connect/Disconnect an equipment
Audio Streaming function
Consult the paired equipment
Per form a Bluetooth search
Calls list
Call
Directory Terminate the current call
Manage the telephone call
Activate secret mode
*

The

settings

vary

according

to

vehicle.
Choice of language1
Audio and Telematics
TECHNOLOGY on BOARD
10

280
Berlingo2VP_en_Chap10b_RD45_ed02-2016
The table below gives answers to the most frequently asked questions on your audio system.
Q UESTION ANSWER SOLUTION
With the engine off, the
audio system switches off
after
  a   few   minutes   of   use.When the engine is switched off, the audio system operating time
depends
  on   the   state   of   charge   of   the   battery.
The
  switch-off   is   normal:   the   audio   equipment   switches   to   economy
m

ode and switches off to prevent discharging of the vehicle's
battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears
  on   the   display.In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction in volume or CD play
stopping. Switch the audio system off for a few minutes to
allow
  the   system   to   cool.
Frequently asked questions
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio,
 C

D...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing
source
  (radio,   CD...). Check
  that   the   audio   settings   (Volume,   Bass,
T

reble, Ambience, Loudness) are adapted to
the
  sources   listened   to.   It   is   advisable   to   set
t

he audio functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in
  radio   mode.
Radio
Audio and Telematics

281
Berlingo2VP_en_Chap10b_RD45_ed02-2016

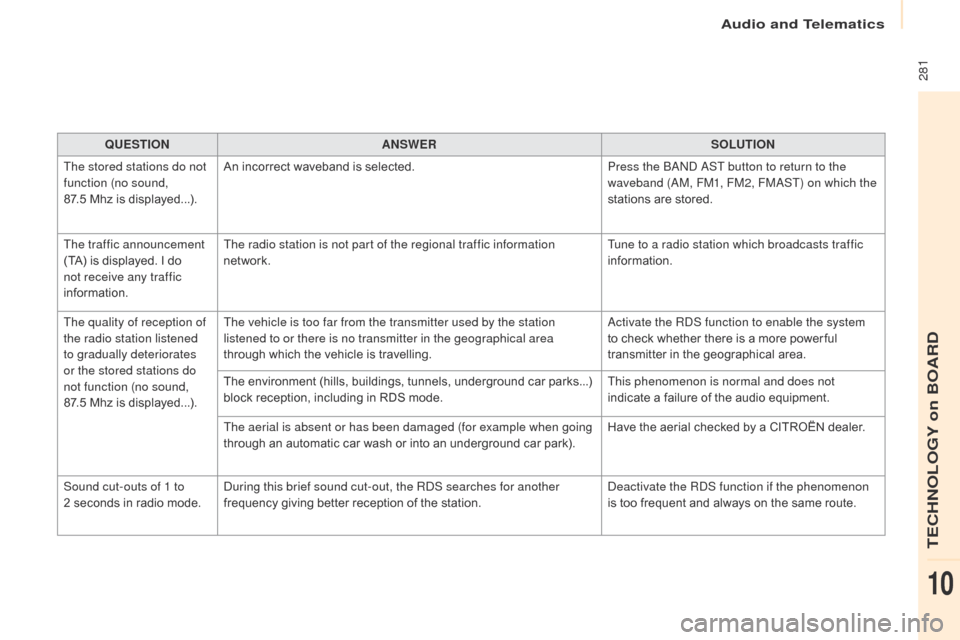

QUESTIONANSWER SOLUTION
The stored stations do not
function (no sound,
87.5

Mhz   is   displayed...). An
  incorrect   waveband   is   selected.Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations
  are   stored.
The traffic announcement
(TA)

is

displayed.   I
d
o
n

ot receive any traffic
information. The radio station is not part of the regional traffic information
network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz
  is   displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through
  which   the   vehicle   is   travelling.Activate the RDS function to enable the system
to
  check   whether   there   is   a   more   power ful
t

ransmitter   in   the   geographical   area.
The
  environment   (hills,   buildings,   tunnels,   underground   car   parks...)
b

lock   reception,   including   in   RDS   mode.This phenomenon is normal and does not
indicate
  a   failure   of   the   audio   equipment.
The aerial is absent or has been damaged (for example when going
through
  an   automatic   car   wash   or   into   an   underground   car   park).Have
  the   aerial   checked   by   a   CITROËN   dealer.
Sound cut-outs of 1 to
2 seconds
  in   radio   mode.During this brief sound cut-out, the RDS searches for another
frequency
  giving   better   reception   of   the   station.Deactivate the RDS function if the phenomenon
is
  too   frequent   and   always   on   the   same   route.
Audio and Telematics
TECHNOLOGY on BOARD
10

282
Berlingo2VP_en_Chap10b_RD45_ed02-2016
Media
QUESTIONANSWER SOLUTION
The message "USB
peripheral error" is
displayed
  on   the   screen.
The Bluetooth
® connection
is

cut. The
  battery   of   the   peripheral   may   not   be   sufficiently   charged. Recharge   the   battery   of   the   peripheral   device.
The   USB   memory   stick   is   not   recognised.
The   USB   memory   stick   may   be   corrupt.Reformat
  the   USB   memory   stick.
The

CD

is

ejected
a

utomatically or is not
played

by

the

player. The CD is inserted upside down, is unplayable, does not contain
any audio data or contains an audio format which the player cannot
p l ay.
The CD is protected by an anti-pirating protection system which is
not
  recognised   by   the   audio   equipment.-

C
heck   that   the   CD   is   inserted   in   the   player
t

he   right   way   up.
-

C
heck   the   condition   of   the   CD:   the   CD
c

annot   be   played   if   it   is   too   damaged.
-

C
heck   the   content   in   the   case   of   a   recorded
C

D:   consult   the   advice   in   the   "Audio"   section.
-

T
he audio equipment's CD player does not
play
  DVDs.
-

D
ue to their quality level, certain writeable
CDs
  will   not   be   played   by   the   audio   system.
The CD player sound is
p o o r. The
  CD   used   is   scratched   or   of   poor   quality.Insert good quality CDs and store them in
suitable
 c

onditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable. Set the treble or bass level to 0, without selecting
an
 am

bience.
QUESTION ANSWER SOLUTION
I am unable to access my
voicemail. Few
  telephones   or   service   providers   allow   the   use   of   this   function.
Telephone
Audio and Telematics
