304 Vehicle Care
Park on a fairly steep hill, with thevehicle facing downhill. Keepingyour foot on the regular brake, setthe parking brake.
.To c h e c k t h e p a r k i n g b r a k e ' sholding ability: With the enginerunning and the transmission inN(Neutral), slowly remove footpressure from the regular brakepedal. Do this until the vehicle isheld by the parking brake only.
.To c h e c k t h e P ( P a r k )mechanism's holding ability:With the engine running, shift toP(Park). Then release theparking brake followed by theregular brake.
Contact your dealer if service isrequired.
Wiper Blade Replacement
Windshield wiper blades should beinspected for wear or cracking.
It is a good idea to clean the wiperblade assembly on a regular basis.When worn, or when cleaning isineffective, replace the wiper blade.For proper windshield wiper bladelength and type, seeMaintenanceReplacement Parts0378.
Caution
Allowing the wiper arm to touch
the windshield when no wiper
blade is installed could damage
the windshield. Any damage that
occurs would not be covered by
the vehicle warranty. Do not allow
the wiper arm to touch the
windshield.
To r e p l a c e t h e w i p e r b l a d e :
1. Pull the wiper assembly awayfrom the windshield.
2. Lift up on the latch in themiddle of the wiper bladewhere the wiper arm attaches.
3. With the latch open, pull thewiper blade down toward thewindshield far enough torelease it from the J-hookedend of the wiper arm.
4. Remove the wiper blade.
5. Reverse Steps 1–3forwiperblade replacement.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 305
Headlamp Aiming
Headlamp aim has been preset andshould need no further adjustment.
If the vehicle is damaged in a crash,the headlamp aim may be affected.If adjustment to the headlamps isnecessary, see your dealer.
Bulb Replacement
For the proper type of replacementbulbs, seeReplacementBulbs0309.
For any bulb-changing procedurenot listed in this section, contactyour dealer.
Halogen Bulbs
{Warning
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
LED Lighting
This vehicle has several LED lamps.For replacement of any LED lightingassembly, contact your dealer.
Headlamps, Front Turn
Signal, Sidemarker, and
Parking Lamps
Passenger Side Shown, Driver
Side Similar
1. Parking/Turn Signal Lamp
2. Low/High-Beam Headlamp
3. Sidemarker Lamp
To r e p l a c e o n e o f t h e h e a d l a m pbulbs:
1. Open the hood. SeeHood0281.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
306 Vehicle Care
2. For the driver side bulb,remove the windshield washerbottle filler neck by firmlypulling it straight up and out ofthe bottle.
3. For hybrid vehicles, remove theengine air cleaner housing bygripping firmly and pullingstraight up.
4. Remove the cover from theback of the headlampassembly by turning itcounterclockwise.
5. Disconnect the electricalconnector.
6. Remove the bulb from the lampassembly by turningcounterclockwise.
7. Install a new bulb in the lampassembly.
8. Connect the electricalconnector.
9. Replace the cover from theback of the headlampassembly by turning itclockwise.
10. For the driver side, reinstall thewindshield washer bottle fillerneck by firmly pushing itstraight into the bottle. Makesure that the filler neck clipengages into the bracket onthe upper tie-bar.
11 . R e p l a c e t h e e n g i n e a i r c l e a n e rhousing by aligning the pegswith the grommets andpressing firmly down.
Front Turn Signal, Parking, and
Sidemarker Lamps
To r e p l a c e o n e o f t h e s e l a m p s :
1. For the driver side bulb,remove the windshield washerbottle filler neck by firmlypulling it straight up and out ofthe bottle.
2. For hybrid vehicles, remove theengine air cleaner housing bygripping firmly and pullingstraight up.
3. Remove the bulb socket fromthe headlamp assembly byturning it counterclockwise.
4. Remove the bulb from thesocket.
5. Replace the bulb in the bulbsocket.
6. Install the bulb socket in theheadlamp assembly by turningit clockwise.
7. For the driver side, reinstall thewindshield washer bottle fillerneck by firmly pushing itstraight into the bottle. Makesure that the filler neck clipengages into the bracket onthe upper tie-bar.
8. Replace the engine air cleanerhousing by aligning the pegswith the grommets andpressing firmly down.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 307

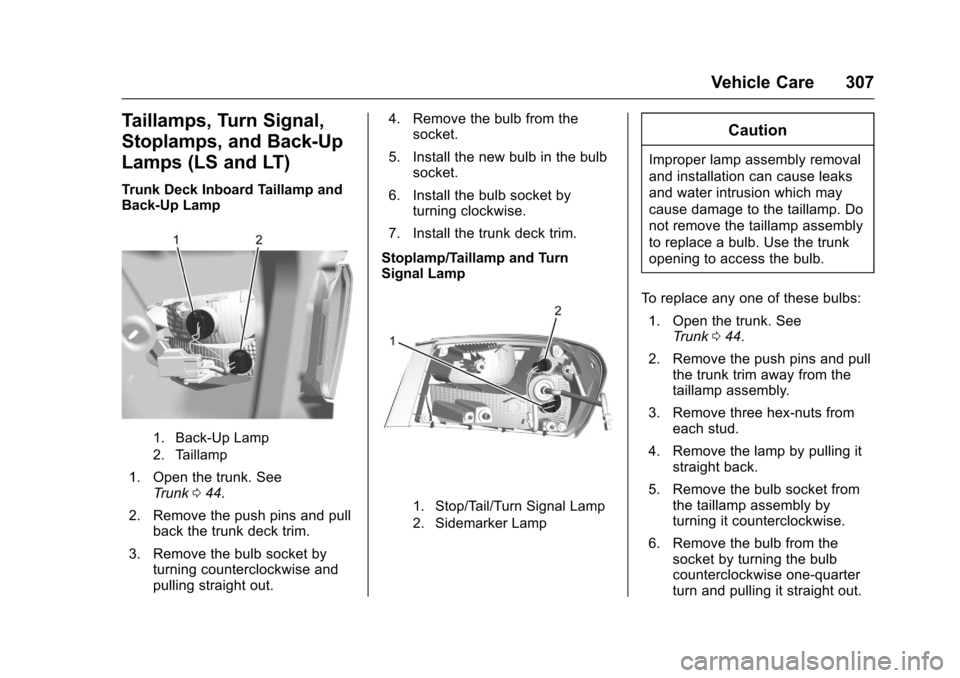

Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps (LS and LT)
Trunk Deck Inboard Taillamp andBack-Up Lamp
1. Back-Up Lamp
2. Taillamp
1. Open the trunk. SeeTr u n k044.
2. Remove the push pins and pullback the trunk deck trim.
3. Remove the bulb socket byturning counterclockwise andpulling straight out.
4. Remove the bulb from thesocket.
5. Install the new bulb in the bulbsocket.
6. Install the bulb socket byturning clockwise.
7. Install the trunk deck trim.
Stoplamp/Taillamp and TurnSignal Lamp
1. Stop/Tail/Turn Signal Lamp
2. Sidemarker Lamp
Caution
Improper lamp assembly removal
and installation can cause leaks
and water intrusion which may
cause damage to the taillamp. Do
not remove the taillamp assembly
to replace a bulb. Use the trunk
opening to access the bulb.
To r e p l a c e a n y o n e o f t h e s e b u l b s :
1. Open the trunk. SeeTr u n k044.
2. Remove the push pins and pullthe trunk trim away from thetaillamp assembly.
3. Remove three hex-nuts fromeach stud.
4. Remove the lamp by pulling itstraight back.
5. Remove the bulb socket fromthe taillamp assembly byturning it counterclockwise.
6. Remove the bulb from thesocket by turning the bulbcounterclockwise one-quarterturn and pulling it straight out.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
308 Vehicle Care
7. Install a new bulb into thesocket.
8. Install the bulb socket into thetaillamp assembly by turning itclockwise.
9. Install the trunk trim, hex nuts,and push pins.

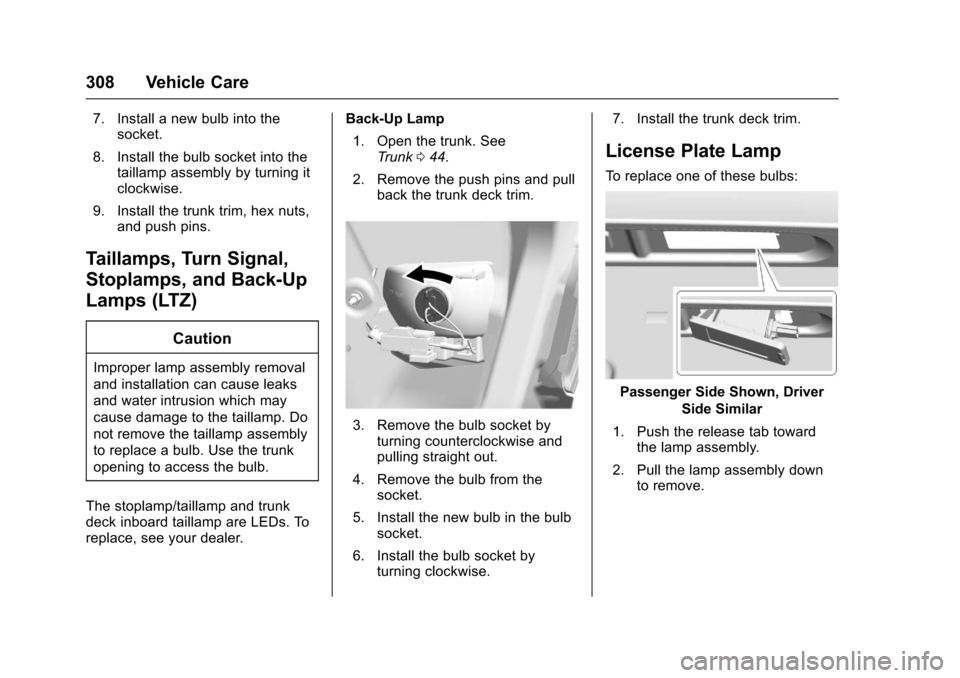

Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps (LTZ)
Caution
Improper lamp assembly removal
and installation can cause leaks
and water intrusion which may
cause damage to the taillamp. Do
not remove the taillamp assembly
to replace a bulb. Use the trunk
opening to access the bulb.
The stoplamp/taillamp and trunkdeck inboard taillamp are LEDs. Toreplace, see your dealer.
Back-Up Lamp
1. Open the trunk. SeeTr u n k044.
2. Remove the push pins and pullback the trunk deck trim.
3. Remove the bulb socket byturning counterclockwise andpulling straight out.
4. Remove the bulb from thesocket.
5. Install the new bulb in the bulbsocket.
6. Install the bulb socket byturning clockwise.
7. Install the trunk deck trim.
License Plate Lamp
To r e p l a c e o n e o f t h e s e b u l b s :
Passenger Side Shown, Driver
Side Similar
1. Push the release tab towardthe lamp assembly.
2. Pull the lamp assembly downto remove.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 309
3. Turn the bulb socketcounterclockwise to remove itfrom the lamp assembly.
4. Pull the bulb straight out of thebulb socket.
5. Push the replacement bulbstraight into the bulb socketand turn the bulb socketclockwise to install it into thelamp assembly.
6. Push the lamp assembly backinto position until the releasetab locks into place.

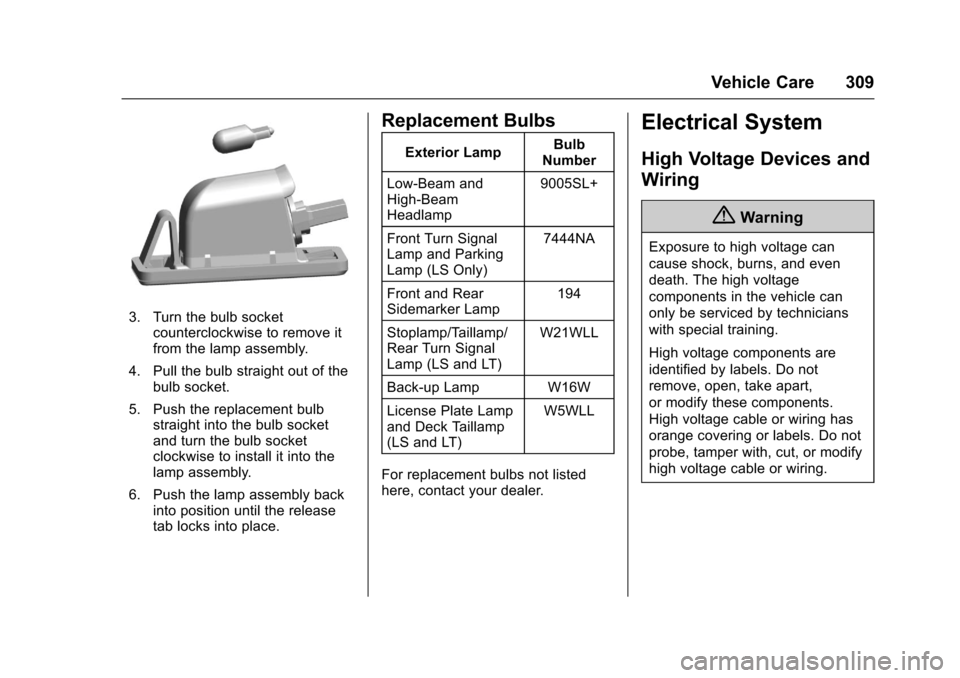

Replacement Bulbs
Exterior LampBulbNumber
Low-Beam andHigh-BeamHeadlamp
9005SL+
Front Turn SignalLamp and ParkingLamp (LS Only)
7444NA
Front and RearSidemarker Lamp194
Stoplamp/Taillamp/Rear Turn SignalLamp (LS and LT)
W21WLL
Back-up Lamp W16W
License Plate Lampand Deck Taillamp(LS and LT)
W5WLL
For replacement bulbs not listedhere, contact your dealer.
Electrical System
High Voltage Devices and
Wiring
{Warning
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering or labels. Do not
probe, tamper with, cut, or modify
high voltage cable or wiring.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
310 Vehicle Care

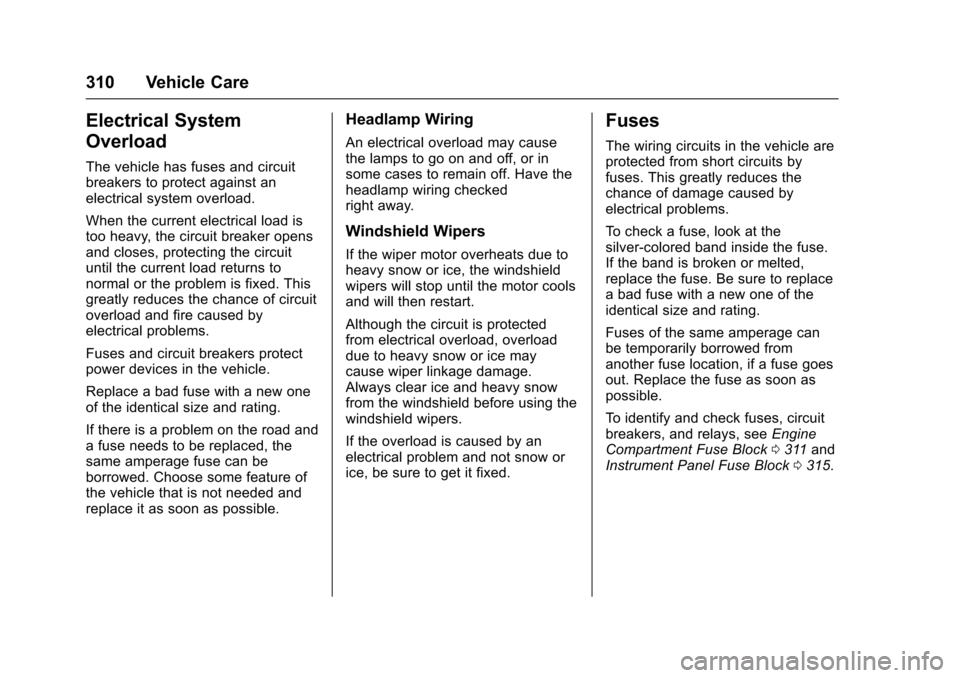

Electrical System
Overload
The vehicle has fuses and circuitbreakers to protect against anelectrical system overload.
When the current electrical load istoo heavy, the circuit breaker opensand closes, protecting the circuituntil the current load returns tonormal or the problem is fixed. Thisgreatly reduces the chance of circuitoverload and fire caused byelectrical problems.
Fuses and circuit breakers protectpower devices in the vehicle.
Replace a bad fuse with a new oneof the identical size and rating.
If there is a problem on the road andafuseneedstobereplaced,thesame amperage fuse can beborrowed. Choose some feature ofthe vehicle that is not needed andreplace it as soon as possible.
Headlamp Wiring
An electrical overload may causethe lamps to go on and off, or insome cases to remain off. Have theheadlamp wiring checkedright away.
Windshield Wipers
If the wiper motor overheats due toheavy snow or ice, the windshieldwipers will stop until the motor coolsand will then restart.
Although the circuit is protectedfrom electrical overload, overloaddue to heavy snow or ice maycause wiper linkage damage.Always clear ice and heavy snowfrom the windshield before using thewindshield wipers.
If the overload is caused by anelectrical problem and not snow orice, be sure to get it fixed.
Fuses
The wiring circuits in the vehicle areprotected from short circuits byfuses. This greatly reduces thechance of damage caused byelectrical problems.
To c h e c k a f u s e , l o o k a t t h esilver-colored band inside the fuse.If the band is broken or melted,replace the fuse. Be sure to replaceabadfusewithanewoneoftheidentical size and rating.
Fuses of the same amperage canbe temporarily borrowed fromanother fuse location, if a fuse goesout. Replace the fuse as soon aspossible.
To i d e n t i f y a n d c h e c k f u s e s , c i r c u i tbreakers, and relays, seeEngineCompartment Fuse Block0311andInstrument Panel Fuse Block0315.

Chevrolet Malibu Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-10122664) - 2017 - crc - 5/23/16
Vehicle Care 311

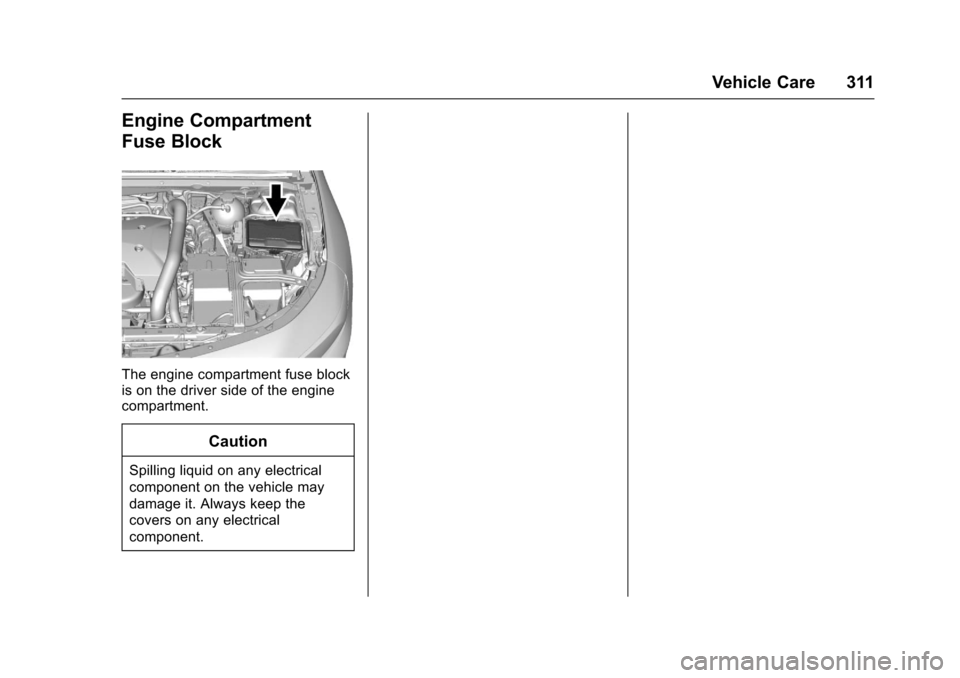

Engine Compartment
Fuse Block
The engine compartment fuse blockis on the driver side of the enginecompartment.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the
covers on any electrical
component.
